Komatsu Diesel Engine 3D82/84/88AE, 4D88/98/106E, S4D84/98/106E Shop Manual PDF

We provide you with Shop Manual with complete material that will help you correct use and technical maintenance for the Komatsu Diesel Engine 3D82/84/88AE, 4D88/98/106E, S4D84/98/106E models. Electronic tutorial contains several sections about inspection and adjustment, troubleshooting, disassembly, service standard, safety rules, technical data, setting, many diagrams, illustrations, charts, and tables.

You should read all sections before use and pay special attention to the section "Safety rules" in order to avoid technical breakdowns and serious injuries. This is an indexed pdf factory file that includes 280 pages of important information with many illustrations and diagrams, especially for the Komatsu Diesel Engine 3D82/84/88AE, 4D88/98/106E, S4D84/98/106E models. In order to view, save, and print the necessary Komatsu product - we recommend installing the Adobe PDF Reader program. You can contact us if you have any questions or need our help.

Models:
3D82AE SERIES
3D84E SERIES
3D88E SERIES
4D88E SERIES
4D98E SERIES
4D106 SERIES
S4D84E SERIES
S4D98E SERIES
S4D106 SERIES

Table of Contents:

1. General

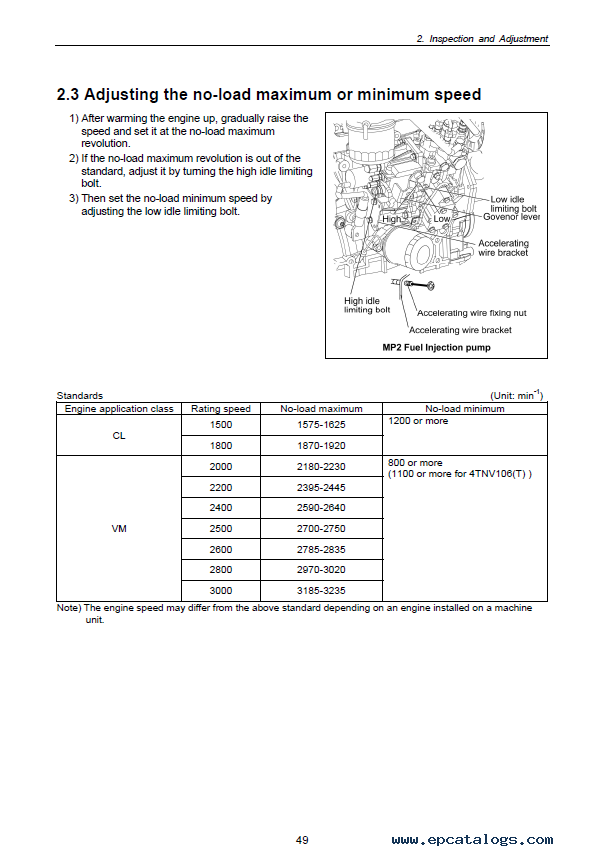

2. Inspection and Adjustment
3. TROUBLESHOOTING
4. Disassembly, Inspection, and Reassembly of Engines
5. LUBRICATION SYSTEM
6. COOLING SYSTEM
7. FUEL INJECTION PUMP/GOVERNOR
8. TURBOCHARGER: Disassembly, inspection, and reassembly

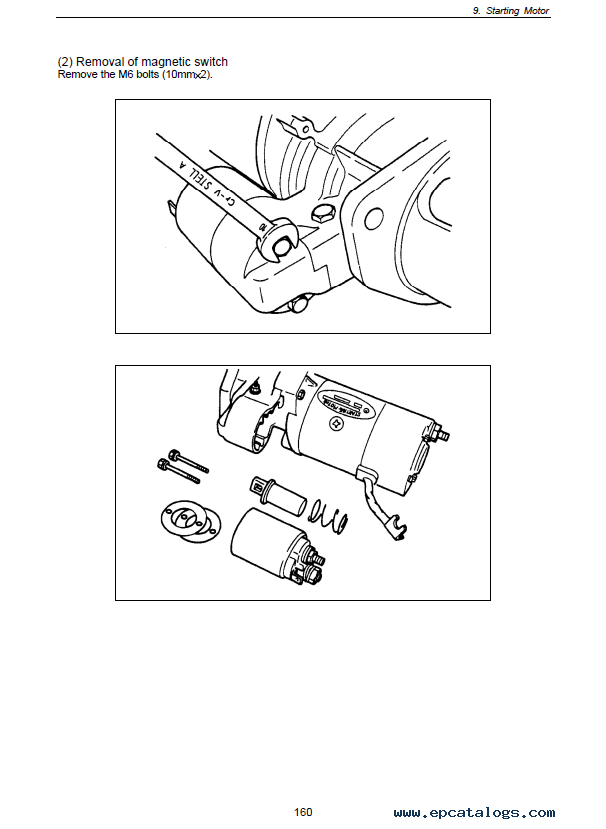

9. STARTING MOTOR
10. ALTERNATOR
11. ELECTRIC WIRING
12. SERVICE STANDARDS
13. TIGHTENING TORQUE for BOLTS and NUTS
