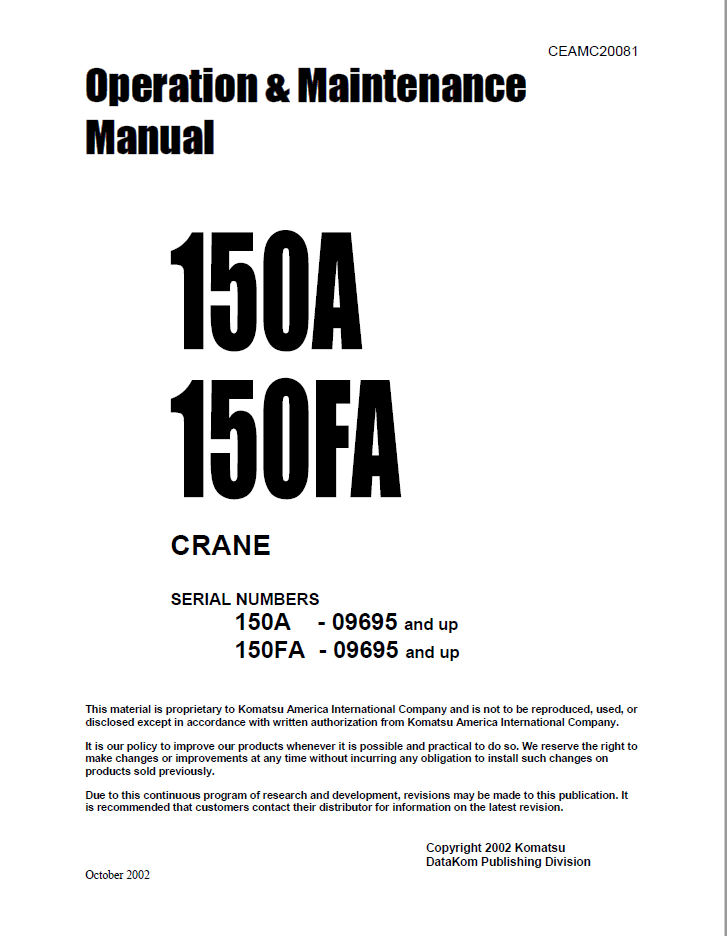

Komatsu Crane 150A, 150FA Operation and Maintenance Manual PDF

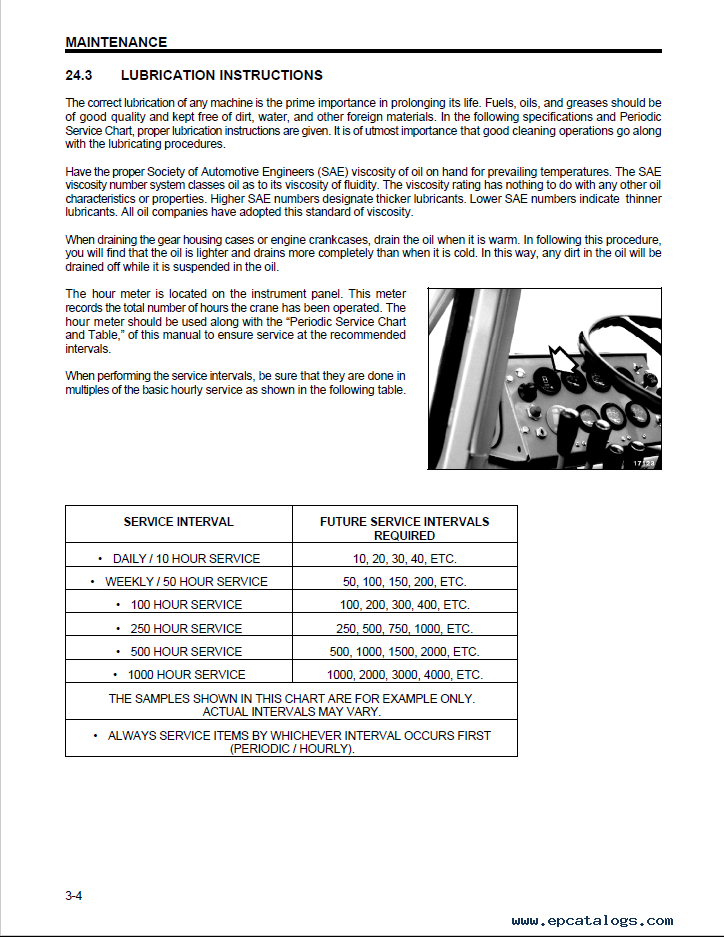

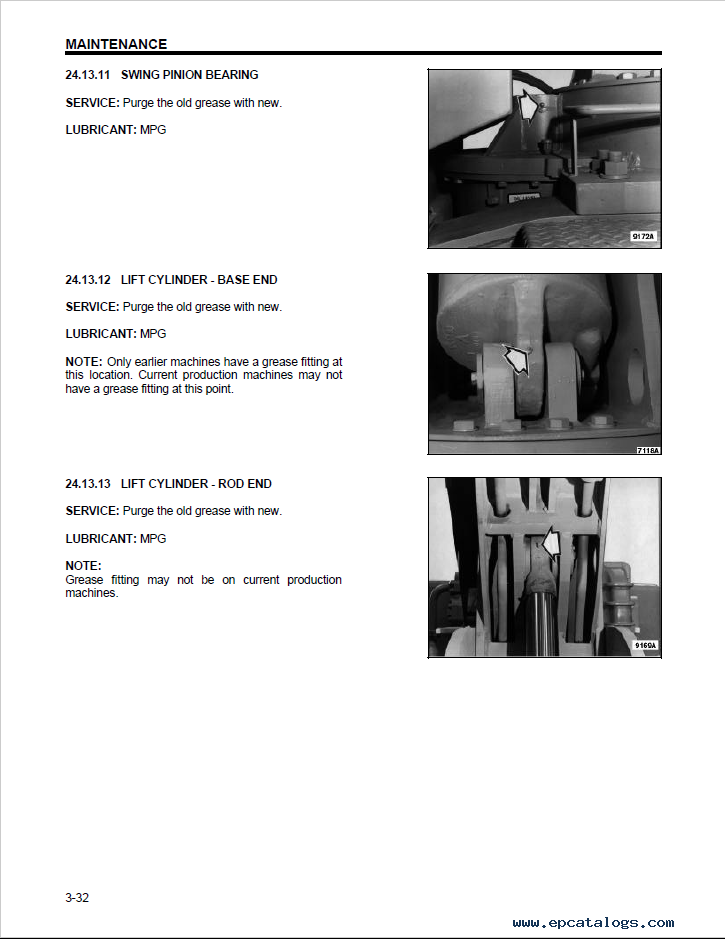

The Operation and Maintenance Manual was written especially for specialists who use and work with Komatsu Crane 150A, 150FA models. This tutorial will help you how to properly use and navigate through this electronic guide without wasting time. In this factory file, you will find all the types of information about safety precautions, preparation for use, operation instruction, specifications, the system section, service procedure, technical data, troubleshooting, and so on. Also has photos with descriptions, detailed diagrams, schemes, and tables that will help you visually examine this device in parts.

Before using this technic, it is important to familiarize yourself with each section, especially to pay attention to the safety section. This indexed PDF file with the search function and the ability to make bookmarks so that you can easily find and save the necessary material and not lose it. An online text comes in PDF format with 213 pages for reading. All you need, that use this book - to install the application Adobe PDF Reader.

SERIAL NUMBERS
150A - 09695 and up
150FA - 09695 and up

Table of Contents:

1. FORWARD
2. GENERAL
3. INTENDED USE
4. P.I.N. LOCATION
5. TABLE OF CONTENTS
6. SAFETY PRECAUTIONS
7. PRE-UNLOADING CHECKS
8. MACHINE TRANSPORT
9. MACHINE STORAGE
10. PREPARING FOR OPERATION
11. THEFT-DETERRENT PRACTICES
12. PREPARATION FOR USE
13. UNIVERSAL SYMBOLS
14. OPERATIONAL CONTROLS AND INSTRUMENTATION
15. BEFORE STARTING ENGINE
16. ENTERING THE OPERATOR’S CAB
17. START-UP PROCEDURE
18. ENGINE WARM-UP
19. ENGINE SHUTDOWN
20. APPLICATION
21. UNUSUAL OPERATING CONDITIONS
22. OPERATING AUXILIARY/OPTIONAL ACCESSORIES
23. STOWABLE JIB AND GANTRY - 20 FOOT (6.1 M)
24. PRECAUTIONS FOR LUBRICATION
25. FUEL, COOLANT, AND LUBRICANTS ACCORDING TO AMBIENT TEMPERATURE
26. OIL SPECIFICATIONS
27. BOOM HOSE REPLACEMENT
28. BOOM WEAR PAD SUPPORT ADJUSTMENT
29. HYDRAULIC SYSTEM CARE
30. COOLING SYSTEM
31. TORQUE CONVERTER OIL COOLER
32. VENTING AND PRIMING THE ENGINE
33. ENGINE CRANKCASE VENTILATION
34. ELECTRICAL SYSTEM
35. BATTERIES
36. SERVICE BRAKE ADJUSTMENT
37. HOIST AND SWING BRAKE OPERATION
38. PARKING BRAKE ADJUSTMENT
39. RETRACT REEL- SPRING MOTOR
40. ROTARY JOINT DRIVE SCREWS
41. TIRES
42. CLUTCH PACK PRESSURE CHECKS
43. WIRE ROPE
50. GENERAL DESCRIPTION
51. METRIC CONVERSIONS
52. TORQUE VALUES
53. SPECIFIC BOLT TORQUES
