John Deere TeamMate II 1200, 1400, 1600 Series Inboard Planetary Axles CTM43 PDF

The PDF Component Technical Manual covers the recommended repair procedure for the John Deere TeamMate II 1200, 1400, and 1600 Series Inboard Planetary Axles. This guide is written for an experienced technician. Essential tools required in performing certain service work are identified in this manual and are recommended for use.

Information is organized in groups for the various components requiring service instruction. At the beginning of each group are summary listings of all applicable essential tools, service equipment, tools, other materials needed to do the job, service parts kits, specifications, wear tolerances, and torque values.

You can study this pdf manual using screenshots and a list of content, which is presented in the manual description. You can also follow the link 'John Deere pdf manual instant preview', and preview the pages of this manual.

Buying this technical manual is very simple and fast: you need to click on the 'Buy Now' button and follow the further instructions. After payment of the pdf instruction, you will receive a download link. You are downloading a PDF document that works with applications such as Adobe Acrobat Reader, Foxit Reader, etc. For your convenience, you can print the manual, use it as a service handbook and store it directly near the equipment.

Models covered:
TeamMate II
1200, 1400, 1600 Series

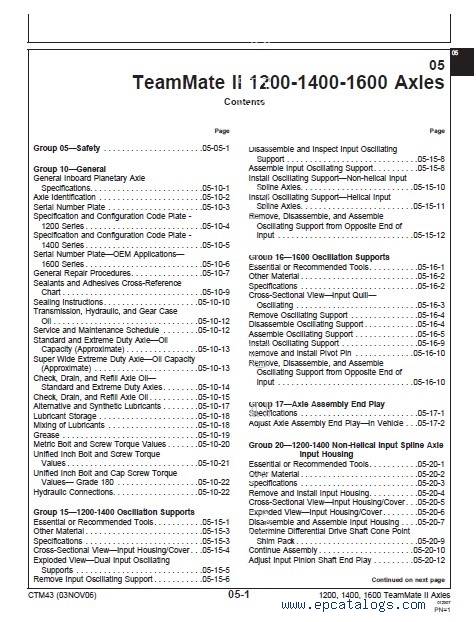

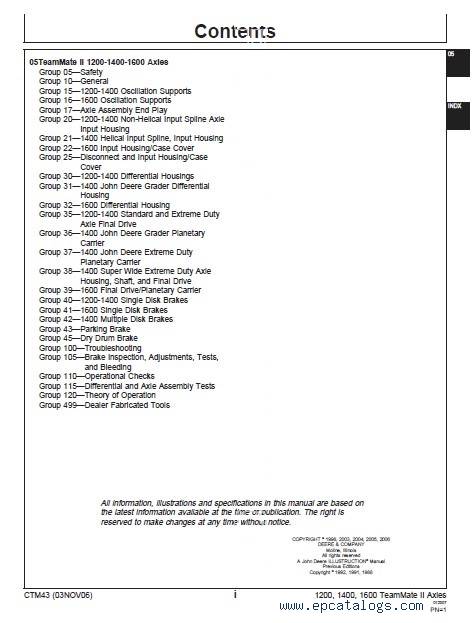

Contents:
Group 05—Safety
Group 10—General
Group 15—1200-1400 Oscillation Supports
Group 16—1600 Oscillation Supports
Group 17—Axle Assembly End Play
Group 20—1200-1400 Non-Helical Input Spline Axle Input Housing
Group 21—1400 Helical Input Spline, Input Housing
Group 22—1600 Input Housing/Case Cover
Group 25—Disconnect and Input Housing/Case Cover
Group 30—1200-1400 Differential Housings

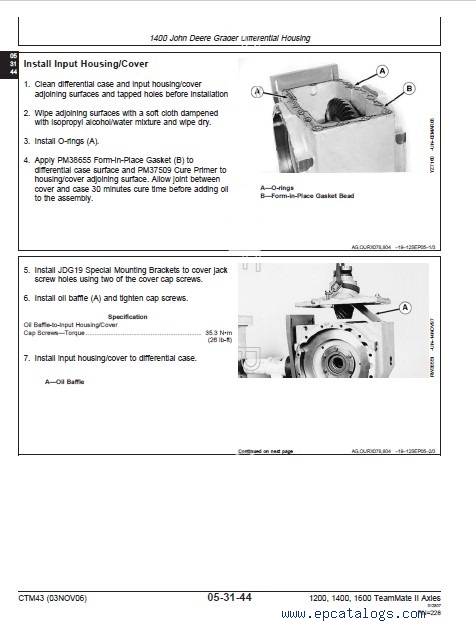

Group 31—1400 John Deere Grader Differential Housing
Group 32—1600 Differential Housing
Group 35—1200-1400 Standard and Extreme Duty Axle Final Drive
Group 36—1400 John Deere Grader Planetary Carrier
Group 37—1400 John Deere Extreme Duty Planetary Carrier
Group 38—1400 Super Wide Extreme Duty Axle Housing, Shaft, and Final Drive
Group 39—1600 Final Drive/Planetary Carrier

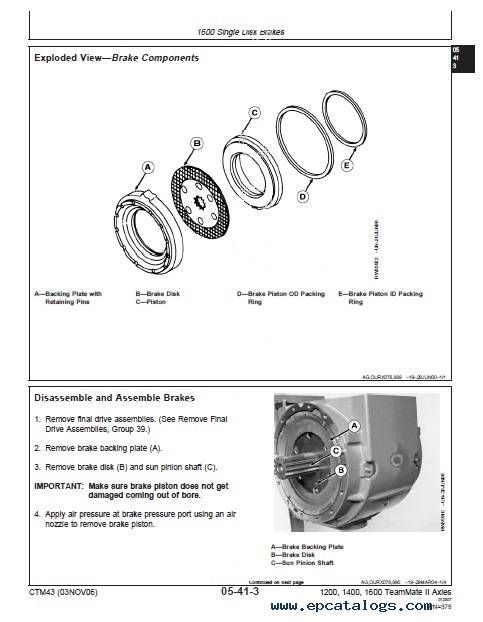

Group 40—1200-1400 Single Disk Brakes
Group 41—1600 Single Disk Brakes
Group 42—1400 Multiple Disk Brakes
Group 43—Parking Brake
Group 45—Dry Drum Brake
Group 100—Troubleshooting
Group 105—Brake Inspection, Adjustments, Tests, and Bleeding
Group 110—Operational Checks
Group 115—Differential and Axle Assembly Tests
Group 120—Theory of Operation
Group 499—Dealer Fabricated Tools
