John Deere Mechanical Front-Wheel-Drive Axles 1100 Series CTM17 PDF

This component technical manual provides detailed service information, operating and maintenance instructions, special instructions, service documentation and any additional information for mechanical front wheel drive axles John Deere 1100 series.
Component technical manual is a program that runs on a PC. To work with the program you need to install the application Adobe PDF Reader. This manual is a scanned PDF file.
Maintenance instruction is a manuals of care in operation and maintenance, which allows you to identify and resolve problems and inaccuracies.

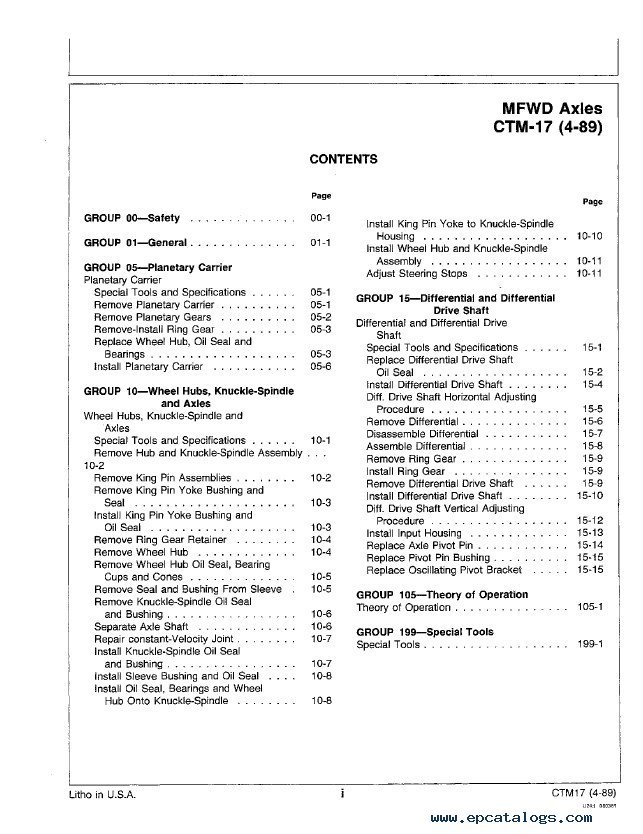

Contents:

• Group 00 - Safety
• Group 01 - General
• Group 05 - Planetary Carrier
  • Special Tools and Specifications
  • Remove Planetary Carrier
  • Remove Planetary Gears
  • Remove-Install Ring Gear
  • Replace Wheel Hub, Oil Seal and Bearings
  • Install Planetary Carrier
• Group 10 - Wheel Hubs, Knuckle-Spindle and Axles
  • Special Tools and Specifications
  • Remove Hub and Knuckle-Spindle Assembly
  • Remove King Pin Assemblies
  • Remove King Pin Yoke Bushing and Seal
  • Install King Pin Yoke Bushing and Oil Seal
  • Remove Ring Gear Retainer
  • Remove Wheel Hub
  • Remove Wheel Hub Oil Seal, Bearings Cups and Cones
  • Remove Seal and Bushing From Sleeve
  • Remove Knuckle-Spindle Oil Seal and Bushing
  • Separate Axle Shaft
  • Repair Constant-Velocity Joint
  • Install Knuckle-Spindle Oil Seal and Bushing
  • Install Sleeve Bushing and Oil Seal
  • Install Oil Seal, Bearings and Wheel Hub Onto Knuckle-Spindle
  • Install King Pin Yoke to Knuckle-Spindle Housing
  • Install Wheel Hub and Knuckle-Spindle Assembly
  • Adjust Steering Stops
• Group 15 - Differential and Differential Drive Shaft
  • Special Tools and Specifications
  • Replace Differential Drive Shaft Oil Seal
  • Install Differential Drive Shaft
  • Differential Drive Shaft Horizontal Adjusting Procedure
  • Remove Differential
  • Disassemble Differential
  • Assemble Differential
  • Remove Ring Gear
  • Install Ring Gear
  • Remove Differential Drive Shaft
  • Install Differential Drive Shaft
  • Differential Drive Shaft Vertical Adjusting Procedure
  • Install Input Housing
  • Replace Axle Pivot Pin
  • Replace Pivot Pin Bushing
  • Replace Oscilating Pivot Bracket
• Group 105 - Theory of Operation
  • Theory of Operation
• Group 199 - Special Tools
  • Special Tools
