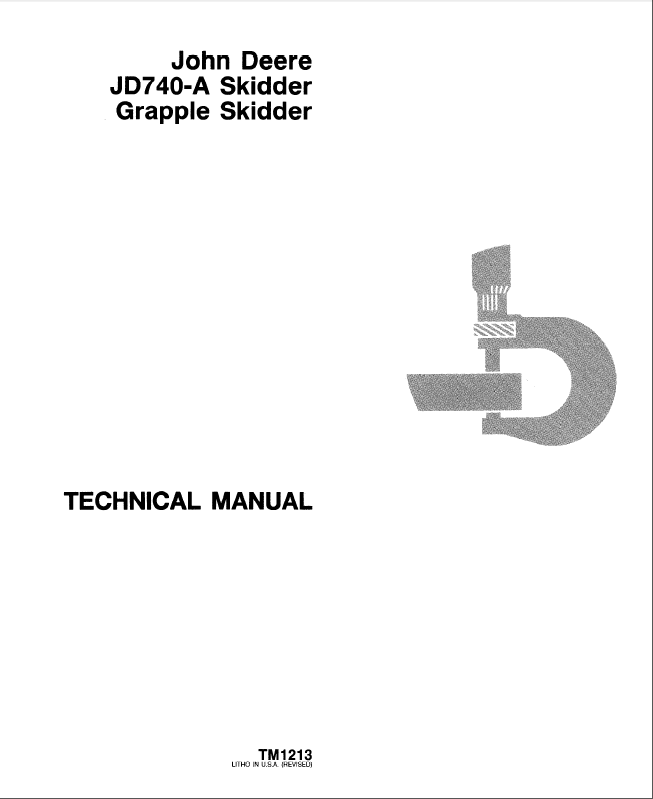

John Deere JD740-A Grapple Skidder TM1213 Technical Manual PDF

The technical manual contains detailed service and repair information, special instructions for repair and maintenance, schematics and diagrams, troubleshooting and other additional information for John Deere grapple skidder JD740-A.
Technical manual to detect and resolve problems arising and uncertainties.
This technical manual is a file PDF, which contains 1066 pages, any one of which can be printed easily. We recommend using Adobe PDF Reader, to be sure all images/graphics will display correctly.

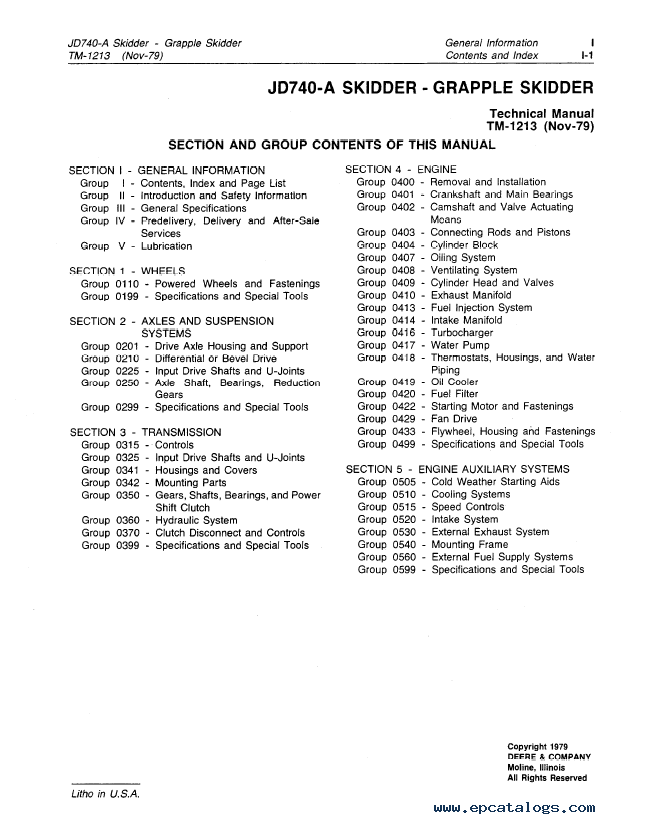

SECTION AND GROUP CONTENTS OF THIS MANUAL:

• GENERAL INFORMATION
  • Group I - Contents, Index, and Page List
  • Group II - Introduction and Safety Information
  • Group III - General Specifications

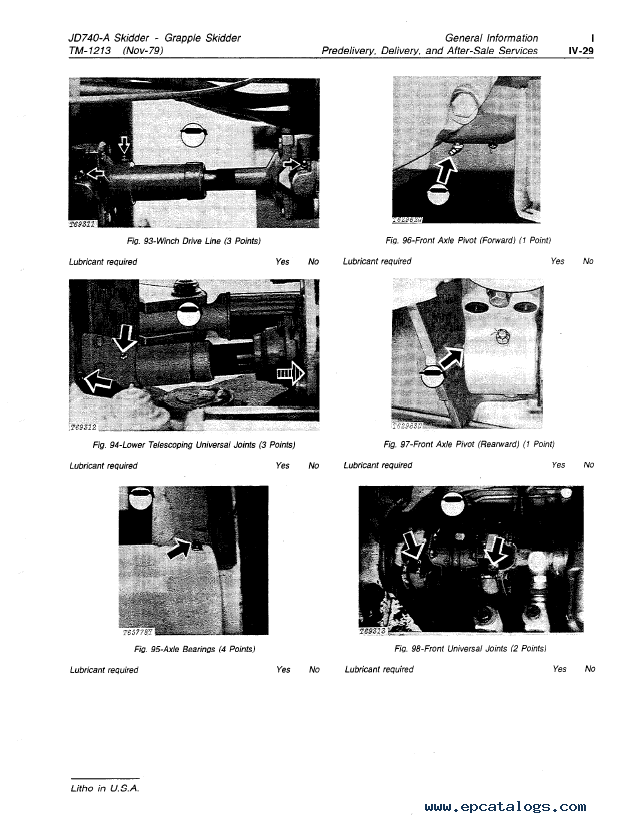

  • Group IV - Predelivery, Delivery and After-Sale Services
  • Group V - Lubrication
• WHEELS
  • Group 0110 - Powered Wheels and Fastenings
  • Group 0199 - Specifications and Special Tools
• AXLES AND SUSPENSION SYSTEMS
  • Group 0201 - Drive Axle Housing and Support

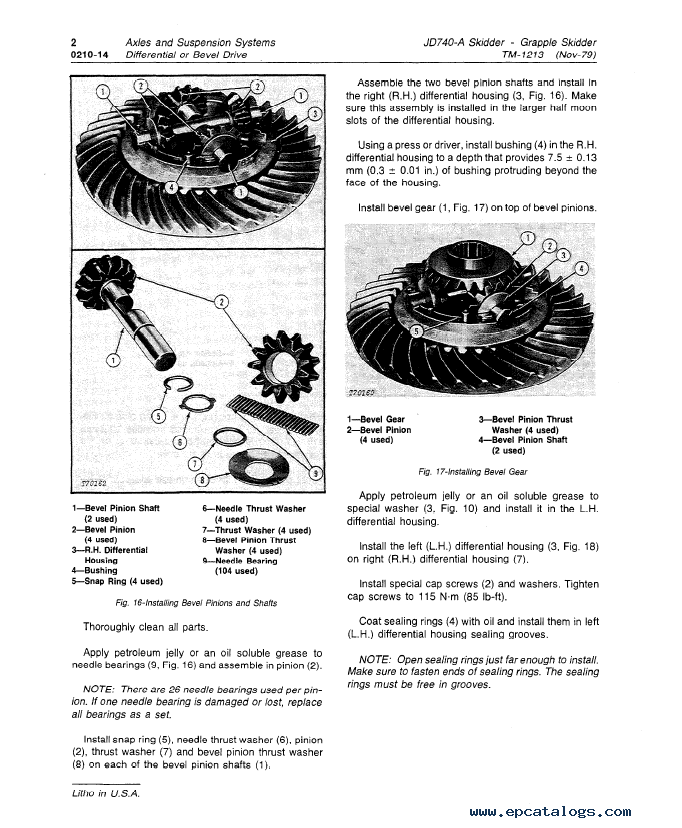

  • Group 0210 - Differential or Bevel Drive
  • Group 0225 - Input Drive Shafts and U-Joints
  • Group 0250 - Axle Shafts, Bearing, Reduction Gears
  • Group 0299 - Specifications and Special Tools
• TRANSMISSION
  • Group 0315 - Controls
  • Group 0325 - Input Drive Shafts and U-Joints
  • Group 0341 - Housings and Covers
  • Group 0342 - Mounting Parts
  • Group 0350 - Gears, Shafts, Bearing and Power Shift Clutch
  • Group 0360 - Hydraulic System
  • Group 0370 - Clutch Disconnect and Controls
  • Group 0399 - Specifications and Special Tools
• ENGINE
  • Group 0400 - Removal and Installation
  • Group 0401 - Crankshaft and Main Bearings
  • Group 0402 - Camshaft and Valve Actuating Means
  • Group 0403 - Connecting Rods and Pistons
  • Group 0404 - Cylinder Block
  • Group 0407 - Oiling System
  • Group 0408 - Ventilating System
  • Group 0409 - Cylinder Head and Valves
  • Group 0410 - Exhaust Manifold

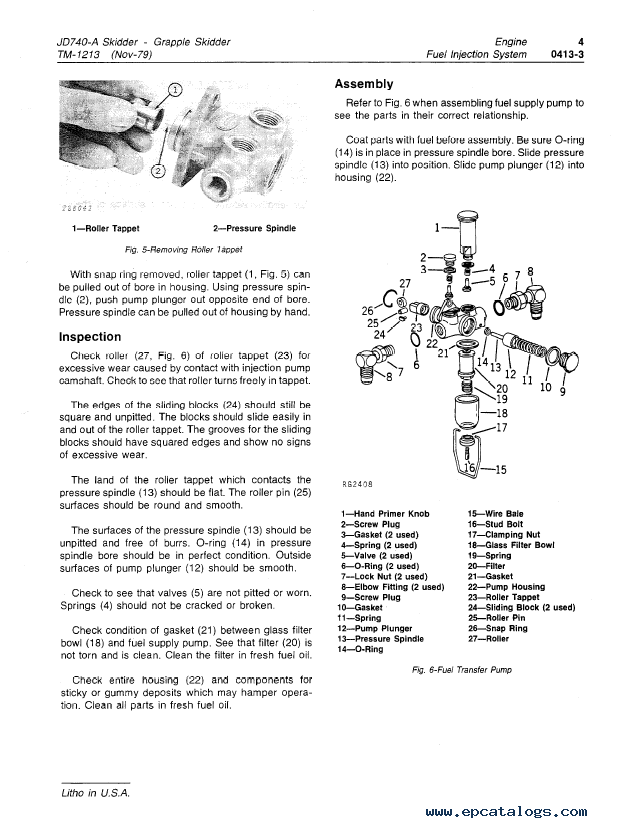

  • Group 0413 - Fuel Injection System
  • Group 0414 - Intake Manifold
  • Group 0416 - Turbocharger
  • Group 0417 - Water Pump
  • Group 0418 - Thermostats, Housing and Water Piping
  • Group 0419 - Oil Cooler
  • Group 0420 - Fuel Filter
  • Group 0422 - Starting Motor and Fastenings
  • Group 0429 - Fan Drive
  • Group 0433 - Flywheel, Housing and Fastenings
  • Group 0499 - Specifications and Special Tools
•  ENGINE AUXILIARY SYSTEMS
  • Group 0505 - Cold Weather Starting Aids
  • Group 0510 - Cooling Systems
  • Group 0515 - Speed Controls
  • Group 0520 - Intake System
  • Group 0530 - External Exhaust System
  • Group 0540 - Mounting Frame
  • Group 0560 - External Fuel Supply Systems
  • Group 0599 - Specifications and Special Tools
• TORQUE CONVERTER
  • Group 0641 - Housing and Cover
  • Group 0651 - Turbine, Gears, Shaft, etc.
  • Group 0660 - Hydraulic System
  • Group 0699 - Specifications and Special Tools
• STEERING SYSTEM
  • Group 0930 - Emergency Steering
  • Group 0960 - Hydraulic System
  • Group 0999 - Specifications and Special Tools
• SERVICE BRAKES
  • Group 1011 - Active Elements
  • Group 1015 - Controls Linkage
  • Group 1060 - Hydraulic System
  • Group 1099 - Specifications and Special Tools
• PARKING-EMERGENCY BRAKES
  • Group 1111 - Active Elements
  • Group 1115 - Controls Linkage
  • Group 1199 - Specifications and Special Tools
• ELECTRICAL SYSTEMS
  • Group 1671 - Batteries, Support and Cables
  • Group 1672 - Alternator, Regulator and Charging System Wiring
  • Group 1673 - Lighting System
  • Group 1674 - Wiring Harness and Switches

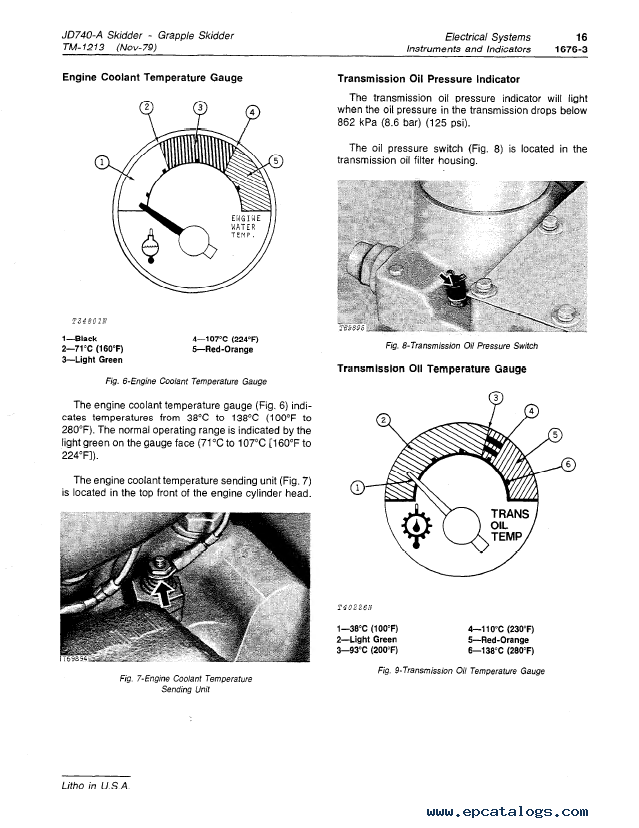

  • Group 1676 - Instruments and Indicators
  • Group 1699 - Specifications and Special Tools
• FRAME, CHASSIS OR SUPPORTING STRUCTURE
  • Group 1740 - Frame Installation
  • Group 1746 - Frame Bottom Guards
  • Group 1799 - Specifications and Special Tools
• OPERATOR'S STATION
  • Group 1810 - Operator Enclosure
  • Group 1821 - Seat and Seat Belt
  • Group 1830 - Heating and Air Conditioning
• SHEET METAL AND STYLING
  • Group 1910 - Hood or Engine Enclosure
  • Group 1921 - Grille and Grille Housing
• SAFETY, CONVENIENCE AND MISCELLANEOUS
  • Group 2003 - Fire Extinguishers
  • Group 2004 - Horn
  • Group 2006 - Cigar Lighter
• MAIN HYDRAULIC SYSTEM
  • Group 2160 - Hydraulic System
  • Group 2199 - Specifications and Special Tools
• WINCH
  • Group 3015 - Controls Linkage
  • Group 3041 - Housing and Mounting Structure

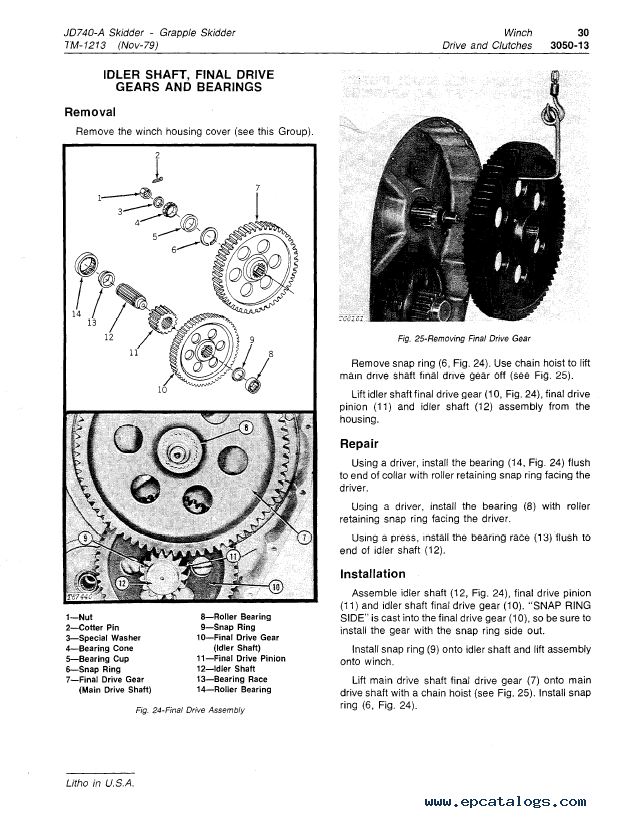

  • Group 3050 - Drive and Clutches
  • Group 3060 - Hydraulic System
  • Group 3099 - Specifications and Special Tools
• BULLDOZER
  • Group 3201 - Blade
  • Group 3215 - Controls Linkage
  • Group 3260 - Hydraulic System
  • Group 3299 - Specifications and Special Tools
• ARCH OR BOOM
  • Group 3740 - Frames
  • Group 3799 - Specifications and Special Tools
• GRAPPLE
  • Group 3803 - Grapple Mechanism
  • Group 3815 - Controls Linkage
  • Group 3860 - Hydraulic System
  • Group 3899 - Specifications and Special Tools
• PTO OR WINCH DRIVE
  • Group 4025 - Input Drive Shaft
  • Group 4099 - Specifications and Special Tools
• SYSTEM TESTING
  • Group 9005 - General Information
  • Group 9010 - Engine
  • Group 9015 - Electrical System

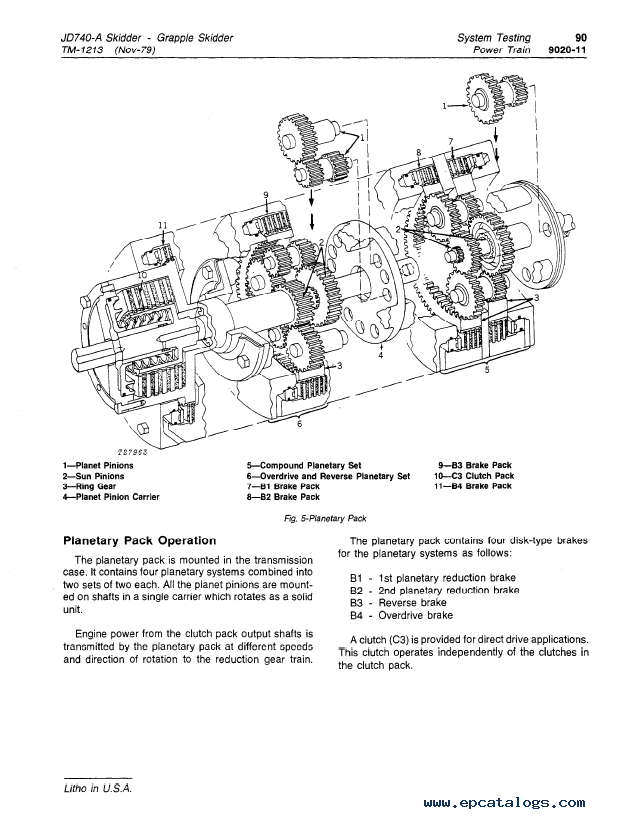

  • Group 9020 - Power Train
  • Group 9025 - Hydraulic System (Flow Meter)
  • Group 9030 - Miscellaneous Components
  • Group 9031 - Heating and Air Conditioning
  • Group 9035 - Specifications and Special Tools
