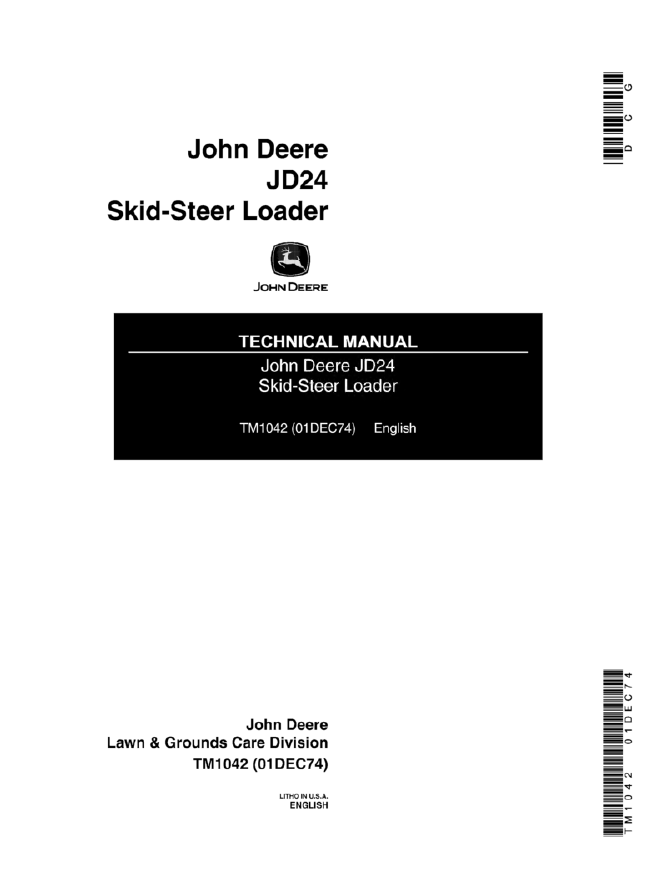

John Deere JD24 Skid Steer Loader Technical Manual TM1042 PDF

This technical manual contains detailed maintenance information, detailed documentation on repair, repair manual, service manuals, technical specifications, charts and diagrams for skid steer loaders John Deere.
The program is designed to run on a personal computer. This manual comes in PDF. To view the information you must have the program Adobe Reader.
The interface of program is quite easy to use and makes it easy and simple to find the service information you  need.
This manual is a system of care in operation and maintenance of skid steer loaders John Deere, which allows to detect and eliminate problems encountered and inaccuracies.

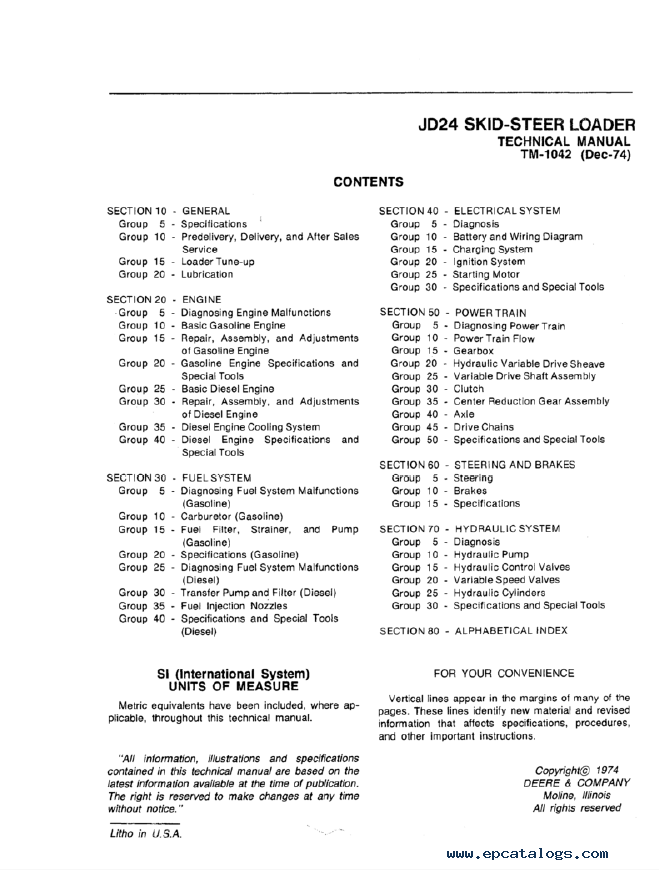

CONTENTS:

• SECTION 10 - GENERAL
  • Group 5 - Specifications
  • Group 10 - Predelivery, Delivery, and After Sales Service
  • Group 15 - Loader Tune-up
  • Group 20 - Lubrication
• SECTION 20 - ENGINE
  • Group 5 - Diagnosing Engine Malfunctions
  • Group 10 - Basic Gasoline Engine
  • Group 15 - Repair, Assembly, and Adjustments of Gasoline Engine
  • Group 20 - Gasoline Engine Specifications and Special Tools
  • Group 25 - Basic Diesel Engine
  • Group 30 - Repair, Assembly, and Adjustments of Diesel Engine
  • Group 35 - Diesel Engine Cooling System
  • Group 40 - Diesel Engine Specifications and Special Tools
• SECTION 30 - FUEL SYSTEM
  • Group 5 - Diagnosing Fuel System Malfunctions (Gasoline)
  • Group 10 - Carburator (Gasoline)
  • Group 15 - Fuel Filter, Strainer, and Pump (Gasoline)
  • Group 25 - Diagnosing Fuel System Malfunctions (Diesel)
  • Group 30 - Transfer Pump and Filter (Diesel)
  • Group 35 - Fuel Injection Nozzles
  • Group 40 - Specifications and Special Tools (Diesel)
• SECTION 40 - ELECTRICAL SYSTEM
  • Group 5 - Diagnosis
  • Group 10 - Battery and Wiring Diagram
  • Group 15 - Charging System
  • Group 20 - Ignition System
  • Group 25 - Starting Motor
  • Group 30 - Specifications and Special Tools
• SECTION 50 - POWER TRAIN
  • Group 5 - Diagnosing Power Train
  • Group 10 - Power Train Flow
  • Group 15 - Gearbox
  • Group 20 - Hydraulic Variable Drive Sheave
  • Group 25 - Variable Drive Shaft Assembly
  • Group 30 - Clutch
  • Group 35 - Center Reduction Gear Assembly
  • Group 40 - Axle
  • Group 45 - Drive Chains
  • Group 50 - Specifications and Special Tools
• SECTION 60 - STEERING AND BRAKES
  • Group 5 - Steering
  • Group 10 - Brakes
  • Group 15 - Specifications
• SECTION 70 - HYDRAULIC SYSTEM
  • Group 5 - Diagnosis
  • Group 10 - Hydraulic Pump
  • Group 15 - Hydraulic Control Valves
  • Group 20 - Variable Speed Valves
  • Group 25 - Hydraulic Cylinders
  • Group 30 - Specifications and Special Tools
• SECTION 80 - ALPHABETICAL INDEX
