John Deere Farm Loaders Technical Manual TM1298

Technical manual provides detailed service information, operating instructions and maintenance, special instructions for repair and maintenance, service documentation and any additional information that is presented specifically for the maintenance farm loaders John Deere.
Repair manual contains detailed electrical schematics and diagrams that help to carry out installation or removal of any parts of farm loaders John Deere.
Program is designed to work on a personal computer or laptop. The program comes in PDF. For work with manual you need to install the application Adobe PDF Reader.
Service manual allows you to perform diagnostic tests, identify and resolve your problem and inaccuracies.

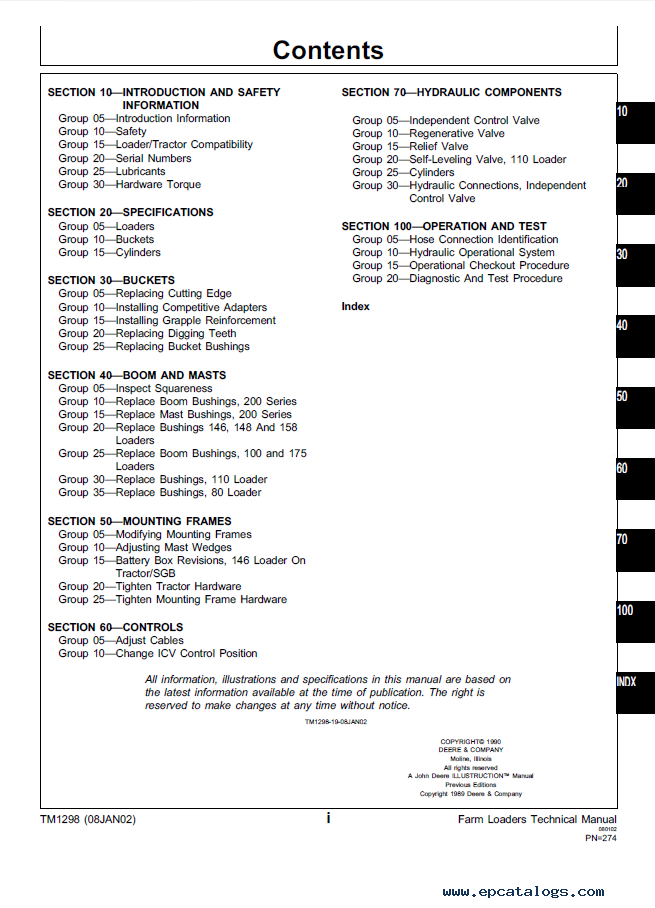

CONTENTS:

• SECTION 10 - INTRODUCTION AND SAFETY INFORMATION
  • Group 05 - Introduction Information
  • Group 10 - Safety
  • Group 15 - Loader / Tractor Compatibility
  • Group 20 - Serial Numbers
  • Group 25 - Lubricants
  • Group 30 - Hardware Torque
• SECTION 20 - SPECIFICATIONS
  • Group 05 - Loaders
  • Group 10 - Buckets
  • Group 15 - Cylinders
• SECTION 30 - BUCKETS
  • Group 05 - Replacing Cutting Edge
  • Group 10 - Installing Competitive Adapters
  • Group 15 - Installing Grapple Reinforcement
  • Group 20 - Replacing Digging Teeth
  • Group 25 - Replacing Bucket Bushings
• SECTION 40 - BOOM AND MASTS
  • Group 05 - Inspect Squareness
  • Group 10 - Replace Boom Bushings, 200 Series
  • Group 15 - Replace Mast Bushings, 200 Series
  • Group 20 - Replace Bushings 146, 148 And 158 Loaders
  • Group 25 - Replace Boom Bushings, 100 and 175 Loaders
  • Group 30 - Replace Bushings, 110 Loader
  • Group 35 - Replace Bushings, 80 Loader
• SECTION 50 - MOUNTING FRAMES
  • Group 05 - Modifying Mounting Frames
  • Group 10 - Adjusting Mast Wedges
  • Group 15 - Battery Box Revisions, 146 Loader On Tractor / SGB
  • Group 20 - Tighten Tractor Hardware
  • Group 25 - Tighten Mounting Frame Hardware
• SECTION 60 - CONTROLS
  • Group 05 - Adjust Cables
  • Group 10 - Change ICV Control Position
• SECTION 70 - HYDRAULIC COMPONENTS

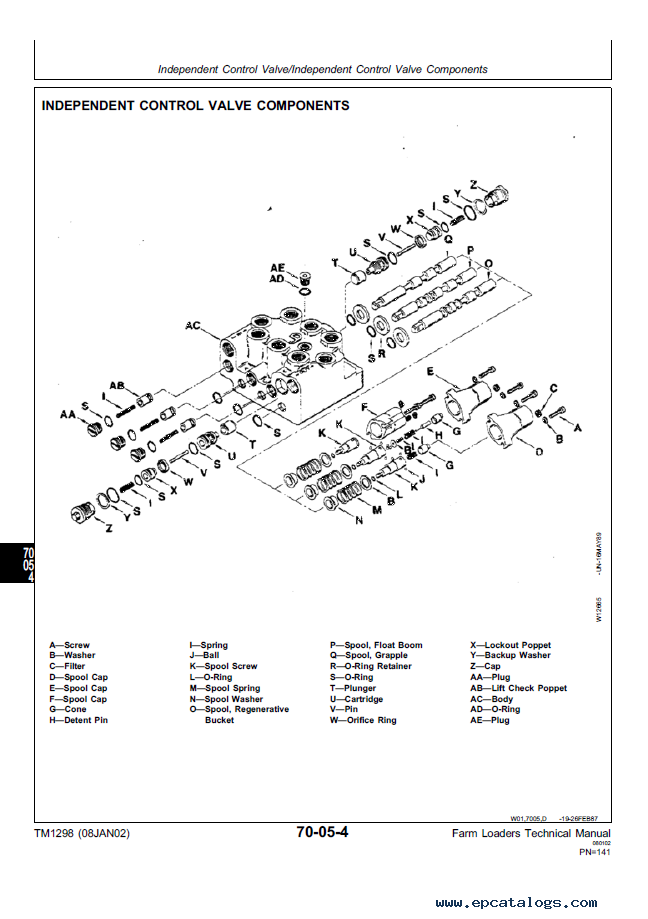

  • Group 05 - Independent Control Valve

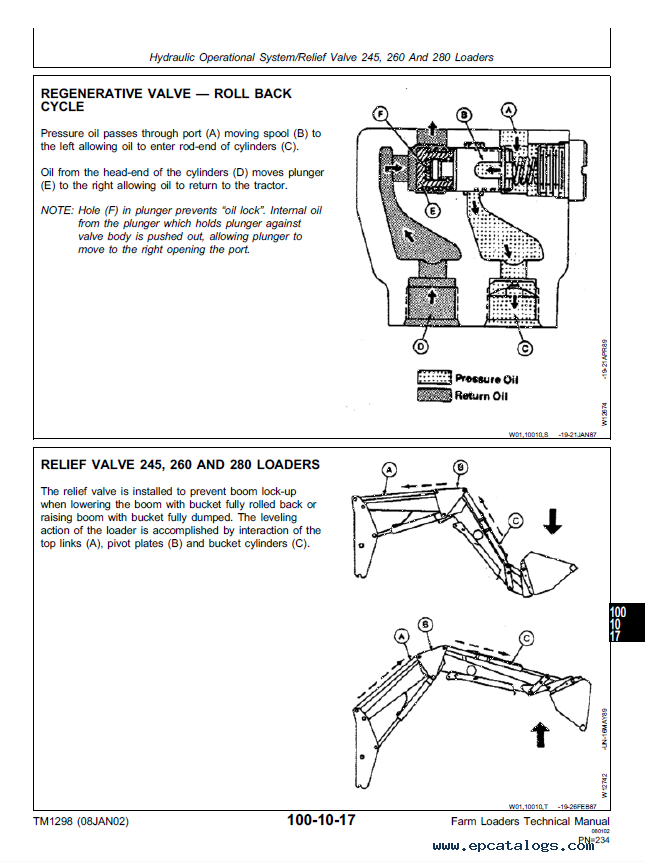

  • Group 10 - Regenerative Valve
  • Group 15 - Relief Valve
  • Group 20 - Self-Leveling Valve, 110 Loader

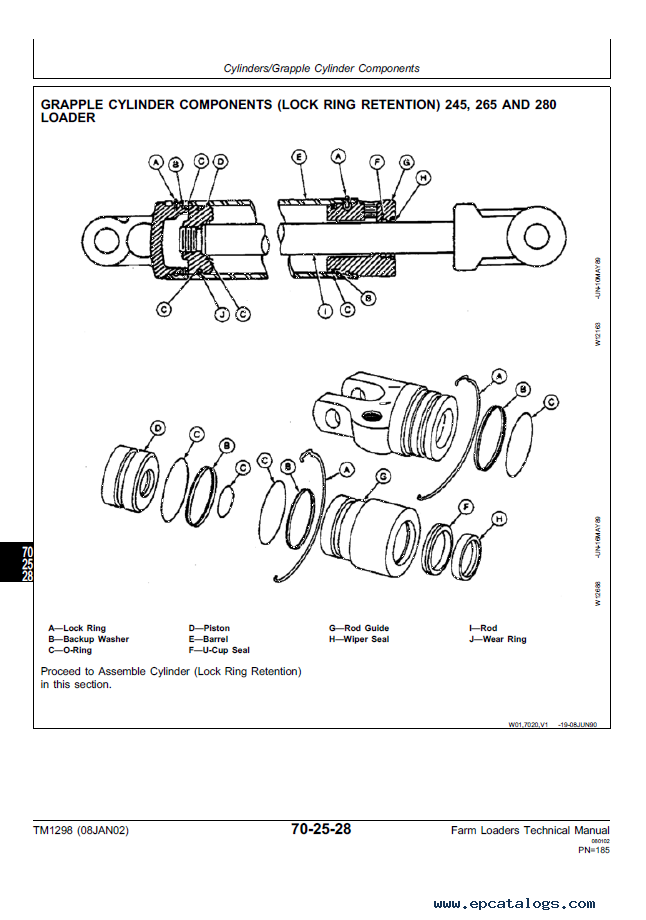

  • Group 25 - Cylinders
  • Group 30 - Hydraulic Connections, Independent Control Valve
• SECTION 100 - OPERATION AND TEST
  • Group 05 - Hose Connection Identification

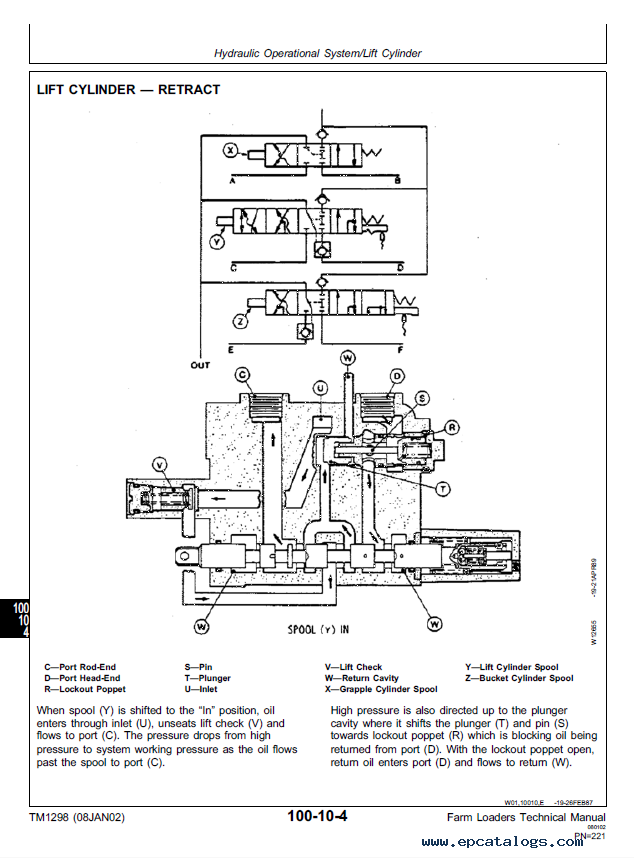

  • Group 10 - Hydraulic Operational System
  • Group 15 - Operational Checkout Procedure
  • Group 20 - Diagnostic And Test Procedure
• Index
