John Deere 9.0L Diesel Engines Level 14 Electronic Fuel System CTM385 PDF

This component technical manual covers only Level 14 Electronic Fuel System with Denso High Pressure Common Rail (HPCR).

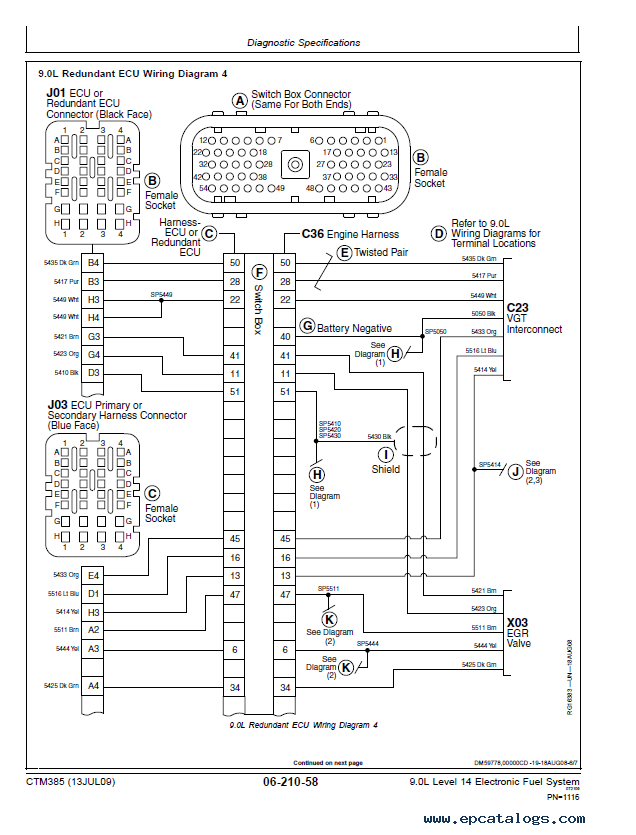

This manual contains detailed service information, special instructions for repair and maintenance, wiring diagrams, other additional information for diesel engines John Deere 9.0L.
This manual is in PDF format. We recommend to use Adobe PDF Reader, to be sure all images / graphics will display correctly.

For complete service information also see:

• TM1575 - Tractors 8100, 8200, 8300, 8400, 8110, 8210, 8410 Repair
• CTM4687 - Front Wheel Drive Axles AS, MS Series
• CTM4820 - Front-Wheel Drive Axles 700 Series
• CTM104 - PowerTech™ 4.5L & 6.8L Diesel Engines—Base Engine
• CTM104 - PowerTech™ 4.5L & 6.8L, 4045 and 6068 Diesel Engines
• CTM320 - PowerTech™ Plus 4.5L and 6.8L Diesel Engines-Level 14 Electronic Fuel System with Denso HPCR
• TM1796 - Tractors 8110, 8210, 8310, 8410 Diagnostic

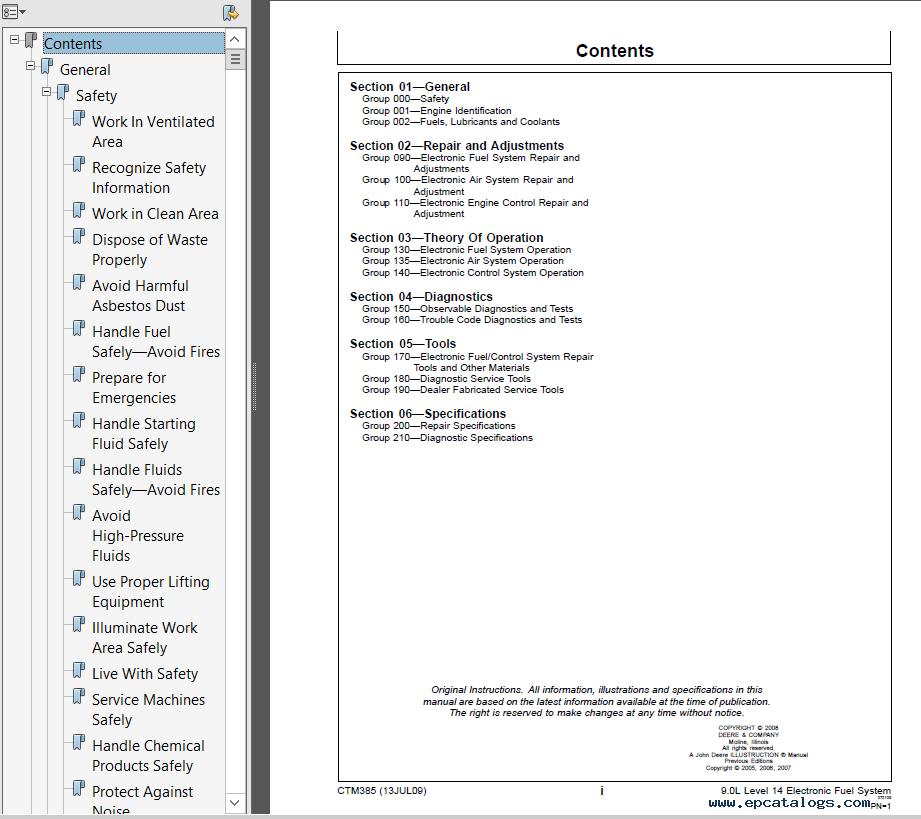

Contents:

• Section 01—General
  • Group 000—Safety
  • Group 001—Engine Identification
  • Group 002—Fuels, Lubricants and Coolants
• Section 02—Repair and Adjustments
  • Group 090—Electronic Fuel System Repair and Adjustments
  • Group 100—Electronic Air System Repair and Adjustment
  • Group 110—Electronic Engine Control Repair and Adjustment
• Section 03—Theory Of Operation
  • Group 130—Electronic Fuel System Operation
  • Group 135—Electronic Air System Operation
  • Group 140—Electronic Control System Operation
• Section 04—Diagnostics

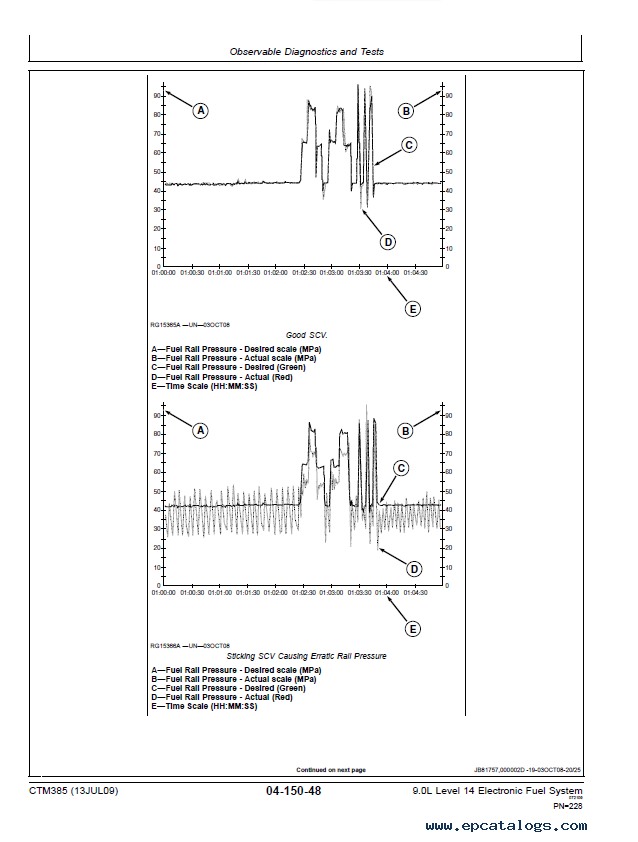

  • Group 150—Observable Diagnostics and Tests

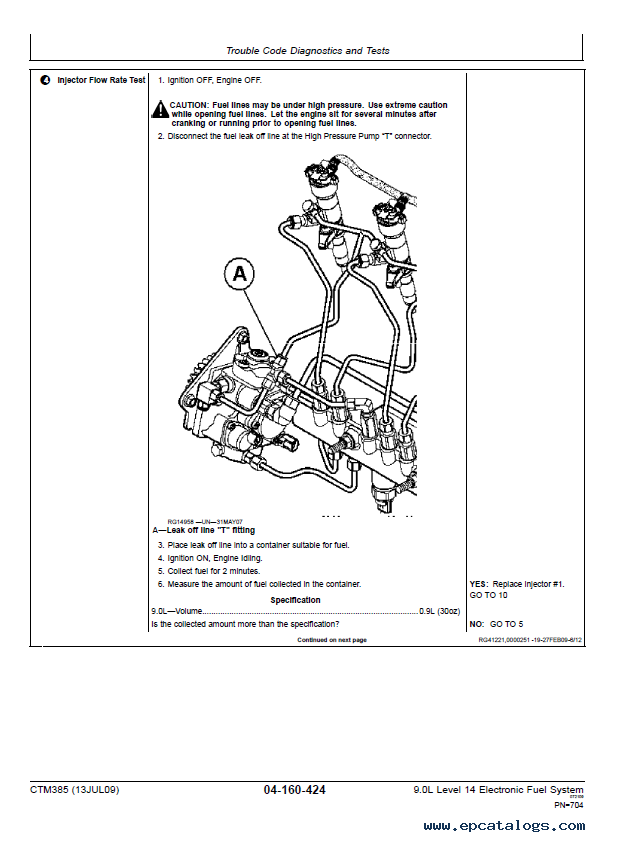

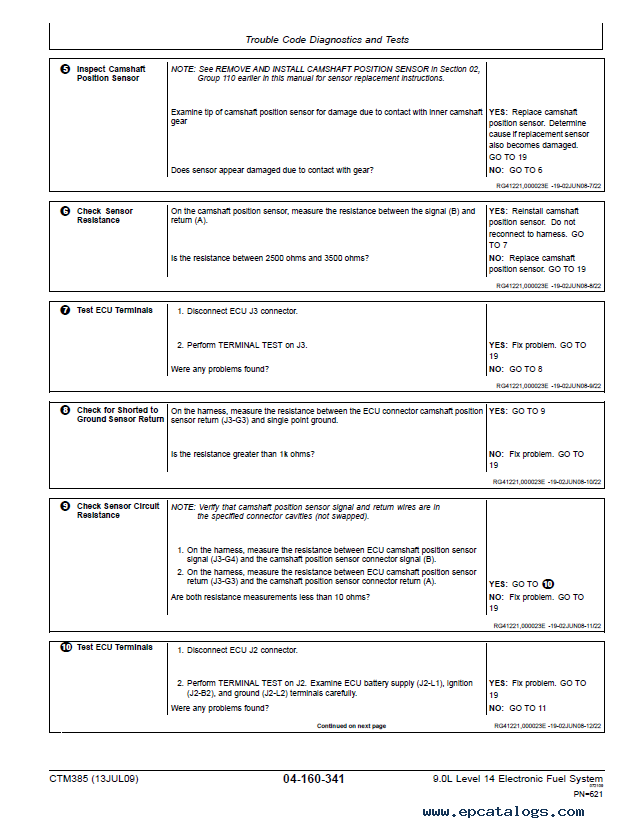

  • Group 160—Trouble Code Diagnostics and Tests
• Section 05—Tools
  • Group 170—Electronic Fuel/Control System Repair Tools and Other Materials
  • Group 180—Diagnostic Service Tools
  • Group 190—Dealer Fabricated Service Tools
• Section 06—Specifications
  • Group 200—Repair Specifications

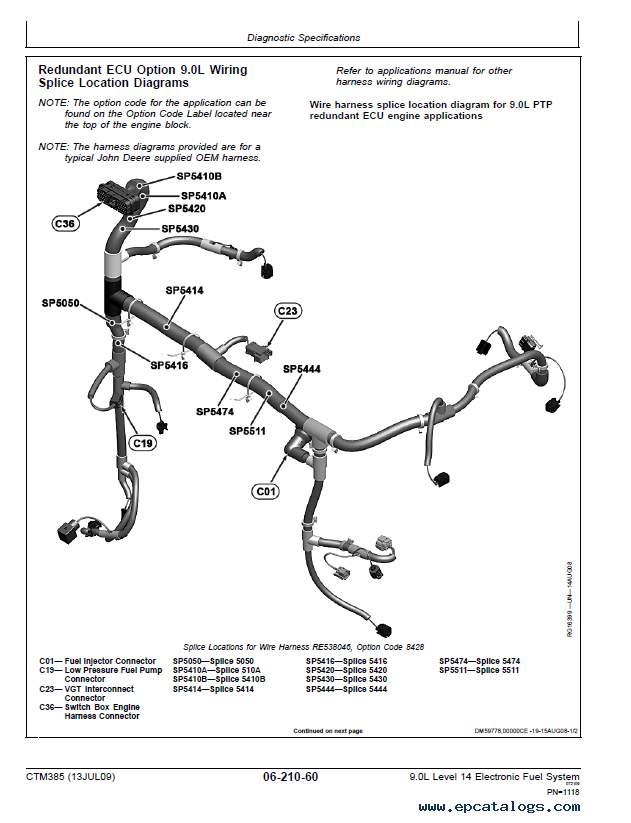

  • Group 210—Diagnostic Specifications
