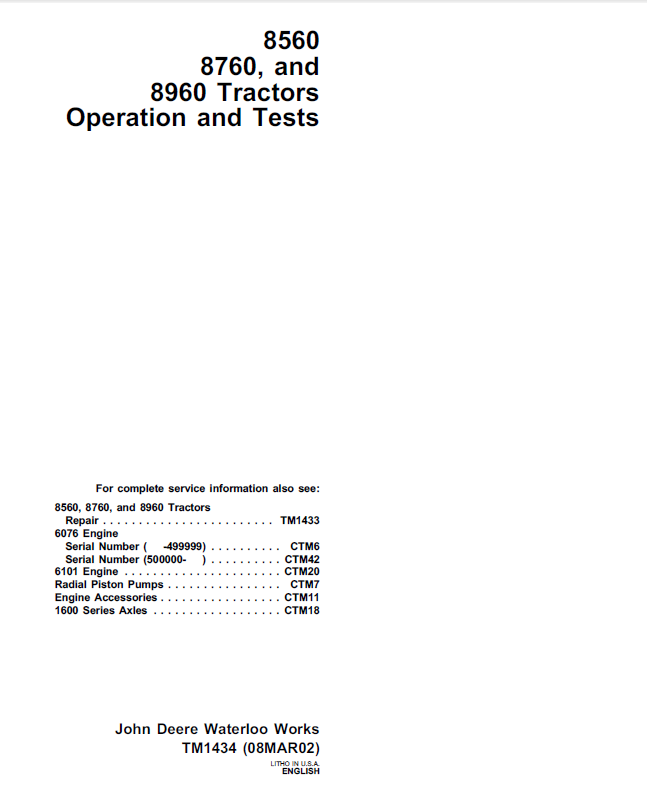

John Deere 8560, 8760, 8960 Tractors Operation and Tests TM1434 PDF

Technical manual contains detailed operation and tests information,  service instructions, description of service procedures, special instructions, troubleshoot and any additional information for John Deere tractors 8560, 8760, 8960.

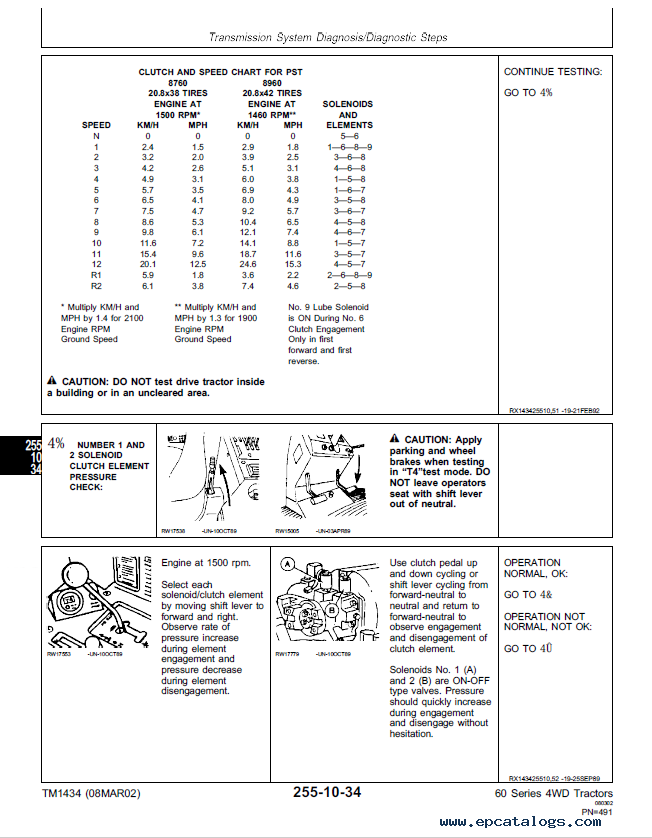

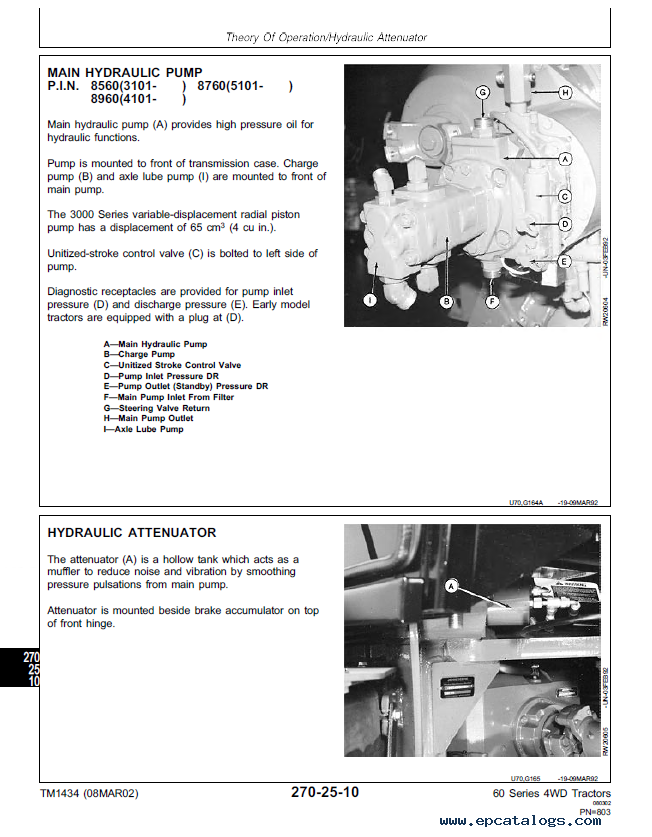

This manual includes detailed schematics and diagrams, which help determine the installation location spare parts, etc.
This technical manual comes in PDF format. We recommend to use Adobe PDF Reader, to be sure all images / graphics will display correctly.
Working with this manual, you can easily copy, save, and print the information you need. If necessary, you can print pages, pictures, charts, or the entire manual completely.

CONTENTS:

• SECTION 210 - GENERAL INFORMATION
  • Group 05 - Safety
  • Group 10 - Machine Operational Checks
  • Group 15 - General Reference Information
  • Group 20 - Test Equipment Calibration
• SECTION 220 - ENGINE OPERATION AND TESTS
  • Group 05 - General Information
  • Group 10 - System Diagnosis
  • Group 25 - Theory of Operation
• SECTION 230 - FUEL AND AIR OPERATION AND TESTS
  • Group 05 - Air Intake System
  • Group 10 - Diesel Fuel System
• SECTION 240 - ELECTRICAL OPERATION AND TESTS
  • Group 05 - Electrical System Introduction
  • Group 10 - Load Center, Fuses, Relays and Connectors
  • Group 15 - Preliminary Checks
  • Group 20 - Operational Checks
  • Group 25 - Starting Circuit
  • Group 30 - Charging Circuit
  • Group 35 - INTELLITRAK System-Tachometer Module
  • Group 40 - INTELLITRAK System-Performance Monitor
  • Group 45 - 24-Speed POWRSYNC Transmission
  • Group 50 - Power Shift Transmission
  • Group 55 - Electro-Hydraulic Hitch
  • Group 60 - Lighting Circuit
  • Group 65 - Accessory Circuits
• SECTION 250 - 12-SPEED SYNCRO & 24-SPEED POWRSYNC TRANSMISSION
  • Group 05 - Operational Checks
  • Group 10 - Transmission System Diagnosis
  • Group 25 - Theory of Operation
• SECTION 255 - POWER SHIFT TRANSMISSION
  • Group 05 - Operational Checks
  • Group 10 - Transmission System Diagnosis
  • Group 25 - POWER SHIFT Theory of Operation
• SECTION 256 - PTO, AXLES AND DIFFERENTIALS
  • Group 25 - Theory of Operation
• SECTION 260 - STEERING AND BRAKES
  • Group 05 - Operational Checks
  • Group 10 - System Diagnosis
  • Group 15 - Steering And Brake Tests
  • Group 25 - Theory of Operation
• SECTION 270 - HYDRAULIC SYSTEM
  • Group 05 - Operational Checks
  • Group 05A - Hitch Operational Checkout
  • Group 10 - Hydraulic System Diagnosis
  • Group 10A - Hitch System Diagnosis
  • Group 15 - Tests
  • Group 15A - Hitch System Tests
  • Group 25 - Theory of Operation
  • Group 25A - Hitch System Theory of Operation
• SECTION 290 - OPERATOR STATION
  • Group 05 - Air Quality System Operational Checks
  • Group 10 - Air Quality System Diagnosis
  • Group 25 - Theory of Operation
• SECTION 299 - DEALER FABRICATED TOOLS
  • Group 05 - Fabricated Tools
• INDEX
