John Deere 84 Loader Repair TM1398 Technical Manual PDF

[05/1990]


Type of catalogue:	repair manual
Make:	John Deere
Region:	WorldWide
Inclusive languages:	English
Amount of disks:	1 CD, PDF file, 367 pages
Availibility	Instant Download
OS:	Windows XP 32 bit, Windows 7 32 bit, Windows 7 64 bit, Windows 8/8.1 32 bit, Windows 8/8.1 64 bit, Windows 10 32 bit, Windows 10 64 bit, Windows 11 64 bit
Price, USD:	60

Technical manual provides detailed service and repair information, instructions for use and installation, special service instructions, designed to serve John Deere loader 84.
Technical manual allows to detect and eliminate problems encountered and inaccuracies.
This technical manual is designed to work on a personal computer with Windows & Mac. This manual is a file PDF, which contains 367 pages, any one of which we can be printed easily.
We recommend to use Adobe PDF Reader, to be sure all images / graphics will display correctly.

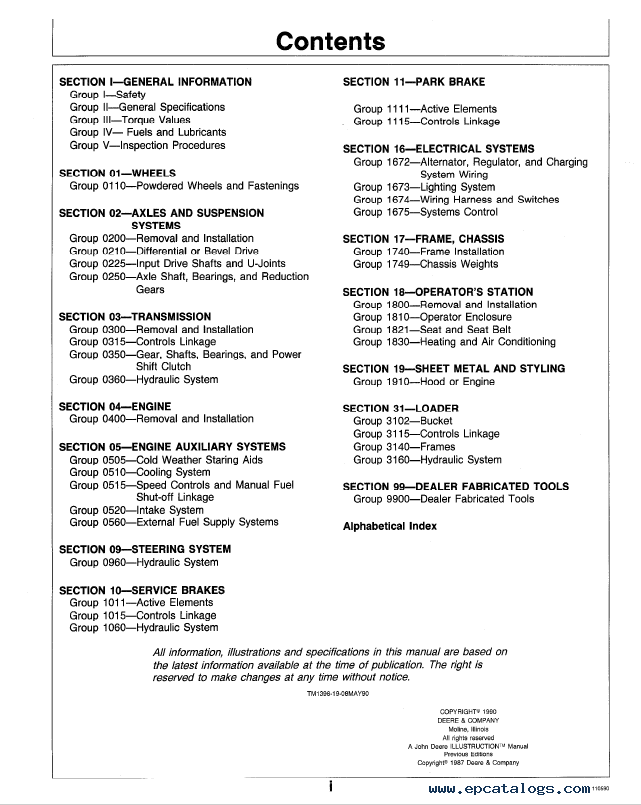

CONTENTS:

SECTION I - GENERAL INFORMATION
- Group I - Safety
- Group II - General Specifications
- Group III - Torque Values
- Group IV - Fuels and Lubricants
- Group V - Inspection Procedures
SECTION 01 - WHEELS
- Group 0110 - Powered Wheels and Fastenings
SECTION 02 - AXLES AND SUSPENSION SYSTEMS
- Group 0200 - Removal and Installation
- Group 0210 - Differential or Bevel Drive
- Group 0225 - Input Drive Shafts and U-Joints
- Group 0250 - Axle Shafts, Bearings and Reduction Gears
SECTION 03 - TRANSMISSION
- Group 0300 - Removal and Installation
- Group 0315 - Controls Linkage
- Group 0350 - Gear, Shafts, Bearings, and Power Shift Clutch
SECTION 04 - ENGINE
- Group 0400 - Removal and Installation
SECTION 05 - EGINE AUXILIARY SYSTEMS
- Group 0505 - Cold Weather Starting Aids
- Group 0510 - Cooling Systems
- Group 0515 - Speed Controls and Manual Fuel Shut-off Linkage
- Group 0520 - Intake System
- Group 0560 - External Fuel Supply Systems
SECTION 09 - STEERING SYSTEM
- Group 0960 - Hydraulic System
SECTION 10 - SERVICE BRAKES
- Group 1011 - Active Elements
- Group 1015 - Controls Linkage
- Group 1060 - Hydraulic System
SECTION 11 - PARK BRAKE
- Group 1111 - Active Elements
- Group 1115 - Controls Linkage
SECTION 16 - ELECTRICAL SYSTEMS
- Group 1672 - Alternator, Regulator and Charging System Wiring
- Group 1673 - Lighting System
- Group 1675 - Systems Control
SECTION 17 - FRAME, CHASSIS
- Group 1740 - Frame Installation
- Group 1749 - Chassis Weights
SECTION 18 - OPERATOR'S STATION
- Group 1800 - Removal and Installation
- Group 1810 - Operator Enclosure
- Group 1821 - Seat and Seat Belt
- Group 1830 - Heating and Air Conditioning
SECTION 19 - SHEET METAL AND STYLING
- Group 1910 - Hood or Engine
SECTION 31 - LOADER
- Group 3102 - Bucket
- Group 3115 - Controls Linkage
- Group 3140 - Frames
- Group 3160 - Hydraulic System
SECTION 33 - EXCAVATOR
- Group 3302 - Buckets
- Group 3340 - Frames
- Group 3360 - Hydraulic System
SECTION 99 - DEALER FABRICATED TOOLS
- Group 9900 - Dealer Fabricated Tools

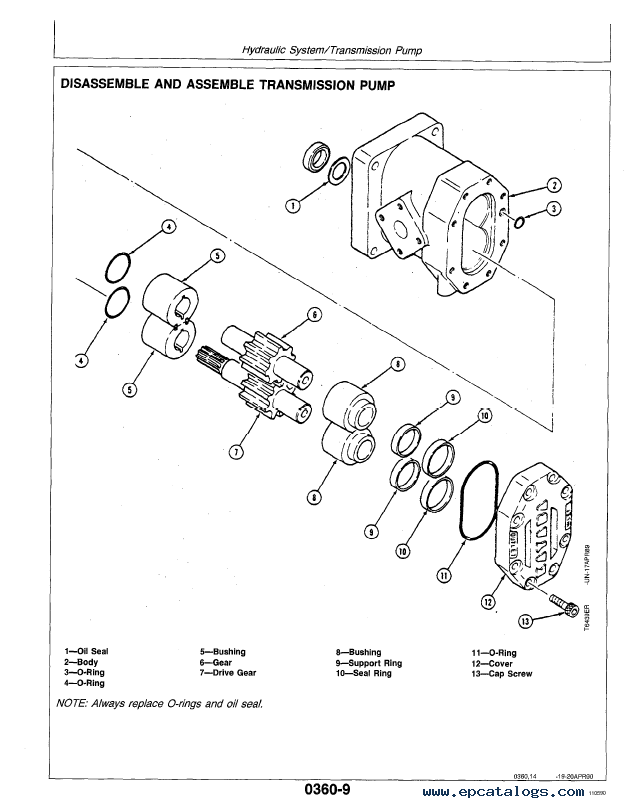

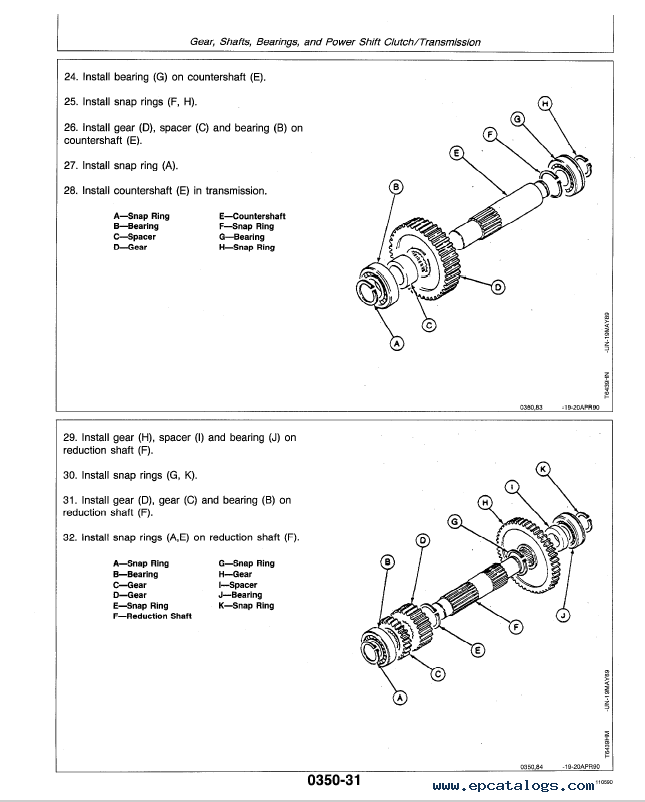

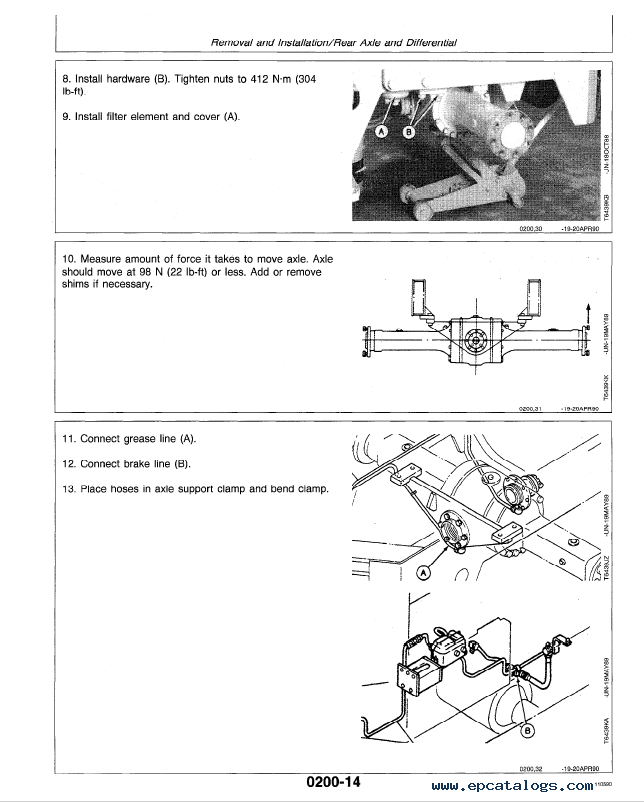

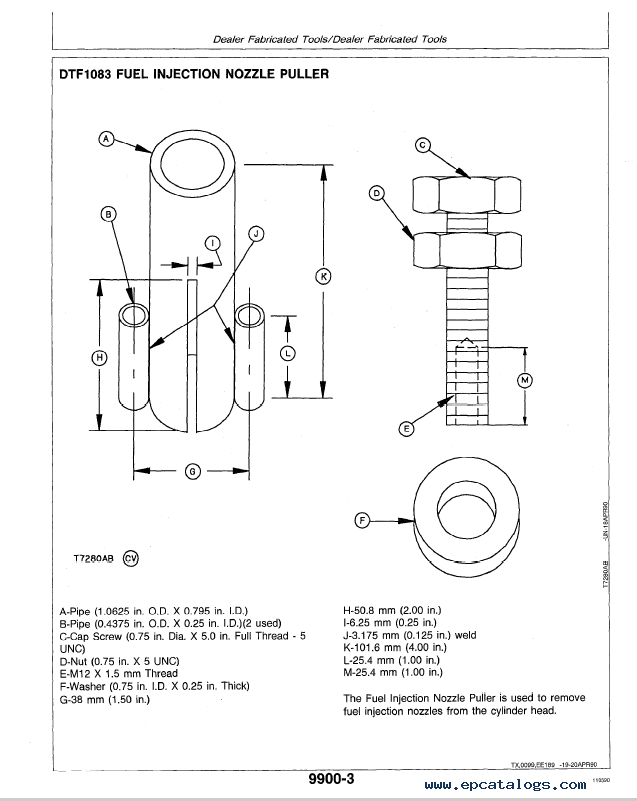

Screenshots for John Deere 84 Loader Repair TM1398 Technical Manual PDF:
