John Deere 750J, 850J Crawler Dozer Technical Manual PDF

This Technical Manual was written for correct use, maintenance and repair of the John Deere 750J, 850J Crawler Dozer models. Electronic guide provides sections with troubleshooting, operator instruction, overhaul, safety rules, removal and installation, system information, remove and install, the section about the tools and so on. In addition, the factory file includes repair recommendations, technical data, illustrations, many tables, different schemes, diagrams, and other general information for John Deere 750J, 850J Crawler Dozer models.

A preliminary reading of this tutorial will be the right decision as all the information is very important for the use of the equipment, and especially the section on safety. The Technical manual comes in PDF format, which includes 498 pages. If you decide to purchase this online guide for your device from us, all you need to do is press the buy button and within 5-10 minutes you will receive an email the letter with all the recommendations for installation and use. For convenience, we recommend using Adobe PDF Reader to ensure the correct display of all graphics. Any questions you have not understood, feel free to contact us. Our managers will be happy to answer all your questions.

Models: 750J, 850J Crawler Dozer

Table of Contents:

SECTION 00—General Information SECTION 18—Operator’s Station
Group 01—Safety Group 1800—Removal and Installation

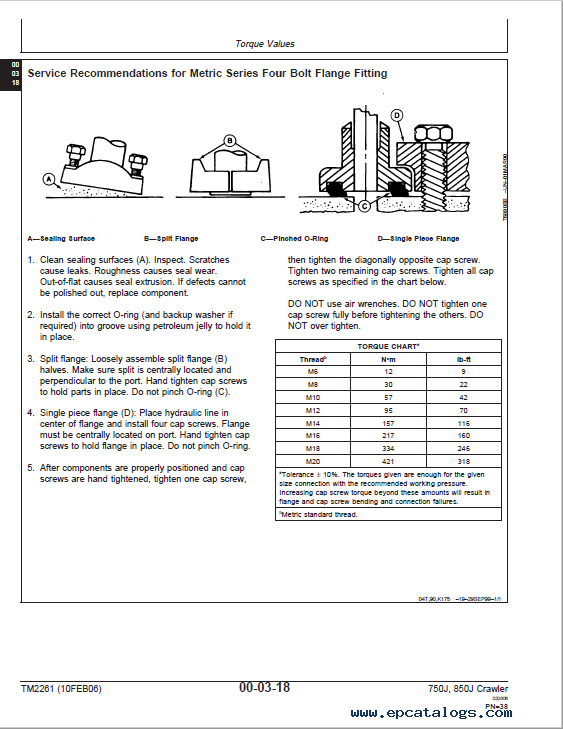

Group 03—Torque Values Group 1810—Operator Enclosure
Group 1821—Seat and Seat Belt
SECTION 01—Tracks Group 1830—Heating and Air Conditioning 01
Group 0130—Track System
SECTION 19—Sheet Metal
SECTION 02—Axles and Suspension Systems Group 1910—Hood and Engine Enclosures
Group 0201—Drive Axle Housing and Support
Group 0250—Axle Shaft, Bearings, and Reduction SECTION 20—Safety, Convenience and
Gears Miscellaneous
Group 2004—Horn and Warning Devices
SECTION 03—Transmission SECTION 32—Bulldozer
Group 0300—Remove and Install Group 3201—Blade
Group 0315—Control Linkage Group 3240—Frames
Group 0360—Hydrostatic System
02
Group 3260—Hydraulic System
SECTION 04—Engine SECTION 9900—Dealer Fabricated Tools
Group 0400—Removal and Installation Group 0999—Dealer Fabricated Tools
SECTION 05—Engine Auxiliary Systems
Group 0505—Cold Weather Starting Aid
Group 0510—Cooling System
Group 0515—Engine Speed Control
Group 0530—External Exhaust Systems
Group 0560—External Fuel Supply Systems
03
SECTION 07—Dampener Drive
Group 0752—Elements
SECTION 11—Park Brake
Group 1100—Park Brake
Group 1115—Control Linkage
Group 1160—Hydraulic System
SECTION 15—Equipment Attaching
Group 1511—Drawbar
04
Group 1540—Ripper
SECTION 17—Frames, Chassis, or Supporting
Structure
Group 1740—Frame Installation
Group 1746—Frame Bottom Guards
Group 1749—Chassis Weights
