John Deere 690C Excavator With All Terrain Wheeled Undercarriage TM1329 Technical Manual PDF

Technical manual contains detailed description of service and repair procedures, special instructions, drawings, illustrations for John Deere excavator with all terrain wheeled undercarriage 690C.
Technical manual provides you with qualified, professional and timely information to the owners of machinery, operators, as well as help desk troubleshooting information, special equipment John Deere.
Technical manual comes in PDF and includes 402 pages, which are printable. We recommend to use Adobe PDF Reader, to be sure all images / graphics will display correctly.

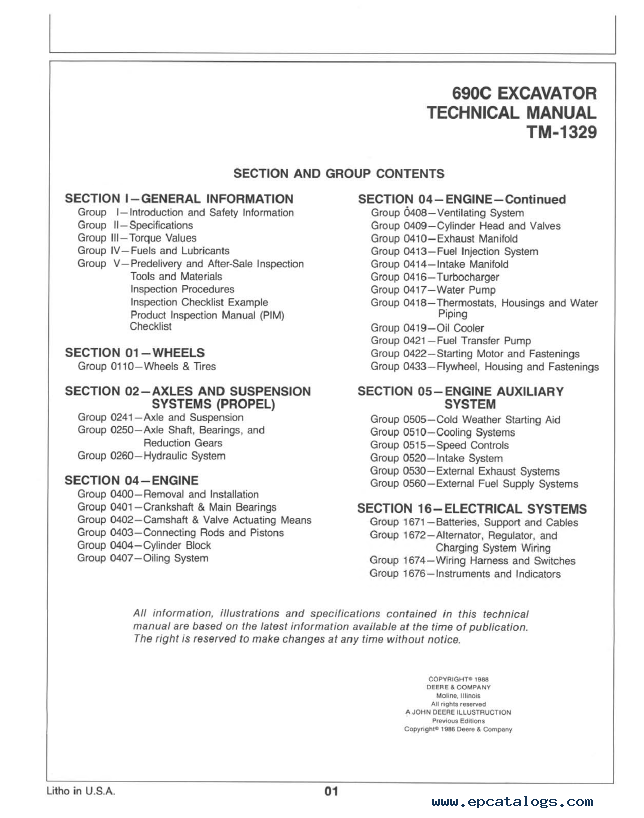

SECTION AND GROUP CONTENTS:

• SECTION I - GENERAL INFORMATION
  • Group I - Introduction and Safety Information
  • Group II - Specifications
  • Group III - Torque Values
  • Group IV - Fuels and Lubricants
  • Group V - Predelivery and After-Sales Inspection Tools and Materials Inspection Procedures Inspection Checklist Example Product Inspection Manual (PIM) Checklist
• SECTION 01 - WHEELS
  • Group 0110 - Wheels & Tires
• SECTION 02 - AXLES AND SUSPENSION SYSTEMS (PROPEL)
  • Group 0241 - Axle and Suspension

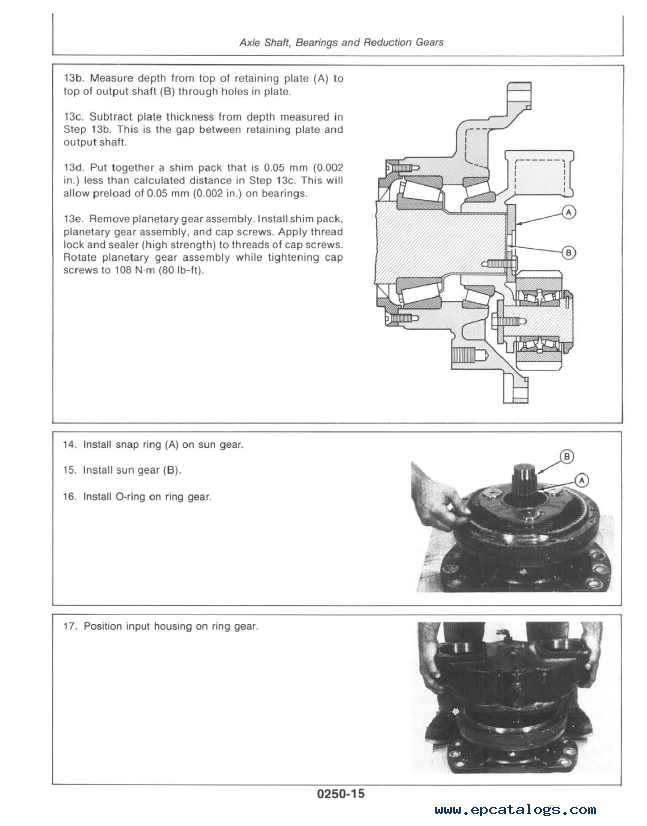

  • Group 0250 - Axle Shaft, Bearings and Reduction Gears
  • Group 0260 - Hydraulic System
• SECTION 04 - ENGINE
  • Group 0400 - Removal and Installation
  • Group 0401 - Crankshaft & Main Bearings
  • Group 0402 - Camshaft and Valve Actuating Means
  • Group 0403 - Connecting Rods and Pistons
  • Group 0404 - Cylinder Block
  • Group 0407 - Oiling System
  • Group 0408 - Ventilating System
  • Group 0409 - Cylinder Head and Valves
  • Group 0410 - Exhaust Manifold
  • Group 0413 - Fuel Injection System
  • Group 0414 - Intake Manifold
  • Group 0416 - Turbocharger
  • Group 0417 - Water Pump
  • Group 0418 - Thermostats, Housing and Water Piping
  • Group 0419 - Oil Cooler
  • Group 0421 - Fuel Transfer Pump
  • Group 0422 - Starting Motor and Fastenings
  • Group 0433 - Flywheel, Housing and Fastenings
• SECTION 05 - EGINE AUXILIARY SYSTEM
  • Group 0505 - Cold Weather Starting Aids
  • Group 0510 - Cooling Systems
  • Group 0515 - Speed Controls
  • Group 0520 - Intake System
  • Group 0530 - External Exhaust Systems
  • Group 0560 - External Fuel Supply Systems
• SECTION 16 - ELECTRICAL SYSTEMS
  • Group 1671 - Batteries, Support and Cables
  • Group 1672 - Alternator, Regulator and Charging System Wiring
  • Group 1674 - Wiring Harness and Switches
  • Group 1676 - Instruments and Indicators
• SECTION 17 - FRAME, CHASSIS, OR SUPPORTING STRUCTURE
  • Group 1740 - Frame Installation
  • Group 1749 - Chassis Weights
• SECTION 18 - OPERATOR'S STATION
  • Group 1800 - Removal and Installation
  • Group 1810 - Operator Enclosure
  • Group 1821 - Seat and Support
  • Group 1830 - Heating and Air Conditioning
• SECTION 19 - SHEET METAL AND STYLING
  • Group 1910 - Hood or Engine Enclosure
  • Group 1927 - Fenders
• SECTION 32 - DOZERS
  • Group 3201 - Blade
  • Group 3240 - Frames
  • Group 3260 -Dozer Hydraulics
• SECTION 33 - EXCAVATOR
  • Group 3302 - Buckets
  • Group 3340 - Frames

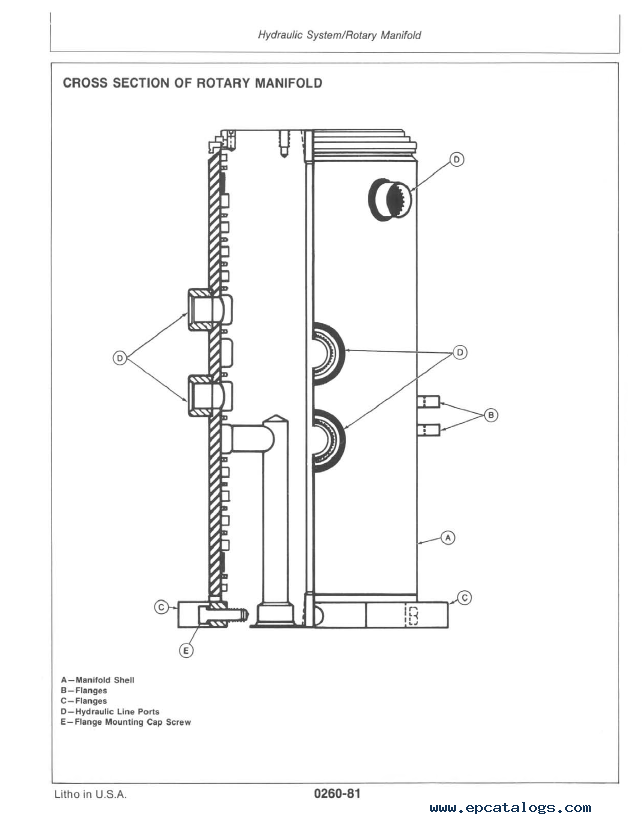

  • Group 3360 - Hydraulic System
• SECTION 43 - SWING, ROTATION OR PIVOTING SYSTEM
  • Group 4311 - Brakes (Swing Lock)
  • Group 4350 - Mechanical Drive Elements
  • Group 4360 - Hydraulic System
• SECTION 9005 - OPERATIONAL CHECKOUT PROCEDURE
• SECTION 9010 - ENGINE OPERATION AND TESTS
  • Group 05 - Theory of Operation
  • Group 10 - System Operational Checks
  • Group 15 - System Disgnostic Checks
  • Group 20 - Adjustments
  • Group 25 - Tests
• SECTION 9015 - ELECTRICAL OPERATION AND TESTS
  • Group 05 - Theory of Operation
  • Group 05A - Theory of Operation - 693C
  • Group 10 - System Operational Checks
  • Group 15 - System Diagnostic Checks
  • Group 25 - Tests
• SECTION 9020 - POWER TRAIN OPERATION AND TESTS
  • Group 05 - Theory of Operation
  • Group 05A - Theory of Operation - 693C
  • Group 10 - System Operational Checks
  • Group 15 - System Diagnostic Checks
  • Group 25 - Tests
• SECTION 9025 - HYDRAULIC OPERATION AND TESTS
  • Group 05 - Theory of Operation
  • Group 10 - System Operational Checks
  • Group 15 - System Diagnostic Checks
  • Group 20 - Adjustments
  • Group 25 - Tests
• SECTION 9031 - HEATING & AIR CONDITIONING SYSTEM OPERATION AND TEST
  • Group 05 - Theory of Operation
  • Group 10 - System Operational Checks
  • Group 15 - System Diagnostic Checks
  • Group 20 - Adjustments
  • Group 25 - Tests
• SECTION 99 - DEALER FABRICATED TOOLS
  • Group 9900 - Fabricated Tools
