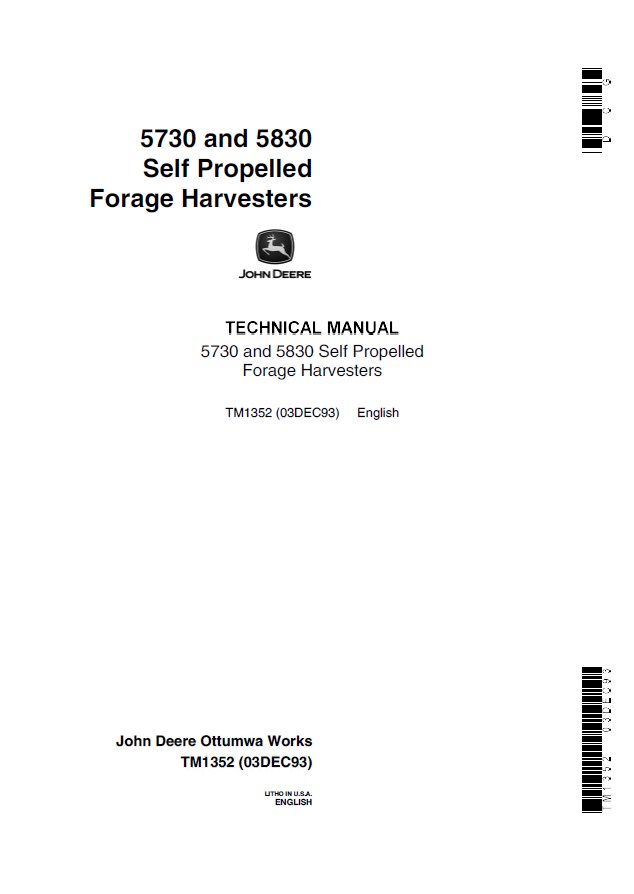

John Deere 5730 & 5830 Self Propelled Forage Harvesters TM1352 Technical Manual PDF

Electronic manual contains full technical information on repair, service and maintenance of forage harvesters John Deere 5730 and 5830.
Technical manual includes step by step instructions, maintenance manuals and special instructions for repair, repair manuals, detailed wiring electrical and hydraulic diagrams.
Electronic program is designed to work on a personal computer with OS – Windows and Mac. This program comes in PDF. For work with manual you need to install the application Adobe PDF Reader.
This manual allows you to identify and solve problems and inaccuracies.

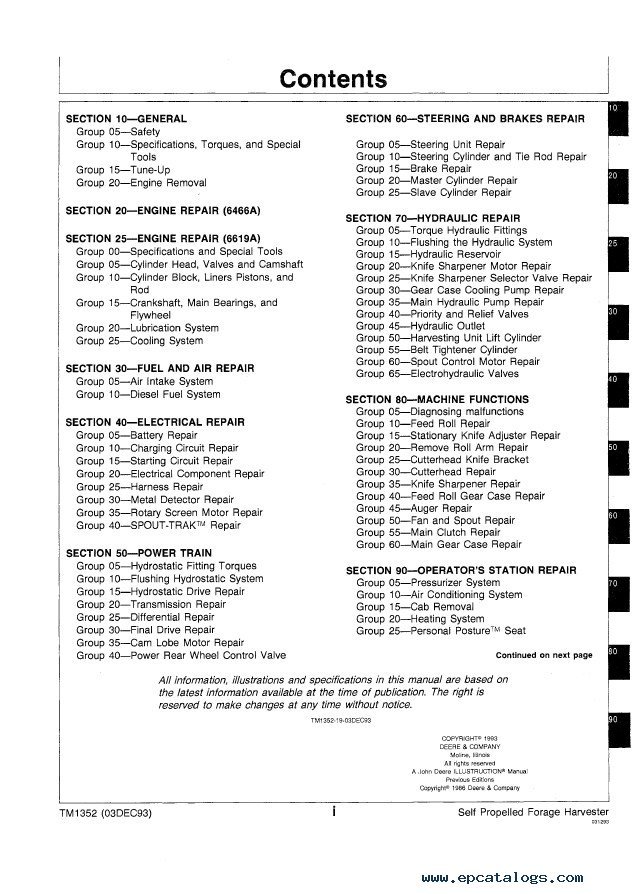

CONTENTS:

• SECTION 10 - GENERAL
  • Group 05 - Safety
  • Group 10 - Specifications, Torque, and Special Tools
  • Group 15 - Tune-Up
  • Group 20 - Engine Removal
• SECTION 20 - ENGINE REPAIR (6466A)
• SECTION 25 - ENGINE REPAIR (6619A)
  • Group 00 - Specifications and Special Tools

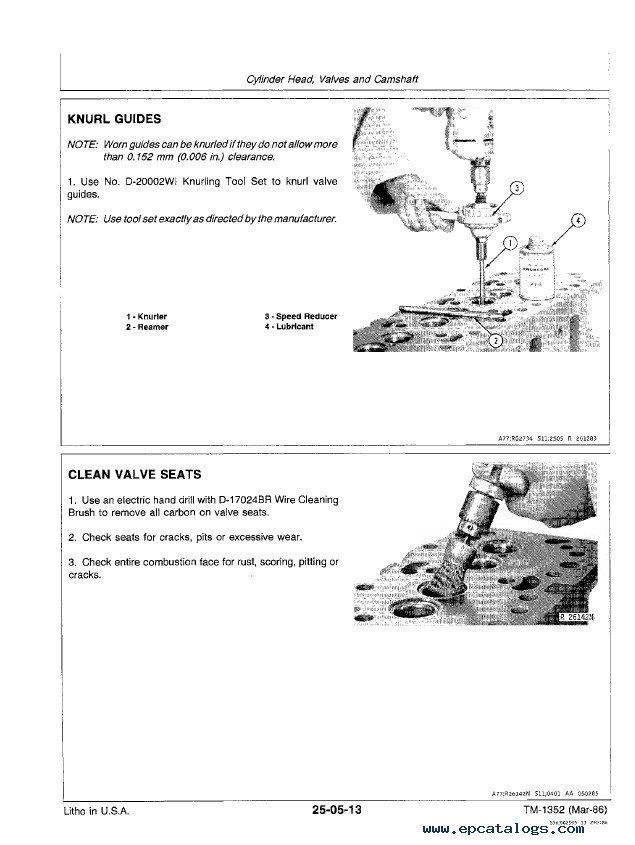

  • Group 05 - Cylinder Head, Valves and Camshaft
  • Group 10 - Cylinder Block, Liners Pistons, and Rod
  • Group 15 - Crankshaft, Main Bearings, and Flywheel
  • Group 20 - Lubrication System
  • Group 25 - Cooling System
• SECTION 30 - FUEL AND AIR REPAIR
  • Group 05 -Air Intake System
  • Group 10 - Diesel Fuel System
• SECTION 40 - ELECTRICAL REPAIR
  • Group 05 - Battery Repair
  • Group 10 - Charging Circuit Repair
  • Group 15 - Starting Circuit Repair
  • Group 20 - Electrical Component Repair
  • Group 25 - Harness Repair
  • Group 30 - Metal Detector Repair
  • Group 35 - Rotary Screen Motor Repair
  • Group 40 - SPOUT-TRAK Repair
• SECTION 50 - POWER TRAIN
  • Group 05 - Hydrostatic Fitting Torques
  • Group 10 - Flushing Hydrostatic System

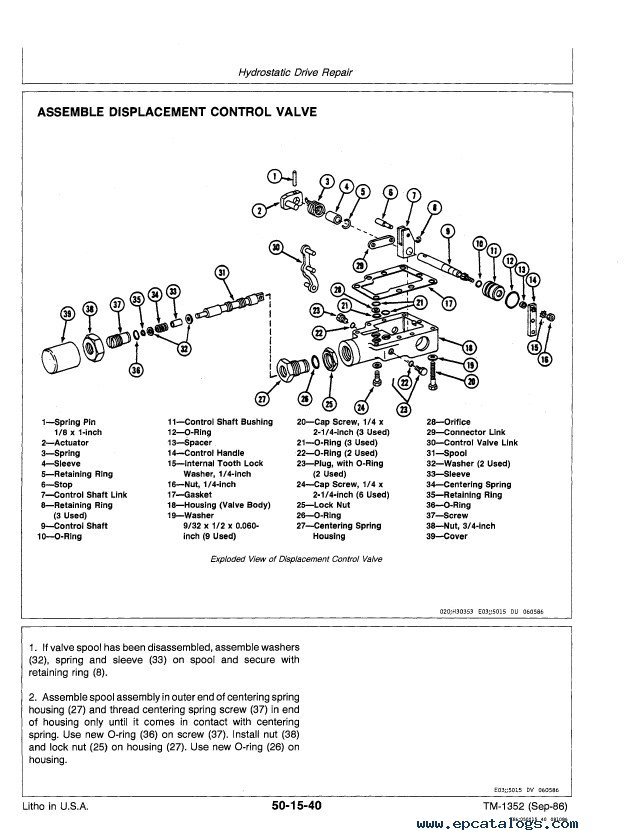

  • Group 15 - Hydrostatic Drive Repair
  • Group 20 - Transmission Repair
  • Group 25 - Differential Repair
  • Group 30 - Final Drive Repair
  • Group 35 - Cam Lobe Motor Repair

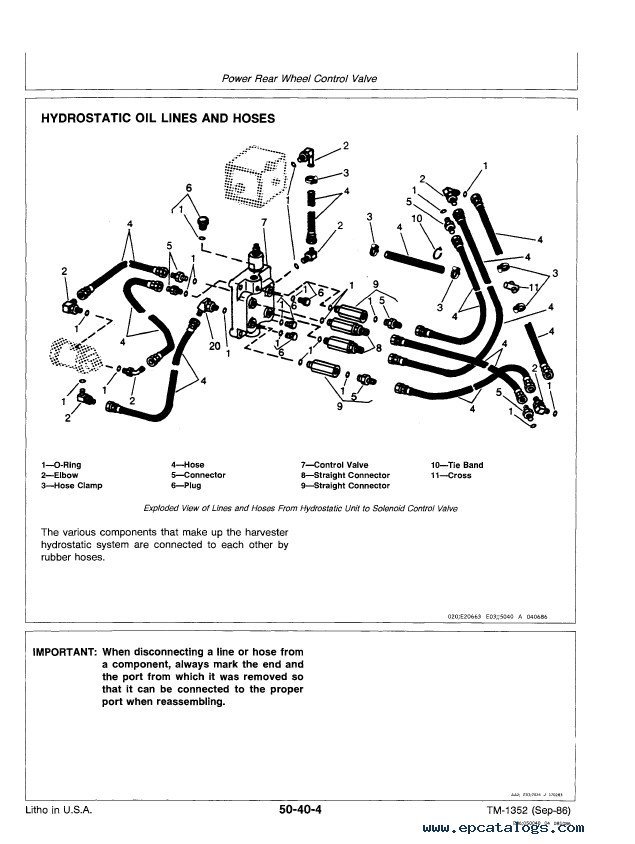

  • Group 40 - Power Rear Wheel Control Valve
• SECTION 60 - STEERING AND BRAKES REPAIR
  • Group 05 - Steering Unit Repair
  • Group 10 - Steering Cylinder and Tie Rod Repair
  • Group 15 - Brake Repair
  • Group 20 - Master Cylinder Repair
  • Group 25 - Slave Cylinder Repair
• SECTION 70 - HYDRAULIC REPAIR
  • Group 05 - Torque Hydraulic Fittings
  • Group 10 - Flushing the Hydraulic System
  • Group 15 - Hydraulic Reservoir

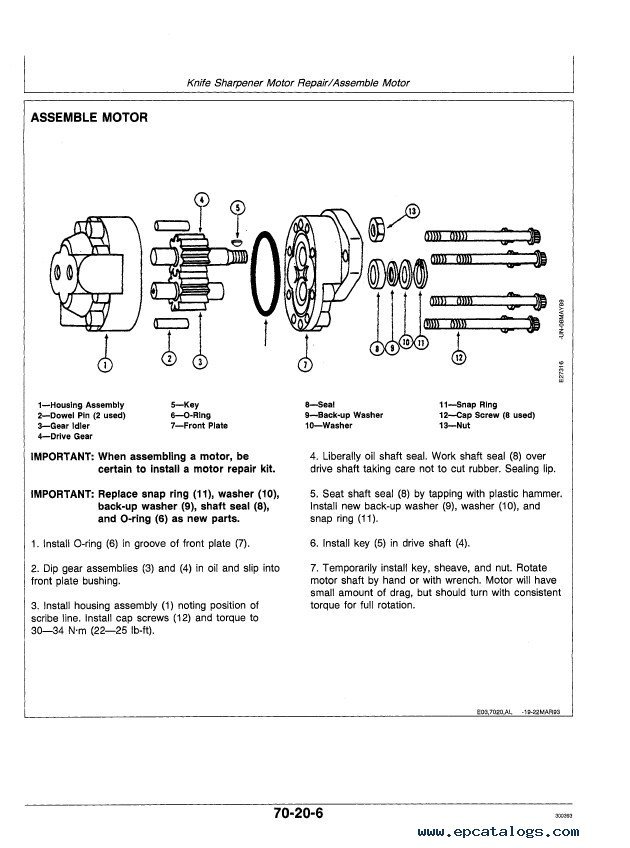

  • Group 20 - Knife Sharpener Motor Repair
  • Group 25 - Knife Sharpener Selector Valve Repair
  • Group 30 - Gear Case Cooling Pump Repair
  • Group 35 - Main Hydraulic Pump Repair
  • Group 40 - Priority and Relief Valves

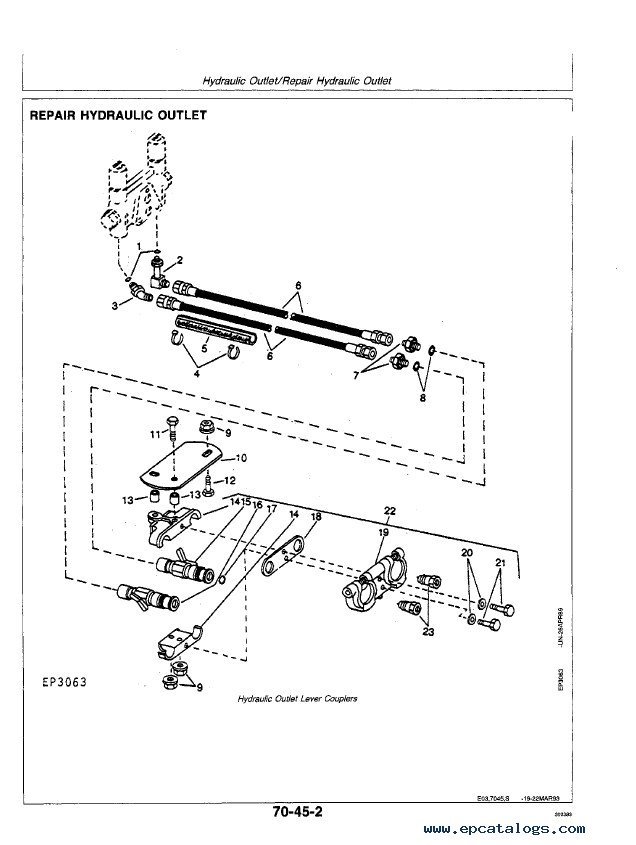

  • Group 45 - Hydraulic Outlet
  • Group 50 - Harvesting Unit Lift Cylinder
  • Group 55 - Belt Tightener Cylinder
  • Group 60 - Spout Control Motor Repair
  • Group 65 - Electrohydraulic Valves
• SECTION 80 - MACHINE FUNCTIONS
  • Group 05 - Diagnosing Malfunctions
  • Group 10 - Feed Roll Repair
  • Group 15 - Stationary Knife Adjuster Repair
  • Group 20 - Remove Roll Arm Repair
  • Group 25 - Cutterhead Knife Bracket
  • Group 30 - Cutterhead Repair
  • Group 35 - Knife Sharpener Repair
  • Group 40 - Feed Roll Gear Case Repair
  • Group 45 - Auger Repair
  • Group 50 - Fan and Spout Repair
  • Group 55 - Main Clutch Repair
  • Group 60 - Main Gear Case Repair
• SECTION 90 - OPERATOR'S STSTION REPAIR
  • Group 05 - Pressurizer System
  • Group 10 - Air Conditioning System
  • Group 15 - Cab Removal
  • Group 20 - Heating System
  • Group 25 - Personal Posture Seat
  • Group 30 - Miscellaneous Component
• SECTION 100 - KERNEL PROCESSOR REPAIR
  • Group 05 - Kernel Processor
• SECTION 220 - ENGINE OPERATION AND TESTS (6466A)
  • Group 05 - System Operation
  • Group 10 - System Operation and Tests
• SECTION 225 - ENGINE OPERATION AND TESTS (6619A)
  • Group 05 - System Operation
  • Group 10 - System Tests and Diagnosis
• SECTION 230 - FUEL / AIR OPERATION AND TESTS
  • Group 05 - Air Intake System
  • Group 10 - Diesel Fuel System
• SECTION 240 - ELECTRICAL OPERATION AND TESTS
  • Group 05 - Battery Testing
  • Group 10 - Charging Circuit Diagnosis
  • Group 15 - Starting Circuit Diagnosis
  • Group 20 - Electrical Testing

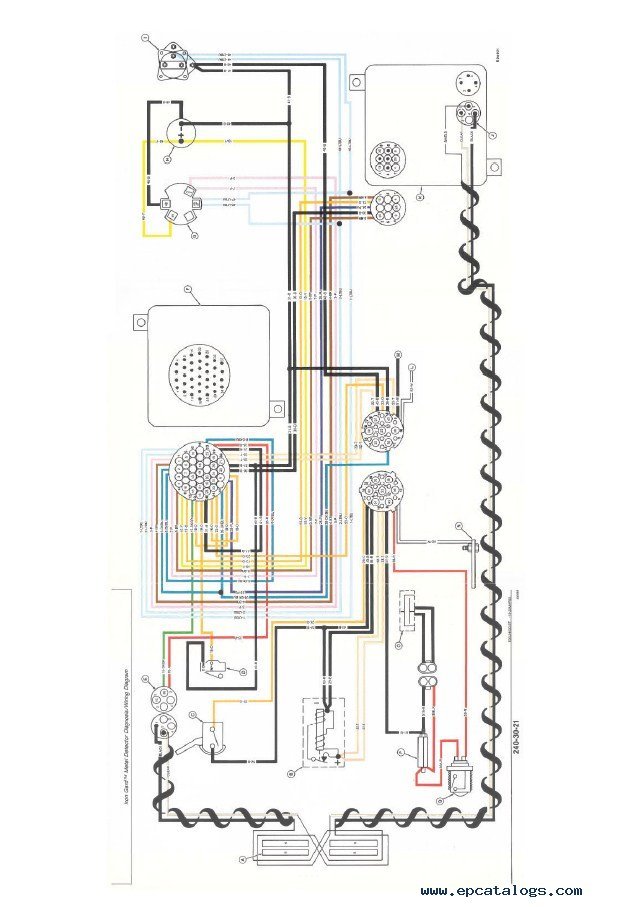

  • Group 25 - General Wiring Diagram
  • Group 30 - Iron Gard Metal Detector Diagnosis
  • Group 35 - Rotary Air Screen Diagnosis
  • Group 40 - Spout-Trak Diagnosis
  • Group 45 - Electric Clutch Diagnosis
• SECTION 250 - POWER TRAIN OPERATION AND TESTS
  • Group 05 - Diagnosing Power Train Malfunctions
  • Group 10 - Power Train Operation and Tests
  • Group 15 - Power Rear Wheel Drive Operation and Tests
• SECTION 260 - STEERING / BRAKES OPERATION
  • Group 05 - Steering
  • Group 10 - Brakes
• SECTION 270 - HYDRAULIC OPERATION AND TESTS
  • Group 05 - Diagnosing Malfunctions
  • Group 10 - Hydraulic System Operation
  • Group 15 - Electrohydraulic Valve Operation
  • Group 20 - Hydraulic Diagrams
  • Group 25 - Hydraulic System Tests
• SECTION 290 - OPERATOR'S STATION OPERATION AND TESTS
  • Group 05 - Diagnosing Malfunctions
  • Group 10 - Pressurizer System

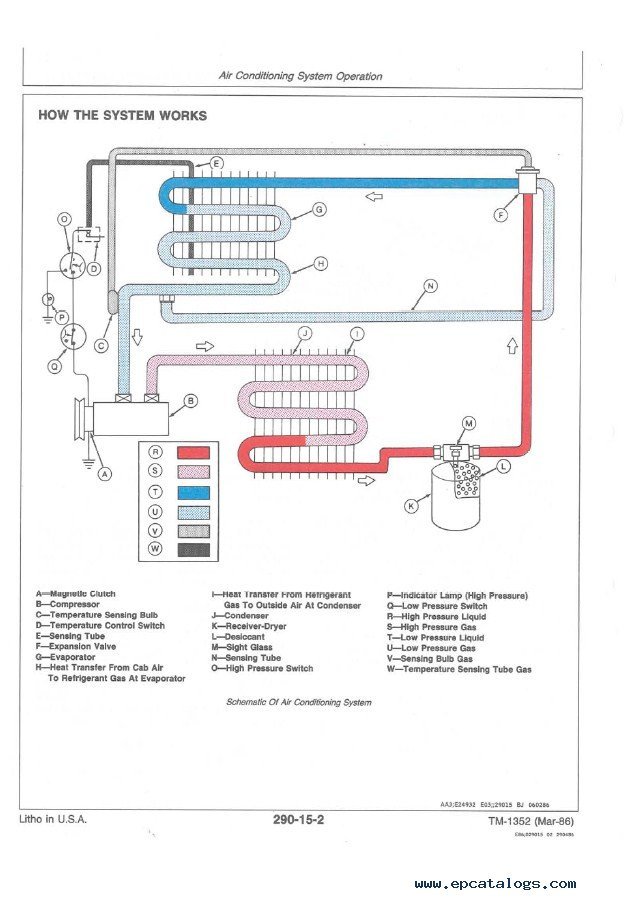

  • Group 15 - Air Condtioning System Operation
  • Group 20 - Air Conditioning System Tests and Diagnosis
