John Deere 524K 4WD Loader Engine 6068HDW74 (T3) Operation and Test Technical Manual PDF

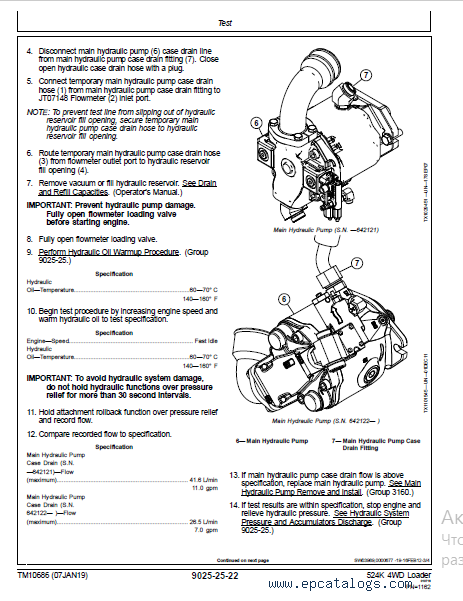

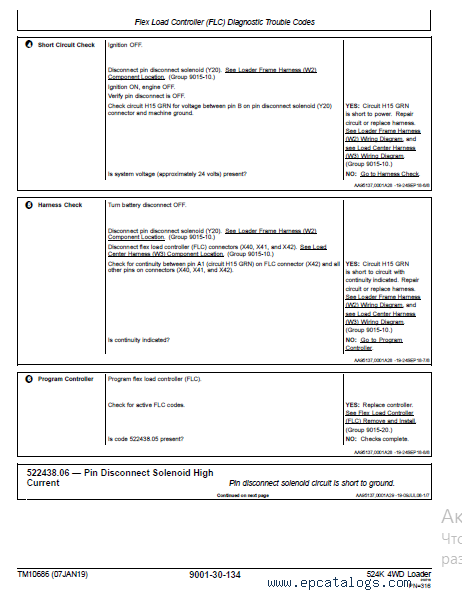

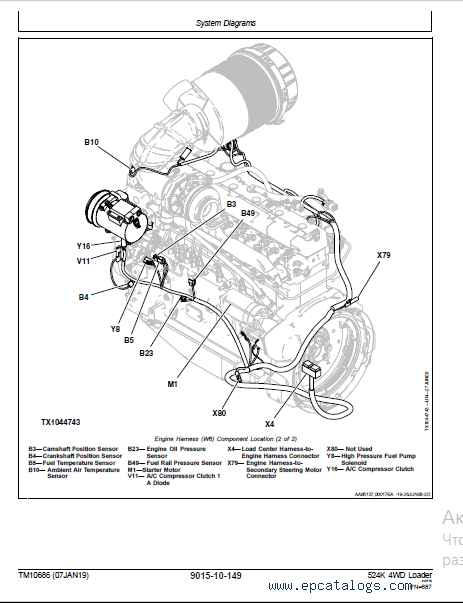

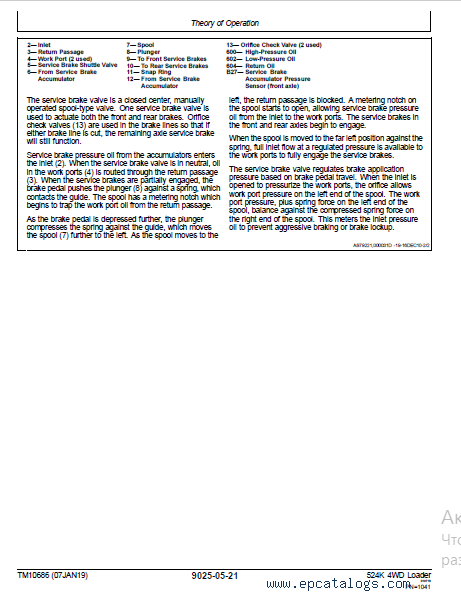

This Operation and Test Manual was presented in PDF format specially for John Deere 524K 4WD Loader Engine 6068HDW74 (T3) model. Electronic guide consists of sections about safety rules, general characteristics, troubleshooting, settings, operation, the section about the engine, diagnostic information, system diagrams, hydraulic system, many screenshots, diagrams, and schemes.

Please read this John Deere product material specially the safety rules and notes, advice or recommendations. Proper use, maintenance, and repair procedures will help to protect you from serious injuries, and unforeseen technical breakdowns, and prolong the service life of loader 524K 4WD model. Online text comes in PDF format with 1244 pages for reading. You can work with this tutorial after installing Adobe Acrobat Reader.

Contents

Section 9000—General Information
Group 01—Safety Information
Section 9001—Diagnostic Trouble Codes
(DTC)
Group 10—Engine Control Unit (ECU) Diagnostic
Trouble Codes
Group 20—Transmission Control Unit (TCU) Diagnostic
Trouble Codes
Group 30—Flex Load Controller (FLC) Diagnostic
Trouble Codes
Group 40—Sealed Switch Module (SSM) Diagnostic
Trouble Codes
Group 50—Advanced Display Unit (ADU) Diagnostic
Trouble Codes
Group 60—Radar Object Detection (ROD) Diagnostic
Trouble Codes
Group 70—Ground Speed Radar (RDR) Diagnostic
Trouble Codes
Group 80—Tire Pressure Monitoring (TPM) System
Diagnostic Trouble Codes
Section 9005—Operational Checkout
Procedure
Group 10—Operational Checkout Procedure
Section 9010—Engine
Group 05—Theory of Operation
Group 15—Diagnostic Information
Group 25—Tests
Section 9015—Electrical System
Group 05—System Information
Group 10—System Diagrams
Group 15—Sub-System Diagnostics
Group 16—Monitor Operation
Group 20—References
Section 9020—Power Train
Group 05—Theory of Operation
Group 15—Diagnostic Information
Group 20—Adjustments
Group 25—Tests
Section 9025—Hydraulic System
Group 05—Theory of Operation
Group 15—Diagnostic Information
Group 20—Adjustments
Group 25—Test
Section 9031—Heating and Air Conditioning
Group 05—Theory of Operation
Group 15—Diagnostic Information
Group 25—Tests
