John Deere 450D, 455D Crawler Bulldozer and Loader TM1291 Technical Manual PDF

This technical manual is intended for actual service John Deere 450D crawler bulldozer and 455D crawler loader.
Technical manual includes technical specifications, repair information, identifications numbers, tools and materials, component location, schematics and harnesses, theory of operation, operation and diagnostics, tests and adjustments, repair manuals and other service information.
This technical manual is designed to work on a personal computer or laptop. This manual comes in PDF format and includes 906 pages. We recommend to use Adobe PDF Reader, to be sure all images / graphics will display correctly.

SECTION AND GROUP CONTENTS:

• SECTION I - GENERAL INFORMATION
  • Group I - Introduction and Safety Information
  • Group II - General Specifications
  • Group III - Cap Screw Torque Values
  • Group IV - Lubrication
• SECTION 01 - TRACKS

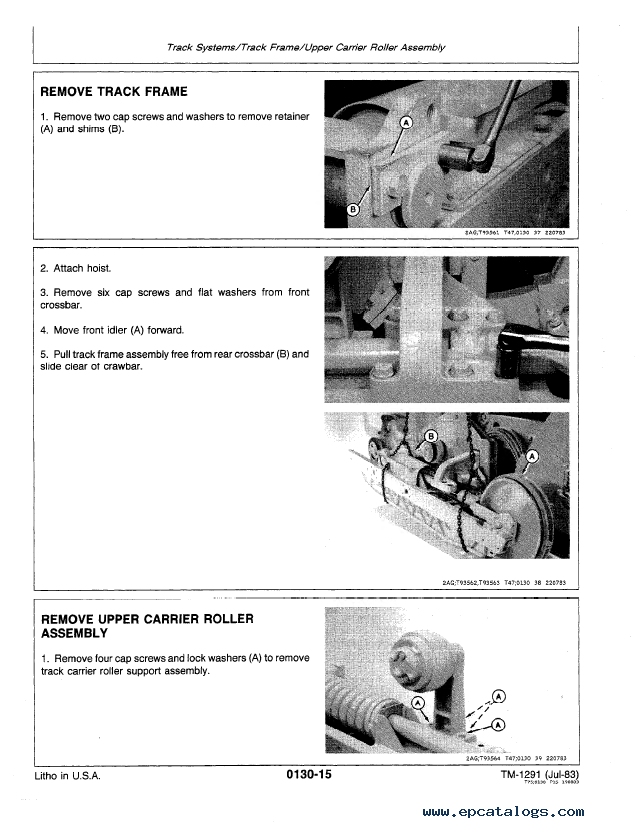

  • Group 0130 - Track Systems
• SECTION 02 - AXLES AND SUSPENSION SYSTEMS
  • Group 0250 - Axle Shafts, Bearings, Reduction Gears and Steering Clutches
• SECTION 03 - TRANSMISSION
  • Group 0315 - Controls
  • Group 0350 - Gears, Shafts, Bearings and H-L-R Clutch
  • Group 0360 - Transmission Hydraulics (See Group 0350)
• SECTION 04 - ENGINE
  • Group 0400 - Removal and Installation
  • Group 0401 - Crankshaft and Main Bearings
  • Group 0402 - Camshaft and Valve Actuating Means
  • Group 0403 - Connecting Rods and Pistons
  • Group 0404 - Cylinder Block (Liners)
  • Group 0407 - Engine Oiling System
  • Group 0409 - Cylinder Head and Valves
  • Group 0413 - Fuel Injection System
  • Group 0415 - Engine Balancer
  • Group 0416 - Turbocharger
  • Group 0417 - Water Pump
  • Group 0418 - Thermstats, Housing and Piping
  • Group 0419 - Engine Oil Cooler
  • Group 0420 - Fuel Filter
  • Group 0421 - Fuel Transfer Pump
  • Group 0422 - Starting System
  • Group 0433 - Flywheel, Housing and Fastenings
• SECTION 05 - ENGINE AUXILIARY SYSTEMS
  • Group 0505 - Cold Weather Starting Aids
  • Group 0510 - Cooling Systems
  • Group 0515 - Speed Controls
  • Group 0560 - External Fuels Supply Systems
• SECTION 07 - TRACTION CLUTCH
  • Group 0715 - Controls
  • Group 0752 - Elements
• SECTION 09 - STEERING SYSTEMS
  • Group 0960 - Power Steering
• SECTION 15 - EQUIPMENT ATTACHING
  • Group 1511 - Drawbar
• SECTION 16 - ELECTRICAL SYSTEMS
  • Group 1671 - Batteries, Supprt and Cables
  • Group 1672 - Alternator
  • Group 1673 - Lighting System
  • Group 1674 - Wiring Harness and Switches
  • Group 1676 - Instruments and Indicators
• SECTION 17 - FRAME, CHASSIS, OR SUPPORTING STRUCTURE
  • Group 1740 - Frame Installation
  • Group 1746 - Frame Bottom Guards
  • Group 1749 - Chassis Weights
• SECTION 18 - OPERATOR'S STATION
  • Group 1810 - Operator Enclosure
• SECTION 19 - SHEET METAL
  • Group 1910 - Hood or Engine Enclosure
  • Group 1921 - Grille and Grille Housing
• SECTION 30 - WINCH
  • Group 3015 - Controls Linkage
  • Group 3050 - Winch Drive and Clutches
  • Group 3060 - Winch Hydraulic System
• SECTION 31 - LOADER
  • Group 3102 - Buckets
  • Group 3103 - Forks
  • Group 3115 - Controls Linkage

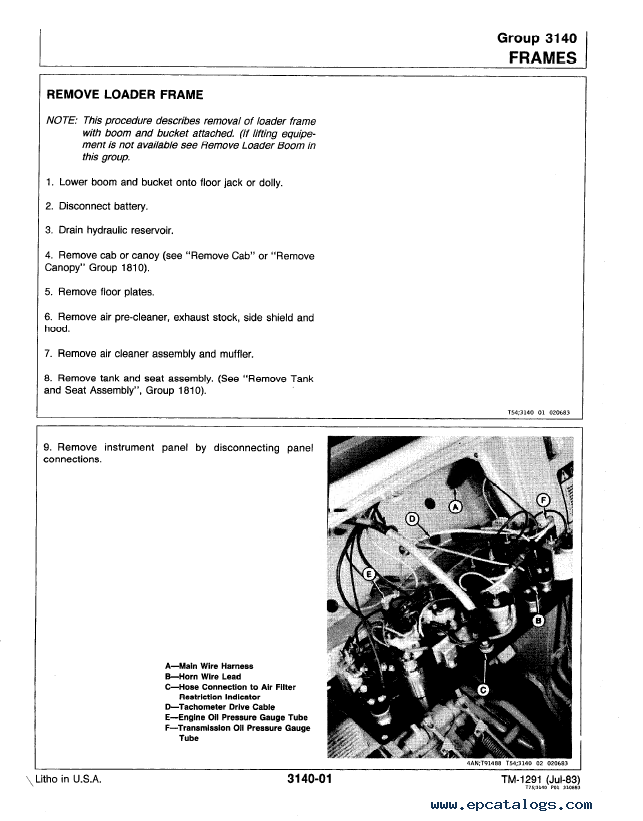

  • Group 3140 - Frames
  • Group 3160 - Hydraulic System
• SECTION 32 - BULLDOZER
  • Group 3201 - Blades
  • Group 3215 - Controls Linkage
  • Group 3240 - Frames
  • Group 3260 - Hydraulic System
• SECTION 33A - BACKHOE 9300
  • Group 3300A - Removal and Installation
  • Group 3302A - Bucket
  • Group 3315A - Controls Linkage
  • Group 3340A - Frames
  • Group 3360A - Hydraulic System
• SECTION 33B - BACKHOE 9550
  • Group 3300B - Removal and Installation
  • Group 3302B - Bucket
  • Group 3315B - Controls Linkage
  • Group 3340B - Frames
  • Group 3360B - Hydraulic System
• SECTION 37 - LOG ARCH
  • Group 3740 - Arch Frames
• SECTION 40 - WINCH DRIVE
  • Group 4051 - Gears, Shafts and Bearings
• Group 42 - GROUND CONDITIONING TOOL
  • Group 4201 - Teeth and Shanks
  • Group 4240 - Frame
  • Group 4260 - Hydraulic System
• SECTION 90 - SYSTEM TESTING
  • Group 9005 - General Information
  • Group 9010 - Engine
  • Group 9015 - Electrical System
  • Group 9020 - Power Train
  • Group 9025 - Hydraullic System
  • Group 9030 - Miscellaneous Components
• SECTION 99 - SPECIAL TOOLS
• INDEX
