John Deere 444D, 544D, 644D Loader Repair TM1341 Technical Manual PDF

This technical manual contains detailed repair information, instructions for repair and service, step by step instructions, pictures, diagrams for John Deere loaders 444D, 544D, 644D.
Technical manual contains step by step instructions for service and repair, machine data, troubleshoot information.
This manual allows to detect and eliminate problems encountered and inaccuracies.
Technical manual comes in PDF and includes 684 pages, which are printable. We recommend to use Adobe PDF Reader, to be sure all images / graphics will display correctly.

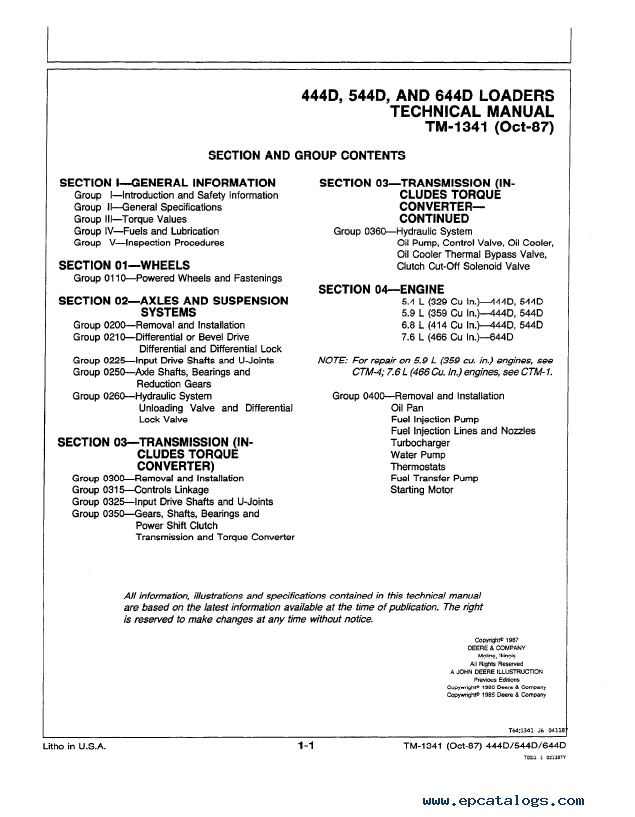

SECTION AND GROUP CONTENTS:

• SECTION I - GENERAL INFORMATION
  • Group I - Introduction and Safety Information
  • Group II - General Specifications
  • Group III - Torque Values
  • Group IV - Fuels and Lubricants
  • Group V - Inspection Procedures
• SECTION 01 - WHEELS
  • Group 0110 - Powered Wheels and Fastenings
• SECTION 02 - AXLES AND SUSPENSION SYSTEMS
  • Group 0200 - Removal and Installation

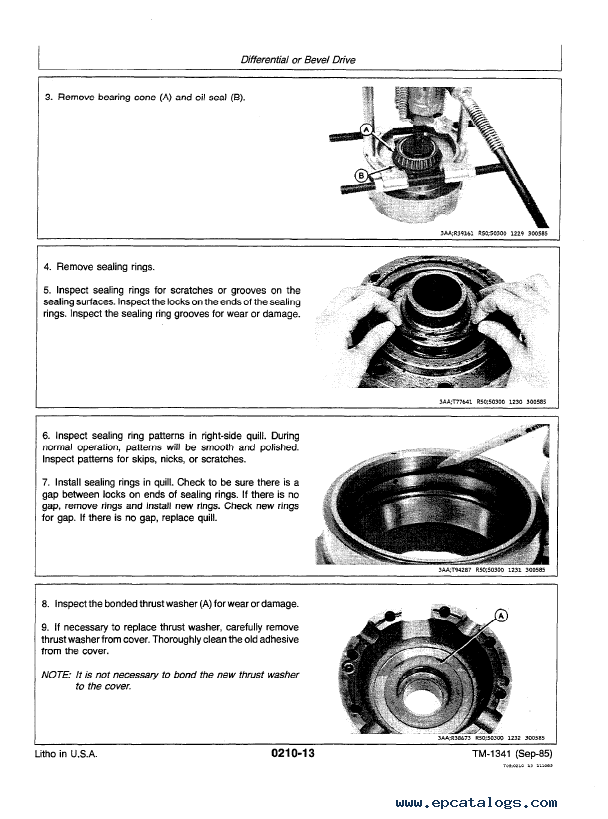

  • Group 0210 - Differential or Bevel Drive Differential and Differential Lock
  • Group 0225 - Input Drive Shafts and U-Joints
  • Group 0250 - Axle Shafts, Bearings and Reduction Gears
  • Group 0260 - Hydraulic System Unloading Valve and Differential Lock Valve
• SECTION 03 - TRANSMISSION (INCLUDES TORQUE CONVERTER)

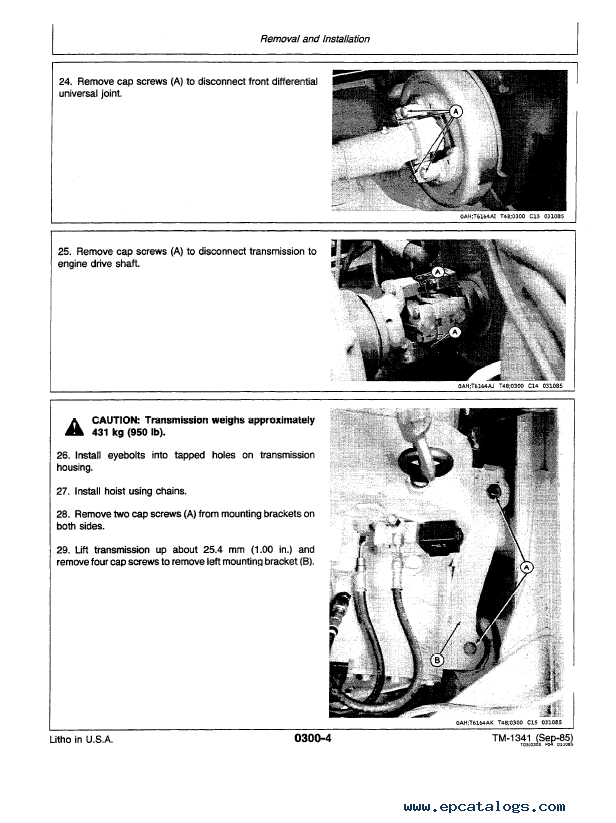

  • Group 0300 - Removal and Installation
  • Group 0315 - Controls Linkage
  • Group 0325 - Input Drive Shafts and U-Joints

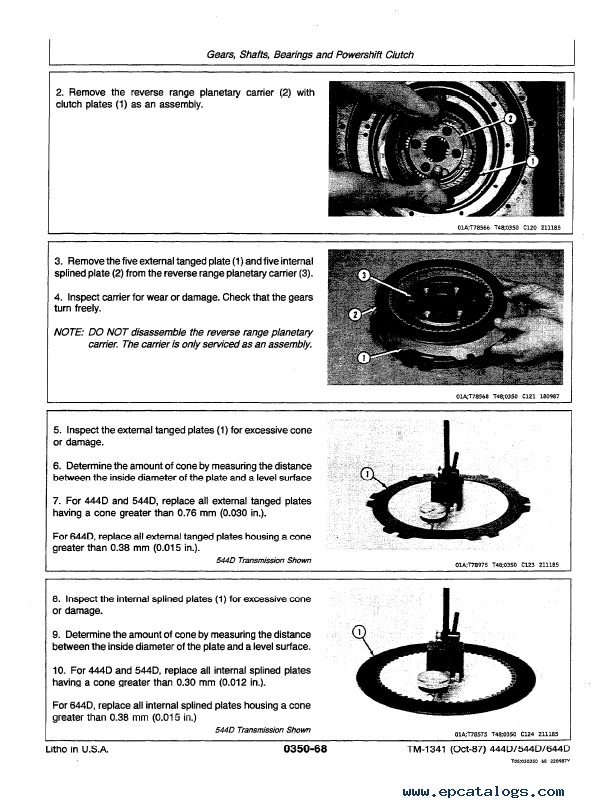

  • Group 0350 - Gears, Shafts, Bearings and Power Shift Clutch Transmission and Torque Converter
  • Group 0360 - Hydraulic System Oil Pump, Control Valve, Oil Cooler, Oil Cooler Thermal Bypass Valve, Clutch Cut-Off Solenoid Valve
• SECTION 04 - ENGINE
  • Group 0400 - Removal and Installation

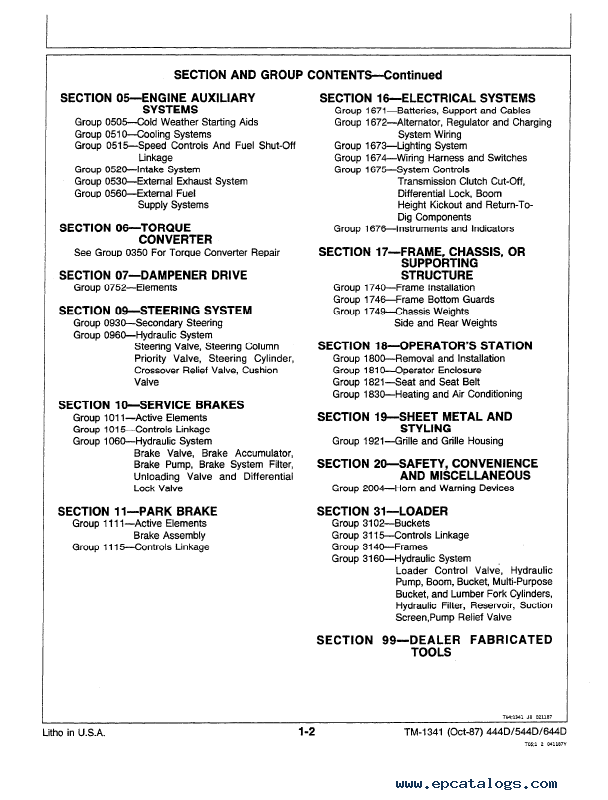

• SECTION 05 - ENGINE AUXILIARY SYSTEMS
  • Group 0505 - Cold Weather Starting Aids
  • Group 0510 - Cooling Systems
  • Group 0515 - Speed Controls And Fuel Shut-Off Linkage
  • Group 0520 - Intake System
  • Group 0530 - External Exhaust System
  • Group 0560 - External Fuel Supply Systems
• SECTION 06 - TORQUE CONVERTER
  • See Group 0350 For Torque Converter Repair
• SECTION 07 - DAMPENER DRIVE
  • Group 0752 - Elements
• SECTION 09 - STEERING SYSTEM
  • Group 0930 - Secondary Steering
  • Group 0960 - Hydraulic System
• SECTION 10 - SERVICE BRAKES
  • Group 1011 - Active Elements
  • Group 1015 - Controls Linkage
  • Group 1060 - Hydraulic System
• SECTION 11 - PARK BRAKE
  • Group 1111 - Active Elements
  • Group 1115 - Controls Linkage
• SECTION 16 - ELECTRICAL SYSTEMS
  • Group 1671 - Batteries, Support and Cables
  • Group 1672 - Alternator, Regulator and Charging System Wiring

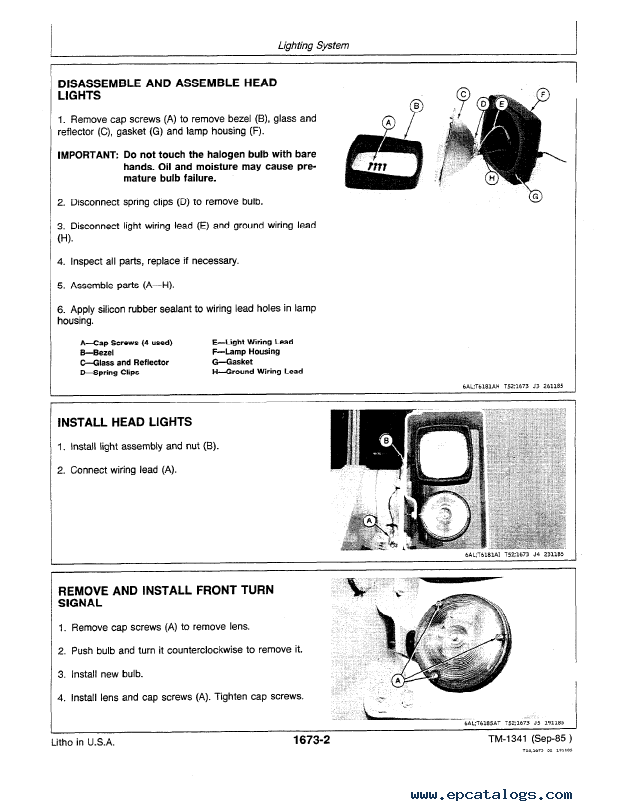

  • Group 1673 - Lighting System
  • Group 1674 - Wiring Harness and Switches
  • Group 1675 - System Controls
  • Group 1676 - Instruments and Indicators
• SECTION 17 - FRAME, CHASSIS, OR SUPPORTING STRUCTURE
  • Group 1740 - Frame Installation
  • Group 1746 - Frame Bottom Guards
  • Group 1749 - Chassis Weights Side and Rear Weights
• SECTION 18 - OPERATOR'S STATION
  • Group 1800 - Removal and Installation
  • Group 1810 - Operator Enclosure
  • Group 1821 - Seat and Seat Belt
  • Group 1830 - Heating and Air Conditioning
• SECTION 19 - SHEET METAL AND STYLING
  • Group 1921 - Grille and Grille Housing
• SECTION 20 - SAFETY, CONVENIENCE AND MISCELLANEOUS
  • Group 2004 - Horn and Warning Devices
• SECTION 31 - LOADER
  • Group 3102 - Buckets
  • Group 3115 - Controls Linkage
  • Group 3140 - Frames
  • Group 3160 - Hydraulic System
• SECTION 99 - DEALER FABRICATED TOOLS
