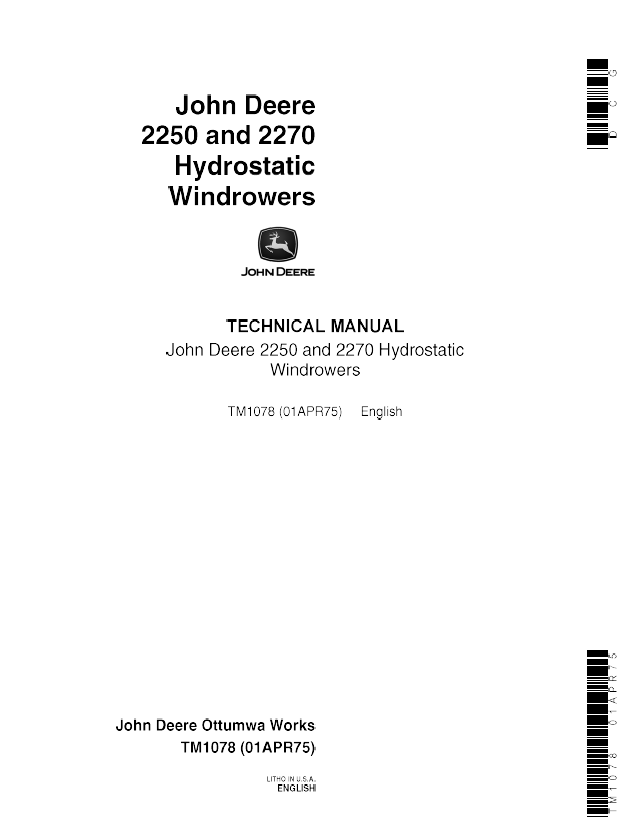

John Deere 2250 2270 Hydrostatic Windrowers TM1078 Technical Manual PDF

Technical manual is a detailed documentation on repair and troubleshoot of hydrostatic windrowers John Deere 2250, 2270.
Technical manual contains complete service information, technical specifications, special instructions, repair instructions, service and other supporting documentation.
Electronic manual allows you to save time searching for the necessary repair and service information, assembly and adjustment, maintenance and repair, which is aimed at assisting users in diagnosing problem, troubleshooting of computer systems, eliminating hardware conflicts.
This technical manual comes in PDF format and includes 316 pages, which are printable. To view this information you need to install Adobe Reader.
For work with manual we recommend to use Adobe PDF Reader, to be sure all images / graphics will display correctly.

CONTENTS:

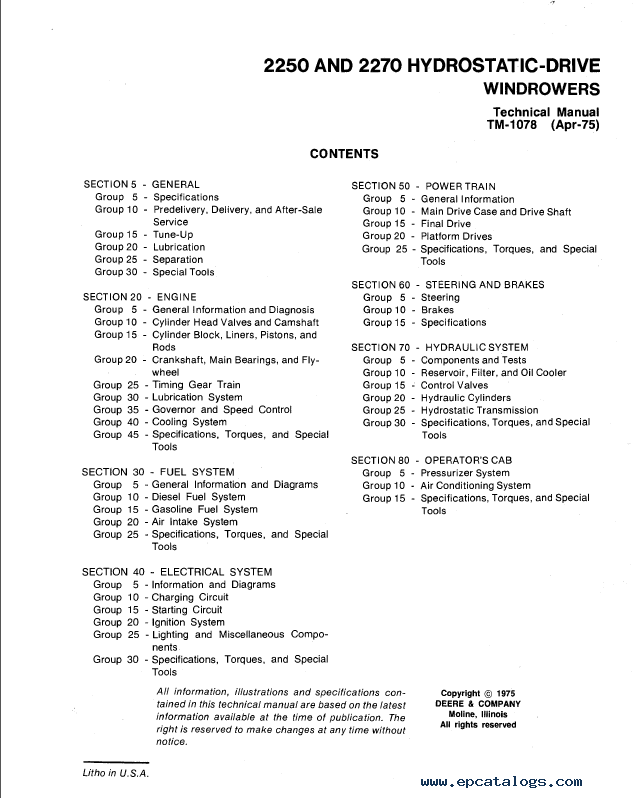

• SECTION 5 - GENERAL
  • Group 5 - Specifications
  • Group 10 - Predelivery, Delivery, and After Sale Service
  • Group 15 - Tune-Up
  • Group 20 - Lubrication
  • Group 25 - Separation
  • Group 30 - Special Tools
• SECTION 20 - ENGINE
  • Group 5 - General Information and Diagnosis
  • Group 10 - Cylinder Head Valves and Camshaft

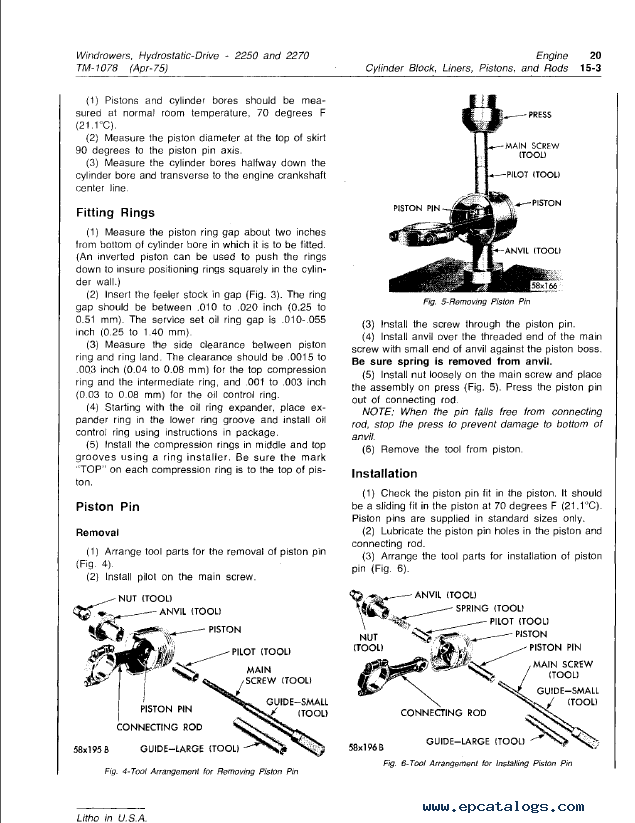

  • Group 15 - Cylinder Block, Liners, Pistons, and Rods
  • Group 20 - Crankshaft, Main Bearings, and Flywheel
  • Group 25 - Timing Gear Train
  • Group 30 - Lubrication System
  • Group 35 - Governor and Speed Control
  • Group 40 - Cooling System
  • Group 45 - Specifications, Torques, and Special Tools
• SECTION 30 - FUEL SYSTEM
  • Group 5 - General Information and Diagrams
  • Group 10 - Diesel Fuel System
  • Group 15 - Gasoline Fuel System
  • Group 20 - Air Intake System
  • Group 25 - Specifications, Torques and Special Tools
• SECTION 40 - ELECTRICAL SYSTEM

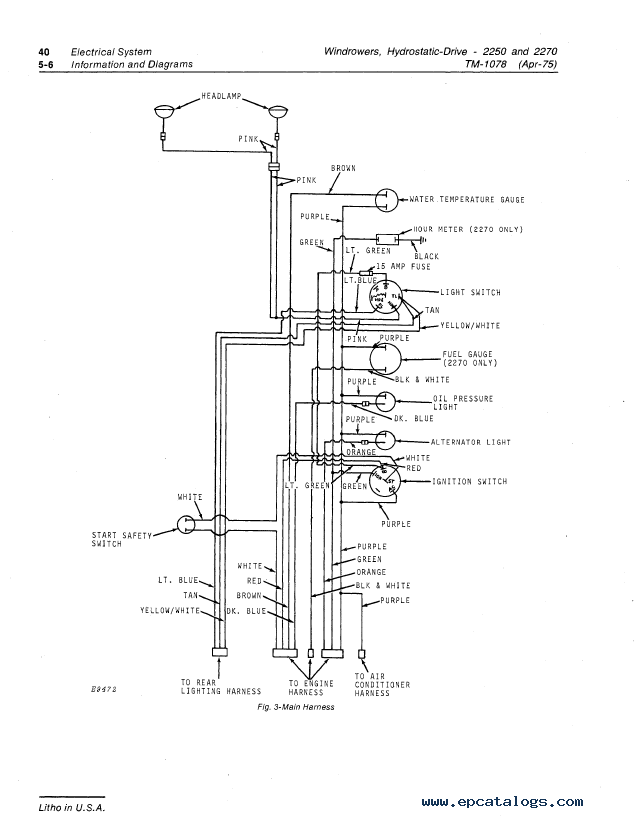

  • Group 5 - Information and Diagrams
  • Group 10 - Charging Circuit
  • Group 15 - Starting Circuit

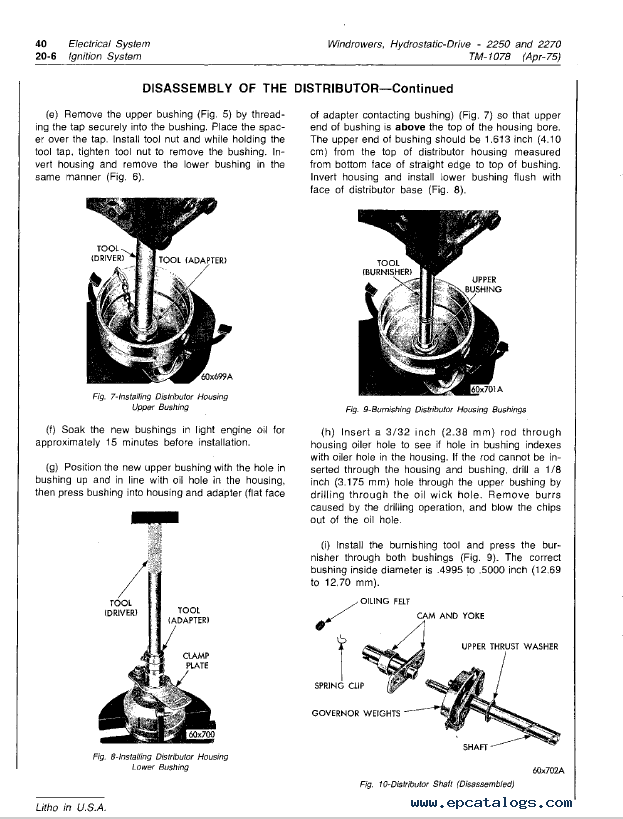

  • Group 20 - Ignition System
  • Group 25 - Lighting and Miscellaneous Components
  • Group 30 - Specifications, Torques and Special Tools
• SECTION 50 - POWER TRAIN
  • Group 5 - General Information
  • Group 10 - Main Drive Case and Drive Shaft
  • Group 15 - Final Drive
  • Group 20 - Platform Drives
  • Group 25 - Specifications, Torques and Special Tools
• SECTION 60 - STEERING AND BRAKES
  • Group 5 - Steering
  • Group 10 - Brakes
  • Group 15 - Specifciations
• SECTION 70 - HYDRAULIC SYSTEM

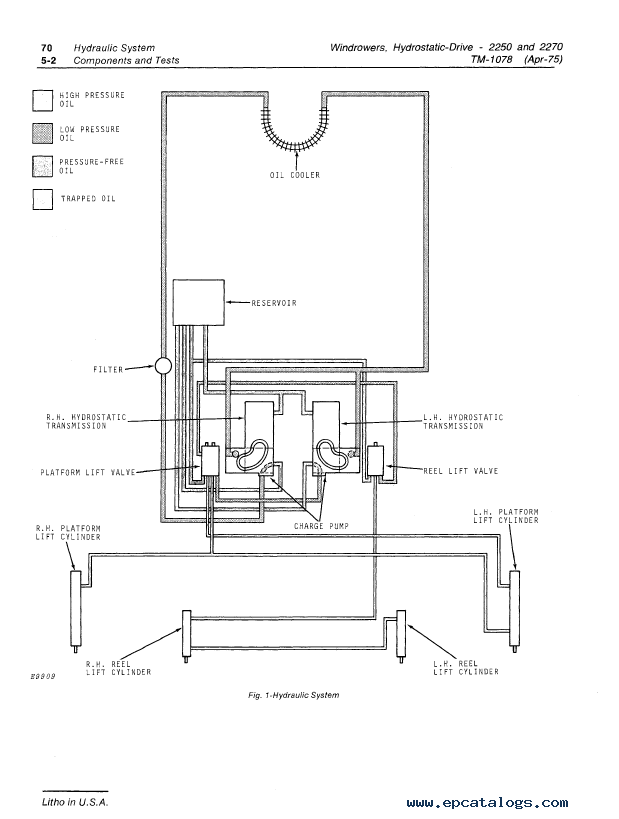

  • Group 5 - Components and Tests
  • Group 10 - Reservoir, Filter, and Oil Cooler
  • Group 15 - Control Valve
  • Group 20 - Hydraulic Cylinders
  • Group 25 - Hydraulic Transmission
  • Group 30 - Specifications, Torques, and Special Tools
• SECTION 80 - OPERATOR'S CAB
  • Group 5 - Pressurizer System
  • Group 10 -Air Conditioning System
  • Group 15 - Specifications, Torques, and Special Tools
