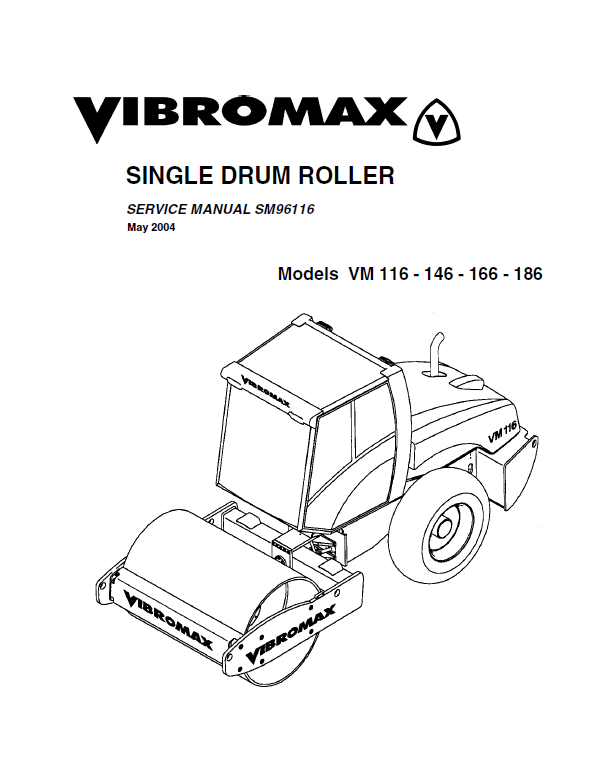

JCB Vibromax VM 116 - 146 - 166 - 186 Single Drum Rollers Service Manual SM96116 PDF

In order for you to constantly experience a sense of satisfaction while operating your equipment, we strongly recommend that you purchase this PDF service manual.

This PDF service guide introduces the new Vibromax 6 series single drum rollers following models VM116, VM146, VM166, and VM186.

This manual contains recommendations for the use and operation of rollers and various equipment, which is designed to provide convenience and comfort. The pdf manual contains general care and safety information, routine maintenance instruction, technical data, current repair instruction. Also, this service pdf instruction covers lots of schematics and harnesses, maintenance schedules, other repair information for JCB rollers.

This PDF service instruction works with Adobe PDF Reader (or any other equivalent). It allows you to easily copy, save and print the necessary service information. Keep this printed repair manual near the machine so that it is always at hand when the need arises.

Publication No. 9813/9713

Models covered:
VM116,
VM146,
VM166,
VM186.

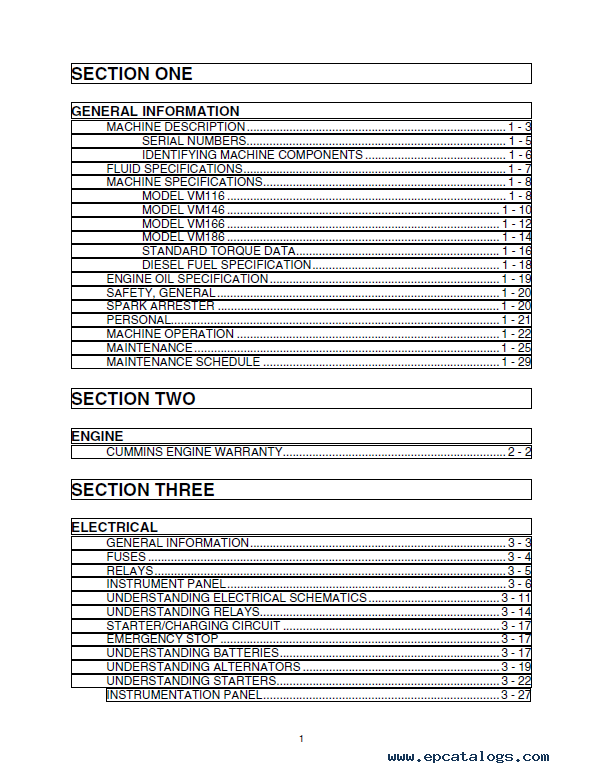

CONTENTS:

• SECTION ONE - GENERAL INFORMATION
  • MACHINE DESCRIPTION
  • FLUID SPECIFICATIONS
  • MACHINE SPECIFICATIONS
  • ENGINE OIL SPECIFICATION
  • SAFETY, GENERAL
  • SPARK ARRESTER
  • PERSONAL
  • MACHINE OPERATION
  • MAINTENANCE
  • MAINTENANCE SCHEDULE
• SECTION TWO - ENGINE
  • CUMMINS ENGINE WARRANTY
• SECTION THREE - ELECTRICAL
  • GENERAL INFORMATION
  • FUSES
  • RELAYS
  • INSTRUMENT PANEL

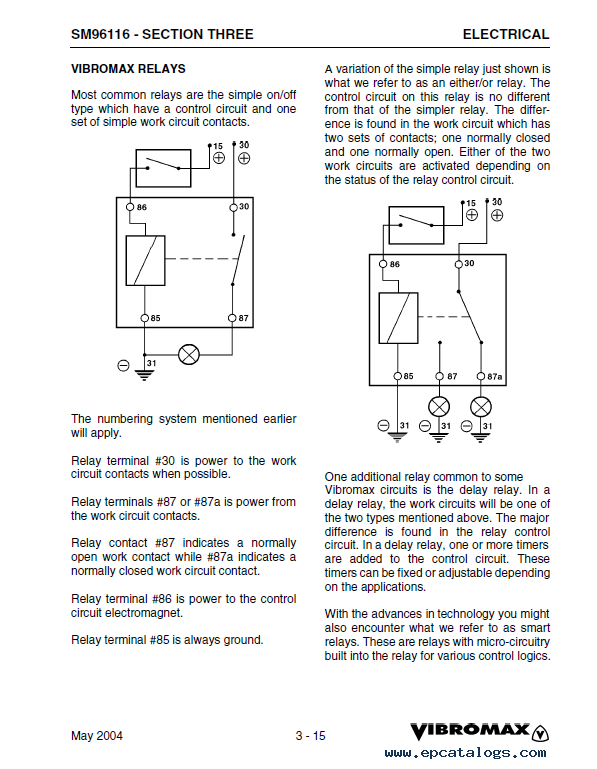

  • UNDERSTANDING ELECTRICAL SCHEMATICS
  • UNDERSTANDING RELAYS
  • STARTER/CHARGING CIRCUIT
  • EMERGENCY STOP
  • UNDERSTANDING BATTERIES
  • UNDERSTANDING ALTERNATORS
  • UNDERSTANDING STARTERS
  • INSTRUMENTATION PANEL
  • BRAKE SWITCH
  • HIGH-SPEED CIRCUIT
  • VIBRATION CIRCUIT
  • ROAD LIGHTING CIRCUIT
  • WORK LIGHTS & ACCESSORY PLUG
  • CAB CIRCUITS
  • ELECTRICAL SCHEMATICS
  • PLUG CONNECTORS
  • INSTRUMENT HARNESS 7242/80435
  • WIRE CHART 7242/80435
  • RELAY/FUSE HARNESS 7242/80415
  • WIRE CHART 7242/80415
  • REAR HARNESS 7242/80510
  • WIRE CHART 7242/80510
• SECTION FOUR - HYDRAULIC
  • HYDRAULIC COOLING SYSTEM
  • HYDRAULIC DRAIN LINES
  • HYDRAULIC TEST SYSTEM
  • HYDRAULIC TEST STATION
  • CHARGE SYSTEM
  • PROPULSION SYSTEM
  • MULTIFUNCTION VALVES
  • PROPULSION SYSTEM DIAGNOSTICS
  • PUMP SERVO CONTROL
  • VIBRATION SYSTEM
  • VIBRATION FREQUENCY
  • VIBRATION AMPLITUDE
  • VIBRATORY SYSTEM DIAGNOSTICS
  • STEERING SYSTEM
  • PARKING BRAKE SYSTEM
  • TOWING YOUR MACHINE
  • PARKING BRAKE DIAGNOSTICS
  • HOOD LIFT SYSTEM
  • HYDRAULIC COMPONENTS
  • HYDRAULIC SCHEMATIC
• SECTION FIVE - POWER TRAIN
  • DRUM REMOVAL
  • DRUM INSTALLATION
  • DRUM DRIVE
  • DRUM DRIVE BEARING REMOVAL
  • DRUM DRIVE BEARING INSTALLATION
  • DRUM DRIVE MOTOR REPAIRS
  • DRUM DRIVE GEARBOX
  • GFT 17 T2/312 2 GEARBOX
  • GFT 36 T3 1042 GEARBOX
• SECTION SIX - PARKING BRAKE SYSTEM
  • DESCRIPTION
  • BRAKE RELEASE AND TOWING
  • TOWING PROCEDURE
• SECTION SEVEN - VIBRATION SYSTEM
  • VIBRATION SYSTEM
  • VIBRATION FREQUENCY
  • VIBRATION AMPLITUDE
  • VIBRATORY SYSTEM DIAGNOSTICS
  • LIFTING DEVICE
  • DRUM REMOVAL
  • DRUM INSTALLATION
  • EXCITER BEARING REMOVAL
  • EXCITER BEARING ASSEMBLY
  • DRUM EXCITER SHAFT

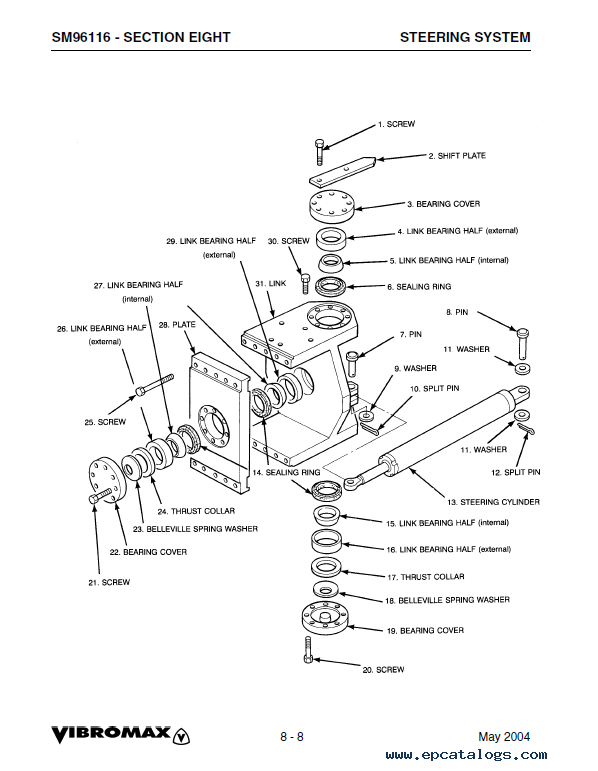

• SECTION EIGHT - STEERING SYSTEM
  • SPECIAL TOOLS
  • ARTICULATION JOINTS
  • JOINT DISASSEMBLY
  • JOINT ASSEMBLY
• SECTION NINE - CHASSIS
• SECTION TEN - ATTACHMENTS
  • ROLLOVER PROTECTION STRUCTURE (ROPS)
