Home / Forklift Trucks + Manuals / JCB / JCB Teletruk 515-40 Service Manual PDF

JCB Teletruk 515-40 Service Manual PDF

[]


Type of catalogue:	repair manual
Make:	JCB
Region:	WorldWide
Inclusive languages:	English
Amount of disks:	1 CD, PDF file, 641 pages
Availibility	Instant Download
OS:	Windows XP 32 bit, Windows 7 32 bit, Windows 7 64 bit, Windows 8/8.1 32 bit, Windows 8/8.1 64 bit, Windows 10 32 bit, Windows 10 64 bit, Windows 11 64 bit, Windows 11 Pro 64 bit
Price, USD:	49

Your machine has been designed and built to give maximum performance, economy, and ease of use under a wide variety of operating conditions. To maintain this condition and ensure trouble-free operation it is important that the routine services, as specified in this PDF service manual. This manual is intended to serve and repair JCB Teletruk 515-40.

This service manual gives full details of the service requirements necessary to maintain your JCB machine at peak efficiency. The service repair manual contains technical service information on how to repair, dismantle and assemble your machine correctly.

This service workshop manual is a PDF document that does not require any installation (INSTANT DOWNLOAD) and works with applications that support PDF files (we recommend to use Adobe Acrobat Reader).

Note: All repair information in this manual is current at the time of publication. The publisher reserves the right to make changes at any time as part of the ongoing JCB product upgrade program.

Publication No. 9803/9900-4

Models covered:
515-40 from SN 1627500 to 1769999

Contents:

Section 1 - General Information
- Introduction
- Standard Torque Settings
- Service Tools
- Service Consumables
- Terms and Definitions
Section 2 - Care and Safety
- Safety Notices
Section 3 - Maintenance
- Routine Maintenance
Section A - Attachments
- Service Procedures
Section B - Body and Framework
- Service Tools
- Technical Data
- Systems Operation
- Fault Finding
- Service Procedures
- Boom
- Inner Boom
- Quick hitch/Tool Carrier
- Cab
- Engine Cover
- Counterweight
- Load Moment Indicator (LMI)
- Hydraulic Tank
- Body Panels and Guards
- Fuel Level Sender Unit
- Heating, Ventilation and Air Conditioning (HVAC)
Section C - Electrics
- Service Tools
- Technical Data
- Schematic Circuits
- Service Procedures
- Alternator
- Starter Motor
- Battery
- Harness Data
Section D - Controls
- Manual Control Levers
Section E - Hydraulics
- Service Tools
- Technical Data
- Systems Operation
- Schematic Circuits
- Fault Finding
- Service Procedures
- Hydraulic Services Pump
- Control Valve Block
- Hydraulic Oil Cooler
- Rams
- Hydraulic Tank
Section F - Transmissions
- Service Tools
- Technical Data
- Systems Operation
- Service Procedures
- Fault Finding
- Transmission Pump
- Transmission Control Valve Block
- Rear Axle
- Wheel Motor Carriers
- Wheel Motors
- Wheels and Tyres
Section G - Brakes
- Technical Data
- Systems Operation
- Fault Finding
- Service Procedures
- Brake Shoes
- Brake Wheel Cylinder
- Brake Master Cylinder
- Brake Pedal Assembly
- Park Brake Cable
Section H - Steering
- Service Tools
- Technical Data
- Systems Operation
- Fault Finding
- Service Procedures
- Steer Ram
- Hydraulic Steer Unit
- Steering Column
- Steer Stops
Section K - Engine
- Technical Data
- System Operation
- Engine
- Engine Sensors and Switches
- Engine Coolant Thermostat
- Air Filter
- Exhaust Assembly
- Throttle Cable
- Engine Compartment Fan
- Cooling Pack
- Coolant Reservoir
- Fuel Lift Pump
- Compressor
- Fuel System

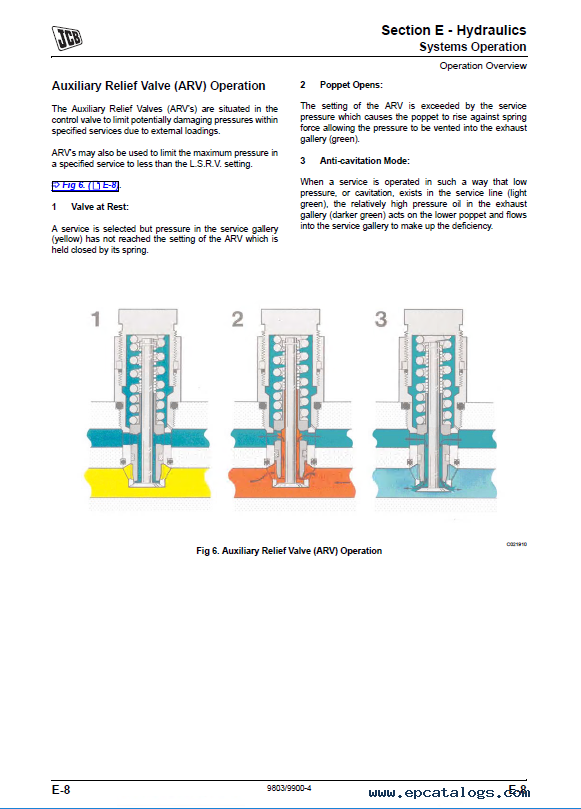

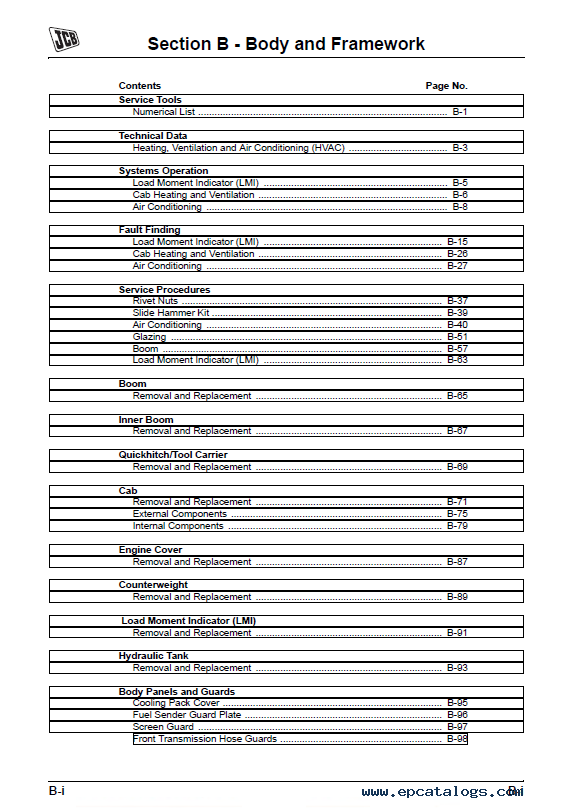

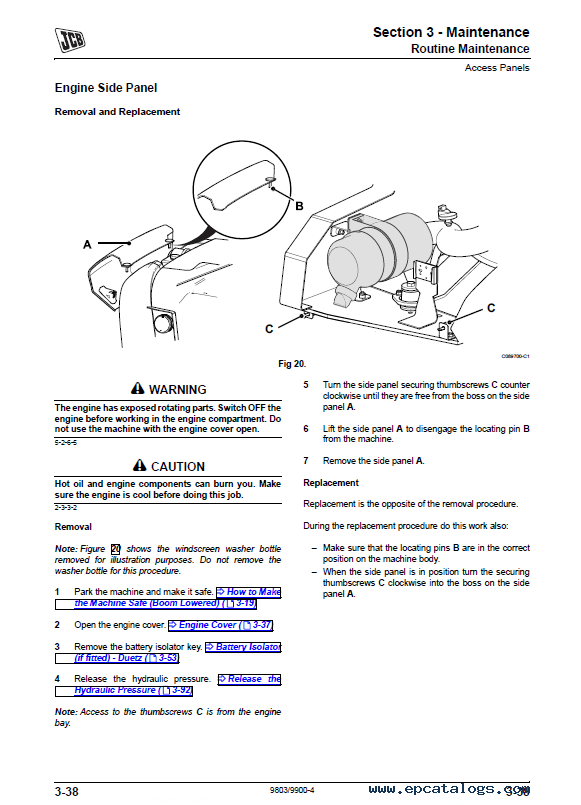

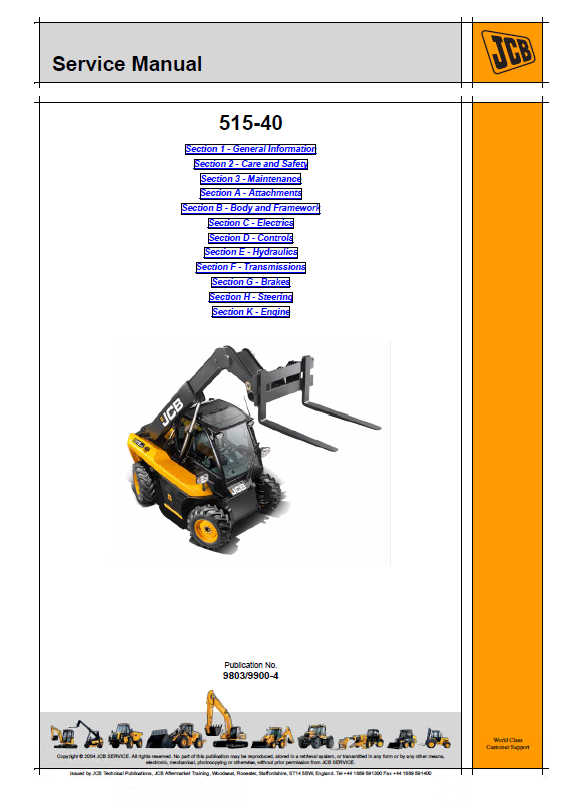

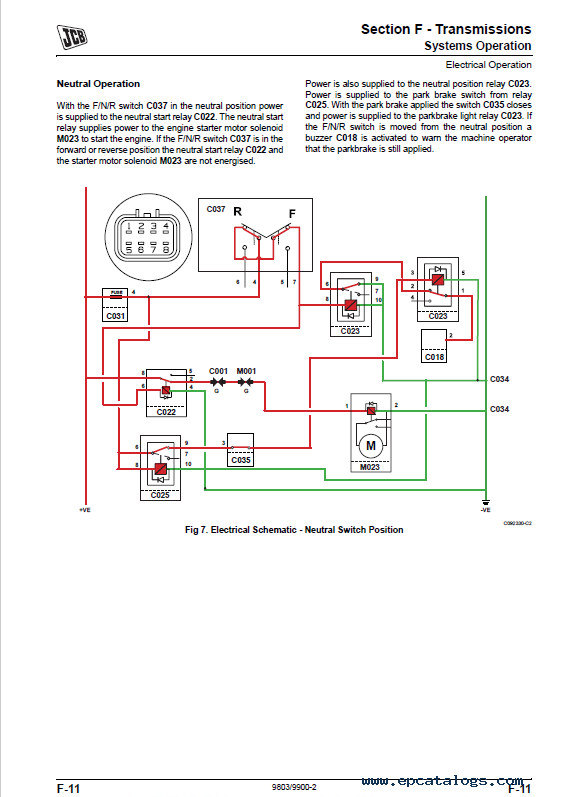

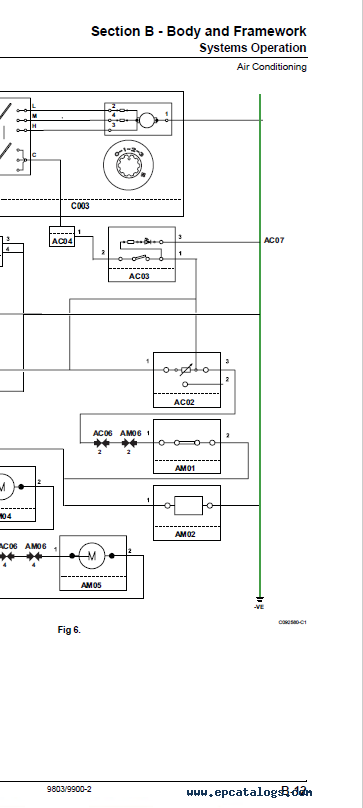

Screenshots for JCB Teletruk 515-40 Service Manual PDF:
