JCB Skid Steer Robot 190, 1110 Service Manual PDF

[]


Type of catalogue:	repair manual
Make:	JCB
Region:	WorldWide
Inclusive languages:	English
Amount of disks:	1 CD, PDF file, 264 pages
Availibility	Instant Download
OS:	Windows XP 32 bit, Windows 7 32 bit, Windows 7 64 bit, Windows 8/8.1 32 bit, Windows 8/8.1 64 bit, Windows 10 32 bit, Windows 10 64 bit, Windows 11 64 bit
Price, USD:	49

JCB pdf manual instant preview file 1
JCB pdf manual instant preview file 2

To service and repair skid steer loaders was fast and efficient, you need to have competent service instruction on hand.

For example, for current repair and routine maintenance of the JCB Skid Steer Robot models 190, 1110, you need to use this pdf service manual. This product covers 2 PDF service manuals for JCB Skid Steer Robot 190, 1110, which complement each other.

The pdf service manual contains the necessary repair information on all issues that are important to know for the proper operation of the skid steer loaders. The service repair manual provides technical service information of the following nature: general information, care and safety instructions, detailed maintenance instruction, axles data, brakes information, lots of illustrations, etc.

Purchase this manual is very simple: just click on the button 'Buy Now' and follow the detailed instructions. After payment, you will receive a link to download this pdf instruction. To work with it, use some PDF Reader, which allows you to print and study the manual (we recommend to use Adobe PDF Reader).

Publication Numbers:
9803/8530 Issue 8
9803/9460-1

Models covered:
190, 1110

Contents (9803/8530):

Section 1 - General Information
- Identifying your Machine
- Torque Settings
- Service Tools
- Sealing and Retaining Compounds
Section 2 - Care and Safety
- Safety Notices
- General Safety
- Operating Safety
- Maintenance Safety
- Safety Decals
Section 3 - Routine Maintenance
- Fluids, Capacities, and Lubricants
- Lubricants
- Fuel System (see also Engine)
- Service Schedules
- Loader Arm Safety Strut
- Greasing and Oiling
- Body and Framework
- Electrical System
- Hydraulic System
- Transmission
- Engine
- Windscreen Washer
- Track Adjustment (tracked machines only)
Section A - Optional Attachments
- Quick Release Couplings
- Connecting/Disconnecting Hoses
- Shovels
- Pallet Forks
- Manure/Silage Fork with Top Grab
- Attachment Frame
Section B - Body and Framework
- Seat and Pump Cover
- Windows
- Cab/Canopy Door
- Cab/Canopy
- Loader Arm
- Rivet Nuts
Section C - Electrics
- Technical Data
- Test Methods
- Problem Solving
- Circuit Diagram
- Wire Number Identification
- Harness Diagrams
- Battery Testing
- Alternator
- Starter Motor
Section D - Controls
- Safety Restraint
- Manual Controls
Section E - Hydraulics
- Technical Data
- Descriptions
- Towing/Winching
- Problem Solving
- Schematic Hydraulic Circuits
- Circuit Diagram
- Hydraulic Contamination
- Pressure Testing
- Transmission Pump
- Loader Pump
- Drive Motors - Wheeled Machines
- Drive Motors - Tracked Machines
- Valves
- Rams
- Hydraulic Filters
Section F - Transmission
- Description
- Tires and Wheels
- Wheel Hubs
- Drive Charts
- Tyre Pressures (see Routine Maintenance)
Section G - Brakes
- Towing/Winching
- For dismantling and assembly procedures refer to Section E
Section J - Tracks
- Description
- Track Damage
- Track Repair
- Track
- Motor
- Idler Wheels and Rollers
- Track Frame Assembly
Section K - Engine
- Technical Data
- Removal and Replacement

Contents (9803/9460-1):

Section 1 - General Information
- Introduction
- Identifying your Machine
- Torque Settings
- Service Tools
- Service Consumables
Section 2 - Care and Safety
- Safety Check List
Section 3 - Maintenance
- Routine Maintenance
Section A - Attachments
- Hydraulic Connections
- General Information
- Maintenance
Section B - Body and Framework
- Loader Arm
- Fasteners
Section C - Electrics
- Technical Data
- Test Methods
- Service Procedures
- Problem Solving
- Circuit Diagrams
- Harness Data
- Alternator
- Starter Motor
Section D - Controls
- Manual Controls
Section E - Hydraulics
- Technical Data
- Operation Description
- Fault Finding
- Circuit Diagrams
- Service Procedures
- Pressure Testing
- Loader Pumps
- Transmission Pumps
- Drive Motors
- Valves
- Rams
- Servo Joysticks
Section F - Transmission
- Description
- Tires and Wheels
- Wheel Hubs
- Drive Chains
Section G - Brakes
- Moving a Disabled Machine
Section J - Tracks
- Basic System and Operation1
- Track Damage
- Track Repair
- Track Removal and Replacement
- Idler Wheels and Rollers
- Track Frame Assembly
Section K - Engine
- Technical Data

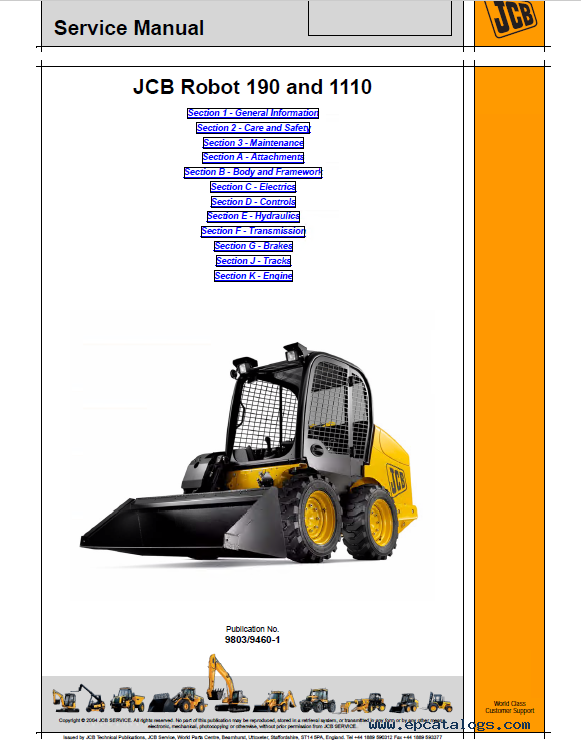

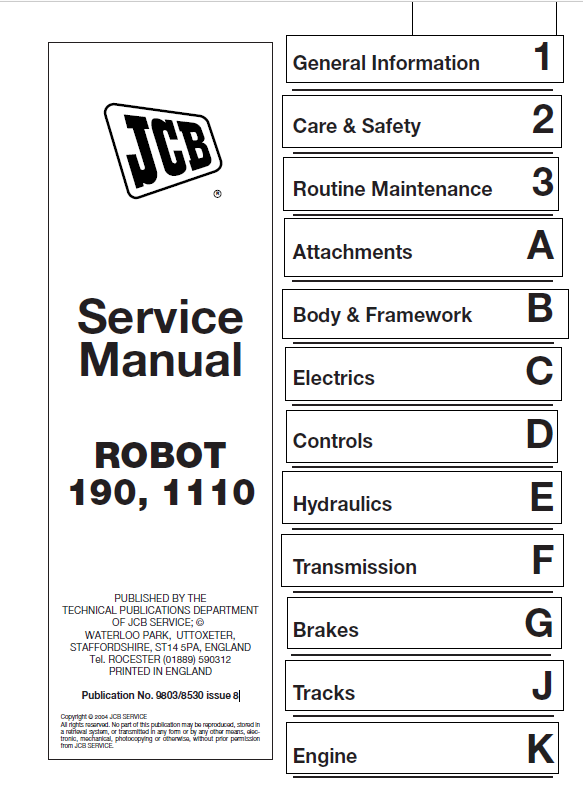

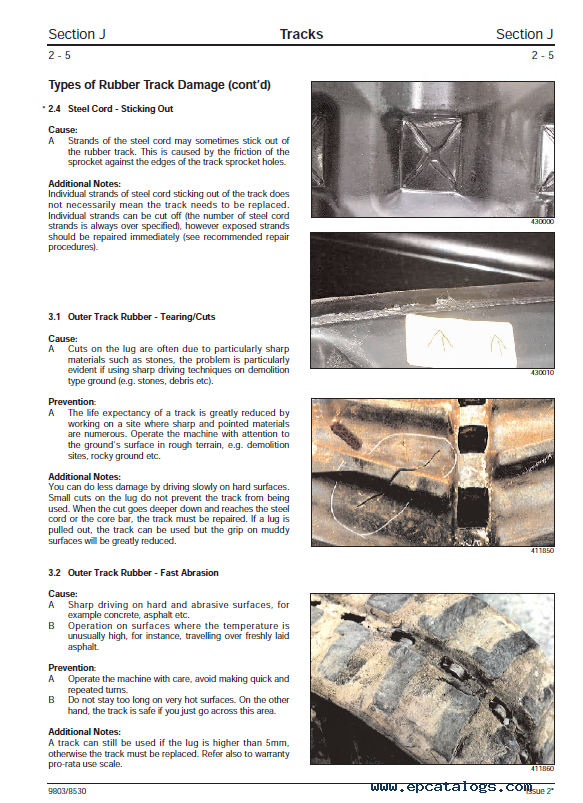

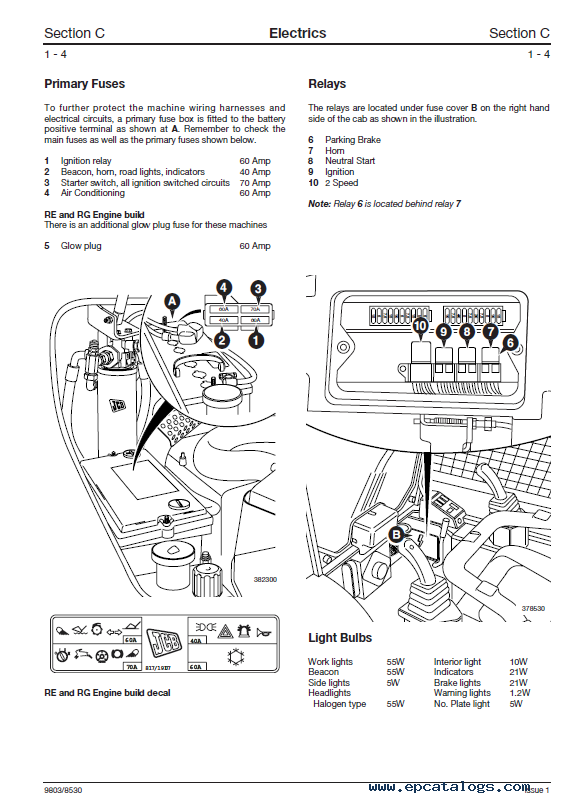

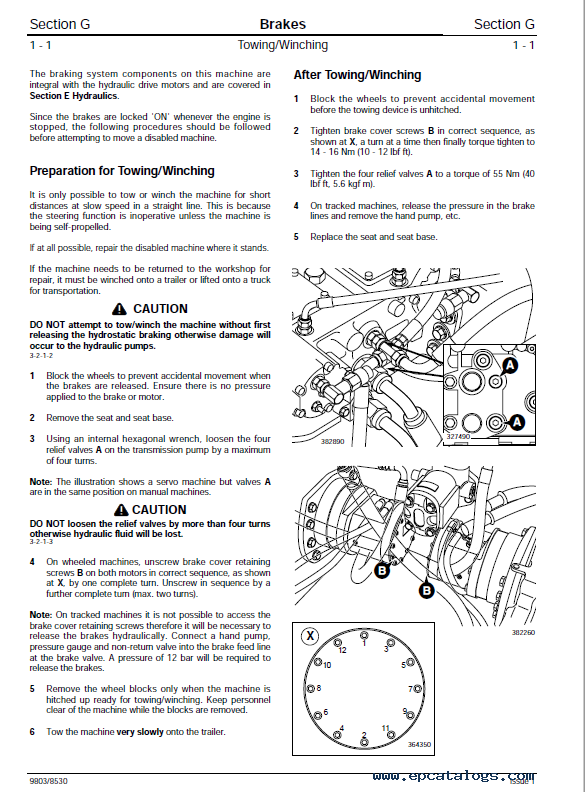

Screenshots for JCB Skid Steer Robot 190, 1110 Service Manual PDF:

enlarge

enlarge

enlarge

enlarge

enlarge

enlarge
