JCB Loadalls 532H, 537H Service Manual Supplement PDF

In case of improper operation and untimely maintenance of equipment, it may fail, work unproductive, and also become a source of danger for the operator (owner of the equipment). That is why we recommend purchasing a PDF service manual. Because it will become an indispensable service tool for you in the daily maintenance of equipment, as well as with proper operation.

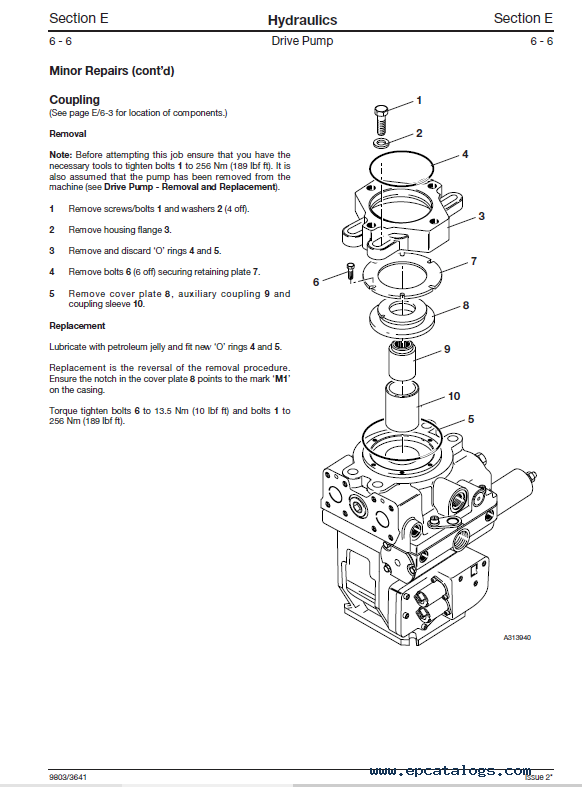

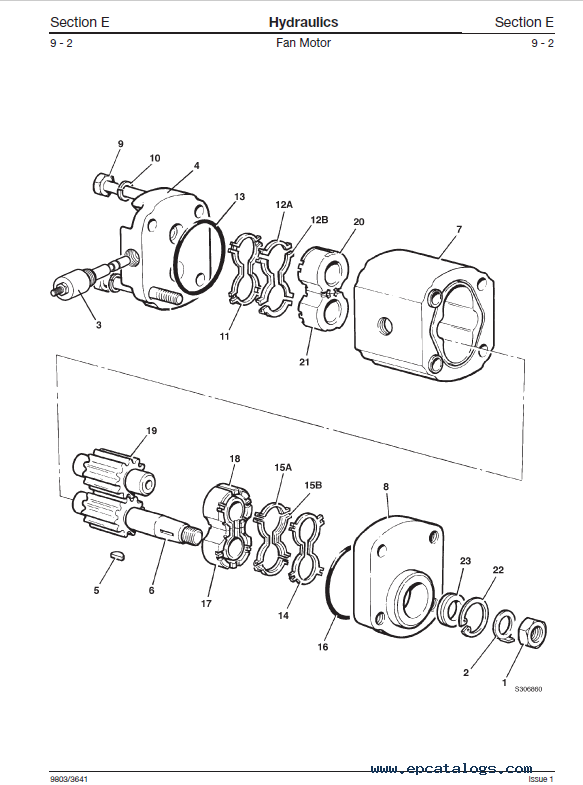

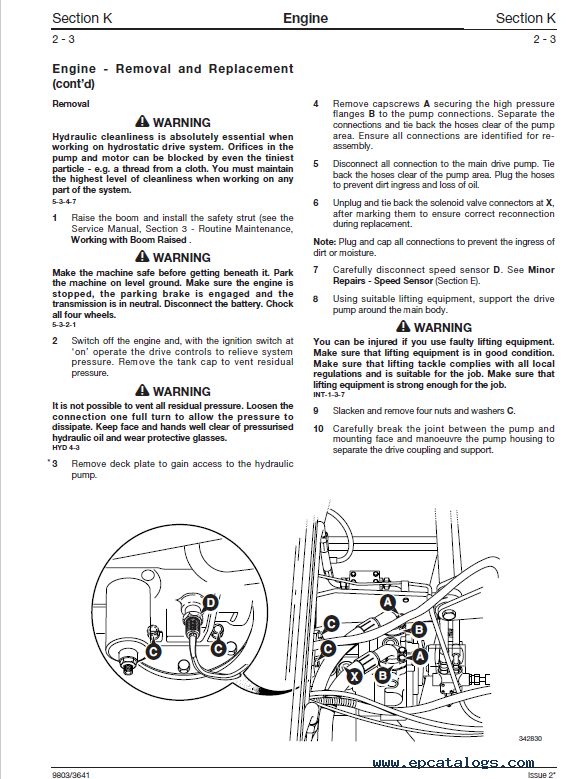

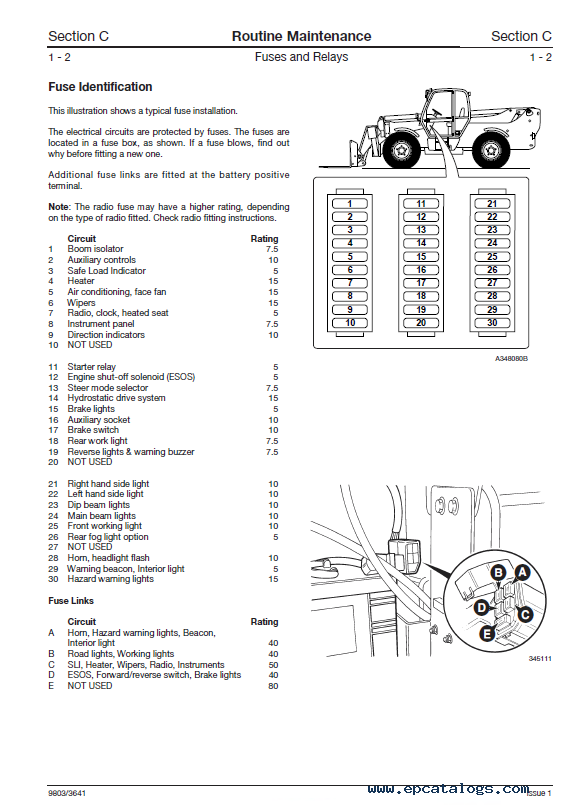

This service manual is intended for routine maintenance and operation of the JCB Loadalls 532H, 537H. The service repair manual contains technical service instructions, current repair information, technical specifications, lots of colors electrical and hydraulic circuits, schematics, and other illustrations.

This service workshop manual does not require installation as it is a PDF file. This file works with applications that support PDF format files (for instance we recommend you to use Adobe PDF Reader). Before purchasing the PDF manual you can also preview it. To do this, you need to click on the link under the pdf instruction title 'JCB pdf manual instant preview'.

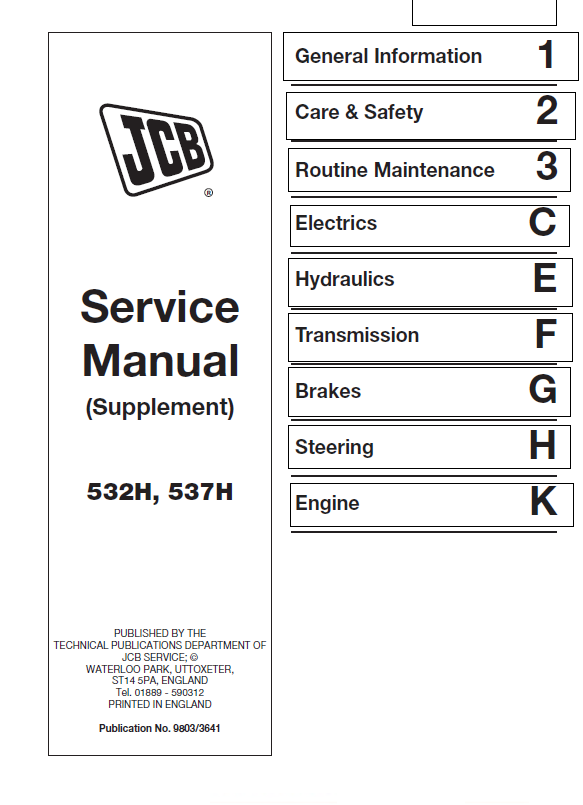

Publication No. 9803/3641

Models covered:
532H machine from serial number 770970,
537H machine from serial number 773560.

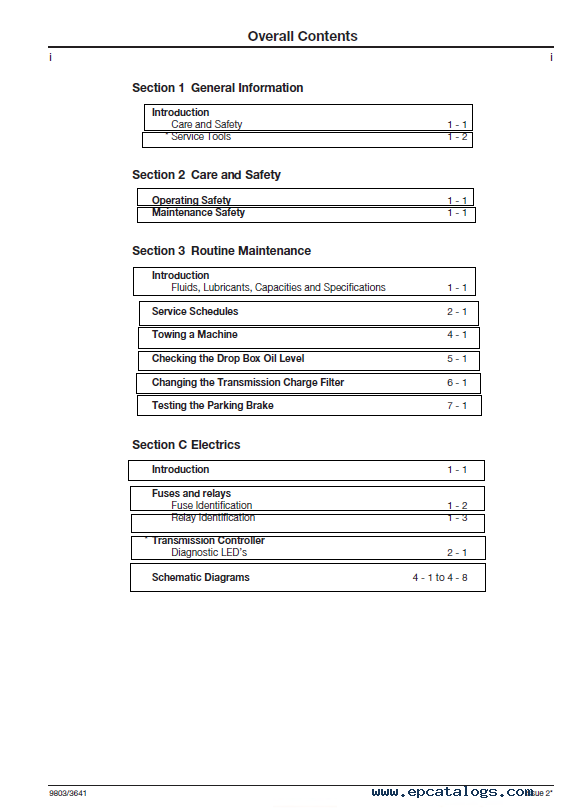

Overall Contents:

• Section 1 - General Information
  • Introduction
• Section 2 - Care and Safety
  • Operating Safety
  • Maintenance Safety
• Section 3 - Routine Maintenance
  • Introduction
  • Service Schedules
  • Towing a Machine
  • Checking the DropBox Oil Level
  • Changing the Transmission Charge Filter
  • Testing the Parking Brake
• Section C - Electrics
  • Introduction
  • Fuses and relays
  • Transmission Controller
  • Schematic Diagrams
• Section E - Hydraulics
  • Technical Data
  • Hydraulic Contamination
  • Fault Finding
  • Schematic Diagrams and Circuit Descriptions
  • Engine/Drive Pump Coupling
  • Drive Pump
  • Drive Motor/DropBox Assembly
  • Fan Pump
  • Fan Motor
  • Main Service Pump
  • Priority Valve
  • Transmission Oil Cooler Bypass Valve
  • Start-up procedure
• Section F - Transmission
  • Introduction
  • Description and Operation
  • DropBox
  • Propshafts
• Section G - Brakes
  • Introduction
  • Parking Brake
• Section H - Steering
  • Introduction
  • Technical Data
  • Section K Engine
  • Introduction
  • Engine Removal and Replacement
  • Machine Start-up Procedure
