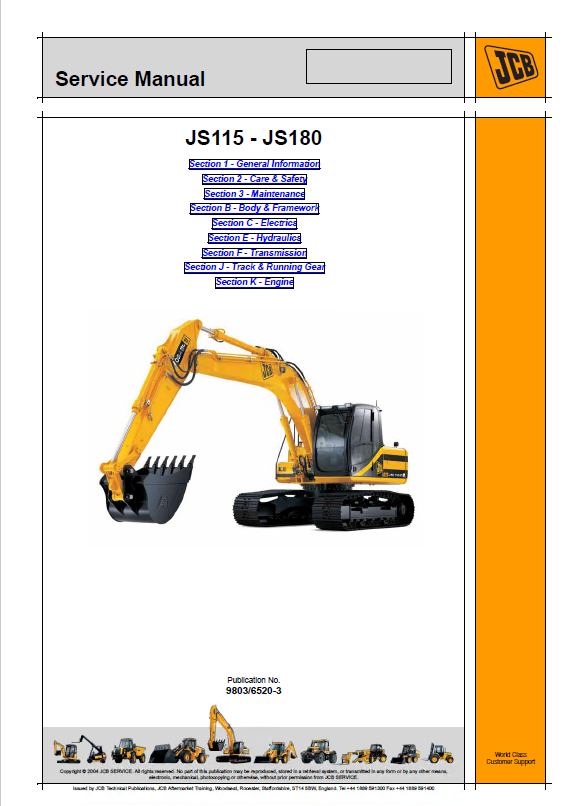

JCB JS115 - JS 180 Excavators Service Manual PDF

Your machine has been designed and manufactured in such a way as to ensure maximum performance, economy, and ease of use in a wide variety of operating conditions.

In order to ensure these indicators in the operation of your equipment, it is necessary to operate it correctly, as well as to conduct competent maintenance and repair of equipment. For JCB excavators JS115, JS130, JS130LC, JS145, JS160, JS180 models, you can purchase this PDF service manual.

This workshop manual provides the complete service information about the technical service requirements you need to keep your JCB technology at its best.

The service manual is organized into sections that are numbered and contain general repair information, care and safety instructions, and regular maintenance information for JCB excavators.

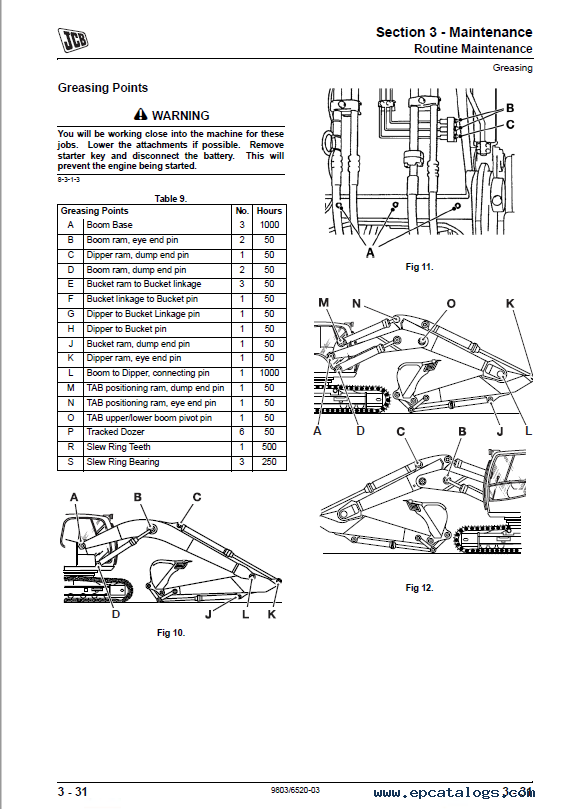

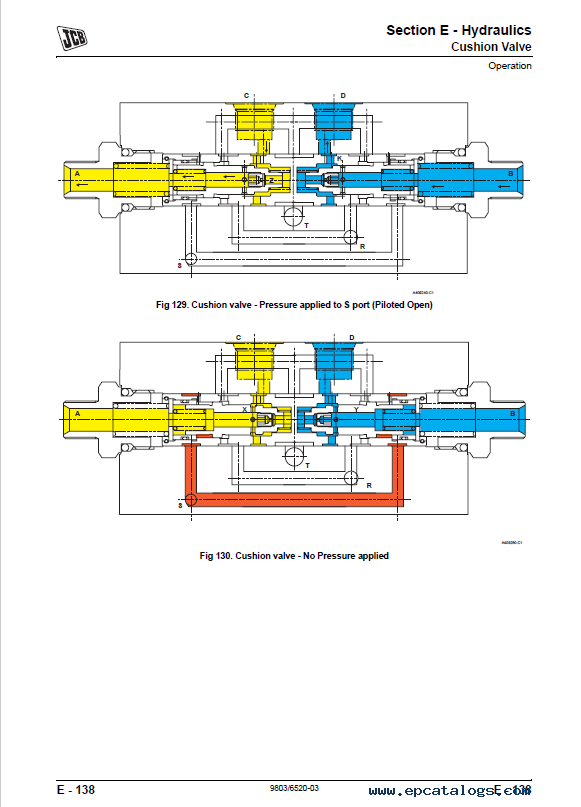

The manual also contains technical data, descriptions of circuits, descriptions of operations, many pictures, color illustrations, as well as electrical and hydraulic circuits.

The repair manual is an electronic PDF book, which is quite simple to work with: just install a program that supports PDF files. We recommend using Adobe PDF Reader, to be sure all images/graphics will display correctly.

Publication No. 9803/6520-3

Models covered:
JS115,
JS130,
JS130LC,
JS145,
JS160,
JS180.

Contents:

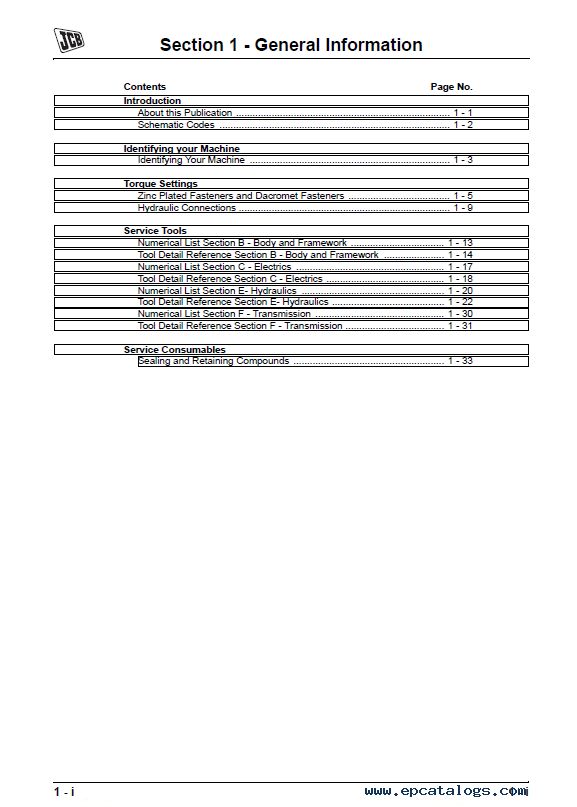

• Section 1 - General Information
  • Introduction
  • Identifying your Machine
  • Torque Settings
  • Service Tools
  • Service Consumables
• Section 2 - Care & Safety
  • Safety Notices
• Section 3 - Maintenance
  • Routine Maintenance
• Section B - Body and Framework
  • Technical Data
  • Basic Operation
  • Fault Finding
  • Service Procedures
  • Cab Panels
• Section C - Electrics
  • Technical Data
  • Basic System Operation
  • Fault Finding
  • Service Procedure
  • Harness Data
• Section E - Hydraulics
  • Technical Data
  • Basic System Operation
  • Circuit Descriptions
  • Service Procedure
  • Hydraulic Pump/Regulator
  • Remote Control Valve (Hand Control)
  • Travel Pedal Valve
  • Solenoid Valve (8 Spool)
  • Shuttle Valve
  • Cushion Valve
  • Slew Motor and Gearbox
  • Rotary Coupling
  • Hydraulic Rams
  • Fault Finding
• Section F - Transmission
  • Technical Data
  • Fault Finding
  • Track Motor
  • Track Gearbox
• Section J - Track & Running Gear
  • Technical Data
  • Idler Wheel and Recoil Unit
  • Idler Wheel
  • Recoil Unit
  • Grease Cylinder
  • Drive Sprocket
  • Top Roller
  • Bottom Roller
• Section K - Engine
  • Technical Data
