JCB HS750 Transmission Service Manual PDF

This service manual is modularized to include the procedures for disassembling, inspecting and assembling axles and gearboxes, also service and repair information for JCB HS750 Transmission.

It should be noted that the repair procedures given in this workshop manual are intended only for transmission assembly.

This repair manual is necessary for owners (operators) of JCB equipment since all machines can be dangerous. When appliances properly operated and maintained, it is safe for the machine work. When it is carelessly exploited or in bad condition it can become dangerous for you (operator) and others. Therefore, it is necessary to carefully study the manual and follow its instructions.

This manual is an e-book in PDF format. It works with any application that can read PDF files (for example Adobe PDF Reader). This manual contains original service information, verified by the manufacturer (or their authorized representative).

Publication No. 9823/0200 - ISSUE 1

Models:
HS750 Transmission

Contents:

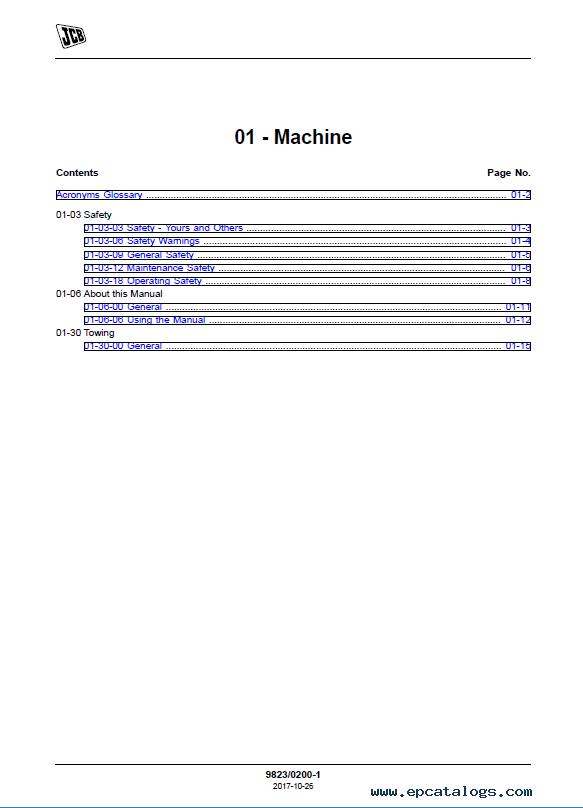

• 01 - Machine
  • 01-03 Safety
  • 01-06 About this Manual
  • 01-30 Towing
• 06 - Body and Framework
  • 06-63 Identification Label
• 24 - Brake System
  • 24-18 Park Brake

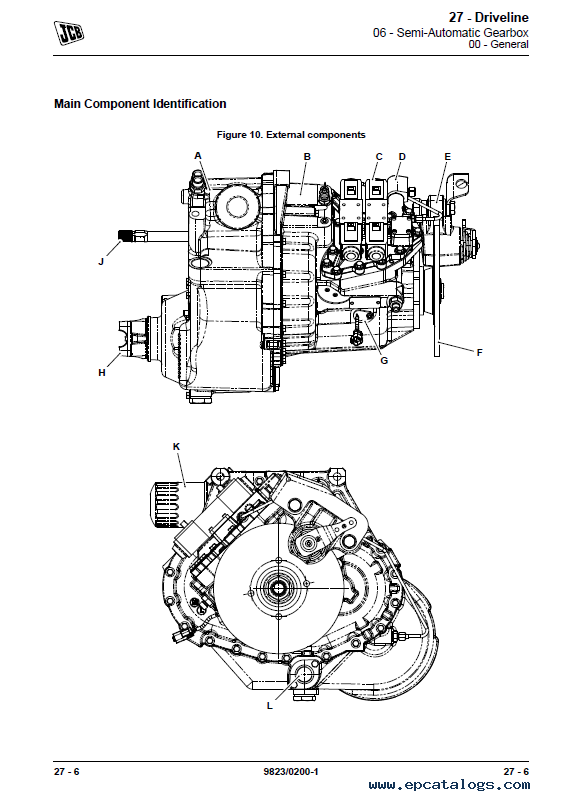

• 27 - Driveline
  • 27-06 Semi-Automatic Gearbox
• 30 - Hydraulic System
  • 30-00 General
  • 30-93 Hose

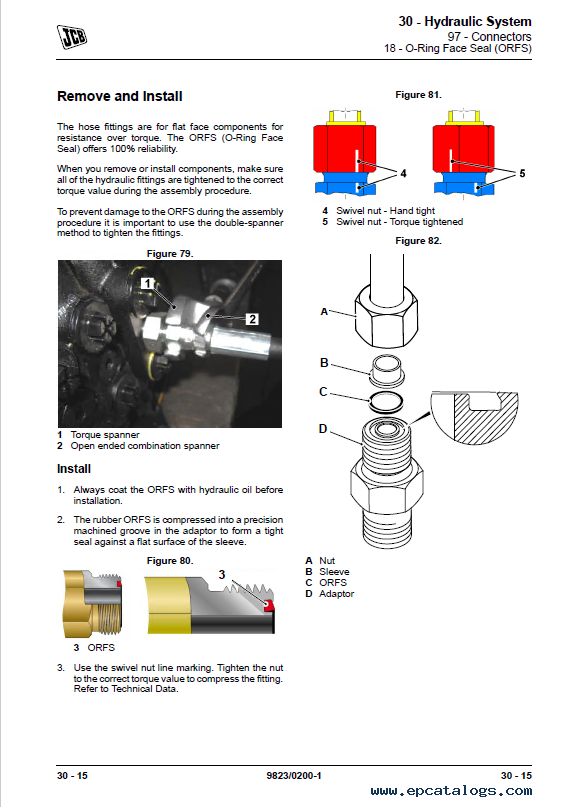

  • 30-97 Connectors
• 33 - Electrical System
  • 33-09 Power Distribution
• 72 - Fasteners and Fixings
  • 72-00 Fasteners and Fixings
  • 72-03 Screws
  • 72-06 Bolts
• 75 - Consumable Products
  • 75-00 Consumable Products
  • 75-03 Oil
  • 75-09 Fluids
  • 75-10 Locking Fluids
  • 75-14 Solvents and Primers
  • 75-15 Adhesive
  • 75-16 Sealant
• 78 - After Sales
  • 78-24 Maintenance Schedules
  • 78-81 Clothing and Personal Protective Equipment (PPE)
  • 78-93 Special Tools
  • 78-96 Units of Measurement
