JCB Dumpsters 2TFT, 2THS, 2TST, 3.5TST, 3TFT, 3TST Service Manual PDF

Sooner or later the time comes for maintenance or repair of special equipment. For repair or maintenance of JCB Dumpsters 2TFT, 2THS, 2TST, 3.5TST, 3TFT, 3TST models, you will need this service manual, not to make it worse.

This instruction for repair and maintenance will help to replace or repair almost any JCB Dumpsters assembly, repair or maintain it yourself, with your own hands. The service manual will be mainly useful for engineers of service centers for repairing JCB special equipment. For clarity, you can take a look at the screenshots that are presented on the site.

This repair manual contains detailed service and repair information that will show you the way to troubleshooting.

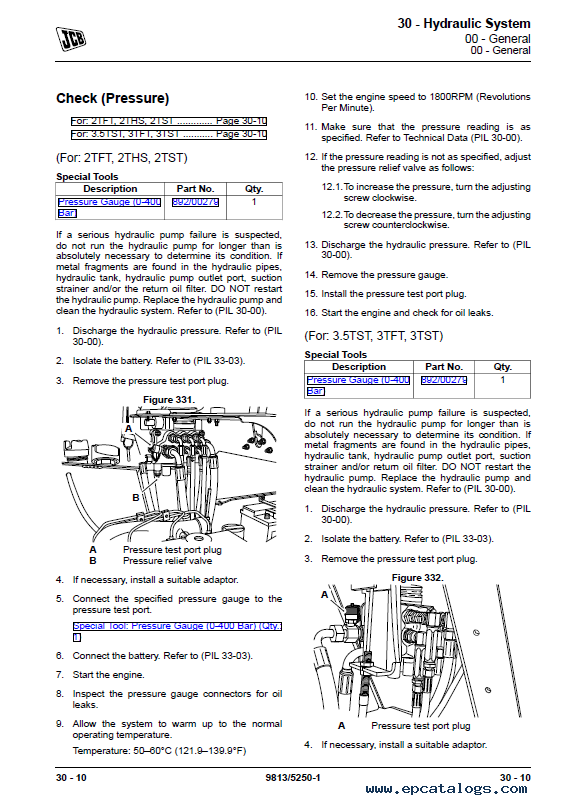

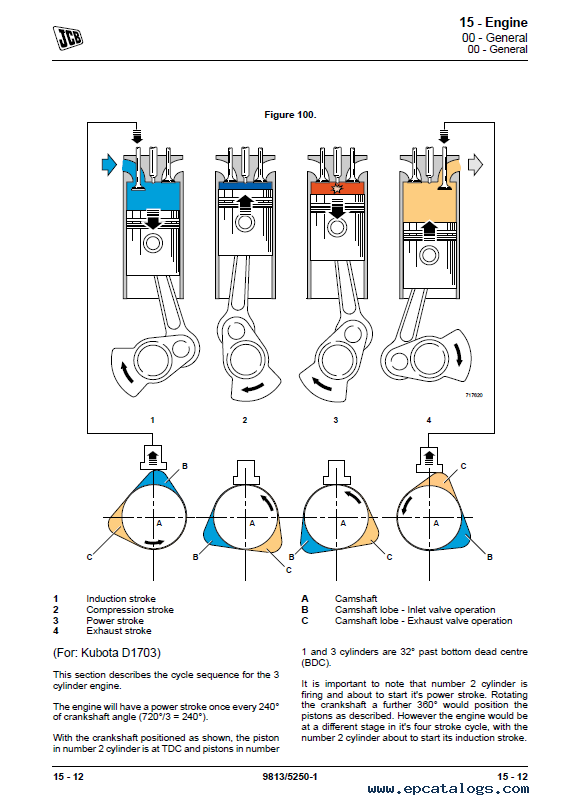

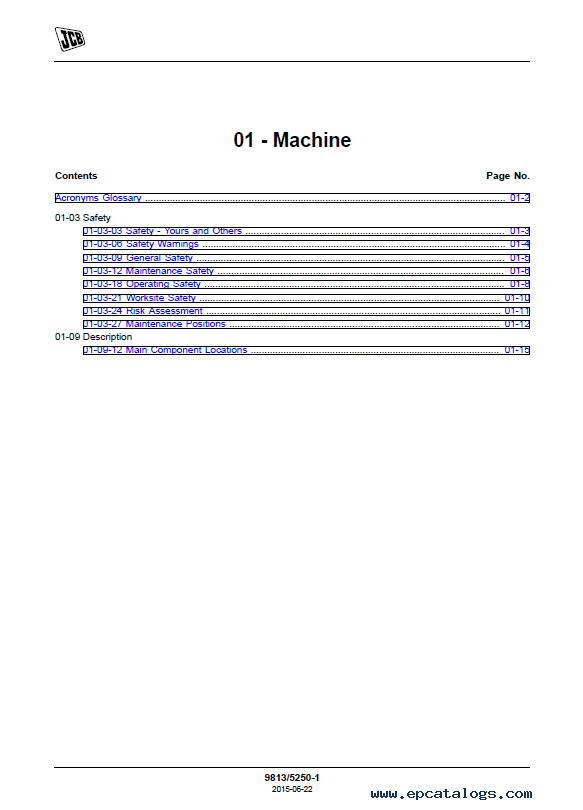

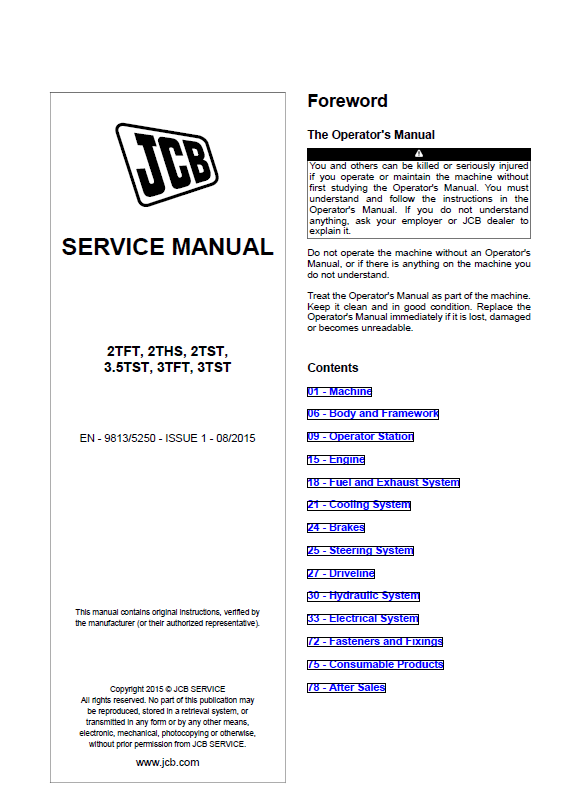

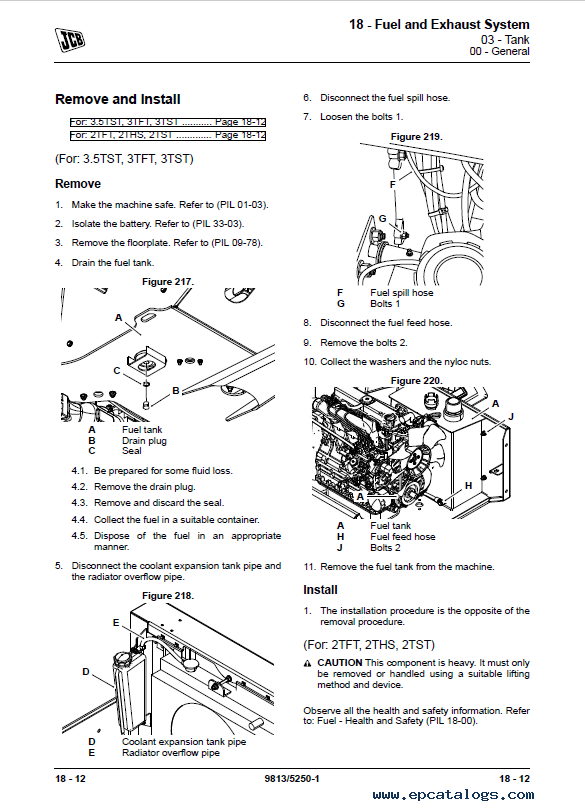

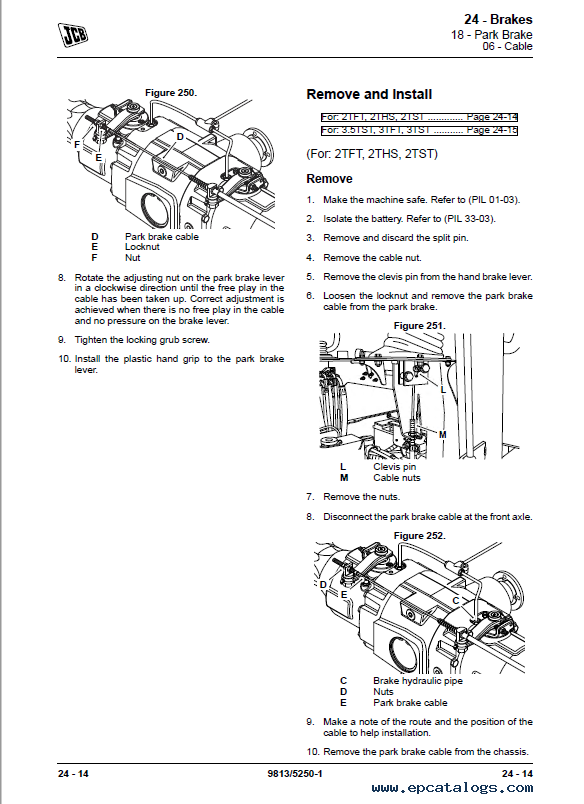

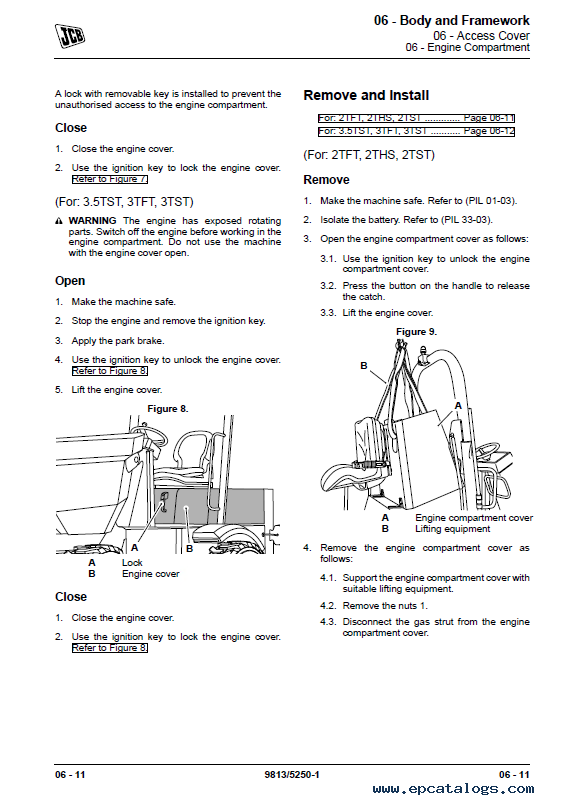

You can study the manual in more detail not only by viewing the screenshots but also by examining the list of content that is presented below.
Installation of the manual does not require special knowledge and capabilities since this manual is a PDF file, which you can download directly from the site. Working with the workshop manual is quite simple, just install any application that supports PDF files.

Publication No. 9813/5250 - ISSUE 1

Models covered:
2TFT,
2THS,
2TST,
3.5TST,
3TFT,
3TST.

Contents:

• 01 - Machine
  • 01-03 Safety
  • 01-09 Description
• 06 - Body and Framework
  • 06-00 General
  • 06-03 Chassis
  • 06-06 Access Cover
  • 06-12 Lift Arm
  • 06-24 Slew Ring
  • 06-27 Transportation Lock
  • 06-33 Articulated Joint
  • 06-39 Carriage
  • 06-63 Identification Label
  • 06-66 Tools
  • 06-69 Maintenance Strut
  • 06-81 Dumper Body
  • 06-88 Exterior Light Guard
• 09 - Operator Station
  • 09-00 General
  • 09-12 Operator Seat
  • 09-30 Trim Panel
  • 09-78 Floorplate
• 15 - Engine
  • 15-00 General
  • 15-03 Crankcase
  • 15-06 Cylinder Head
  • 15-12 Crankshaft
  • 15-15 Camshaft
  • 15-18 Engine Belt
  • 15-21 Oil Filter
  • 15-24 Air Filter
  • 15-30 Valve
  • 15-33 Connecting Rod
  • 15-36 Piston
  • 15-39 Manifold
  • 15-42 Rocker and Fittings
  • 15-45 Oil Sump
  • 15-51 Timing Gear
  • 15-54 Flywheel
  • 15-63 Mount
  • 15-72 Alternator
  • 15-75 Starter Motor
  • 15-86 Solenoid
  • 15-90 Air Intake
• 18 - Fuel and Exhaust System
  • 18-00 General
  • 18-03 Tank
  • 18-09 Filter
  • 18-18 Injection
  • 18-24 Exhaust
• 21 - Cooling System
  • 21-00 General
  • 21-03 Cooling Pack
  • 21-06 Expansion Tank
  • 21-09 Pump
  • 21-12 Thermostat
  • 21-93 Hose
• 24 - Brake System
  • 24-00 General
  • 24-03 Service Brake
  • 24-18 Park Brake
• 25 - Steering System
  • 25-00 General
  • 25-06 Steer Unit/Valve
  • 25-12 Column
• 27 - Driveline
  • 27-00 General
  • 27-03 Manual Gearbox
  • 27-12 Transfer Gearbox
  • 27-29 Front Wheel
  • 27-31 Wheel Drive Pump
  • 27-32 Wheel Drive Motor
• 30 - Hydraulic System
  • 30-00 General
  • 30-03 Tank
  • 30-04 Filter
  • 30-11 Gear Pump
  • 30-15 Cylinder / Ram
  • 30-51 Lift Arm Control Valve Block
  • 30-93 Hose
  • 30-97 Connectors
• 33 - Electrical System
  • 33-00 General
  • 33-03 Battery
  • 33-09 Power Distribution
  • 33-12 Harness
  • 33-24 Instruments
  • 33-40 Bulb
  • 33-42 Exterior Light
  • 33-51 Beacon
• 72 - Fasteners and Fixings
  • 72-18 Bearings
• 75 - Consumable Products
  • 75-00 General
  • 75-03 Oil
  • 75-06 Grease
  • 75-09 Fluids
  • 75-10 Locking Fluids
  • 75-14 Solvents and Primers
  • 75-15 Adhesive
  • 75-16 Sealant
  • 75-18 Fuel
• 78 - After Sales
  • 78-24 Maintenance Schedules
  • 78-81 Clothing and Personal Protective Equipment (PPE)
  • 78-93 Special Tools
  • 78-96 Units of Measurement
