Isuzu IDSS II Diagnostic Service System 06/2019

A detailed description of the Isuzu Diagnostic Service System IDSS II

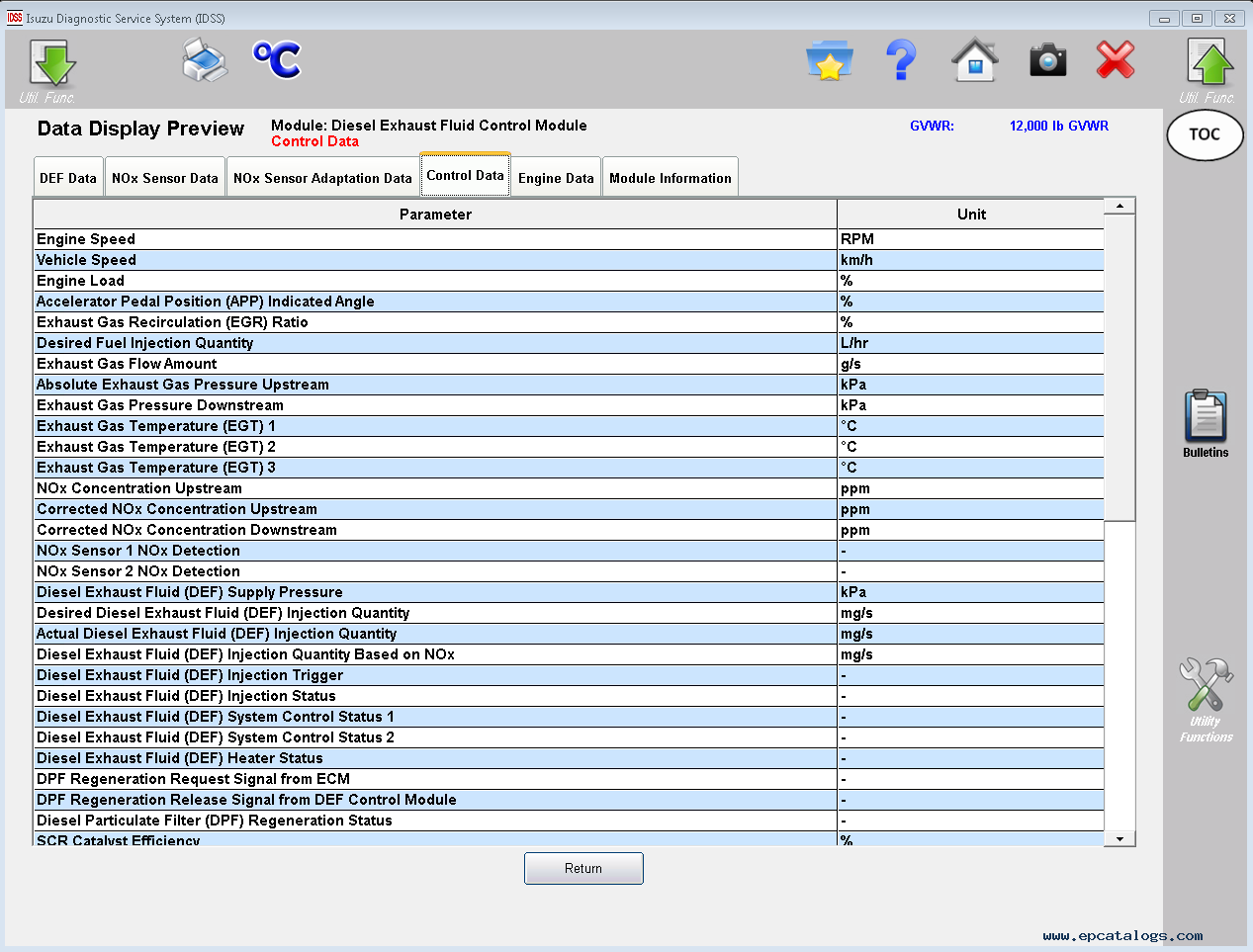

Welcome to the Isuzu Diagnostic Service System (IDSS II). Isuzu IDSS II is intended to be a step-by-step process guide for operators using IDSS II to diagnose various control modules on-vehicle, as well as capturing data. This guide is specifically to be used for Isuzu Medium Truck applications.

IDSS II is designed to support Isuzu Commercial Vehicles. With each new release of the IDSS II program, additional vehicle engine configurations and controller systems may be supported. In addition to the above, you get service bulletin for use, as well as diagrams and schemes that are easy to follow when performing maintenance or repairs.

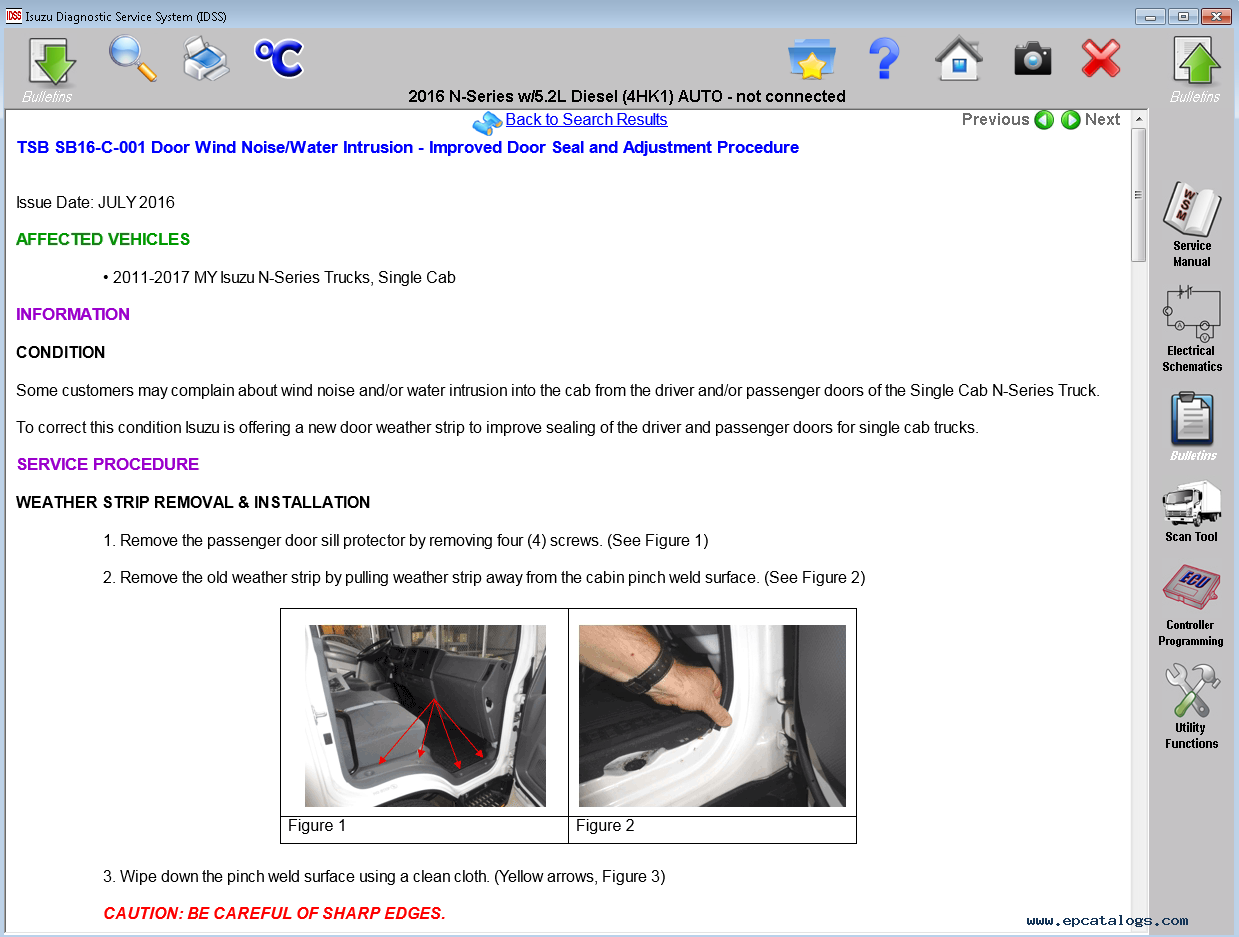

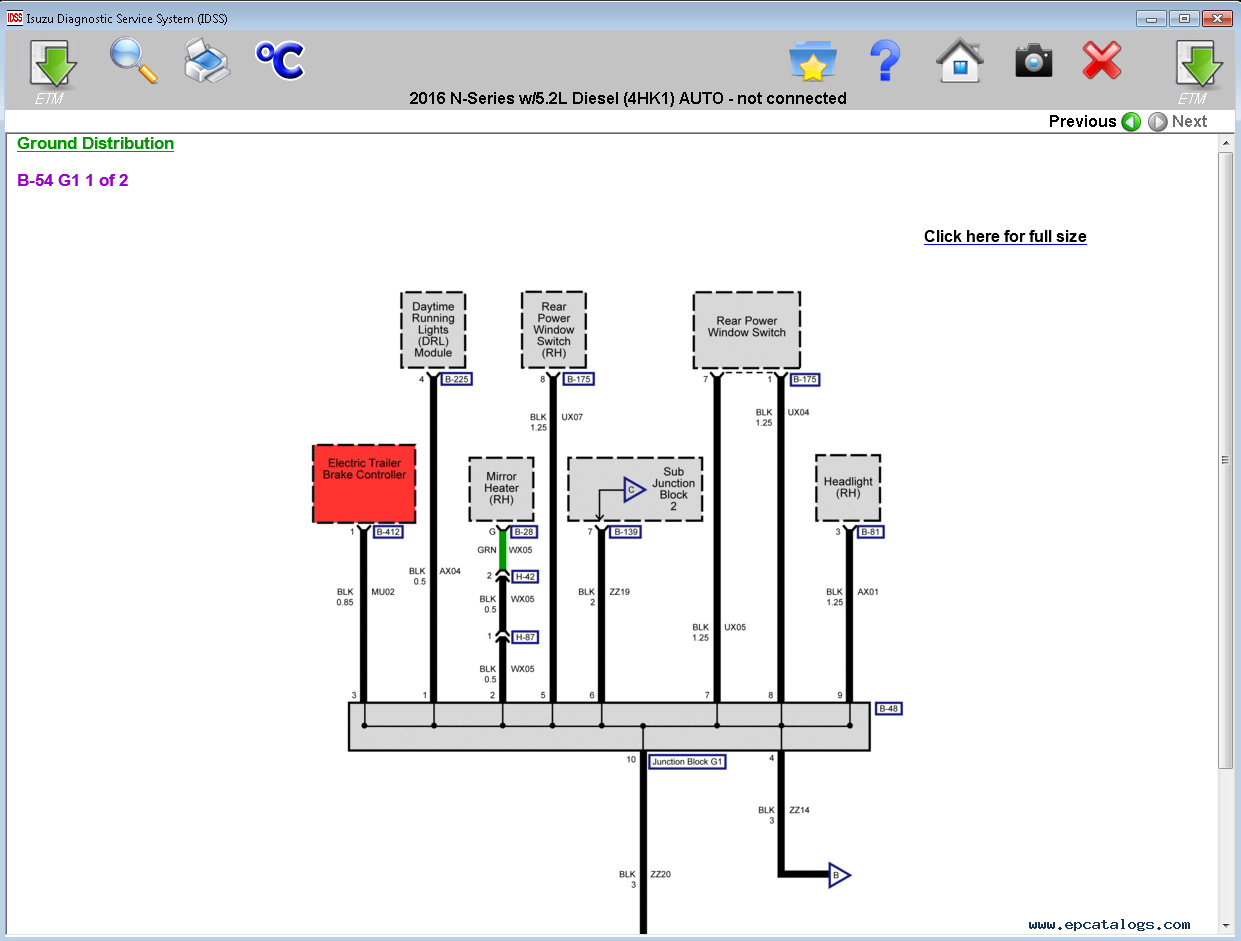

Newsletters help troubleshoot. Some bulletins are intended to provide quick troubleshooting tips that the user can perform prior to contacting the technical support staff. When you install the Isuzu IDSS program, you get the opportunity to diagnose Isuzu equipment and get access to Isuzu service documentation, Isuzu wiring diagrams and technical bulletins for the Isuzu 1996–2018 models.

Also, the Nexiq USB Link Universal Diagnostic Scanner (2) is compatible with the Isuzu Diagnostic Service System (IDSS II) and minimizes costs for diagnostic equipment. Allows you to make diagnostics of almost all trucks at a professional level.

Notice important notes:
1. Altering or replacing the IDSS DLC Cable with non-Isuzu cables may cause the IDSS system to malfunction.
2. The Isuzu Diagnostic Service System Setup DVD is provided in case the system needs to be recovered.

If you experience issues - write to us, we help you.

Models are grouped by year:

• The 1996 year
  • N/W Series w/5.7L (CAL) Gas
  • N/W Series w/5.7L (FED) Gas
  • The 1997 year
  • N/W Series w/5.7L (CAL) Gas
  • N/W Series w/5.7L (FED) Gas
• The 1998 year
  • N/W Series w/5.7L (CAL) Gas
  • N/W Series w/5.7L (FED) Gas
  • F/T Series w/7.8L Diesel (6HK1)
• The 1999 year
  • N/W Series w/4.8L Diesel (4HE1)
  • N/W Series w/5.7L (CAL) Gas
  • N/W Series w/5.7L (FED) Gas
  • F/T Series w/7.8L Diesel (6HK1)
• The 2000 year
  • N/W Series w/4.8L Diesel (4HE1)
  • N/W Series w/5.7L (CAL) Gas
  • N/W Series w/5.7L (FED) Gas
  • FRR/WT5500 w/7.8L Diesel (6HK1)
  • F/T Series w/7.8L Diesel (6HK1)
• The 2001 year
  • N/W Series w/4.8L Diesel (4HE1)
  • N/W Series w/5.7L (CAL) Gas
  • N/W Series w/5.7L (FED) Gas
  • FRR/WT5500 w/7.8L Diesel (6HK1)
  • F/T Series w/7.8L Diesel (6HK1)
• The 2002 year
  • N/W Series w/4.8L Diesel (4HE1)
  • N/W Series w/5.7L (CAL) Gas
  • N/W Series w/5.7L (FED) Gas
  • FRR/WT5500 w/7.8L Diesel (6HK1)
  • F/T Series w/7.8L Diesel (6HK1)
• The 2003 year
  • N/W Series w/4.8L Diesel (4HE1)
  • N/W Series w/5.7L (CAL) Gas
  • N/W Series w/5.7L (FED) Gas
  • N/W Series w/6.0L Gas
  • FRR/WT5500 w/7.8L Diesel (6HK1)
  • C-Series w/7.8L Diesel (6HK1)
• The 2004 year
  • N/W Series w/4.8L Diesel (4HE1)
  • N/W Series w/6.0L Gas
  • FRR/WT5500 w/7.8L Diesel (6HK1)
  • F/T Series w/7.8L Diesel (6HK1)
  • C-Series w/7.8L Diesel (6HK1)
• The 2005 year
  • N/W Series w/5.2L Diesel
  • N/W Series w/6.0L Gas
  • H/C Series w/7.8L Diesel
  • F/T Series w/7.8L Diesel
• The 2006 year
  • N/W Series w/5.2L Diesel (4HK1)
  • N/W Series w/6.0L Gas
  • H/C Series w/7.8L Diesel (6HK1)
  • F/T Series w/7.8L Diesel (6HK1)
• The 2007 year
  • N/W Series w/5.2L Diesel (4HK1)
  • N/W Series w/6.0L Gas
  • H/C Series w/7.8L Diesel (6HK1)
  • F/T Series w/7.8L Diesel (6HK1)
• The 2008 year
  • N/W Series w/5.2L Diesel (4HK1)
  • N/W Series w/6.0L Gas
  • F/T Series w/7.8L Diesel (6HK1)
  • C-Series w/7.8L Diesel (6HK1)
• The 2009 year
  • N/W Series w/5.2L Diesel (4HK1)
  • N/W Series w/6.0L Gas
  • F/T Series w/7.8L Diesel (6HK1)
  • C-Series w/7.8L Diesel (6HK1)
• The 2010 year
  • N/W Series w/5.2L Diesel (4HK1)
• The 2011 year
  • N-Series w/3.0L Diesel (4JJ1)
  • N-Series w/5.2L Diesel (4HK1)
• The 2012 year
  • Stripped Chassis w/3.0L Diesel (4JJ1)
  • N-Series w/3.0L Diesel (4JJ1)
  • N-Series w/5.2L Diesel (4HK1)
  • N-Series w/6.0L Gas
• The 2013 year
  • Stripped Chassis w/3.0L Diesel (4JJ1)
  • N-Series w/3.0L Diesel (4JJ1)
  • N-Series w/5.2L Diesel (4HK1)
  • N-Series w/6.0L Gas
• The 2014 year
  • Stripped Chassis w/3.0L Diesel (4JJ1)
  • N-Series w/3.0L Diesel (4JJ1)
  • N-Series w/5.2L Diesel (4HK1)
  • N-Series w/6.0L Gas
• The 2015 year
  • Stripped Chassis w/3.0L Diesel (4JJ1)
  • N-Series w/3.0L Diesel (4JJ1)
  • N-Series w/5.2L Diesel (4HK1)
  • N-Series w/6.0L Gas
• The 2016 year
  • Stripped Chassis w/3.0L Diesel (4JJ1)
  • N-Series w/3.0L Diesel (4JJ1)
  • N-Series w/5.2L Diesel (4HK1)
  • N-Series w/6.0L Gas
• The 2017 year
  • Stripped Chassis w/3.0L Diesel (4JJ1)
  • N-Series w/3.0L Diesel (4JJ1)
  • N-Series w/5.2L Diesel (4HK1)
  • N-Series w/6.0L Gas
• The 2018 year
  • Stripped Chassis w/3.0L Diesel (4JJ1)
  • N-Series w/3.0L Diesel (4JJ1)
  • N-Series w/5.2L Diesel (4HK1)
  • N-Series w/6.0L Gas
  • FTR w/5.2L Diesel (4HK1)
• The 2019 year
  • N-Series w/5.2L Diesel (4HK1)
  • N-Series w/6.0L Gas
  • FTR w/5.2L Diesel (4HK1)
• The 2020 year
  • N-Series w/5.2L Diesel (4HK1)
