Hyundai Mini Excavator R36N-7 Service Manual PDF

This PDF Service Manual includes repair and service instructions, service and troubleshooting information, schematics, and circuits for the Hyundai Mini Excavator R36N-7 Model. This guide will help you to remove all the existing faults.

The maintenance manual includes detailed descriptions of the operation and maintenance procedures, troubleshooting information, assembly and disassembly instructions, precautions and special operating instructions, technical specifications.

The information on troubleshooting, servicing the list of specifications, torque, inspection and adjustment, removal and installation, and maintenance, which cover procedures, precautions, plant specifications, and limits.

You are buying a factory pdf service manual for the Hyundai Mini Excavator R36N-7. After your purchase, within 3-5 minutes we send to your email address the link for download with all necessary recommendations. If you want the same factory information shipped to you on a DVD please pay the Shipping charge during checkout or write to us about it.

Models covered:
Robex 36N-7

Serial Number: HY36N0001 ~

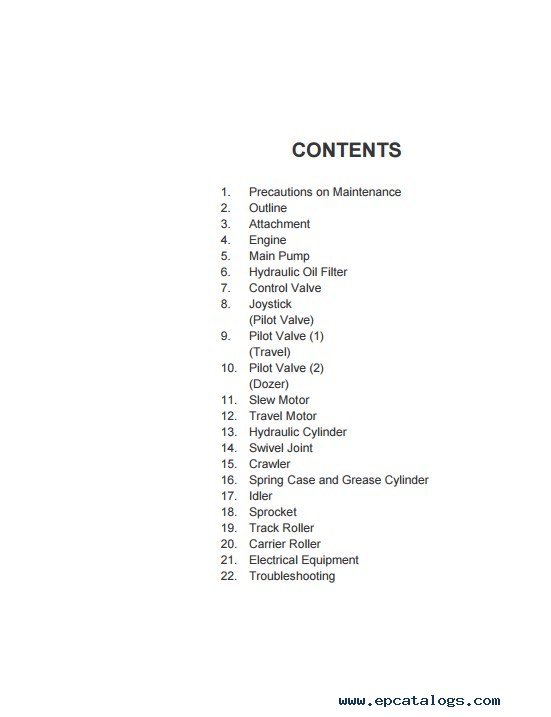

CONTENTS:

• 1. Precautions on Maintenance
• 2. Outline
  • 2-1 Location of serial No.
  • 2-2 Name of each part
  • 2-3 Dimensions and specification
  • 2-4 Weight list
  • 2-5 Oil and grease supply points
  • 2-6 List of supply oil and grease
  • 2-7 When to repair

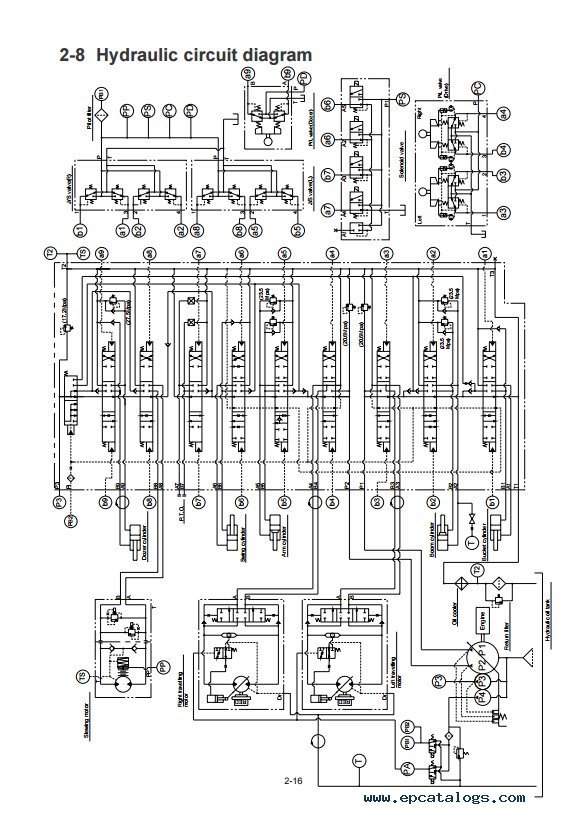

  • 2-8 Hydraulic circuit diagram
• 3. Attachment
  • 3-1 Standard of maintenance
  • 3-2 Inspection and adjustment
• 4. Engine
  • 4-1 Specification
  • 4-2 Performance curve
  • 4-3 Location of the serial number
  • 4-3-2 Standard engine speed
  • 4-4 Inspection and maintenance procedures for engine parts
• 5. Main Pump
  • 5-1 Specification
  • 5-2 Structure
  • 5-3 Removing and installing the pump
  • 5-4 Performance test of the hydraulic pump
• 6. Hydraulic Oil Filter
  • 6-1 Installation
  • 6-2 Hydraulic oil filter
  • 6-3 Maintenance procedure
• 7. Control Valve
  • 7-1 Specification

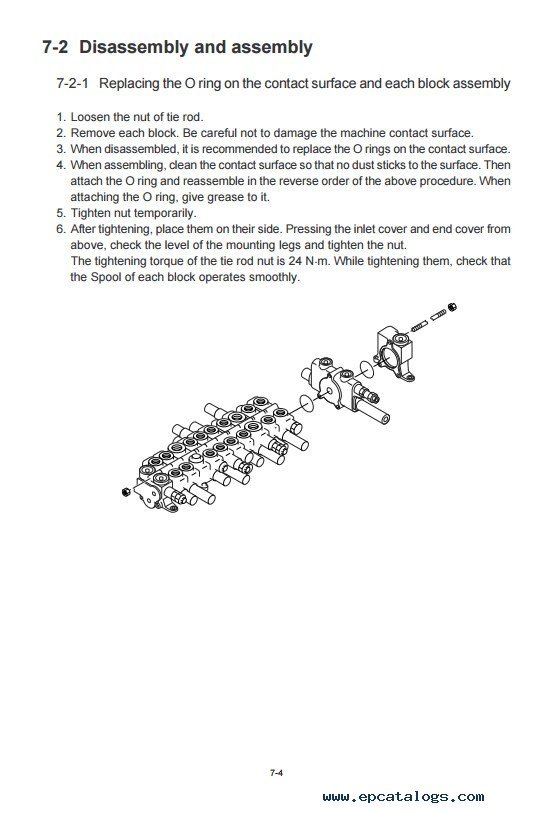

  • 7-2 Disassembly and assembly
  • 7-3 Structure of the relief valve
  • 7-4 Precautions for handling
• 8. Joystick (Pilot Valve)
  • 8-1 Specification
  • 8-2 Structure
• 9. Pilot Valve (1) (Travel)
  • 9-1 Specification
  • 9-2 Structure
• 10. Pilot Valve (2) (Dozer)
  • 10-1 Specification
  • 10-2 Structure
• 11. Slew Motor
  • 11-1 Specification
  • 11-2 Structure
  • 11-3 Standard of maintenance
  • 11-4 Inspection and adjustment
• 12. Travel Motor
  • 12-1 Specification
  • 12-2 Structure
  • 12-3 Handling the travel motor
  • 12-4 Measuring travel motor idling and traveling time
  • 12-5 Inspection and adjustment
• 13. Hydraulic Cylinder
  • 13-1 Structure
  • 13-2 Disassembly and assembly
  • 13-3 Assembly
• 14. Swivel Joint
  • 14-1 Specification and Structure

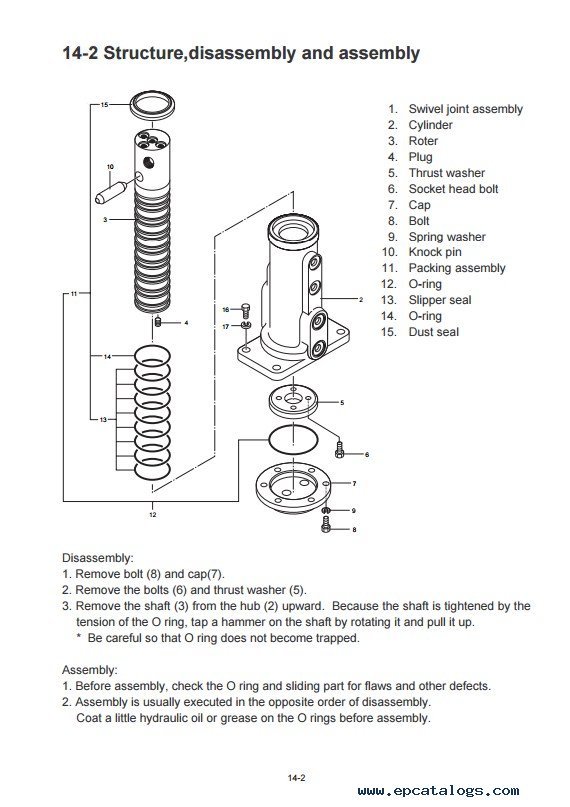

  • 14-2 Structure, disassembly, and assembly
• 15. Crawler
  • 15-1 Structure and operation
  • 15-2 Standard of maintenance
  • 15-3 Disassembly and assembly
• 16. Spring Case and Grease Cylinder
  • 16-1 Structure
  • 16-2 Specification of spring
  • 16-3 Disassembly and assembly
• 17. Idler
  • 17-1 Standard of maintenance
• 18. Sprocket
  • 18-1 Disassembly and assembly
  • 18-2 Standard of maintenance
• 19. Track Roller
  • 19-1 Standard of maintenance
• 20. Carrier Roller
  • 20-1 Standard of maintenance
• 21. Electrical Equipment

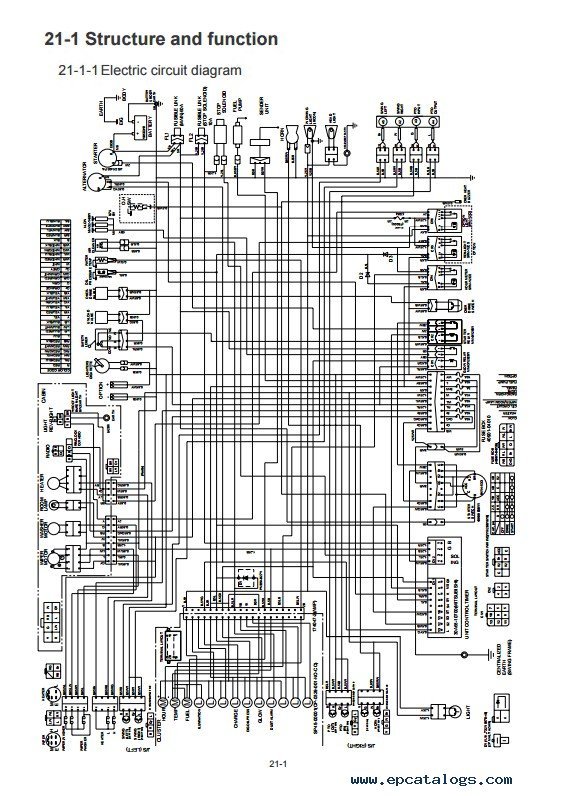

  • 21-1 Structure and function
  • 21-2 Failure and remedy
• 22. Troubleshooting
  • 22-1 Troubleshooting
