Hyundai Crawler Excavators R160LC-9A, R180LC-9A Service Manual PDF

This PDF Service Manual contains information about current repair and routine maintenance of Hyundai Crawler Excavators R160LC-9A, R180LC-9A Models. This factory guide provides detailed descriptions of the technology of repair and maintenance of Hyundai crawler excavators, instructions for bodywork, standard time for work performed, etc.

This service manual allows you to carry out troubleshooting of the problems, to carry out maintenance and repair problem areas, and to address failures of equipment by Hyundai.

The manual is presented in PDF format, which greatly simplifies its use since it does not require installation (INSTANT DOWNLOAD). To work with the PDF manual, we recommend that you use the Adobe PDF Reader application.

At the top of the page, you can see the link 'Hyundai pdf manual instant preview'. By clicking on it, you can see what this manual is all about, what quality of pictures and drawings are in it. You can also read the list of content that is presented below. If you have any questions or problems with downloading the file, you can write to us and we will help you.

Models covered:
R160LC-9A,
R180LC-9A.

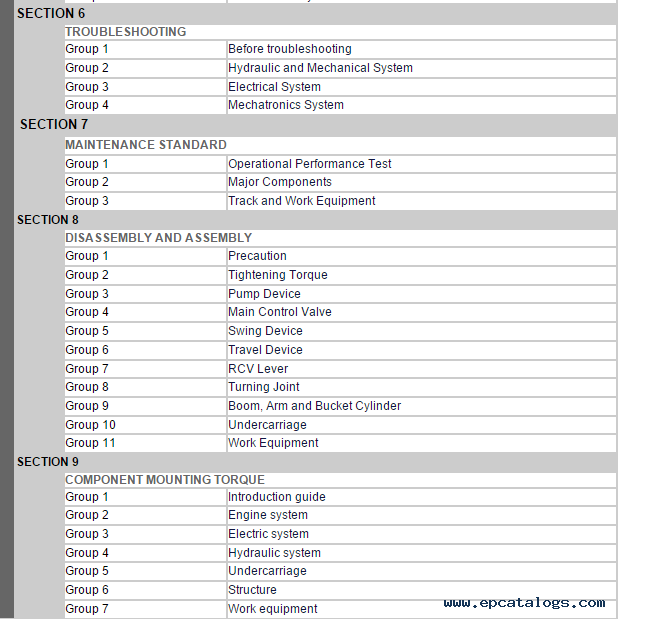

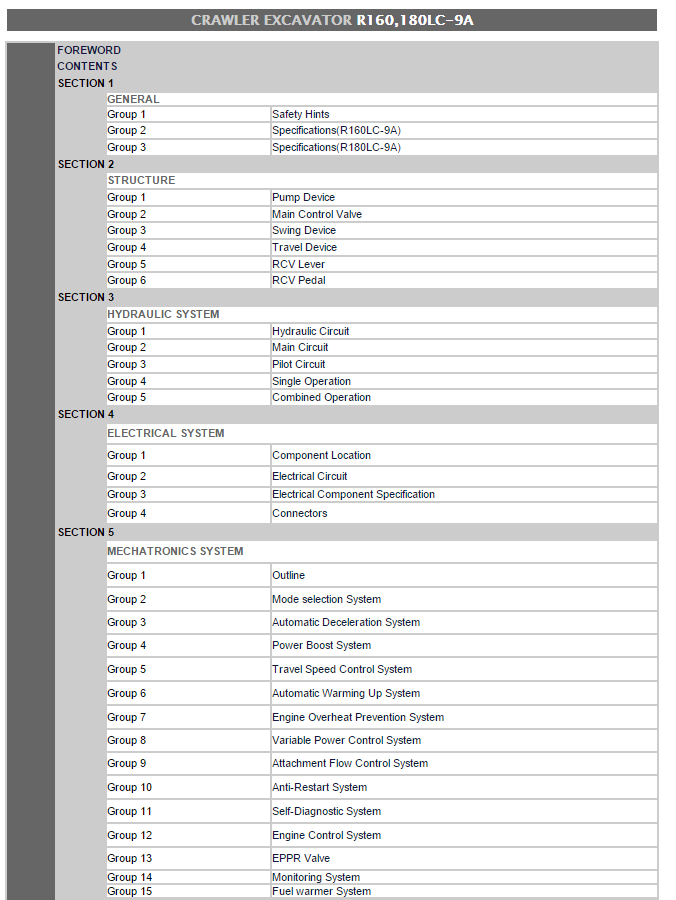

Contents:
Section 1 - General
1. - Safety Hints
2. - Specifications (R160LC-9A)
3. - Specifications (R180LC-9A)

Section 2 - Structure
1. - Pump Device

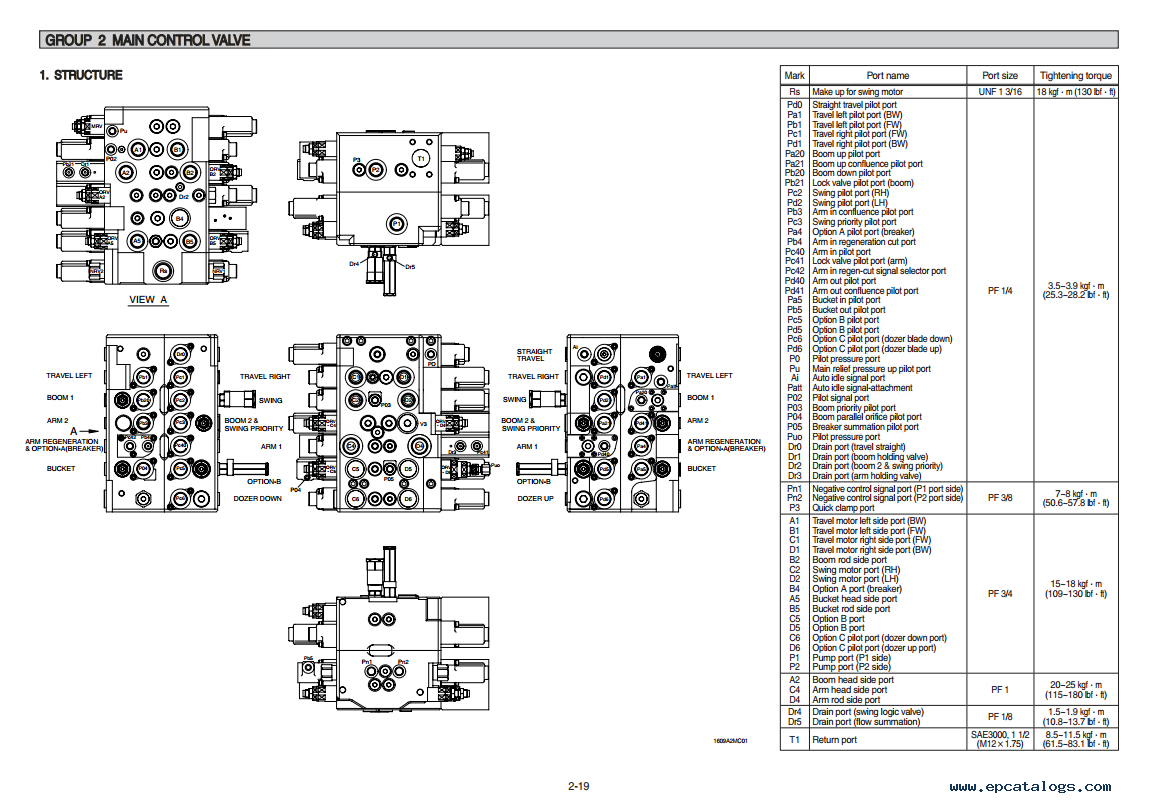

2. - Main Control Valve
3. - Swing Device
4. - Travel Motor
5. - RCV Lever
6. - RCV Pedal

Section 3 - Hydraulic System

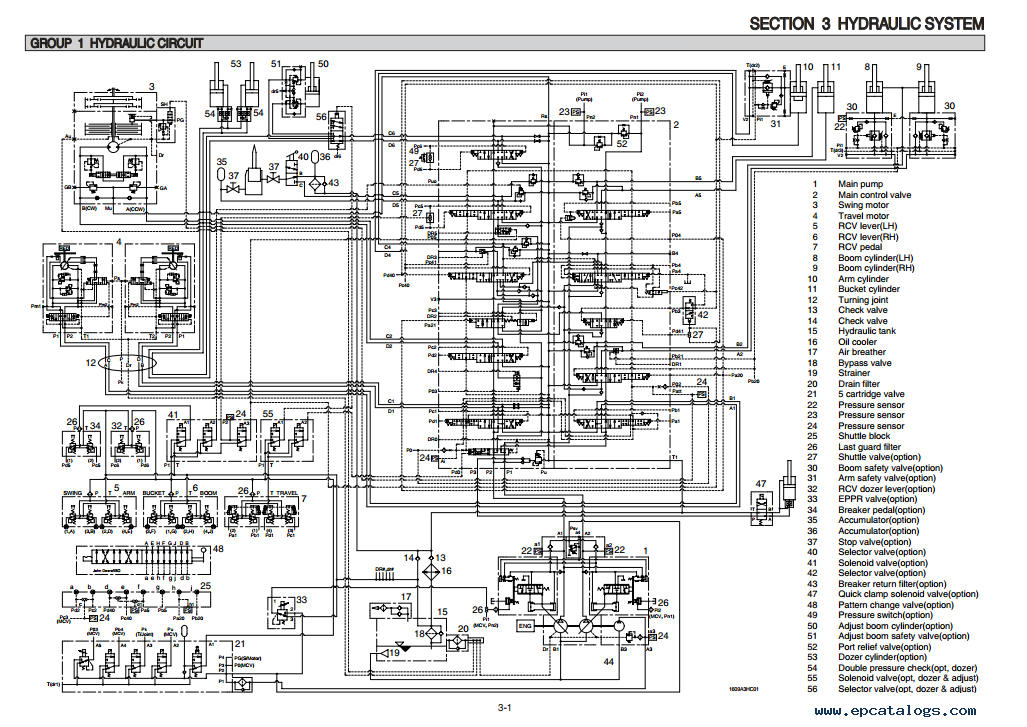

1. - Hydraulic Circuit
2. - Main Circuit
3. - Pilot Circuit
4. - Single Operation
5. - Combined Operation

Section 4 - Electrical System
1. - Component Location
2. - Electrical Circuit
3. - Electrical Component Specification
4. - Connectors

Section 5 - Mechatronics System
1. - Outline
2. - Mode Selection System
3. - Automatic Deceleration System
4. - Power Boost System
5. - Travel Speed Control System
6. - Automatic Warming Up Function
7. - Engine Overheat Prevention Function
8. - Variable Power Control System
9. - Attachment Flow Control System
10. - Anti-Restart System
11. - Self-Diagnostic System
12. - Engine Control System
13. - EPPR Valve
14. - Monitoring System
15. - Fuel Warmer System

Section 6 - Troubleshooting
1. - Before Troubleshooting
2. - Hydraulic and Mechanical System
3. - Electrical System
4. - Mechatronics System

Section 7 - Maintenance Standard
1. - Operating Performance Test
2. - Major Components
3. - Track and Work Equipment

Section 8 - Disassembly and Assembly
1. - Precaution
2. - Tightening Torque
3. - Pump Device
4. - Main Control Valve
5. - Swing Device
6. - Travel Device
7. - RCV Lever
8. - Turning Joint
9. - Boom, Arm, Bucket Cylinder
10. - Undercarriage

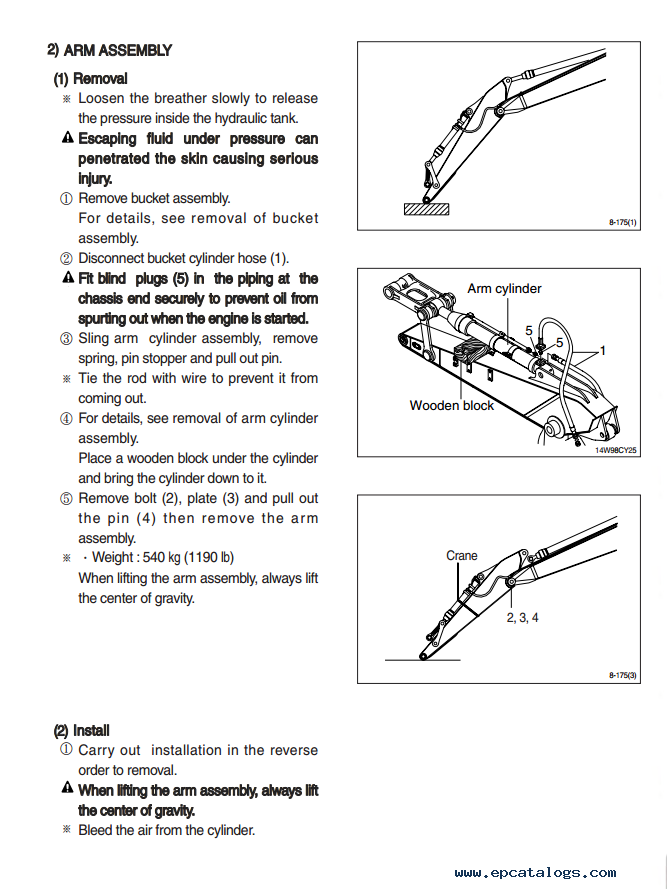

11. - Work Equipment

Section 9 - Component Mounting Torque
1. - Introduction Guide
2. - Engine System

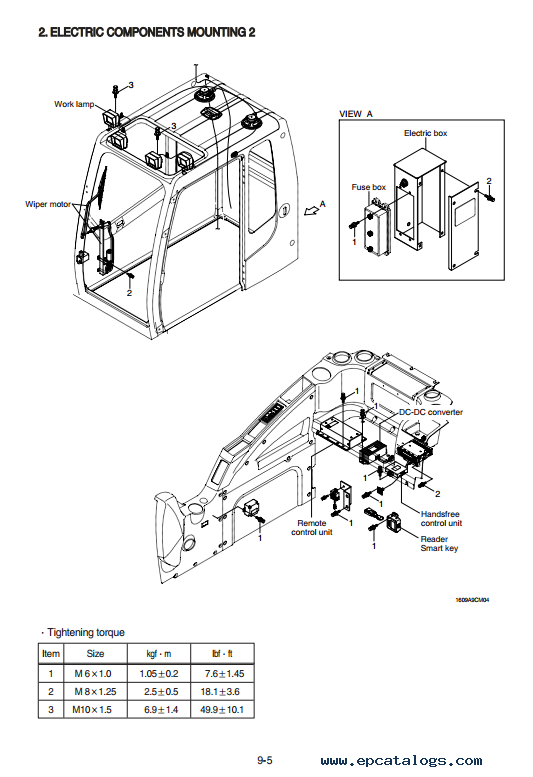

3. - Electric System
4. - Hydraulic System
5. - Undercarriage
6. - Structure
7. - Work Equipment
