Hyundai Mini Excavator R17Z-9A Service Manual PDF

This PDF Service Manual contains useful information for the safe and efficient operation of the Hyundai Mini Excavator R17Z-9A Model. It also provides information on maintaining your excavator in the best condition, troubleshooting information, an outline for performing safety checks, basic preventive maintenance inspections, and others.

Also, the service manual contains information about the specifications, systems, disassembly of your excavator, management, and operation. All information is presented clearly and understood. We hope you find this manual easy to use, and it will help you in using and operating your equipment.

This technical information will help ensure the reliable state of your excavators for years to come. Therefore, it is very important to observe all the precautions that are written in this manual.

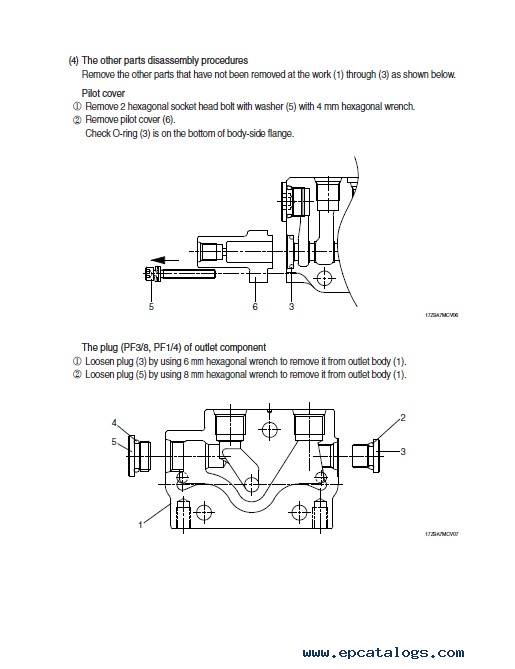

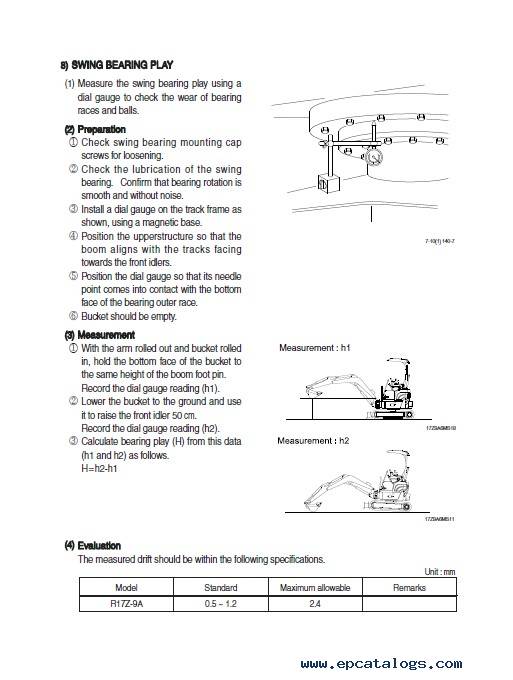

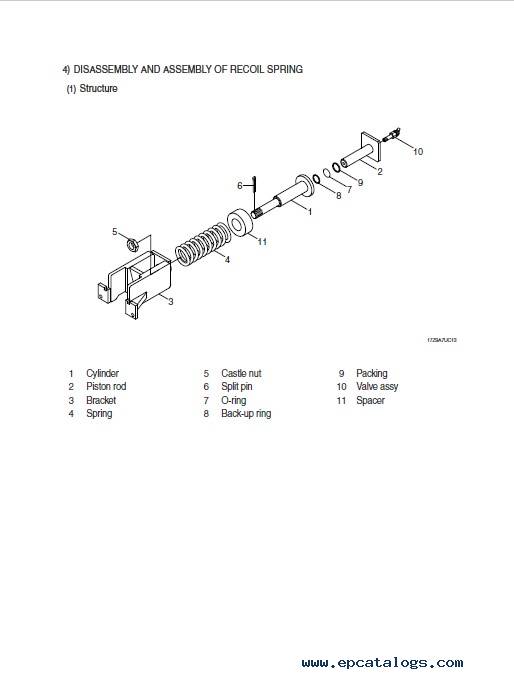

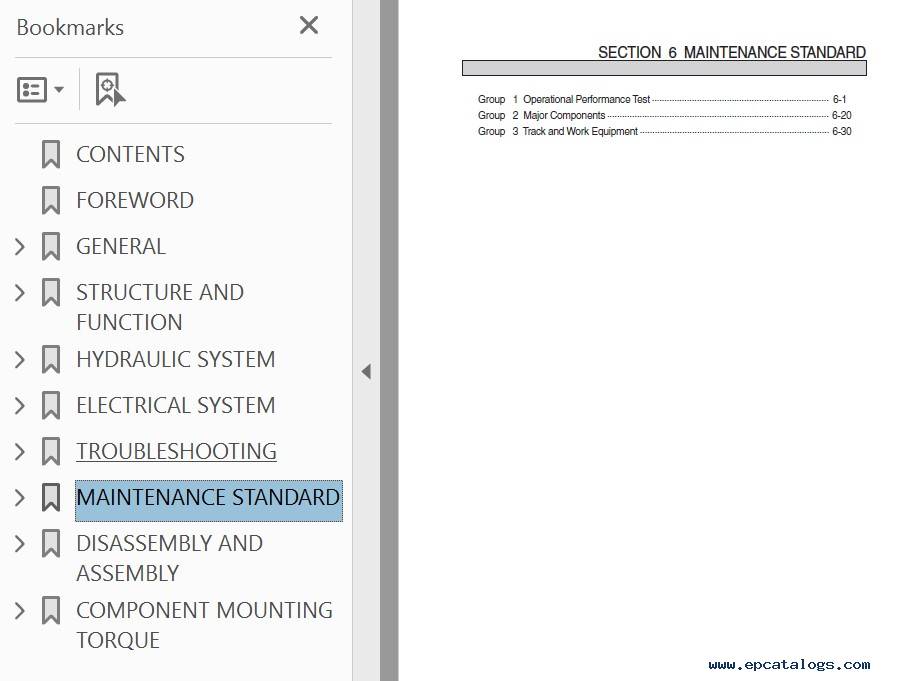

You can study this PDF manual using screenshots and a list of content, which is presented in the manual description. You can also follow the link 'Hyundai pdf manual instant preview', and preview the pages of this manual.

Buying this service handbook is very simple and fast: you need to click on the 'Buy Now' button and follow the further instructions. After payment of the PDF instruction, you will receive a download link. You are downloading a PDF document that works with applications such as Adobe Acrobat Reader, Foxit Reader, etc. For your convenience, you can print the manual, use it as a service handbook, and store it directly near the equipment.

Models covered:
Robex 17Z-9A

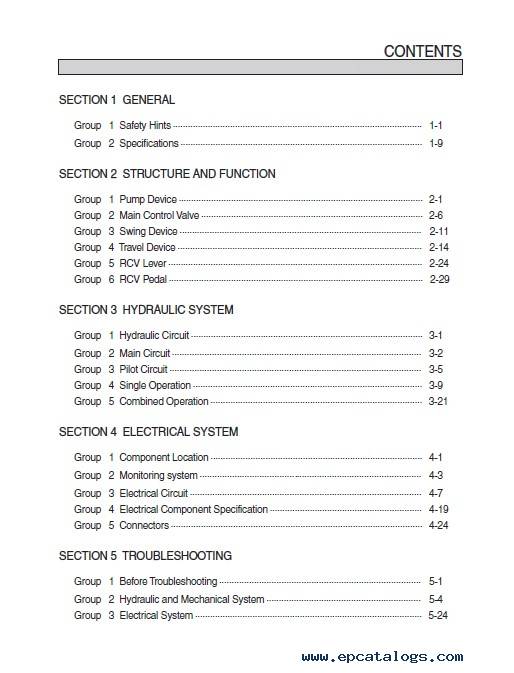

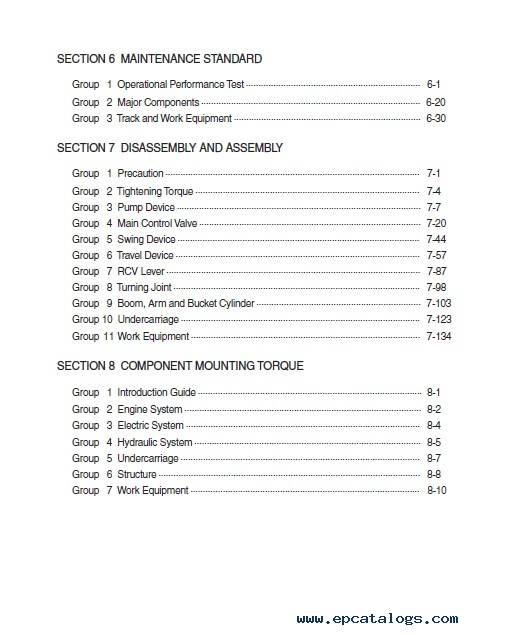

CONTENTS:
FOREWORD
SECTION 1 GENERAL
1. Safety Hints
2. Specifications
SECTION 2 STRUCTURE AND FUNCTION
1. Pump Device
2. Main Control Valve
3. Swing Device
4. Travel Device
5. RCV Lever
6. RCV Pedal
SECTION 3 HYDRAULIC SYSTEM
1. Hydraulic Circuit
2. Main Circuit
3. Pilot Circuit
4. Single Operation
5. Combined Operation
SECTION 4 ELECTRICAL SYSTEM
1. Component Location
2. Monitoring system
3. Electrical Circuit
4. Electrical Component Specification
5. Connectors
SECTION 5 TROUBLESHOOTING
1. Before Troubleshooting
2. Hydraulic and Mechanical System
3. Electrical System
SECTION 6 MAINTENANCE STANDARD
1. Operational Performance Test
2. Major Components
3. Track and Work Equipment
SECTION 7 DISASSEMBLY AND ASSEMBLY
1. Precaution
2. Tightening Torque
3. Pump Device
4. Main Control Valve
5. Swing Device
6. Travel Device
7. RCV Lever
8. Turning Joint
9. Boom, Arm, and Bucket Cylinder
10. Undercarriage
11. Work Equipment
SECTION 8 COMPONENT MOUNTING TORQUE
1. Introduction Guide
2. Engine System
3. Electric System
4. Hydraulic System
5. Undercarriage
6. Structure
7. Work Equipment
