ZF-WG161 Transmission Repair Manual PDF

Complete material for (ZF-WG161) product is collected in this Transmission Repair Manual. Factory file has operating and maintenance instructions, wiring diagrams, hydraulic diagrams, repair instructions, special tools list, service Information, setting, troubleshooting, disassemble and assemble information, repair information, and more. All procedures listed in this electronic guide should be performed only after you have read all information in detail and will strictly follow these instructions.

This indexed PDF file with the search function and the ability to make bookmarks so that you can easily find and save the necessary information and not lose it. The online tutorial comes in PDF format with 120 pages. . For convenience, we recommend using Adobe PDF Reader to ensure the correct display of all graphics.

Table of Contents:

Series Code / Model Designation Reference Table
Special Tools List

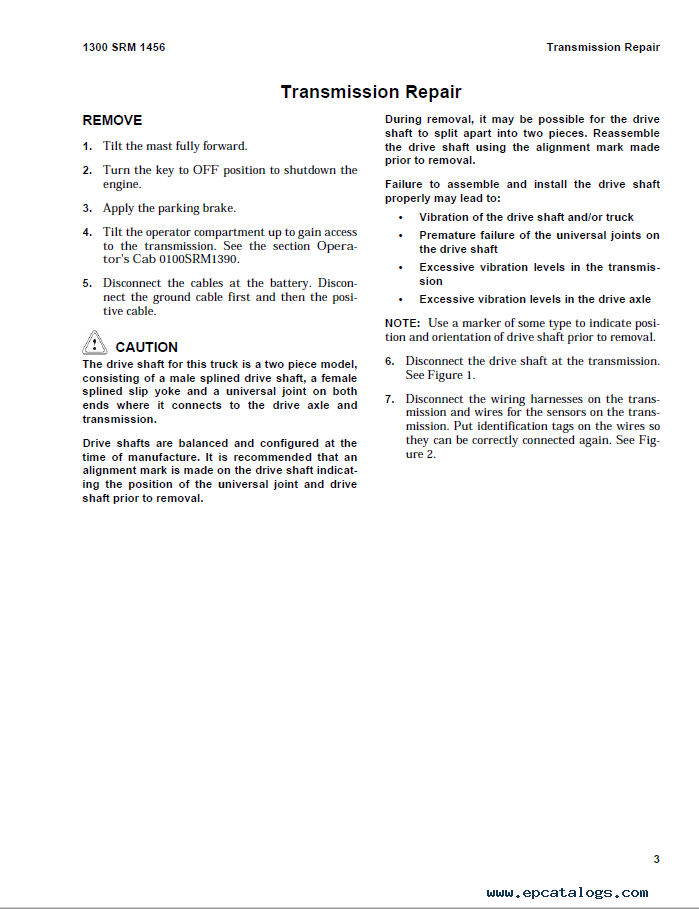

Transmission Repair
Remove
Disassemble
Transmission Housing, Disassemble
Oil Pump, Disassemble
Forward Clutch, Disassemble
Reverse Clutch, Disassemble
First Speed Clutch, Disassemble

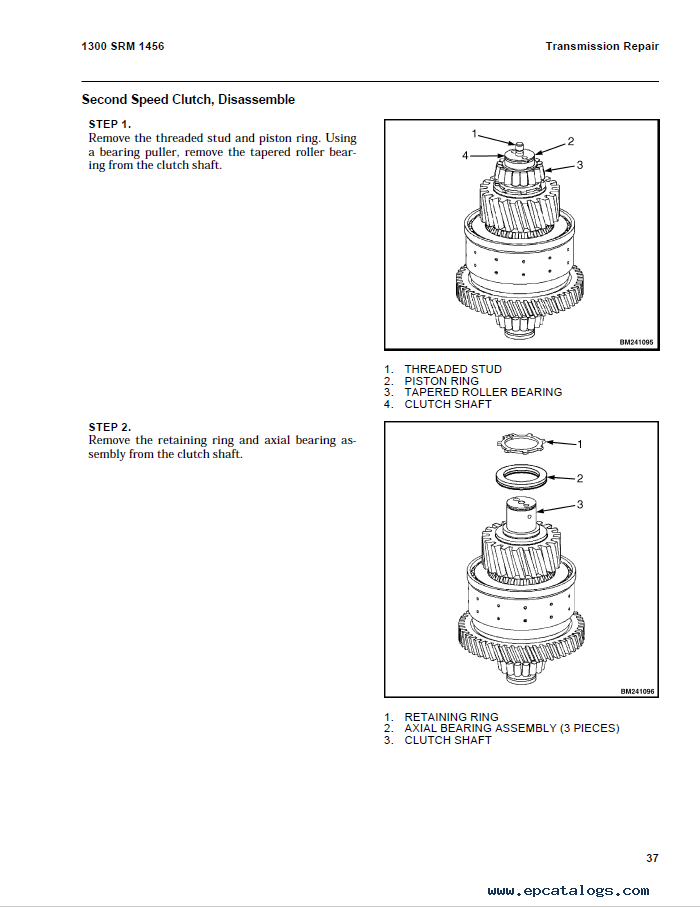

Second Speed Clutch, Disassemble
Third Speed Clutch, Disassemble
Input Shaft, Disassemble
Clean and Inspect
Housings
Oil Seals and Gaskets
Bearings
Gears and Shafts
Assemble
Input Shaft, Assemble
Third Speed Clutch, Assemble
Second Speed Clutch, Assemble
First Speed Clutch, Assemble
Reverse Clutch, Assemble
Forward Clutch, Assemble

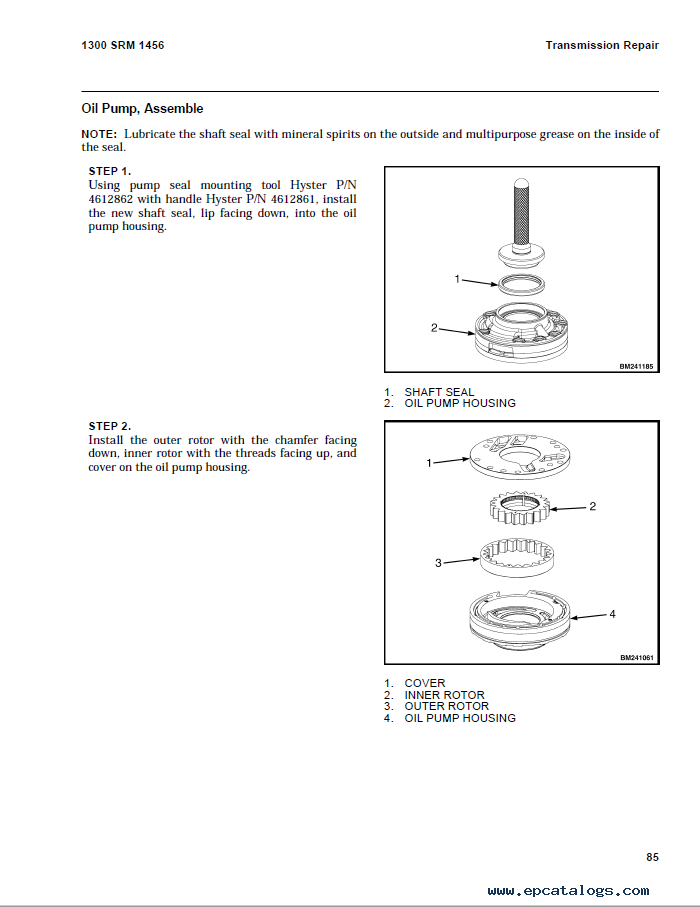

Oil Pump, Assemble
Transmission Housing, Assemble
Transmission Oil Filter Assembly Replacement
Remove
Clean
Inspect
Install
Install
Control Valve Replacement
Remove
Install

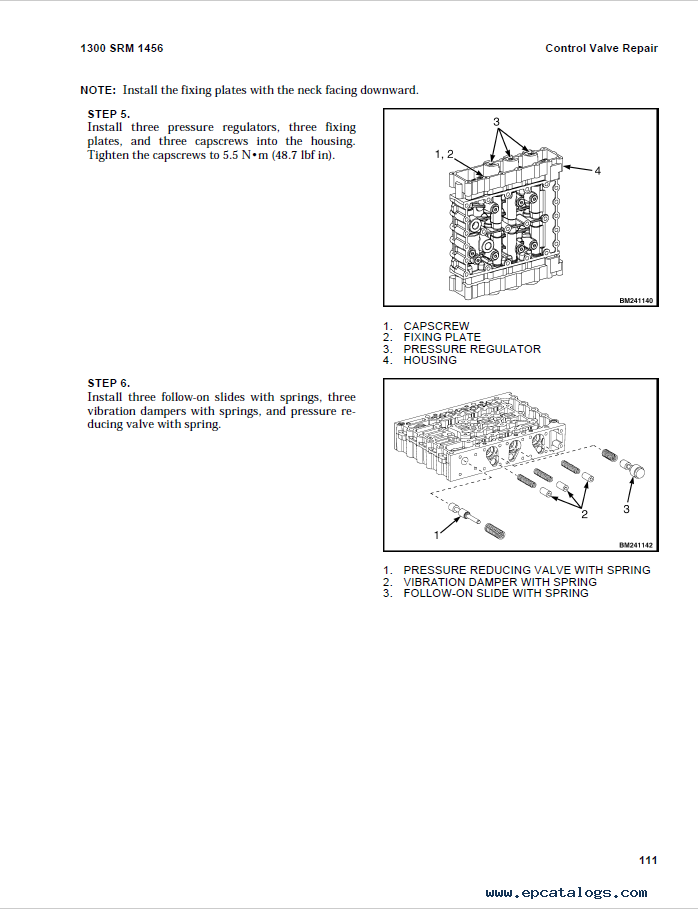

Control Valve Repair
Disassemble
Clean
Inspect
Assemble
