Hitachi Wheel Loader ZW250 Parts Catalog PDF

[]


Type of catalogue:	spare parts catalog
Make:	Hitachi
Region:	WorldWide
Inclusive languages:	English
Amount of disks:	1 CD, PDF file, 444 pages
Availibility	Instant Download
OS:	Windows XP 32 bit, Windows 7 32 bit, Windows 7 64 bit, Windows 8/8.1 32 bit, Windows 8/8.1 64 bit, Windows 10 32 bit, Windows 10 64 bit, Windows 11 64 bit
Price, USD:	40

Hitachi pdf manual instant preview

Note: You may also be interested in the following PDF manual for Hitachi Wheel Loader ZW250:
Equipment Components Parts Catalog

This PDF parts catalog includes tables with full information about parts and accessories for the Hitachi Wheel Loader ZW250 Model.

The parts catalog is intended to assist with assembly and disassembly parts and components of Hitachi wheel loaders.

For convenience, this parts catalog comes in a PDF format. So you can easily print and read parts information. You can work with this pdf book after installing Adobe PDF Reader.

Document Part No. P4GC-1-2
Serial No. 4GG:000101-

Models covered:
ZW 250

CONTENTS:

ENGINE
- Engine 4GG:000101-
- Engine 4GC:005101-
COOLING SYSTEM
- Cooling System
- Radiator
- Fan Piping
- Fan Piping; Fan Motor
- Mat
FUEL SYSTEM
- Fuel System
- Breather
- Breather (Italy Homologation Spec.)
EXHAUST SYSTEM
- Exhaust System
- Raincap
- Pre Cleaner
- Pre Cleaner (Turbo2)
ELECTRICAL SYSTEM
- Electrical (Front)
- Electrical (Rear)
- Electrical (TM)
- Electrical (Cockpit)
- Electrical (Cockpit Right Console)
- Lift Arm Kick-Out System)
- Lift Arm Auto-Leveler System
- Battery
- Battery (Large Capacity)
- Main Controller
- Reverse Warning Alarm
- Front Lamp
- Rear Combination Lamp
- 12V Power Unit
- GPS
DRIVE AXLE
- Front Axle (TPD)
- Front Axle (LSD)
- Rear Axle (TPD)
- Rear Axle (LSD)
PROPELLER SHAFT
- Propeller Shaft
TRANSMISSION
- Transmission
TORQUE CONVERTER
- Torque Converter
STEERING COLUMN
- Steering Column
TIRE
- Tire
POWER STEERING
- Steering Cylinder
- Orbitroll
- Steering Valve
- Check Valve
- Stering Piping
- Accumulator (Steering Cylinder)
- Accumulator (Orbitroll)
- Emergency Steering
BRAKE
- Brake Piping
- Brake Valve
- Charge Valve
- Parking Brake
FRAME
- Front Frame
- Rear Frame
COUNTER WEIGHT
- Counter Weight
COVER
- Cover
- Gas Spring (Without Full Rear Fender)
- Gas Spring (With Full Rear Fender)
FLOOR BOARD
- Floor Board
- Mud Guard
- Full Rear Fender
AIR CONDITIONER
- Air Cinditioner
- Air Conditioner Piping
CAB
- Cab
- Cab (Mat)
- Mirror
- AM/FM Radio (Japan)
- AM/FM Radio (EU, Oceania, Asia, Russia)
- AM/FM Radio (Latin America)
- AM/FM Radio (North America)
SEAT
- Seat Base
- Seat (Fabric)
- Head Rest (Fabric)
- Suspension Seat
- Air-Suspension Seat
- Head Rest (No Logo)
- Head Rest (Hitachi Logo)
- Suspension Seat With Head Rest (Hitachi Logo)
- Air-Suspension Seat With Head Rest (Hitachi Logo)
COCKPIT
- Cockpit
MAIN PUMP
- Pump
- Fun Pump Cover
VALVE
- Main Valve (2PL)
- Main Valve (3PL)
PILOT PIPING
- Pilot Piping
- Control Lever (Multi-Function Joystick Lever)
- Control LEver (2 Finger Lever)
- Pilot Piping (3PL)
- Pilot Valve
- Console (Right)
- Pilot Valve Cover
OIL TANK
- Oil Tank
- Remote Drain (Hydraulic Oil)
MAIN PIPING
- Main Piping
- Frot Frame Cover
- Ride Control
GREASE PIPING
- Grease Piping
TORQUE CONVERTER PIPING
- Torque Converter Piing
LIFT ARM CYLINDER
- Lift Arm Cyinder
BUCKET CYLINDER
- Bucket Cylinder
LIFT ARM
- STD. Lift Arm
- Hight Lift Arm
BUCKET
- Stock Pile Bucket
- Flat Bottom bucket
- Rock Bucket
DECAL
- Decal
TOOLS
- Tools
ROAD HOMOLOGATION SPECIFICATION
- Road Homologaton Spec
PARTS INDEX
- Parts Index

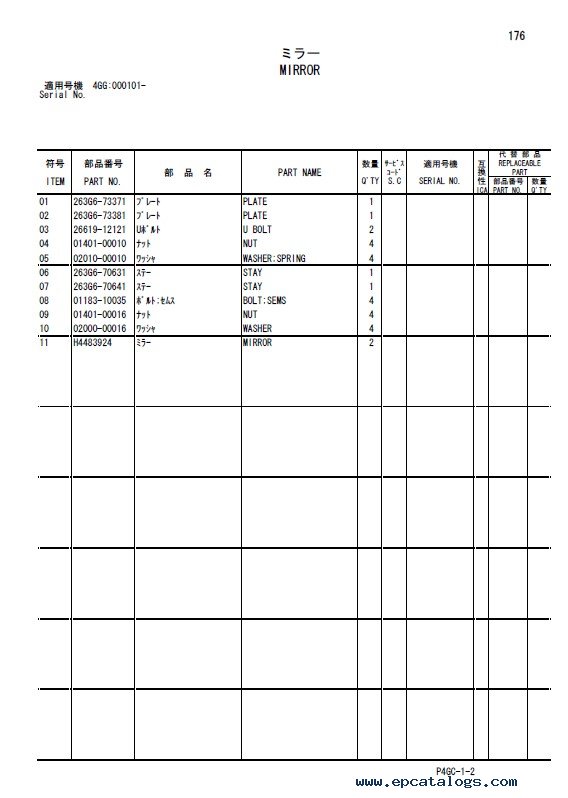

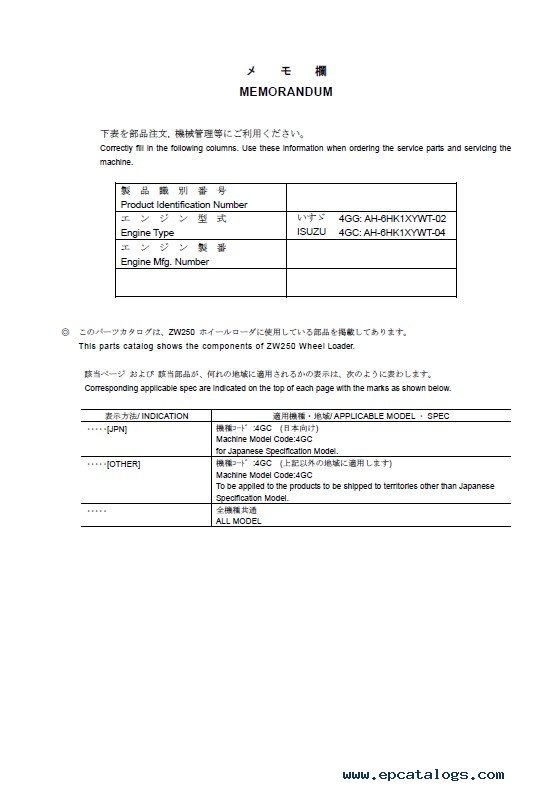

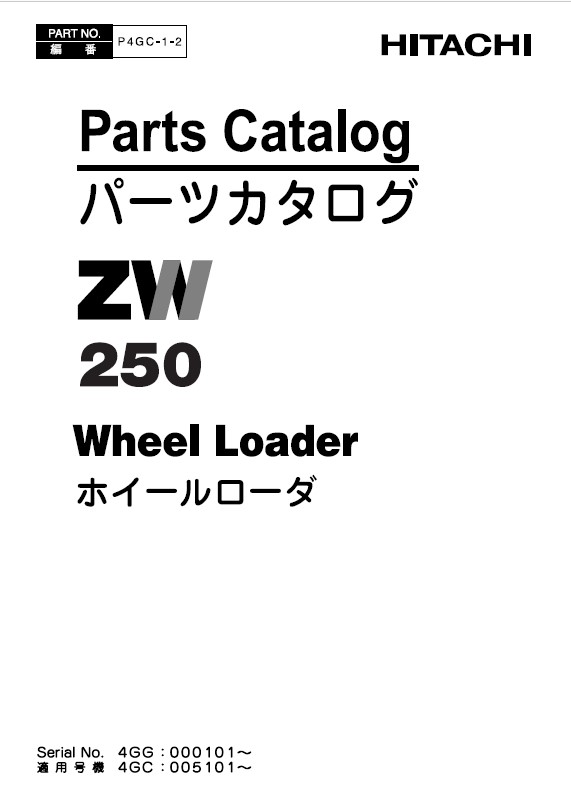

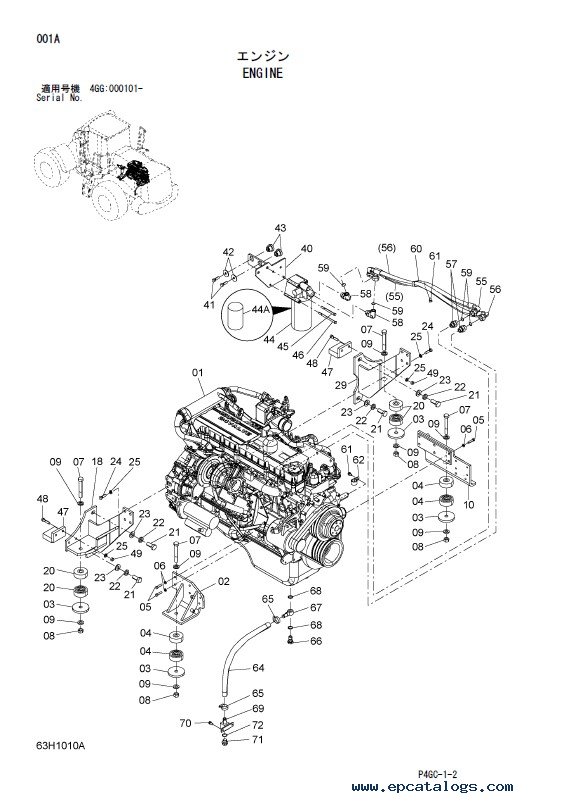

Screenshots for Hitachi Wheel Loader ZW250 Parts Catalog PDF:
