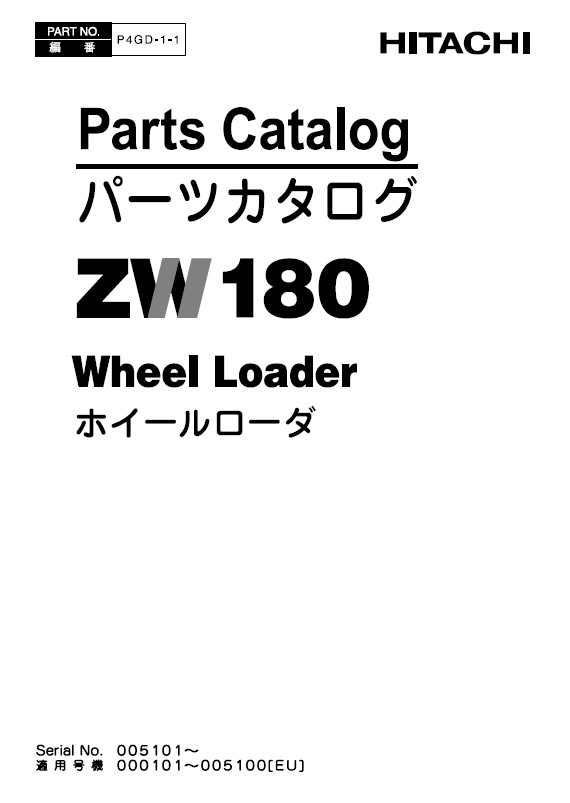

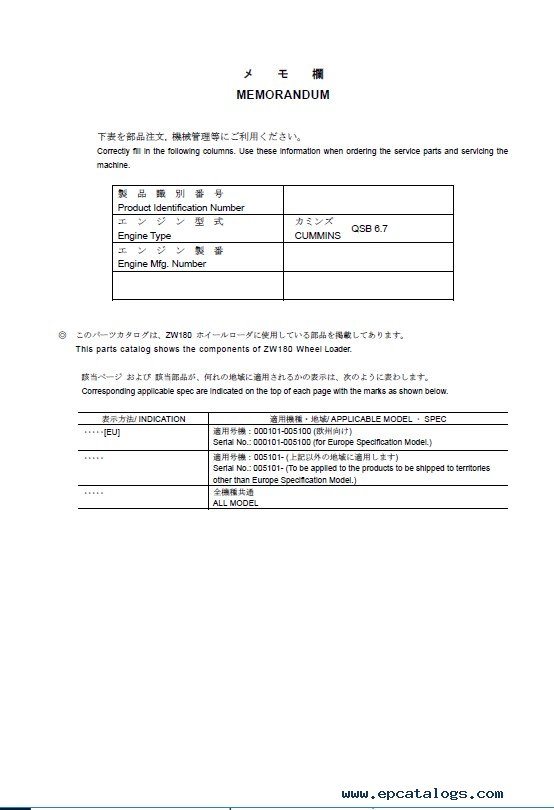

This PDF parts catalog shows the components of the Hitachi ZW180 Wheel Loader.

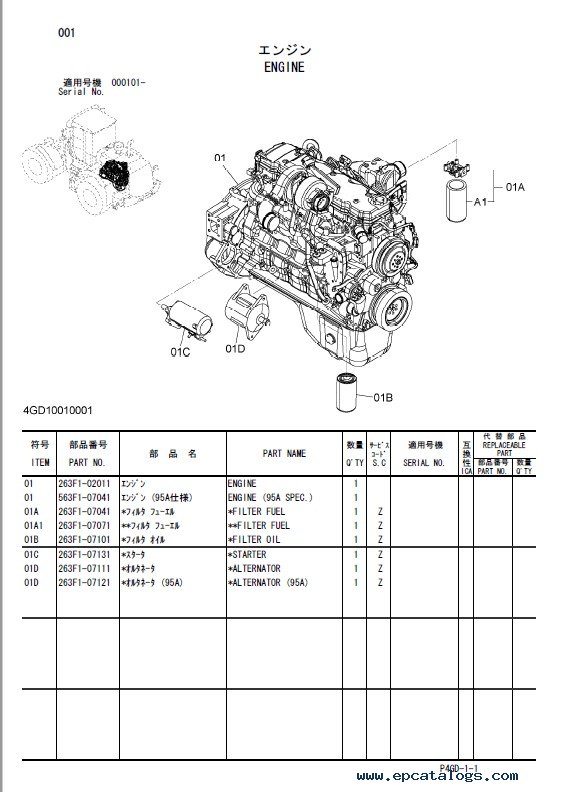

This parts catalog includes spare parts and accessories information for the Hitachi Wheel Loader ZW180 model. Parts catalog contains a list of useful parts information, description of components, pictures and drawings.
This parts manual is presented in PDF format. It works with Adobe Reader (or any analog). This application allows you to find the necessary parts information and to print out individual pages or the entire text as a whole. This manual doesn't require any installation (INSTANT DOWNLOAD).
Applicable Model:
000101-005100
Serial No.: 000101-005100 (for Europe Specification Model.)
005101-
Serial No.: 005101- (To be applied to the products to be shipped to territories other than Europe Specification Model.)
ALL MODEL
Part No. P4GD-1-1
Serial No. 005101-
Models covered:
ZW 180

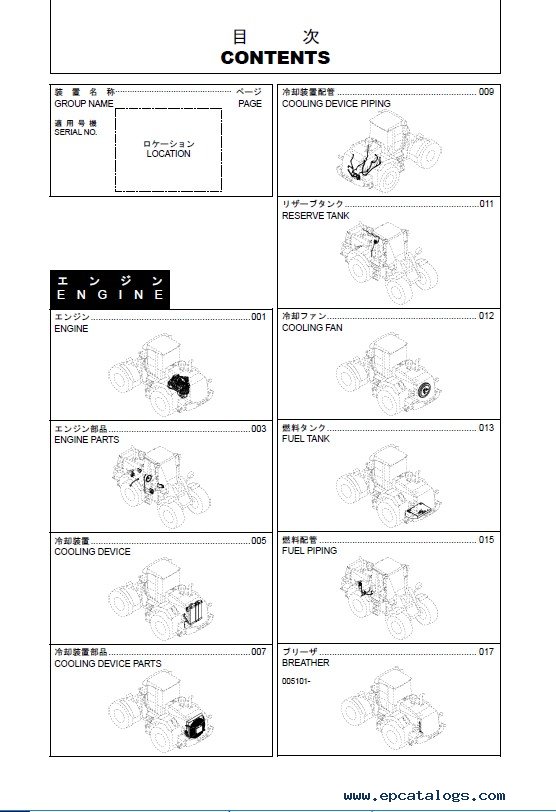

CONTENTS:
ENGINE
ENGINE
ENGINE PARTS
COOLING DEVICE
COOLING DEVICE PARTS
COOLING DEVICE PIPING
RESERVE TANK
COOLING FAN
FUEL TANK
FUEL PIPING
BREATHER
BREATHER [EU]
INLET, EXHAUST DEVICE
INLET, EXHAUST DEVICE PARTS
INLET, EXHAUST PIPING
RAIN CAP (APL001)
PRE-CLEANER (APL002)
PRE-CREANER (TURBO2)(APL003)
POWER TRAIN
DRIVE UNIT (TRANSMISSION, TORQUE CONVERTER)
TORQUE CONVERTER
TORQUE CONVERTER PIPING
FRONT AXLE
REAR AXLE
PROPELLER SHAFT
TIRE
TIRE [EU]
STOPPER (OSK010)
CHASSIS
FRAME
LIFTING LUG (LR)
BELLY GUARD (BGK)
COUNTERWEIGHT 1.3t
ADD. COUNTERWEIGHT 620kg (CW062)
ADD COUNTERWEIGHT 300kg (CW031)
COVER (1)
COVER (2)
COVER (3)
COVER (4)
GAS SPRING
GAS SPRING (WITH FULL REAR FENDER)(FRF)
FLOOR BOARD (1)
FLOOR BOARD (2)
FLOOR BOARD (3)
MUD GUARD (MDG)
FULL REAR FENDER (FRF)
FRONT FRAME COVER (FOR 2-SPOOL)(AP2)
FRONT FRAME COVER (FOR 3-SPOOL)(AP3)
FRONT FRAME COVER (FOR 4-SPOOL)(AP4)
CAB
CAB (WITH GPS)(ROC)
CAB (GPS LESS)(ROC002)
CAB (1)(WITH GPS)
CAB (1)(GPS LESS)
DOOR (LEFT)
DOOR (RIGHT)
CAB (2)
CAB (3)
DOOR CATCH (LEFT)
DOOR CATCH (RIGHT)
CAB (4)(WITH GPS)
CAB (4)(GPS LESS)
CAB SUPPORT
REAR CONSOLE
CAB (MAT)
WASHER TANK
RADIO (JAPAN)(CRD001)
RADIO (EU,OCEANIA,ASIA,RUSSIA)(CRD002)
RADIO (LATIN AMERICA)(CRD004)
RADIO (NORTH AMERICA)(CRD003)
STEREO (CRS001)
REARVIEW MIRROR (BM002)
REARVIEW MIRROR [EU](BM001)
FIRE EXTINGIUSHER
STEERING COLUMN
STEERING WHEEL (DL009,DL010)
AIR CONDITIONER (1)
AIR CONDITIONER (2)
AIR CONDITIONER (3)
AIR CONDITIONER PARTS
AIR CONDITIONER PIPING
SEAT BASE
SUSPENSION SEAT (KAB)(SET001)
HEAD REST (KAB)(SET011)
SUSPENSION SEAT (GRAMMER)(SET003)
SEAT (GRAMMER)
SUSPENSION (GRAMMER)
AIR-SUSPENSION SEAT (GRAMMER)(SET004)
SEAT (AIR-SUSPENSION)(GRAMMER)
AIR-SUSPENSION (GRAMMER)
HEAD REST (GRAMMER)(NO LOGO)(SET012)
HEAD REST (GRAMMER)(HITACHI LOGO)(SET013)
SUSPENSION SEAT WITH HEAD REST (NO LOGO) (GRAMMER) (SET005)
SUSPENSION SEAT WITH HEAD REST (HITACHI LOGO) (GRAMMER)[EU] (SET006)
AIR-SUSPENSION SEAT WITH HEAD REST (NO LOGO)(GRAMMER) (SET007)
AIR-SUSPENSION SEAT WITH HEAD REST (HITACHI LOGO) (GRAMMER) SET008)
COCKPIT
ELECTRICAL SYSTEM
ELECTRIC PARTS (FRONT)
ELECTRIC PARTS (REAR)(1)
ELECTRIC PARTS (REAR)(2)
ELECTRIC PARTS (REAR)(3)
REVERSE BUZZER (BB002)
BATTERY (BA001)
LARGE CAPACITY BATTERY (195G51)(BA002)
LARGE CAPACITY BATTERY (190H52)(BA003)
ELECTRIC PARTS (TRANSMISSION)
LIFT ARM KICK OUT SYSTEM (BK)
LIFT ARM AUTO-LEVELER SYSTEM (ADH)
ELECTRIC PARTS (STEERING COLUMN)
ELECTRIC PARTS (RIGHT CONSOLE)
ELECTRIC PARTS (REAR CONSOLE)
ELECTRIC PARTS (FOR 2-SPOOL)(2PL)
ELECTRIC PARTS (MULTI)(MFL)
CAB HARNESS
HEAD LIGHT (CLF001)
HEAD LIGHT [EU](CLF002)
WORKING LIGHT (CLF,CRL)
REAR COMBINATION LAMP (CLR001)
REAR COMBINATION LAMP [EU](CLR003)
REAR COMBINATION LAMP (RRE001)
12V POWER UNIT (DC12V)
GPS UNIT (GPS)
DIFFUSED LIGHT BEACON (ROTATION TYPE)(RLY005)
ROTARY BEACON (RLR001)
YELLOW ROTARY BEACON (RLY004)
DIFFUSED LIGHT BEACIN (XENON TYPE)(RLY006)
HYDRAULIC SYSTEM
PUMP DEVICE
MAIN CONTROL VALVE (2-SPOOL)(2SP)
MAIN CONTROL VALVE (3-SPOOL)(3SP)
MAIN CONTROL VALVE (4-SPOOL)(4SP)
PILOT VALVE (FOR 2-SPOOL)(2PL)
PILOT VALVE (FOR 3-SPOOL)(3PL)
PILOT VALVE (FOR 4-SPOOL)(4PL)
PILOT VALVE (MULTI)(MFL)
MAIN PIPING (1)
MAIN PIPING (2)
MAIN PIPING (FOR 3-SPOOL)(AP3)
MAIN PIPING (FOR 4-SPOOL)(AP4)
RIDE CONTROL (RID)
PILOT PIPING
PILOT PIPNG (2-SPOOL)(2PL)
PILOT PIPING (3-SPOOL)(3PL)
PILOT PIPING (4-SPOOL)(4PL)
PILOT PIPNG (MULTI)(MFL)
CHARGE PIPING
CHARGE PIPING (RIDE CONTROL)(RID)
CONSOLE (R)
PILOT VALVE COVER (MULTI-FUNCTION JOYSTICK LEVER) (2-SPOOL) (2PL)
PILOT VALVE COVER (MULTI-FUNCTION JOYSTICK LEVER) (3-SPOOL)(3PL)
PILOT VALVE COVER (MULTI-FUNCTION JOYSTICK LEVER) (4-SPOOL)(4PL)
PILOT VALVE COVER (2 FINGER LEVER) (2-SPOOL)(FN2)
PILOT VALVE COVER (2 FINGER LEVER) (3-SPOOL)(FN3)
PILOT VALVE COVER (2 FINGER LEVER) (4-SPOOL)(FN4)
OIL TANK
REMOTE DRAIN (HYDRAULIC OIL)(ES) 4GF:000101-

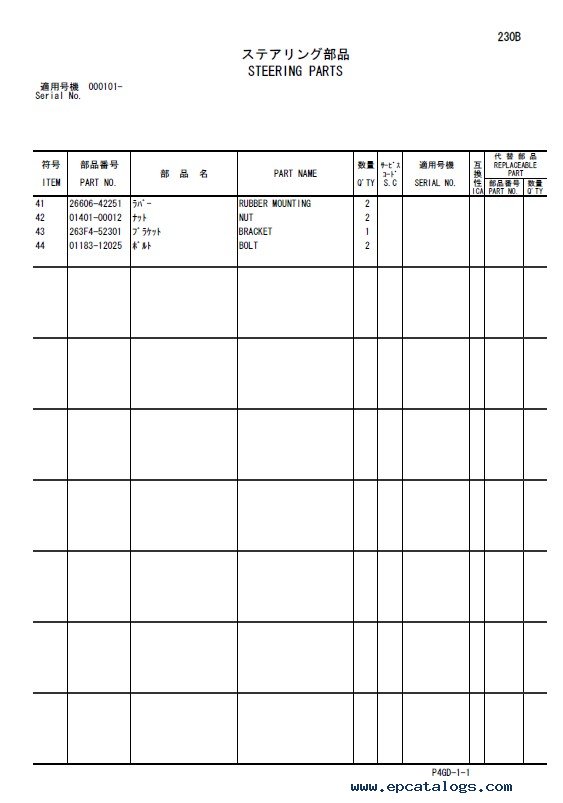

STEERING PARTS
STEERING PIPING (1)
STEERING PIPING (2)
EMERGENCY STEERING (ES)
BRAKE SYSTEM
BRAKE PIPING
GREASE PIPING (1)
GREASE PIPING (2)
LOADER ATTACHMENT
LIFT ARM (1)(SLA)
LIFT ARM (2)(SLA)
HIGH LIFT ARM (1)(HLA)
HIGH LIFT ARM (2)(HLA)
LOG GRAPPLE PARTS (SLA002)
LIFT ARM CYLINDER
BUCKET CYLINDER
CYLINDER GUARD
GENERAL PURPOSE BUCKET 2.3m3 (B1H230)
GENERAL PURPOSE BUCKET 2.7m3 (B1270)
GENERAL PURPOSE BUCKET 2.9m3 (B1290)
GENERAL PURPOSE BUCKET 3.1m3 (B1310)
GENERAL PURPOSE BUCKET (WITH BOLT-ON CUTTING EDGE) 2.4m3 (DBH240)
GENERAL PURPOSE BUCKET (WITH BOLT-ON CUTTING EDGE) 2.8m3 (DEB280)
GENERAL PURPOSE BUCKET (WITH BOLT-ON CUTTING EDGE) 3.0m3 (DEB300)
GENERAL PURPOSE BUCKET (WITH BOLT-ON CUTTING EDGE) 3.3m3 (DEB330)
GENERAL PURPOSE BUCKET (WITH BOLT-ON TOOTH) 2.3m3 (D3H230)
GENERAL PURPOSE BUCKET (WITH BOLT-ON TOOTH) 2.7m3 (B3270)
GENERAL PURPOSE BUCKET (WITH BOLT-ON TOOTH) 2.9m3 (B3290)
GENERAL PURPOSE BUCKET (WITH BOLT-ON TOOTH, SPACE EDGE) 2.8m3 (SPE280)
ROCK BUCKET (WITH BOLT-ON TOOTH) 2.2m3 (RB3220)
ROCK BUCKET (WITH BOLT-ON TOOTH, SPACE EDGE) 2.3m3 (SPE230)
GENERAL PURPOSE BUCKET (COUPLER TYPE) 2.3m3 (OB1230)
GENERAL PURPOSE BUCKET (COUPLER TYPE 2.7m3 (OB1270)
GENERAL PURPOSE BUCKET (COUPLER TYPE) (WITH BOLT-ON TOOTH) 2.3m3 (OB3230)
GENERAL PURPOSE BUCKET (COUPLER TYPE) (WITH BOLT-ON CUTTINGEDGE) 2.4m3 (ODB240)
GENERAL PURPOSE BUCKET (COUPLER TYPE) (WITH BOLT-ON CUTTINGEDGE) 2.8m3 (ODB280)
FORK (PIN ON TYPE)(FL)
FORK (COUPLER TYPE)(OFL)
LIFT ARM AUTO-LEVELER DEVICE (FORK (COUPLER TYPE))
LOG GRAPPLE
LOG GRAPPLE PIPING
QUICK COUPLER
QUICK COUPLER PARTS
QUICK COUPLER (WITH RIDE CONTROL) (RID)
LOAD HOMOLOGATION PARTS
ROAD HOMOLOGATION (JAPAN)(RRE001)
TOOLS
TOOLS
TOOLS [EU]
NAME PLATE
NAME-PLATE (1)
NAME-PLATE (2)(JAPANESE)
NAME-PLATE (2)(GENERAL EXPORT)
NAME-PLATE (2)(EU)
NAME-PLATE (3)(JAPANESE)
NAME-PLATE (3)(EX)
NAME-PLATE (3)(EU)
NAME-PLATE (4)
PARTS INDEX
PARTS INDEX
