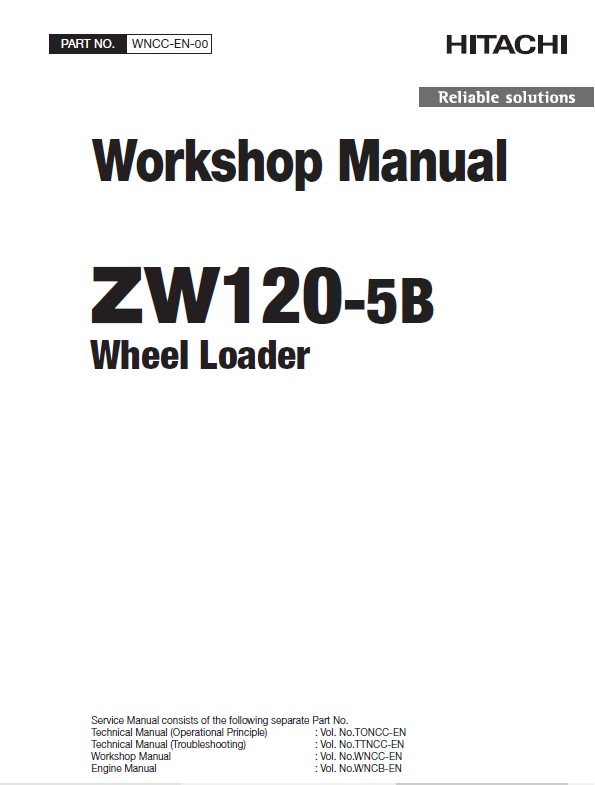

Hitachi Wheel Loader ZW120-5B Workshop Manual PDF

Note: You may also be interested in the following manual for Hitachi Wheel Loader ZW120-5B:
Technical Manual (Troubleshooting)

This PDF workshop manual describes the operation and routine maintenance of the Hitachi Wheel Loader ZW120-5B.

This pdf service manual provides information about the care and safety, operation, transport, lubrication, and maintenance instruction for the Hitachi Wheel Loader. Also in this pdf manual are used warning labels designed to prevent personal injury and damage to the machine. Having studied them and following the instructions, you can independently carry out routine maintenance and repair of equipment.

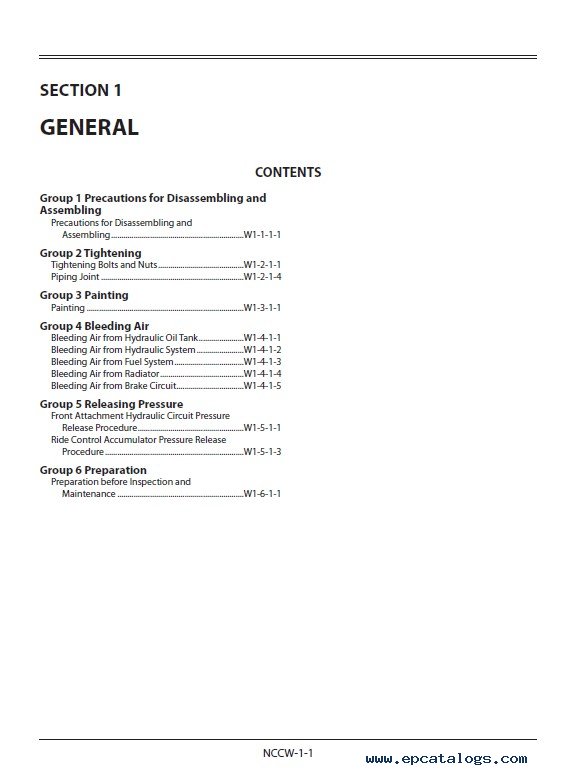

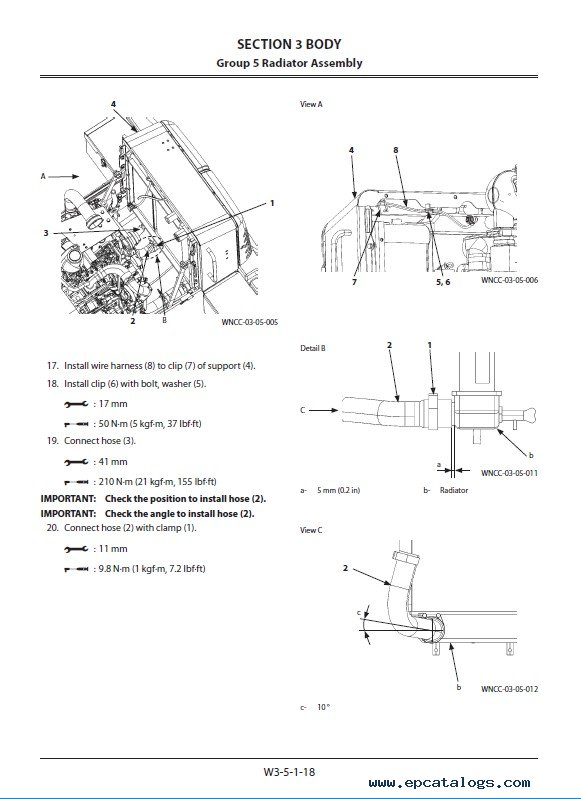

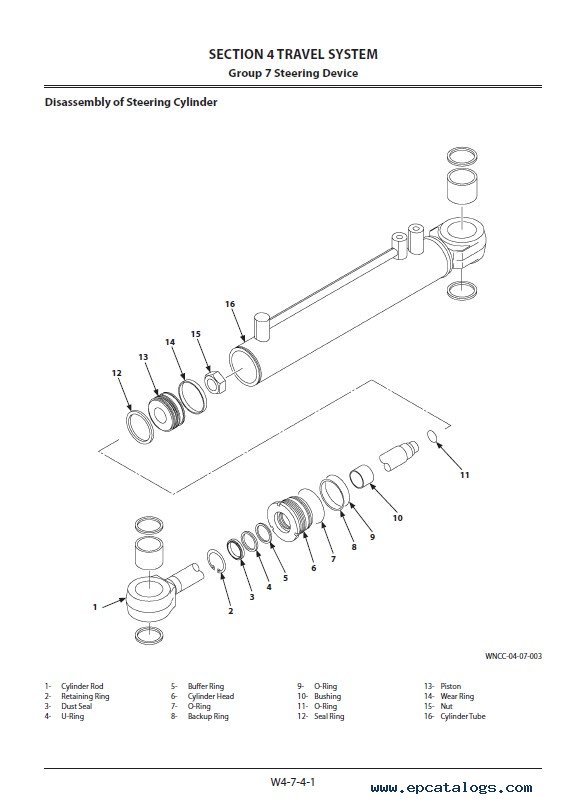

This workshop manual contains the most current technical service information. The service repair information is presented in a short, visual form. Sections are sorted by number (see screenshots or list of content below).

This workshop service manual is an electronic PDF document that works with Adobe PDF Reader. Use this application, in order to be sure that all pictures, files, and imagines will open and work.

You can print this PDF instruction and use it as a service handbook. You should arrange this service book near your machine, and contact it as necessary.

Document Part No. WNCC-EN-00

Models covered: ZW 120-5B

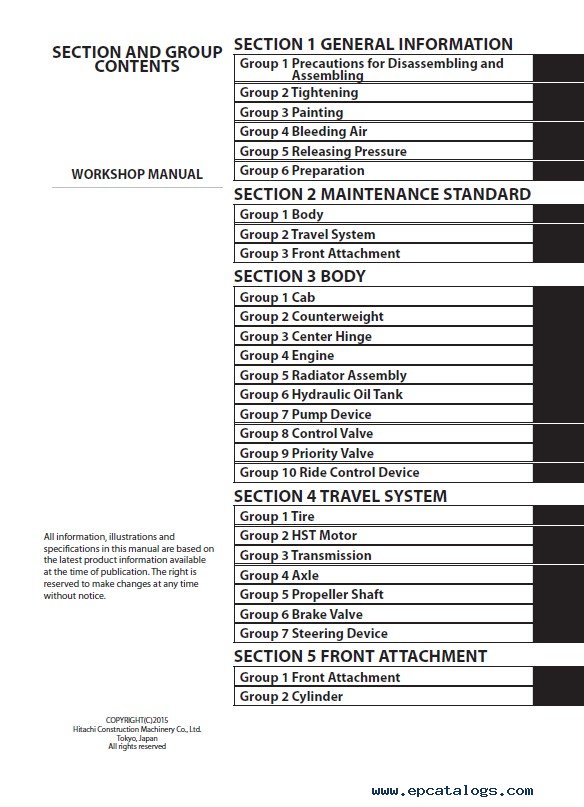

CONTENTS:

• SECTION 1 GENERAL INFORMATION
  • Group 1 Precautions for Disassembling and Assembling
  • Group 2 Tightening
  • Group 3 Painting
  • Group 4 Bleeding Air
  • Group 5 Releasing Pressure
  • Group 6 Preparation
• SECTION 2 MAINTENANCE STANDARD
  • Group 1 Body
  • Group 2 Travel System
  • Group 3 Front Attachment
• SECTION 3 BODY
  • Group 1 Cab
  • Group 2 Counterweight
  • Group 3 Center Hinge
  • Group 4 Engine
  • Group 5 Radiator Assembly
  • Group 6 Hydraulic Oil Tank
  • Group 7 Pump Device
  • Group 8 Control Valve
  • Group 9 Priority Valve
  • Group 10 Ride Control Device
• SECTION 4 TRAVEL SYSTEM
  • Group 1 Tire
  • Group 2 HST Motor
  • Group 3 Transmission
  • Group 4 Axle
  • Group 5 Propeller Shaft
  • Group 6 Brake Valve
  • Group 7 Steering Device
• SECTION 5 FRONT ATTACHMENT
  • Group 1 Front Attachment
  • Group 2 Cylinder
