Hitachi Hydraulic Excavator ZX300LC-6, ZX300LCN-6 Operational Principle Technical Manual PDF

[09/2015]
repair manual Hitachi Hydraulic Excavator ZX300LC-6, ZX300LCN-6 Operational Principle Technical Manual PDF
Type of catalogue: repair manual
Make: Hitachi
Region: WorldWide
Inclusive
languages:		 English
Amount of
disks:		 1 CD, PDF file, 470 pages
Availibility Instant Download
OS: Windows XP 32 bit, Windows 7 32 bit, Windows 7 64 bit, Windows 8/8.1 32 bit, Windows 8/8.1 64 bit, Windows 10 32 bit, Windows 10 64 bit, Windows 11 64 bit
Price, USD: 40
Hitachi pdf manual instant preview

Note: You may also be interested in the following PDF manuals for Hitachi Hydraulic Excavators ZX300LC-6, ZX300LCN-6:
Technical Manual (Troubleshooting)
Workshop Manual

Repairing Hitachi excavators on their own is a significant saving in the own funds of any equipment owner. To learn all the necessary procedures for the proper operation, routine maintenance, and current repair of Hitachi Hydraulic Excavators ZX300LC-6, ZX300LCN-6 models, was created this PDF Technical Manual (Operational Principle).

This technical manual contains detailed technical service information, general care and safety instructions, technical specifications, a variety of diagrams, and illustrations for Hitachi excavators.

By following all the requirements of this pdf manual, you will ensure the safety of the operator and those associated with servicing the excavator.

This pdf technical service manual is presented in PDF format, which greatly simplifies its use since it does not require installation (INSTANT DOWNLOAD). To work with the PDF manual, we recommend that you use the Adobe PDF Reader application.

At the top of the page, you can see the link "Hitachi pdf manual instant preview". By clicking on it, you can see what this manual is all about, what quality of pictures and drawings in it. You can also read the list of content that is presented below.

Document Part No. TODDN50-EN-00

Models covered:
ZX 300LC-6,
ZX 300LCN-6.

CONTENTS:

  • SECTION 1 GENERAL
    • Group 1 Specification
    • Group 2 Component Layout
    • Group 3 Component Specifications
  • SECTION 2 SYSTEM
    • Group 1 Controller
    • Group 2 Control System
    • Group 3 Engine System
    • Group 4 Hydraulic System
    • Group 5 Electrical System
  • SECTION 3 COMPONENT OPERATION
    • Group 1 Pump Device
    • Group 2 Swing Device
    • Group 3 Control Valve
    • Group 4 Pilot Valve
    • Group 5 Travel Device
    • Group 6 Signal Control Valve
    • Group 7 Others (Upperstructure)
    • Group 8 Others (Undercarriage)

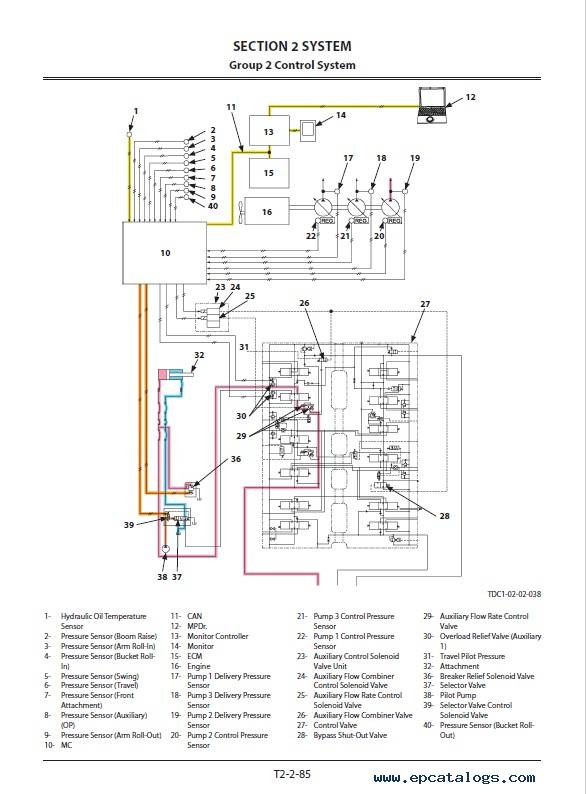

Screenshots for Hitachi Hydraulic Excavator ZX300LC-6, ZX300LCN-6 Operational Principle Technical Manual PDF:
