Home / Heavy Technics + Repair / Hitachi / Hitachi Hydraulic Excavator ZX27U, ZX30U, ZX35U Workshop Manual PDF

Hitachi Hydraulic Excavator ZX27U, ZX30U, ZX35U Workshop Manual PDF

[03/2017]
repair manual Hitachi Hydraulic Excavator ZX27U, ZX30U, ZX35U Workshop Manual PDF
Type of catalogue: repair manual
Make: Hitachi
Region: WorldWide
Inclusive
languages:		 English
Amount of
disks:		 1 CD, PDF file, 434 pages
Availibility Instant Download
OS: Windows XP 32 bit, Windows 7 32 bit, Windows 7 64 bit, Windows 8/8.1 32 bit, Windows 8/8.1 64 bit, Windows 10 32 bit, Windows 10 64 bit, Windows 11 64 bit
Price, USD: 40
Hitachi pdf manual instant preview

Note: You may also be interested in the following manual for Hitachi Hydraulic Excavator ZX27U, ZX30U, ZX35U Models:
Technical Manual

This PDF Workshop Manual contains the necessary instructions for the owner/operator on the safe operation and correct maintenance of Hitachi Hydraulic Excavators ZX27U, ZX30U, ZX35U Models.

This workshop service manual is a source of service information that will help in the current repair and routine maintenance of Hitachi Hydraulic Excavators. The pdf manual also contains technical data, spare parts replacement schemes, illustrations of excavator systems, component specifications, and other repair information.

In order to work with this pdf instruction, we recommend you to use the application - Adobe Acrobat Reader (or other analogs). So, you don't need to spend your time installing this file (Instant Download).

You can study this pdf manual using screenshots and a list of content, which is presented in the manual description. You can also follow the link 'Hitachi pdf manual instant preview', and preview the pages of this manual.

You can print this workshop service manual and use it as a service handbook. We recommend storing this manual near the machine. It will be more convenient for the driver-operator and maintenance personnel.

Models covered:
ZX 27U,
ZX 30U,
ZX 35U.

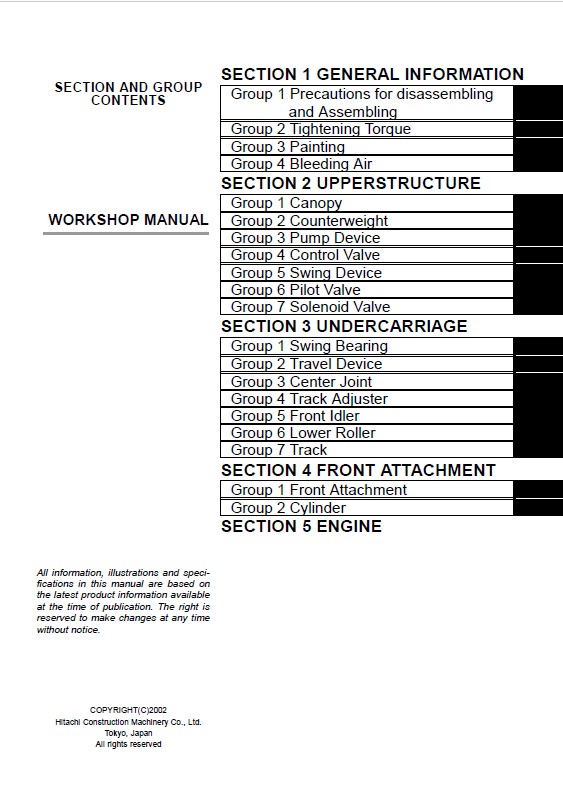

CONTENTS:

  • SECTION 1 GENERAL INFORMATION
    • Group 1 Precautions for disassembling and Assembling
    • Group 2 Tightening Torque
    • Group 3 Painting
    • Group 4 Bleeding Air
  • SECTION 2 UPPERSTRUCTURE
    • Group 1 Canopy
    • Group 2 Counterweight
    • Group 3 Pump Device
    • Group 4 Control Valve
    • Group 5 Swing Device
    • Group 6 Pilot Valve
    • Group 7 Solenoid Valve
  • SECTION 3 UNDERCARRIAGE
    • Group 1 Swing Bearing
    • Group 2 Travel Device
    • Group 3 Center Joint
    • Group 4 Track Adjuster
    • Group 5 Front Idler
    • Group 6 Lower Roller
    • Group 7 Track
  • SECTION 4 FRONT ATTACHMENT
    • Group 1 Front Attachment
    • Group 2 Cylinder
  • SECTION 5 ENGINE

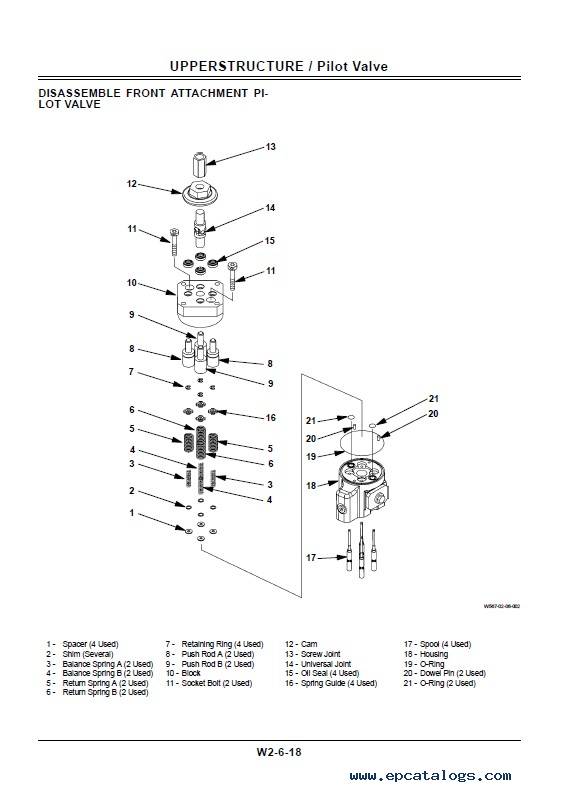

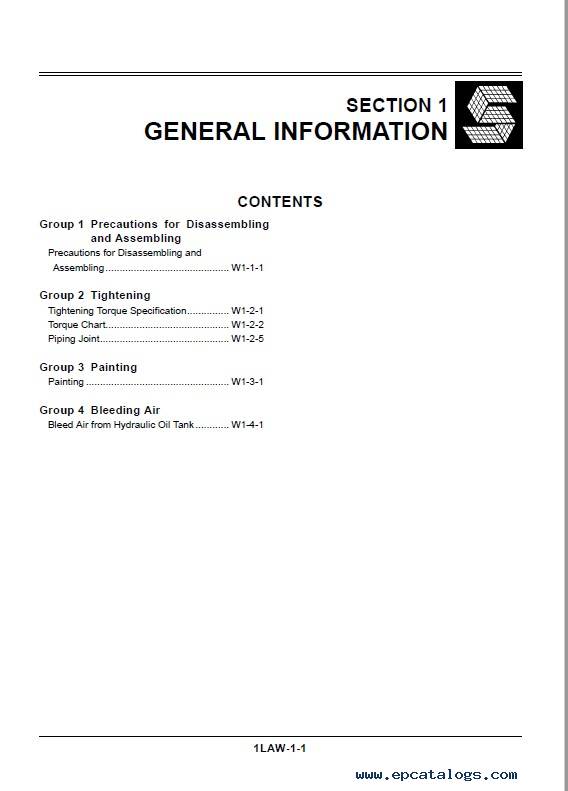

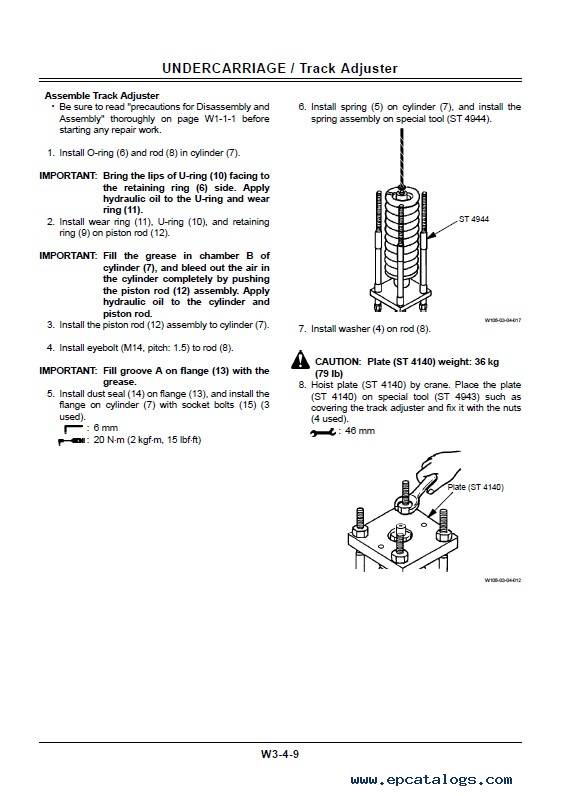

Screenshots for Hitachi Hydraulic Excavator ZX27U, ZX30U, ZX35U Workshop Manual PDF:

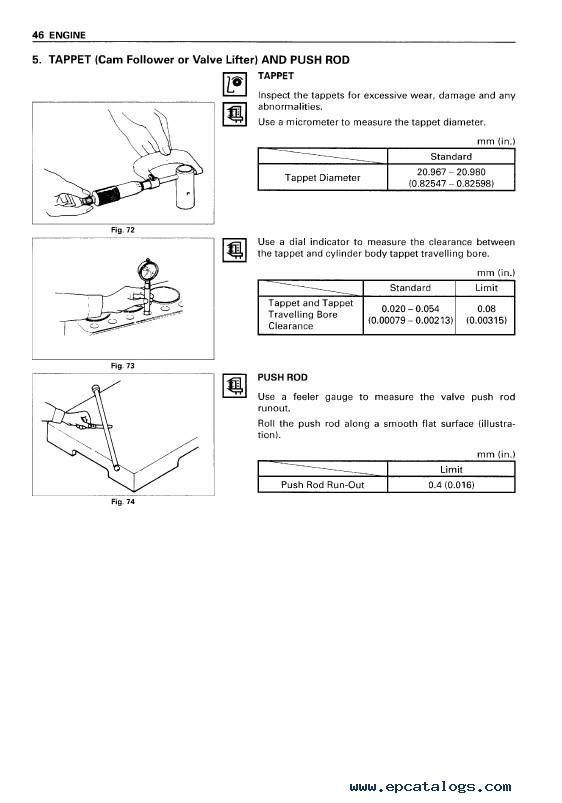

repair manual Hitachi Hydraulic Excavator ZX27U, ZX30U, ZX35U Workshop Manual PDF - 1
enlarge repair manual Hitachi Hydraulic Excavator ZX27U, ZX30U, ZX35U Workshop Manual PDF - 2
enlarge repair manual Hitachi Hydraulic Excavator ZX27U, ZX30U, ZX35U Workshop Manual PDF - 3
enlarge repair manual Hitachi Hydraulic Excavator ZX27U, ZX30U, ZX35U Workshop Manual PDF - 4
enlarge
