Hitachi Hydraulic Excavator ZX225USLC-5B, ZX225USRLC-5B Workshop Manual PDF

[01/2014]
repair manual Hitachi Hydraulic Excavator ZX225USLC-5B, ZX225USRLC-5B Workshop Manual PDF
Type of catalogue: repair manual
Make: Hitachi
Region: WorldWide
Inclusive
languages:		 English
Amount of
disks:		 1 CD, PDF file, 616 pages
Availibility Instant Download
OS: Windows XP 32 bit, Windows 7 32 bit, Windows 7 64 bit, Windows 8/8.1 32 bit, Windows 8/8.1 64 bit, Windows 10 32 bit, Windows 10 64 bit, Windows 11 64 bit
Price, USD: 40
Hitachi pdf manual instant preview

Note: You may also be interested in the following PDF manuals for the Hitachi Hydraulic Excavators (ZX225USLC-5B, ZX225USRLC-5B):
Technical Manual (Operational Principle)
Technical Manual (Troubleshooting)

This PDF Workshop Manual contains necessary technical service information for the routine maintenance and troubleshooting of the Hitachi Hydraulic Excavators ZX225USLC-5B, ZX225USRLC-5B Models.

This workshop service manual will show how to properly find or perform any repair or overhaul, correctly and efficiently, saving time and avoiding costly mistakes.

The pdf workshop manual helps to identify existing and potential problems, perform maintenance and repair problem areas and troubleshooting.

This workshop manual comes in PDF format and includes 616 pages, which are printable and readable. To view this information you need to install Adobe Acrobat Reader (or any analog).

If you decide to order this PDF manual, please click the 'Buy Now' button and follow the instruction. After a few minutes, you will receive an email with a link to download and all recommendations for use.

If you have any questions, we will be glad to answer them.

Document Part No. WDCN-EN-00

Models covered:
ZX 225USLC-5B,
ZX 225USRLC-5B.

CONTENTS:

  • SECTION 1 GENERAL INFORMATION
    • Group 1 Precautions for Disassembling and Assembling
    • Group 2 Tightening
    • Group 3 Painting
    • Group 4 Bleeding Air
    • Group 5 Pressure Release Procedure
    • Group 6 Preparation
  • SECTION 2 MAINTENANCE STANDARD
    • Group 1 Upperstructure
    • Group 2 Undercarriage
    • Group 3 Front Attachment
  • SECTION 3 UPPERSTRUCTURE
    • Group 1 Cab
    • Group 2 Counterweight
    • Group 3 Main Frame
    • Group 4 Engine
    • Group 8 Pump Device
    • Group 9 Control Valve
    • Group 10 Swing Device
    • Group 11 Pilot Valve
    • Group 12 Solenoid Valve
    • Group 13 Signal Control Valve
    • Group 14 Muffler Filter
  • SECTION 4 UNDERCARRIAGE
    • Group 1 Swing Bearing
    • Group 2 Travel Device
    • Group 3 Center Joint
    • Group 4 Track Adjuster
    • Group 5 Upper and Lower Rollers
    • Group 6 Track
  • SECTION 5 FRONT ATTACHMENT
    • Group 1 Front Attachment
    • Group 2 Cylinder
    • Group 3 Hose Rupture Valve

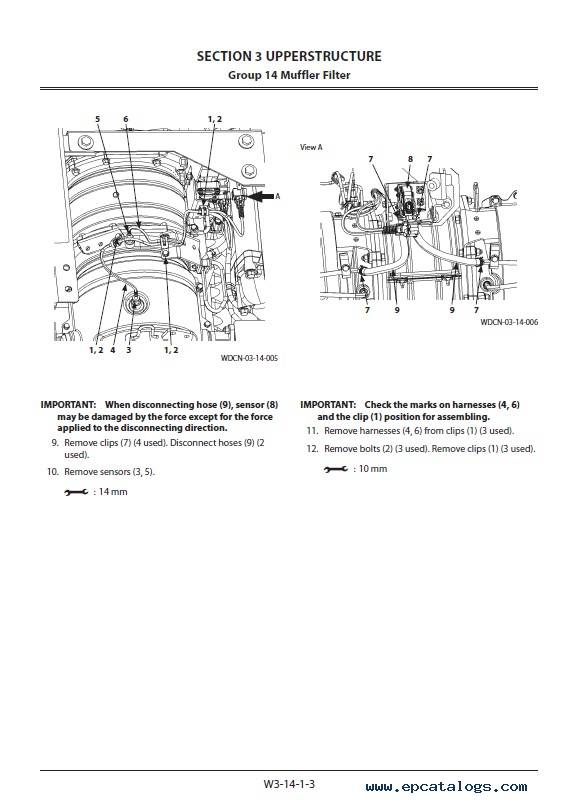

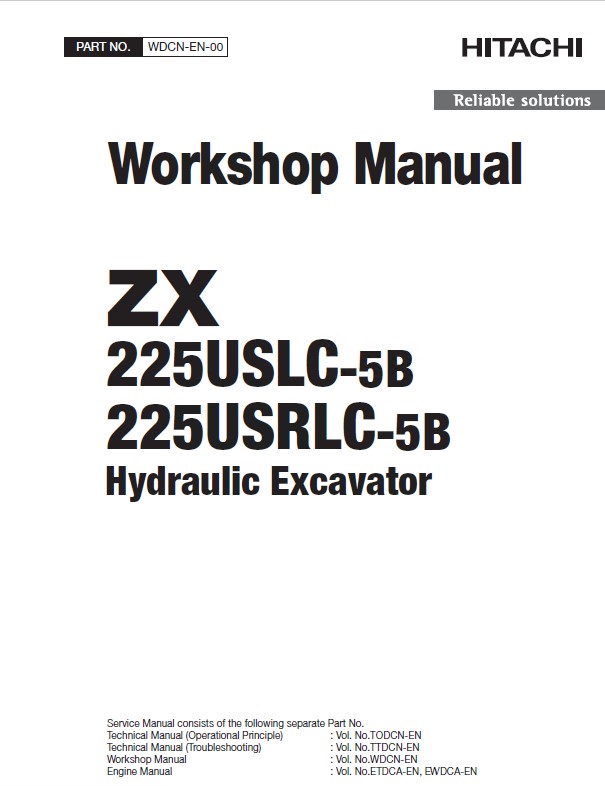

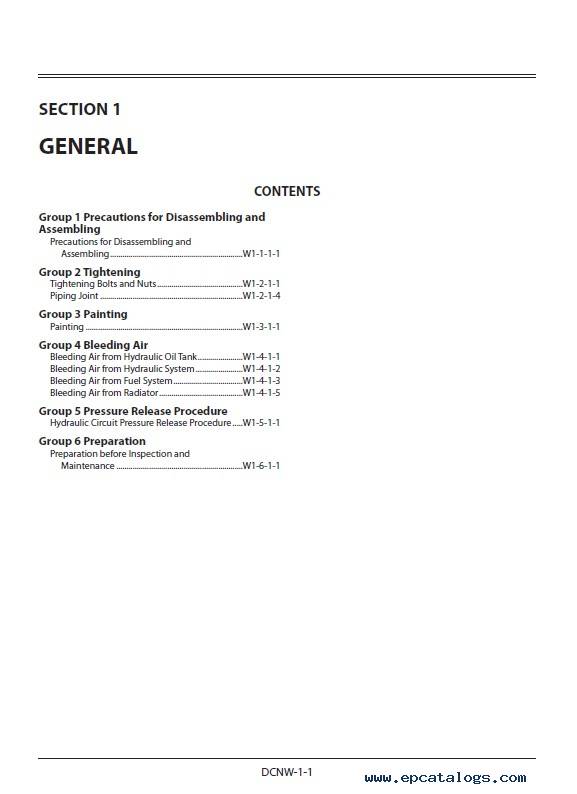

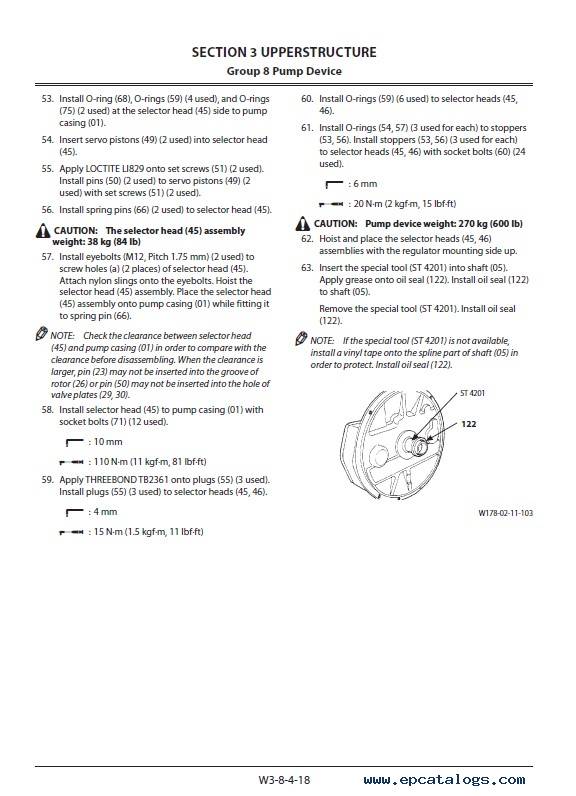

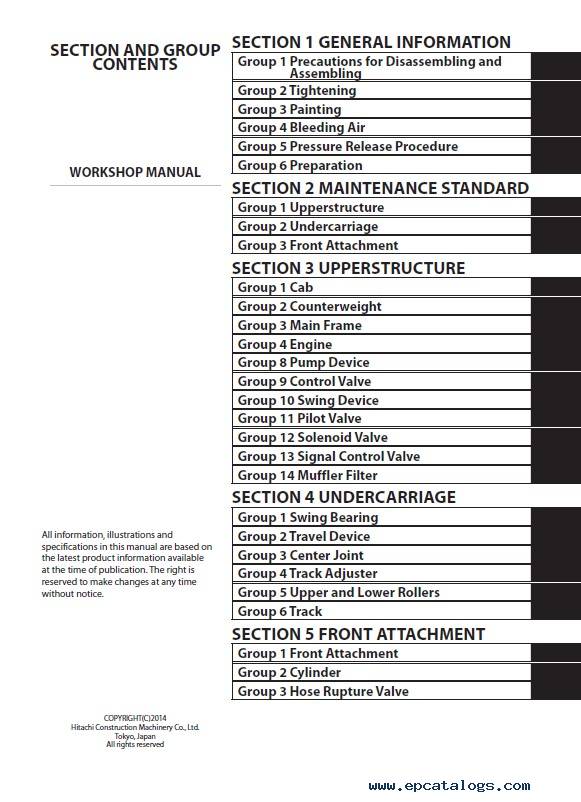

Screenshots for Hitachi Hydraulic Excavator ZX225USLC-5B, ZX225USRLC-5B Workshop Manual PDF:

repair manual Hitachi Hydraulic Excavator ZX225USLC-5B, ZX225USRLC-5B Workshop Manual PDF - 1
enlarge repair manual Hitachi Hydraulic Excavator ZX225USLC-5B, ZX225USRLC-5B Workshop Manual PDF - 2
enlarge repair manual Hitachi Hydraulic Excavator ZX225USLC-5B, ZX225USRLC-5B Workshop Manual PDF - 3
enlarge repair manual Hitachi Hydraulic Excavator ZX225USLC-5B, ZX225USRLC-5B Workshop Manual PDF - 4
enlarge
