Hitachi Hydraulic Excavator ZX190LC-5B, ZX190LCN-5B Operational Principle Technical Manual PDF

Note: for routine maintenance of the Hitachi Hydraulic Excavators (ZX190LC-5B, ZX190LCN-5B), in addition to this manual, also use:
Technical Manual (Troubleshooting)

This PDF Technical Manual (Operational Principle) is a service guide for the Hitachi Hydraulic Excavators ZX190LC-5B, ZX190LCN-5B Models. This pdf manual contains the necessary technical data concerning the maintenance and repair of these machines.

By purchasing this technical service manual for the hydraulic excavator, you gain confidence in the operation of your equipment since the necessary and useful information is always there.

For checking or repairing the Hitachi excavator we suggest that you refer to this manual carefully and use repair information every service procedure. We hope this technical repair manual will help to maintain a high level of working efficiency and reliability of your equipment.

Thanks to PDF format, it is possible to print the entire pdf instruction or the individual diagrams and schemes. You can work with this manual after installing Adobe PDF Reader. If necessary, you can print the desired page manual.

We provide after-sales support and assistance when you purchasing this manual. If you still have questions, please contact us, we will be happy to help you.

Part No. TODBJ-EN-00

Models covered:
ZX190LC-5B,
ZX190LCN-5B.

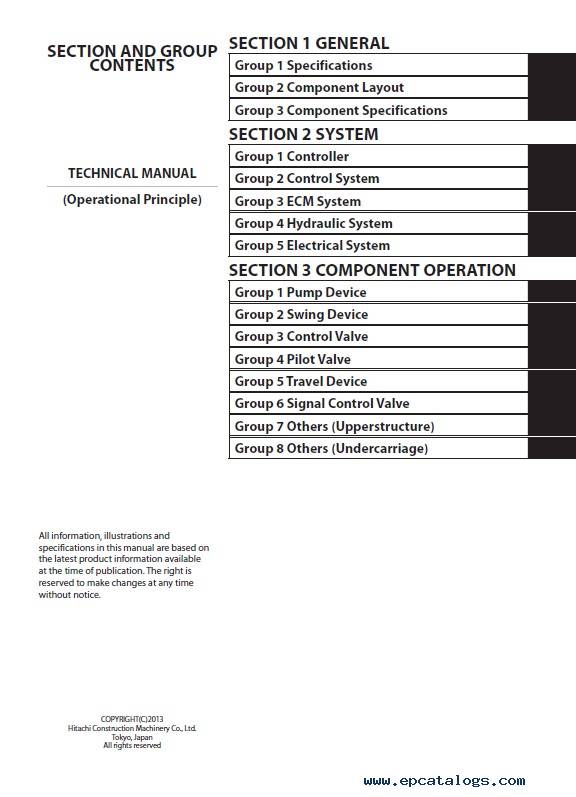

CONTENTS:

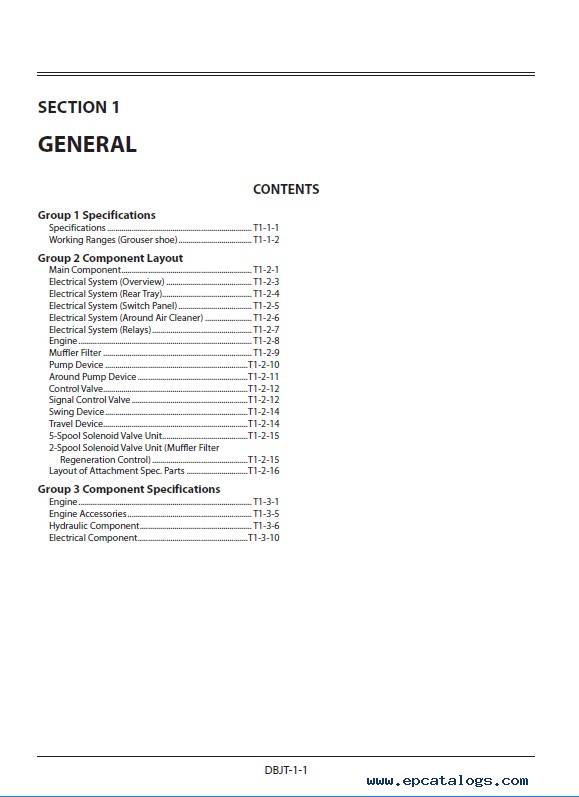

• SECTION 1 GENERAL
  • Group 1 Specifications
  • Group 2 Component Layout
  • Group 3 Component Specifications
• SECTION 2 SYSTEM
  • Group 1 Controller
  • Group 2 Control System
  • Group 3 ECM System

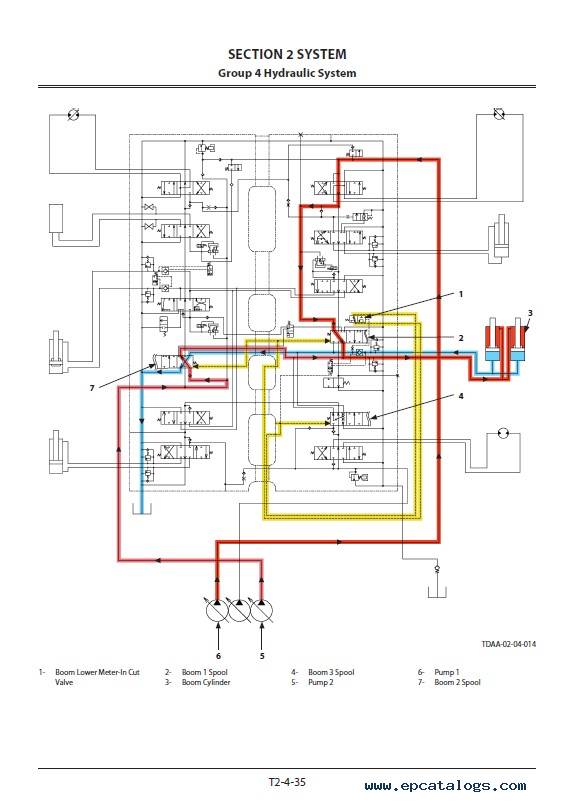

  • Group 4 Hydraulic System
  • Group 5 Electrical System
• SECTION 3 COMPONENT OPERATION
  • Group 1 Pump Device
  • Group 2 Swing Device

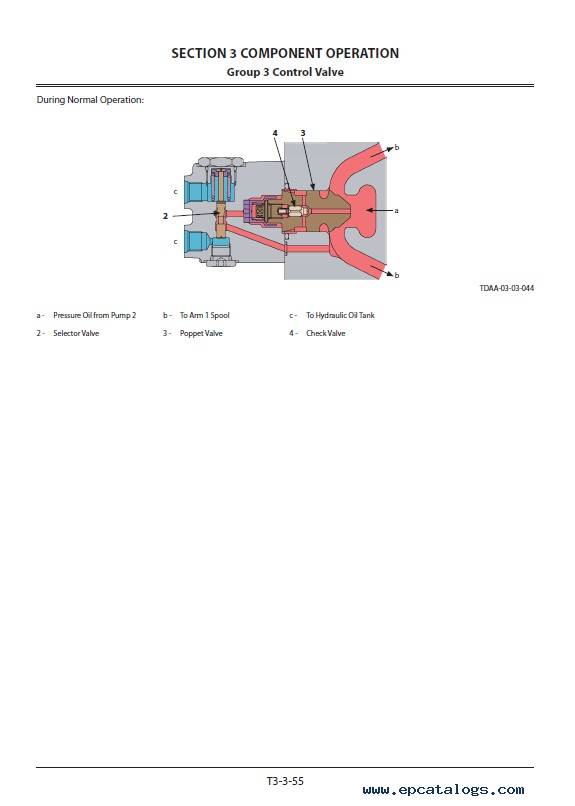

  • Group 3 Control Valve
  • Group 4 Pilot Valve
  • Group 5 Travel Device
  • Group 6 Signal Control Valve
  • Group 7 Others (Upperstructure)
  • Group 8 Others (Undercarriage)
