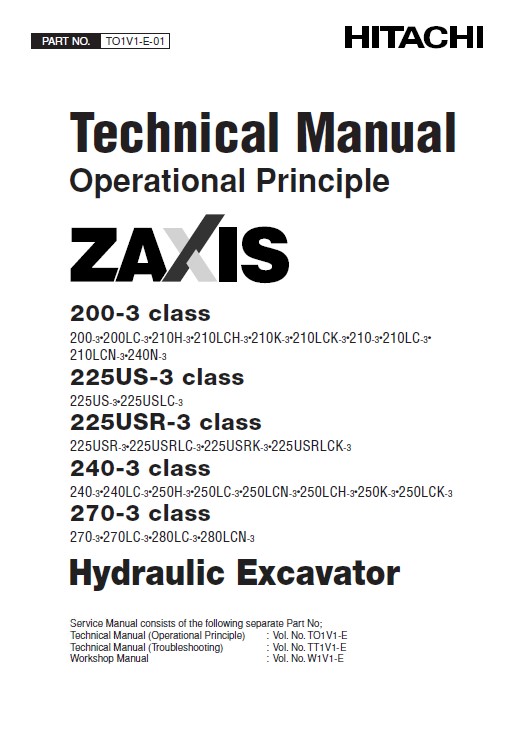

Hitachi Hydraulic Excavator Zaxis 200-3, 225US-3, 225USR-3, 240-3, 270-3 Class Technical Manual PDF

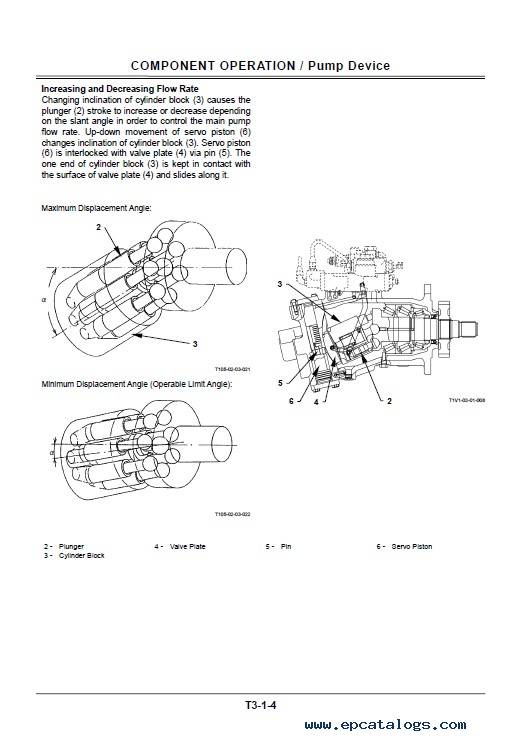

This PDF Technical Manual (Operational Principle) contains detailed service and repair information for Hitachi Hydraulic Excavator Zaxis 200-3, 225US-3, 225USR-3, 240-3, 270-3 Class. This technical manual includes circuits, pictures, schematics, which show the location of the necessary details and can carry out the installation or removal of any details of Hitachi Hydraulic Excavators.

The manual is presented in PDF format, which greatly simplifies its use since it does not require installation (INSTANT DOWNLOAD). To work with the PDF manual, we recommend that you use the Adobe Acrobat Reader application.

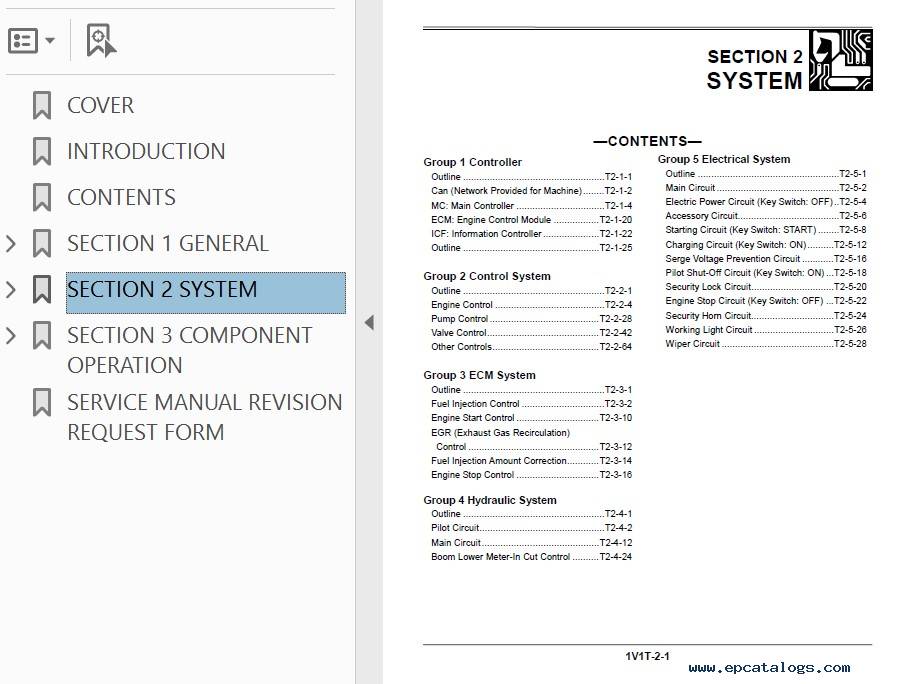

At the top of the page, you can see the link 'Hitachi pdf manual instant preview'. By clicking on it, you can see what this manual is all about, and what quality of pictures and drawings are in it. You can also read the list of content that is presented below.

If you have any questions or problems with downloading the file, you can write to us and we will help you.

Models covered:
Zaxis 200-3 class
200-3•200LC-3•210H-3•210LCH-3•210K-3•210LCK-3•210-3•210LC-3•210LCN-3•240N-3
Zaxis 225US-3 class
225US-3•225USLC-3
Zaxis 225USR-3 class
225USR-3•225USRLC-3•225USRK-3•225USRLCK-3
Zaxis 240-3 class
240-3•240LC-3•250H-3•250LC-3•250LCN-3•250LCH-3•250K-3•250LCK-3
Zaxis 270-3 class
270-3•270LC-3•280LC-3•280LCN-3

Part No. TO1V1-E-01

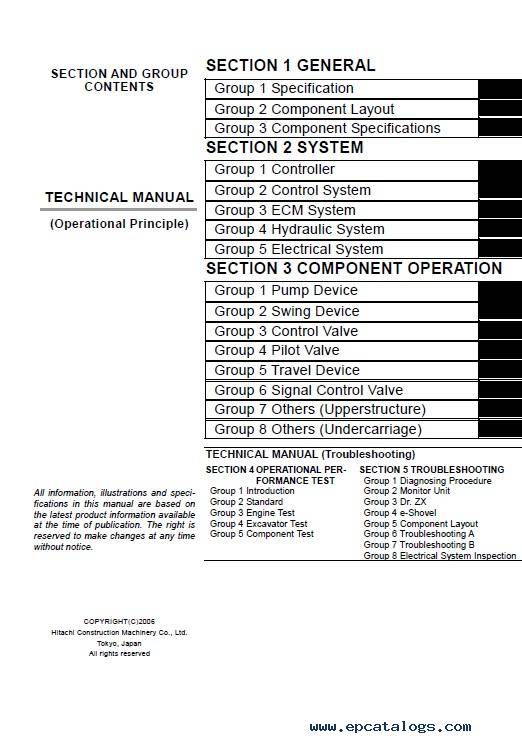

CONTENTS:
SECTION 1 GENERAL
Group 1 Specification
Group 2 Component Layout
Group 3 Component Specifications
SECTION 2 SYSTEM
Group 1 Controller
Group 2 Control System
Group 3 ECM System
Group 4 Hydraulic System
Group 5 Electrical System
SECTION 3 COMPONENT OPERATION
Group 1 Pump Device
Group 2 Swing Device
Group 3 Control Valve
Group 4 Pilot Valve
Group 5 Travel Device
Group 6 Signal Control Valve
Group 7 Others (Upperstructure)
Group 8 Others (Undercarriage)
