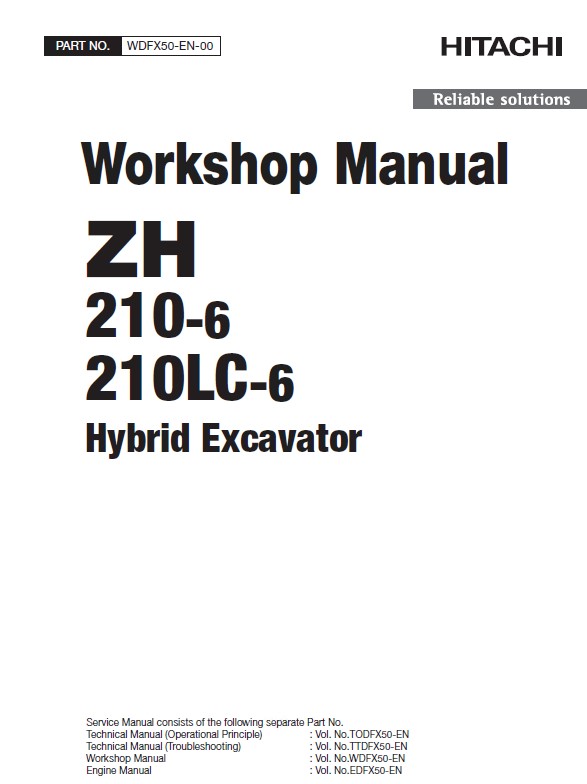

Hitachi Hybrid Excavators ZH210-6, ZH210LC-6 Workshop Manual PDF

Note: also, you can purchase the following PDF manual for Hitachi Hybrid Excavators ZH210-6, ZH210LC-6:
Technical Manual (Operational Principle)
Technical Manual (Troubleshooting)

This PDF workshop manual contains care and safety instructions, various warnings, cautions, and notes that must be carefully observed to reduce the risk of injury during maintenance or repair, and other repair information.

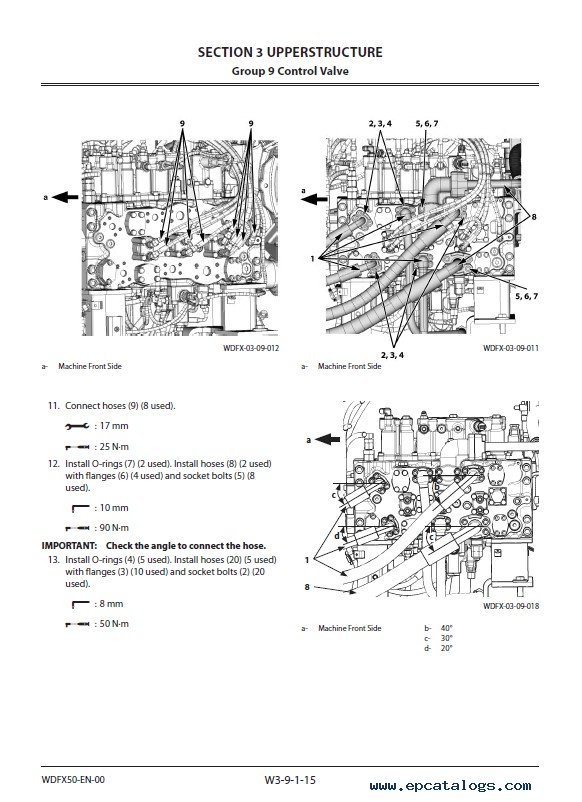

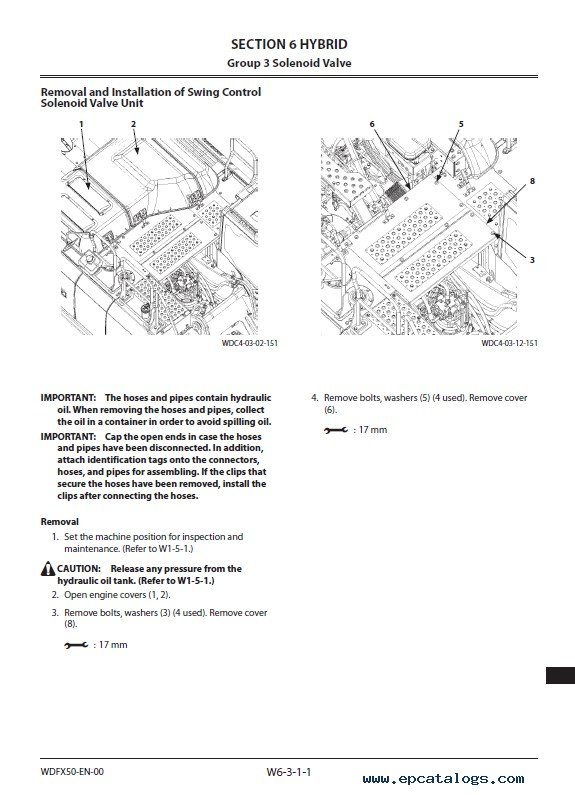

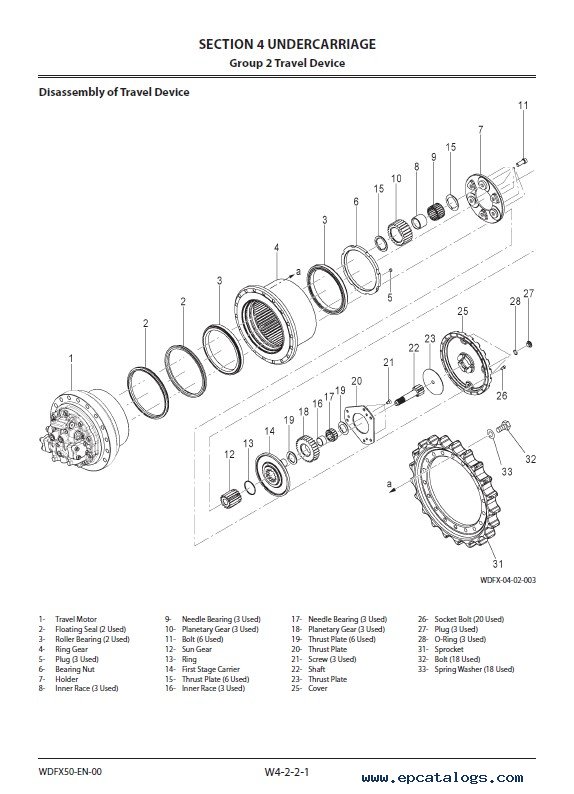

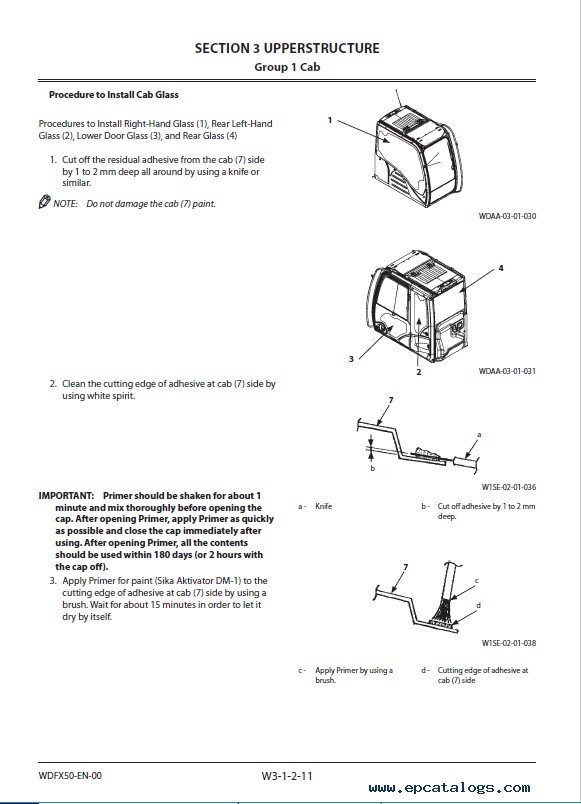

This workshop manual includes technical service information, maintenance and troubleshooting instructions, technical data and lots of pictures and illustrations, All this service information can be printed.

This workshop repair manual is a PDF document that works with Adobe PDF Reader (or any analog of this application). You can download this PDF instruction by the link immediately after payment.

Document Part No. WDFX50-EN-00

Models covered:
ZH210-6,
ZH210LC-6.

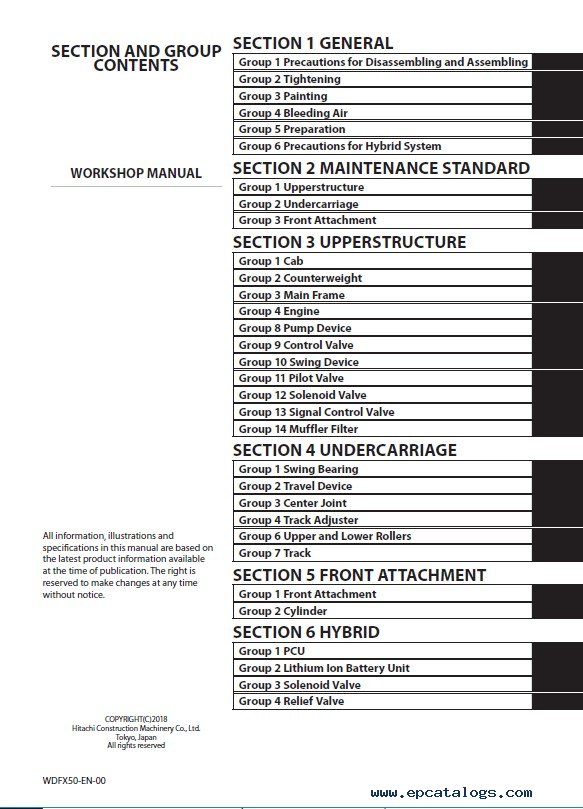

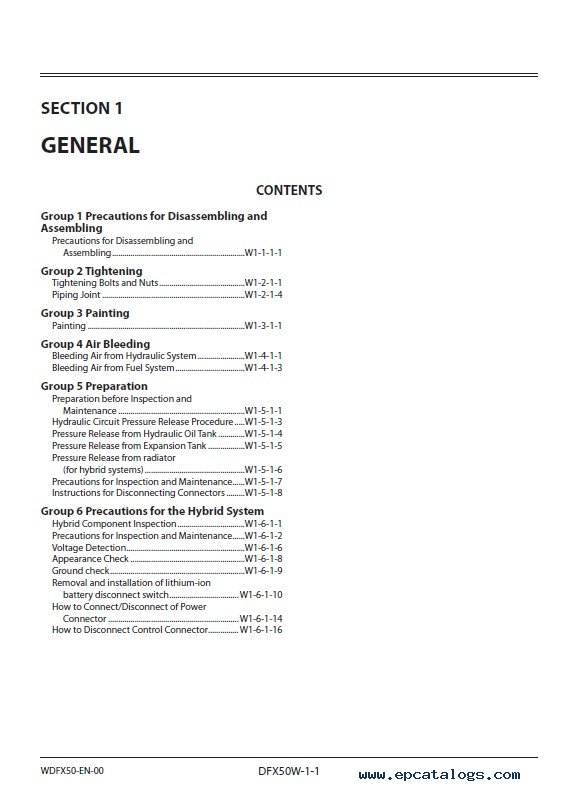

CONTENTS:

• SECTION 1 GENERAL
  • Group 1 Precautions for Disassembling and Assembling
  • Group 2 Tightening
  • Group 3 Painting
  • Group 4 Bleeding Air
  • Group 5 Preparation
  • Group 6 Precautions for Hybrid System
• SECTION 2 MAINTENANCE STANDARD
  • Group 1 Upperstructure
  • Group 2 Undercarriage
  • Group 3 Front Attachment
• SECTION 3 UPPERSTRUCTURE
  • Group 1 Cab
  • Group 2 Counterweight
  • Group 3 Main Frame
  • Group 4 Engine
  • Group 8 Pump Device
  • Group 9 Control Valve
  • Group 10 Swing Device
  • Group 11 Pilot Valve
  • Group 12 Solenoid Valve
  • Group 13 Signal Control Valve
  • Group 14 Muffler Filter
• SECTION 4 UNDERCARRIAGE
  • Group 1 Swing Bearing
  • Group 2 Travel Device
  • Group 3 Center Joint
  • Group 4 Track Adjuster
  • Group 6 Upper and Lower Rollers
  • Group 7 Track
• SECTION 5 FRONT ATTACHMENT
  • Group 1 Front Attachment
  • Group 2 Cylinder
• SECTION 6 HYBRID
  • Group 1 PCU
  • Group 2 Lithium-Ion Battery Unit
  • Group 3 Solenoid Valve
  • Group 4 Relief Valve
