Hitachi Hybrid Excavator ZH 210-A, 210LC-A Workshop Manual PDF

[11/2012]
repair manual Hitachi Hybrid Excavator ZH 210-A, 210LC-A Workshop Manual PDF
Type of catalogue: repair manual
Make: Hitachi
Region: WorldWide
Inclusive
languages:		 English
Amount of
disks:		 1 CD, PDF file, 642 pages
Availibility Instant Download
OS: Windows XP 32 bit, Windows 7 32 bit, Windows 7 64 bit, Windows 8/8.1 32 bit, Windows 8/8.1 64 bit, Windows 10 32 bit, Windows 10 64 bit, Windows 11 64 bit
Price, USD: 40
Hitachi pdf manual instant preview

Note: also, you can purchase the following PDF manual for Hitachi Hybrid Excavators ZH210-A, ZH210LC-A:
Technical Manual (Troubleshooting)
Technical Manual (Operational Principle)

This PDF workshop manual is a service tool for operators or owners of Hitachi Hybrid Excavator ZH210-A, ZH210LC-A Models.

The workshop service manual covers technical service information for the maintenance and repair of the Hitachi Hybrid Excavators.

Also, this pdf manual describes tools and devices needed for maintenance and repair, maintenance standards, and removal/installation and assemble/disassemble procedures.

This workshop repair manual includes care and safety information, technical specifications, technical data, lots of pictures and schematics, and other repair information.

This pdf manual can be printed and used as a book whenever you need it. For working with this pdf instruction, we recommend you to use the application Adobe PDF Reader because it guarantees that all pages and pictures will open.

Document Part No. WDCF-EN-00

Models covered:
ZH210-A,
ZH210LC-A.

CONTENTS:

  • SECTION 1 GENERAL
    • Group 1 Precautions for Disassembling and Assembling
    • Group 2 Tightening
    • Group 3 Painting
    • Group 4 Bleeding Air
    • Group 5 Pressure Release Procedure
    • Group 6 Preparation
    • Group 7 Precautions for Hybrid System
    • Group 8 Qualification
  • SECTION 2 MAINTENANCE STANDARD
    • Group 1 Upperstructure
    • Group 2 Undercarriage
    • Group 3 Front Attachment
  • SECTION 3 UPPERSTRUCTURE
    • Group 1 Cab
    • Group 2 Counterweight
    • Group 3 Main Frame
    • Group 4 Engine
    • Group 5 Radiator Assembly
    • Group 6 Hydraulic Oil Tank
    • Group 7 Fuel Tank
    • Group 8 Pump Device
    • Group 9 Control Valve
    • Group 10 Swing Device
    • Group 11 Pilot Valve
    • Group 12 Solenoid Valve
    • Group 13 Signal Control Valve
  • SECTION 4 UNDERCARRIAGE
    • Group 1 Swing Bearing
    • Group 2 Travel Device
    • Group 3 Center Joint
    • Group 4 Track Adjuster
    • Group 5 Upper and Lower Rollers
    • Group 6 Track
  • SECTION 5 FRONT ATTACHMENT
    • Group 1 Front Attachment
    • Group 2 Cylinder
    • Group 3 Hose Rupture Value
  • SECTION 6 HYBRID
    • Group 1 PCU
    • Group 2 Capacitor Unit
    • Group 3 Solenoid Valve
    • Group 4 Relief Valve

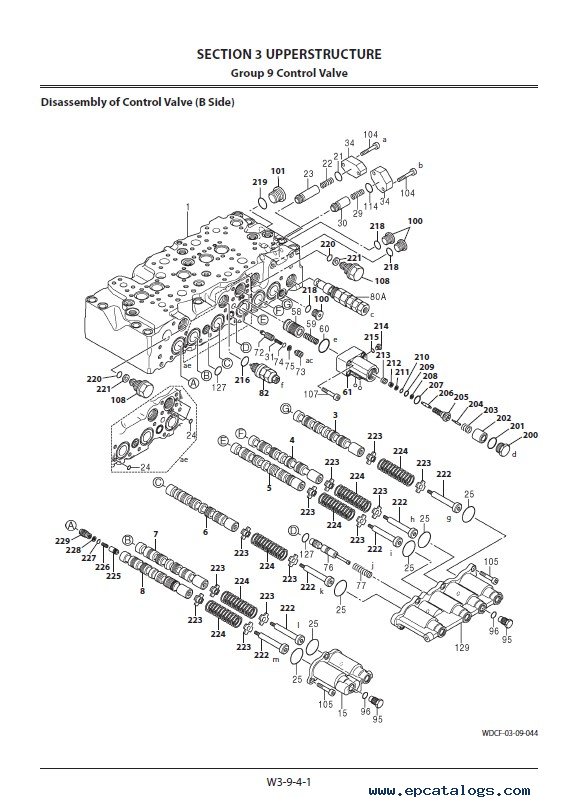

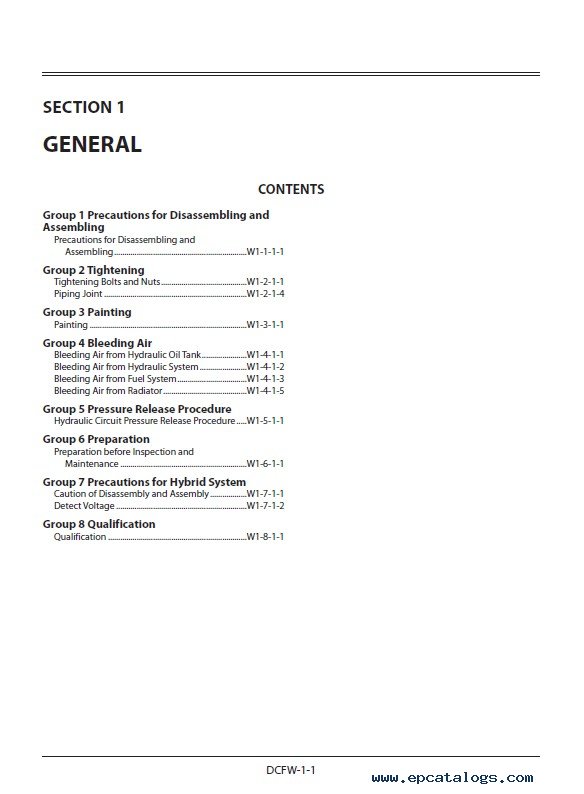

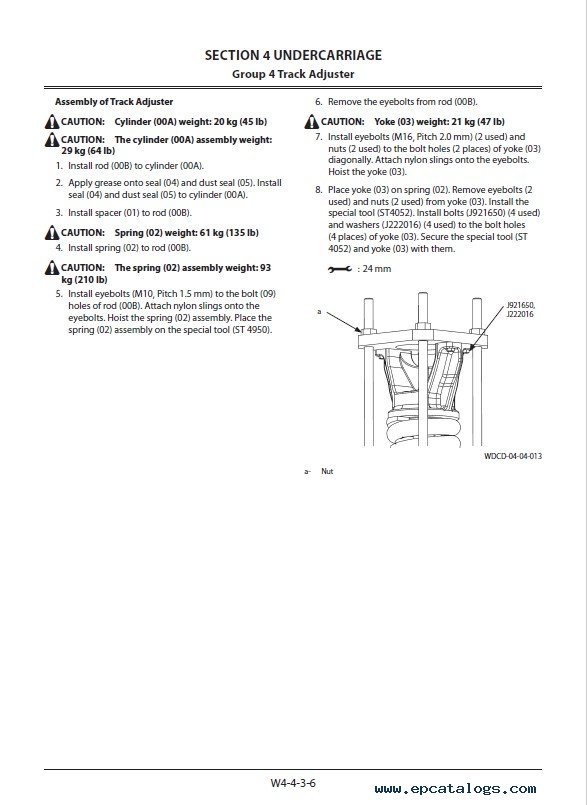

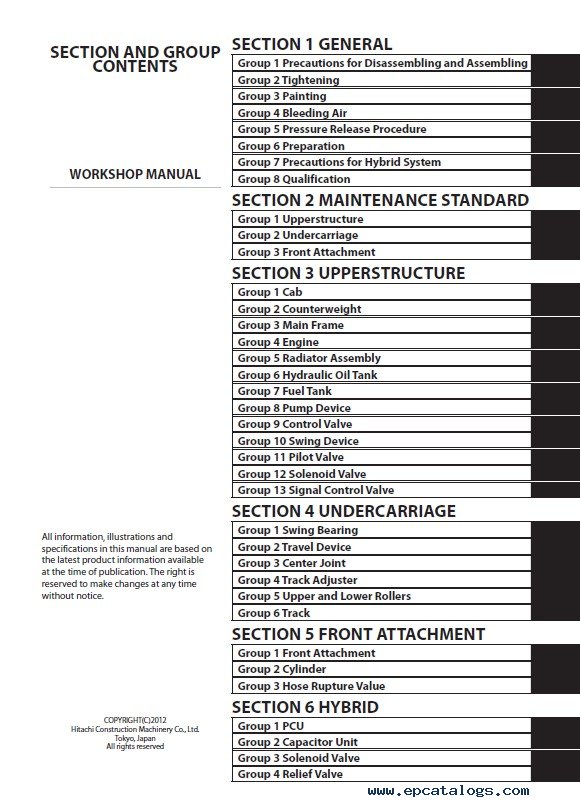

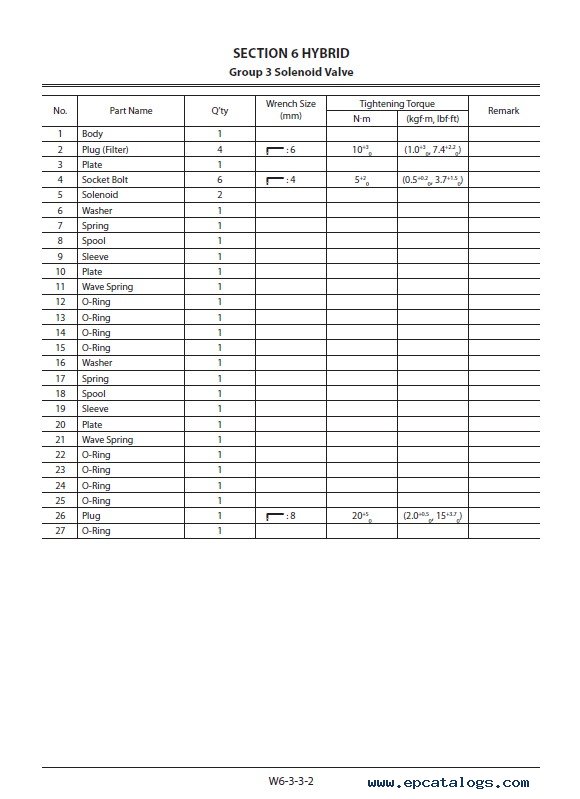

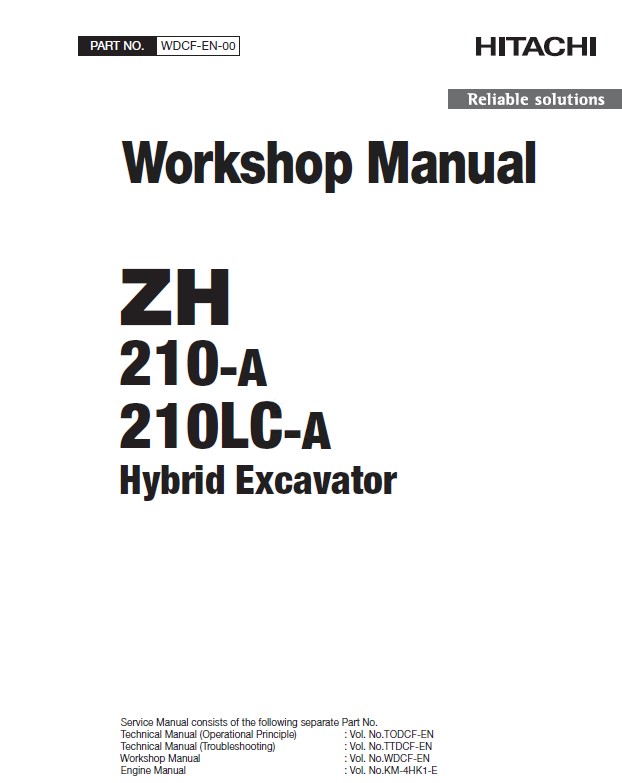

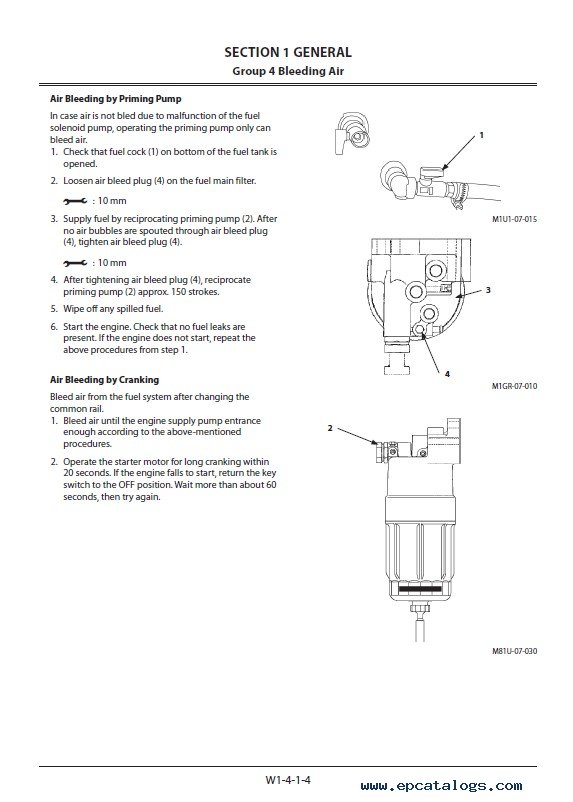

Screenshots for Hitachi Hybrid Excavator ZH 210-A, 210LC-A Workshop Manual PDF:

repair manual Hitachi Hybrid Excavator ZH 210-A, 210LC-A Workshop Manual PDF - 1
enlarge repair manual Hitachi Hybrid Excavator ZH 210-A, 210LC-A Workshop Manual PDF - 2
enlarge repair manual Hitachi Hybrid Excavator ZH 210-A, 210LC-A Workshop Manual PDF - 3
enlarge repair manual Hitachi Hybrid Excavator ZH 210-A, 210LC-A Workshop Manual PDF - 4
enlarge repair manual Hitachi Hybrid Excavator ZH 210-A, 210LC-A Workshop Manual PDF - 5
enlarge repair manual Hitachi Hybrid Excavator ZH 210-A, 210LC-A Workshop Manual PDF - 6
enlarge
