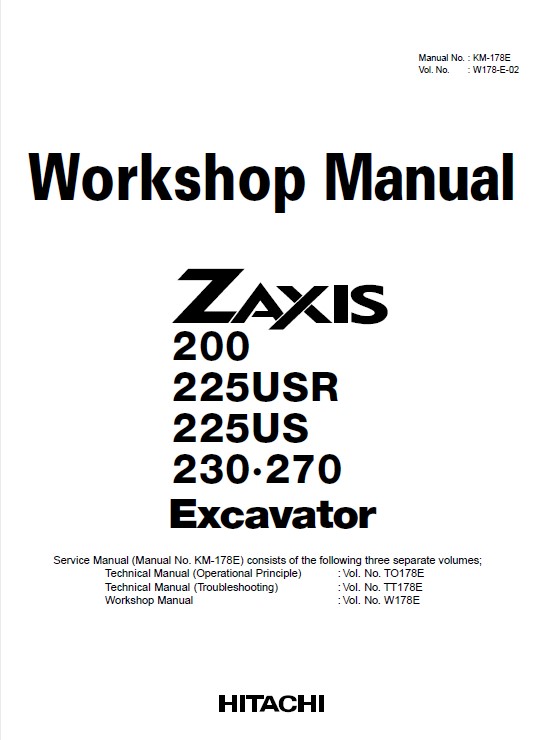

Hitachi Excavator Zaxis 200, 225USR, 225US, 230, 270 Workshop Manual PDF

This PDF Workshop Manual provides detailed service information, special instructions for repair and maintenance, service, and any additional information for Hitachi Excavators Zaxis 200, 225USR, 225US, 230, 270 Models.

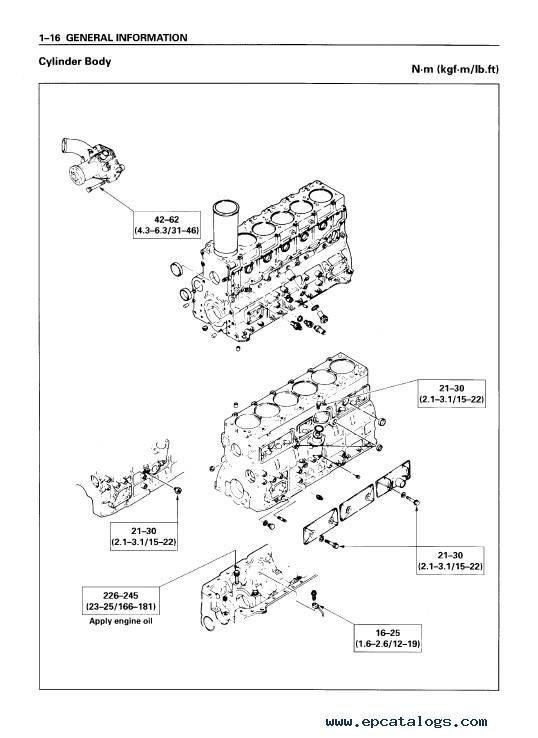

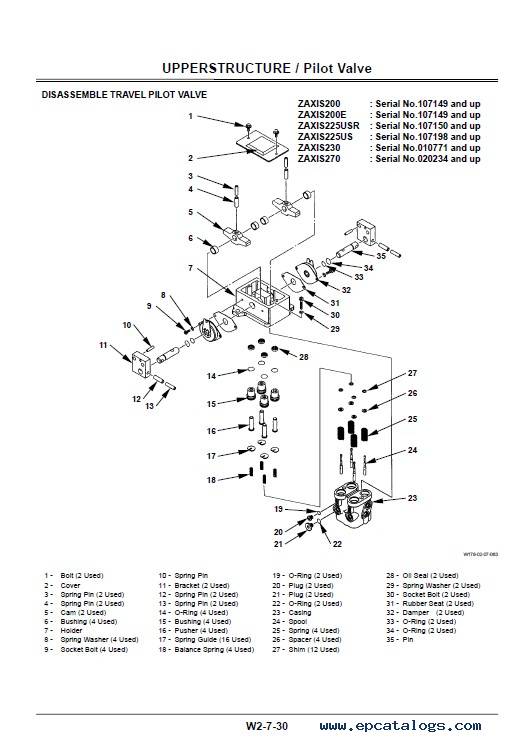

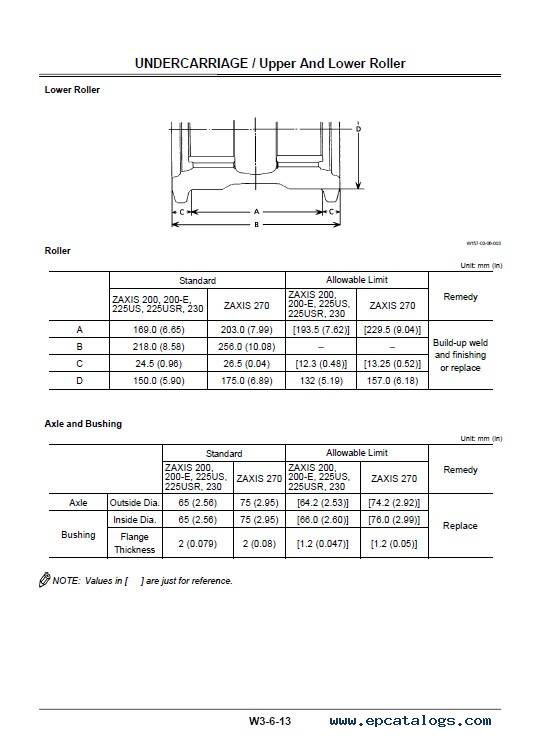

This factory guide contains technical information needed for maintenance and repair of the machine, tools, and devices needed for maintenance and repair, maintenance standards, and removal/installation and assemble/disassemble procedures. Using this workshop manual you can find a lot of illustrations and diagrams, which show the location of the necessary parts, and can be assembled or dismantled.

In order to work with this pdf instruction, we recommend you to use the application - Adobe Acrobat Reader (or other analogs). So, you don't need to spend your time installing this file (Instant Download).

It is easy to purchase this product. Just click on the 'Buy Now' button and follow the instructions. After payment, you will get the link for downloading your PDF Workshop Manual. So, after a few minutes, you will get your guide and you can start studying it.

Models covered:
Zaxis 200,
Zaxis 225USR,
Zaxis 225US,
Zaxis 230,
Zaxis 270.

Manual No. : KM-178E
Vol. No. : W178-E-02

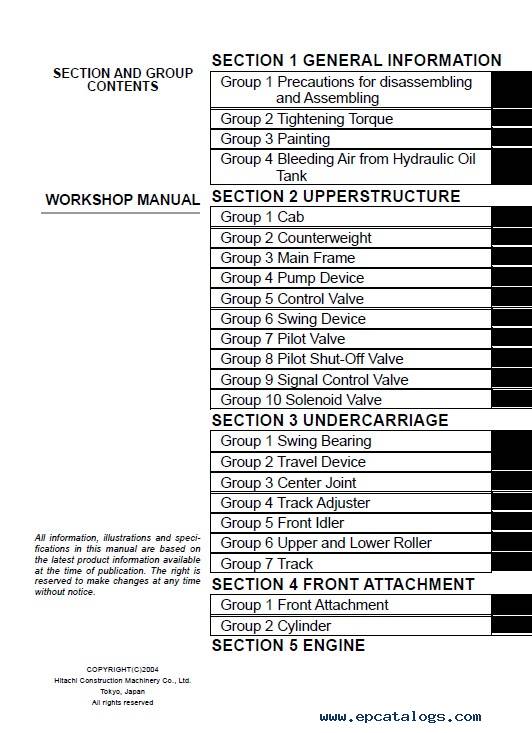

CONTENTS:
SECTION 1 GENERAL INFORMATION
Group 1 Precautions for disassembling and Assembling
Group 2 Tightening Torque
Group 3 Painting
Group 4 Bleeding Air from Hydraulic Oil Tank

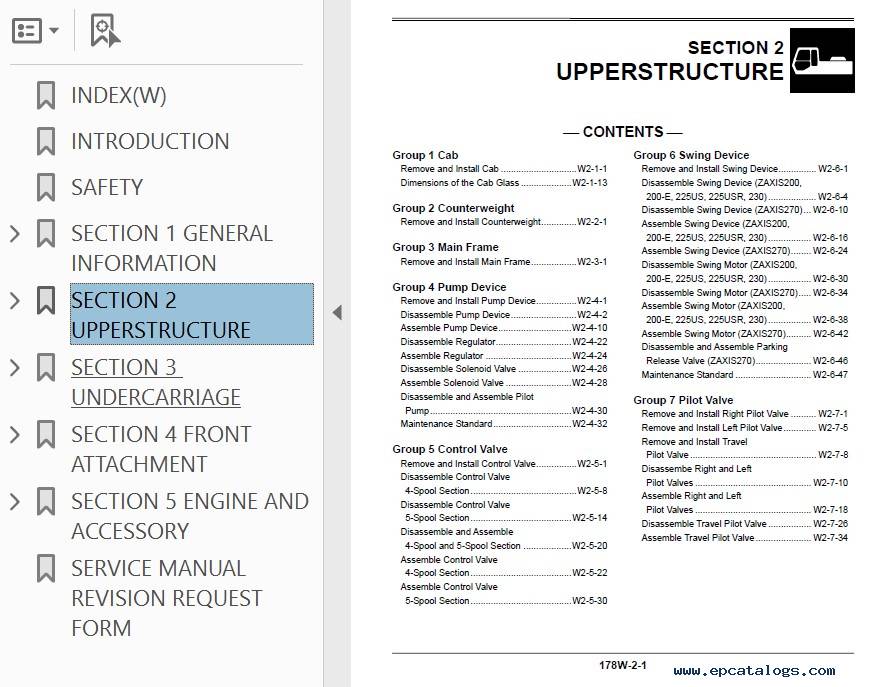

SECTION 2 UPPER STRUCTURE
Group 1 Cab
Group 2 Counterweight
Group 3 Main Frame
Group 4 Pump Device
Group 5 Control Valve
Group 6 Swing Device
Group 7 Pilot Valve
Group 8 Pilot Shut-Off Valve
Group 9 Signal Control Valve
Group 10 Solenoid Valve
SECTION 3 UNDERCARRIAGE
Group 1 Swing Bearing
Group 2 Travel Device
Group 3 Center Joint
Group 4 Track Adjuster
Group 5 Front Idler
Group 6 Upper and Lower Roller
Group 7 Track
SECTION 4 FRONT ATTACHMENT
Group 1 Front Attachment
Group 2 Cylinder
SECTION 5 ENGINE
