Hitachi Excavator EX1200-5 Assembly Procedure Manual PDF

For complete service information also see the following training tests:
Performance Check Troubleshooting
Maintenance
Operation

Assembly work is the final touch that gives the machine life. The quality of a machine's assembly affects its operative performance and the service life of the machine. Because a machine's value is determined by its assembly, those who do this work are required to have sufficient know-how about assembly.

This PDF Assembly Procedure Manual basically contains assembly know-how such as methods and useful hints for assembling the Hitachi Hydraulic Excavator EX1200-5 Model. Please read this manual carefully and try to keep it for reference before you engage in assembly or while you work.

This manual is a practical compilation of the following three viewpoints: "the improvement of work safety", "the improvement of efficiency" and "the enhancement of product quality."

This technical service manual comes in PDF format. So, it doesn't require any installation (Instant Download). We recommend you to use the application Adobe Acrobat Reader for working with PDF instructions. Also, we recommend you print this manual and use it as a handbook when it will be necessary.

For your convenience, we present you with a link 'Hitachi pdf manual instant preview' on the top of this page. This link will help you to preview this PDF manual and understand whether this manual contains needed for your service information or not.

Models covered:
EX1200-5

KO-269-00

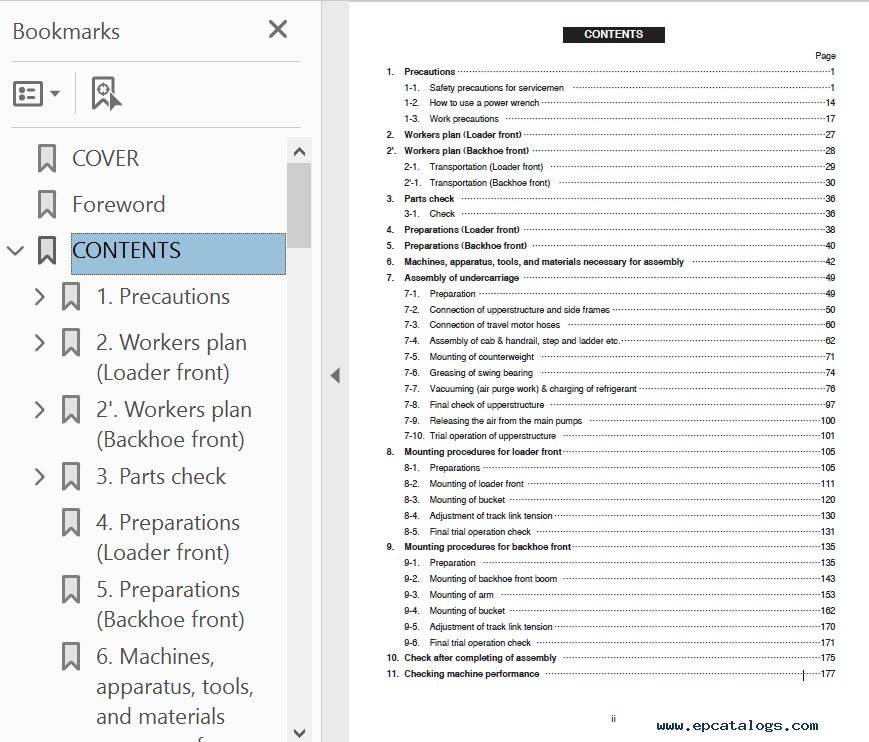

CONTENTS:
1. Precautions
2. Workers plan (Loader front)
3. Parts check
4. Preparations (Loader front)
5. Preparations (Backhoe front)
6. Machines, apparatus, tools, and materials necessary for assembly
7. Assembly of undercarriage
8. Mounting procedures for loader front
9. Mounting procedures for backhoe front
10. Check after completing of assembly
11. Checking machine performance
