Hitachi EX550-3, EX550-3C Excavators Technical Manual PDF

Technical manual includes service information, maintenance instructions, installation instructions, technical service information, fitting instructions, which will help to provide timely and quality care in the installation, dismantling, operation, calibration, repair excavators HItachi EX550-3, EX550-3C.
Technical manual allows to troubleshoot and repair excavators Hitachi.
This technical manual comes in PDF format, includes 356 pages, any one of which we can be printed easily.
We recommend to use Adobe PDF Reader, to be sure all images / graphics will display correctly.

Contents:

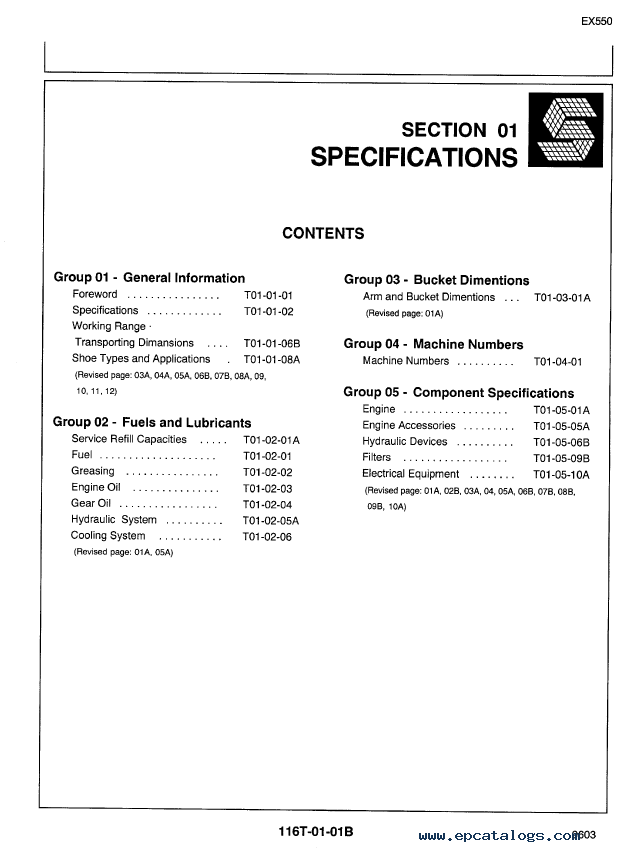

• Section 01 - Specifications
  • Group 01 - General Information
  • Group 02 - Fuels and Lubricants
  • Group 03 - Bucket Dimentions
  • Group 04 - Machine Numbers
  • Group 05 - Component Specifications
• Section 02 - Upperstructure
  • Group 01 - Outline
  • Group 02 - Tanks
  • Group 03 - Pump Device
  • Group 04 - Swing Device

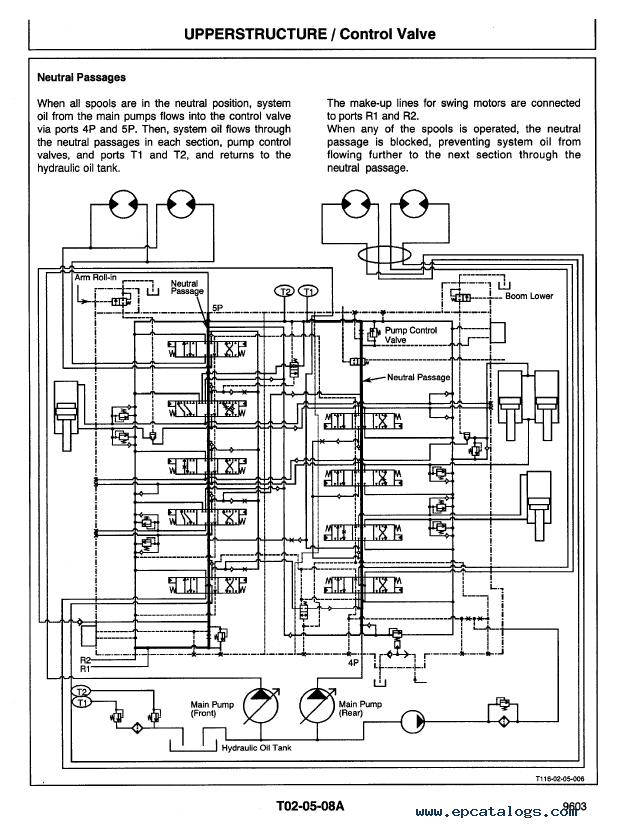

  • Group 05 - Control Valve
  • Group 06 - Pilot Valve
  • Group 07 - Others
• Section 03 - Undercarriage
  • Group 01 - Outline
  • Group 02 - Travel Device
  • Group 03 - Others
• Section 04 - Electrical System
  • Group 01 - Component Location
  • Group 02 - Main Circuit
  • Group 03 - Control System
  • Group 04 - Monitor
  • Group 05 - Inspection And Maintenance
• Section 05 - Hydraulic System

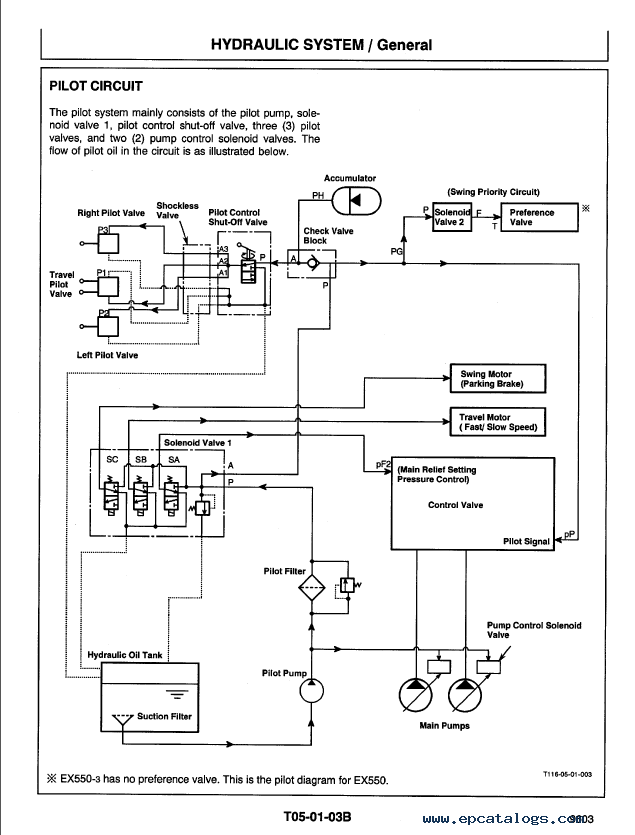

  • Group 01 - General
  • Group 02 - Control System
  • Group 03 - Circuit Operation
• Section 06 - Operational Performance Test
  • Group 01 - Introduction
  • Group 02 - Engine Test
  • Group 03 - Excavator Test
  • Group 04 - Component Test
  • Group 05 - Standard
• Section 07 - Troubleshooting
  • Group 01 - Diagnosing Procedure
  • Group 02 - Troubleshooting A
  • Group 03 - Troubleshooting B
  • Group 04 - Troubleshooting C
  • Group 05 - Harness Check
