Hitachi EX110-5, EX110M-5 Excavator Workshop Manual W154E-NA PDF

Workshop manual provides detailed service information, special instructions, troubleshoot and any additional information for Hitachi excavator EX110-5 and EX110M-5.
Workshop manual allows you to identify and resolve problems and inaccuracies.

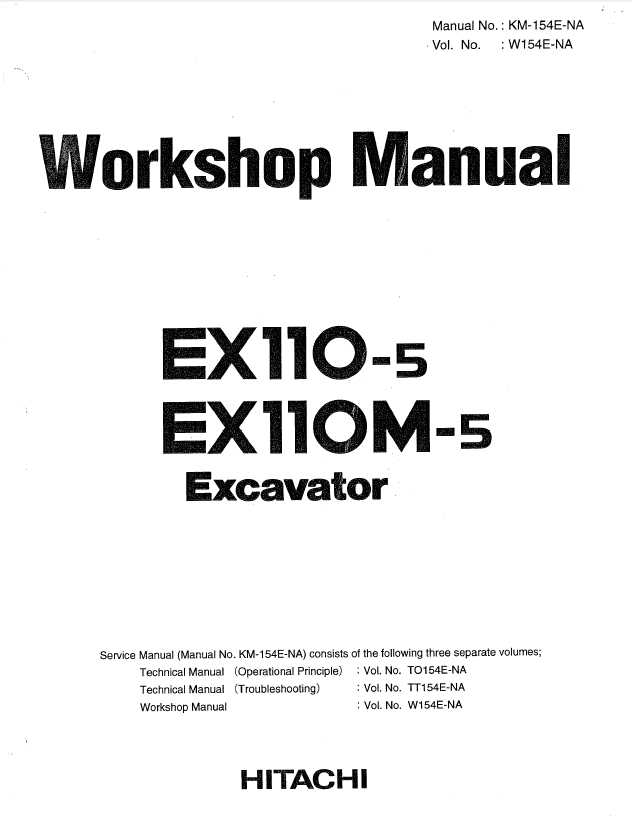

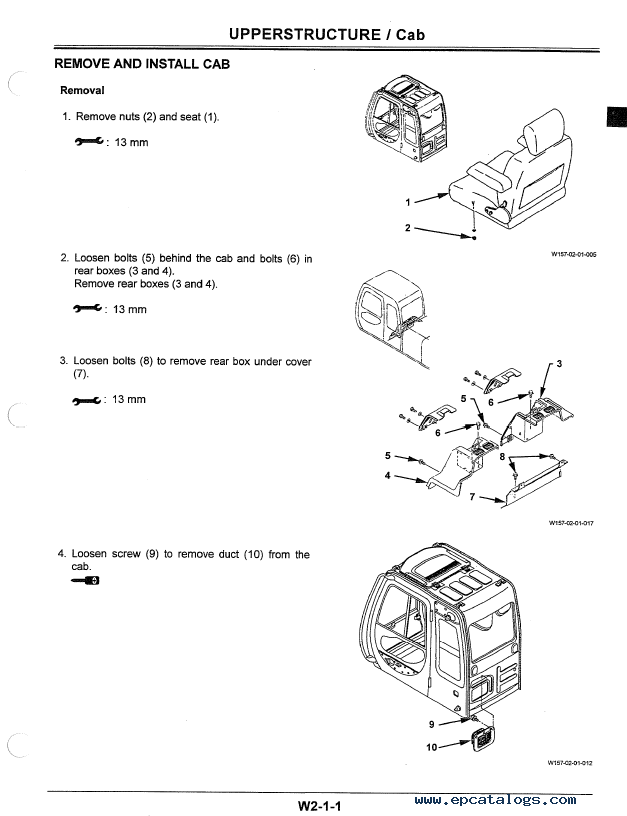

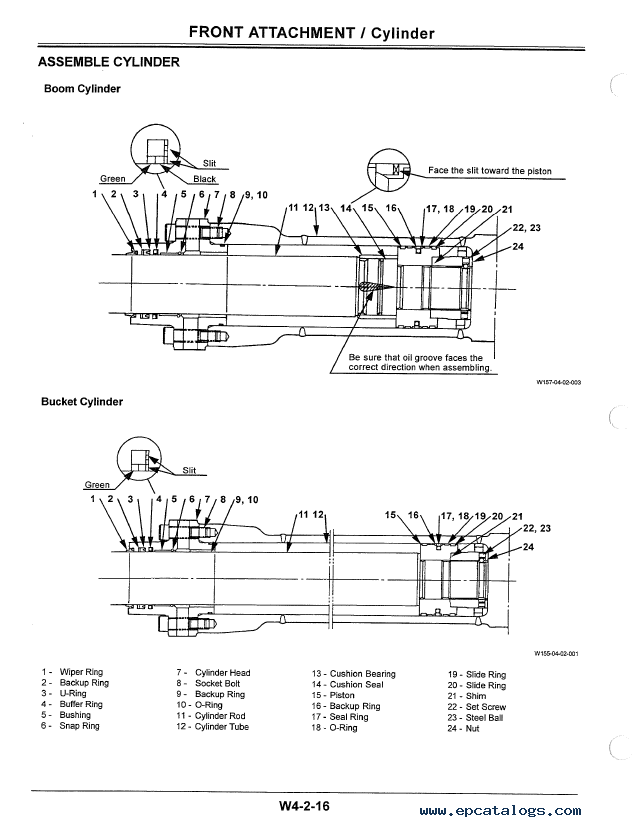

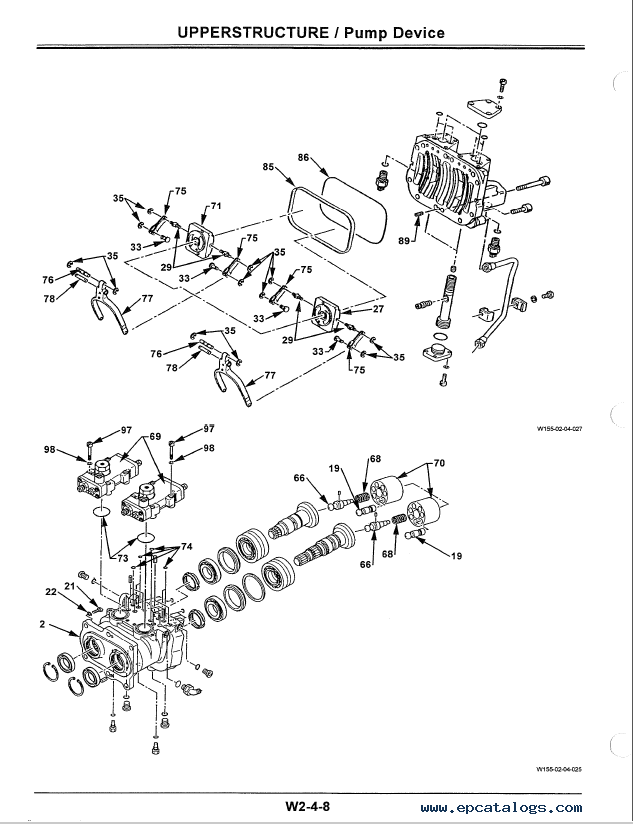

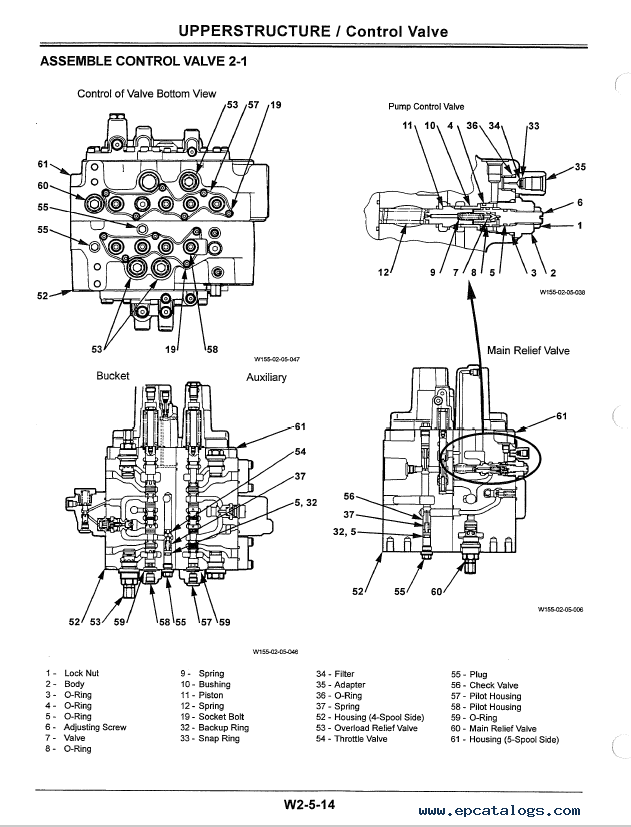

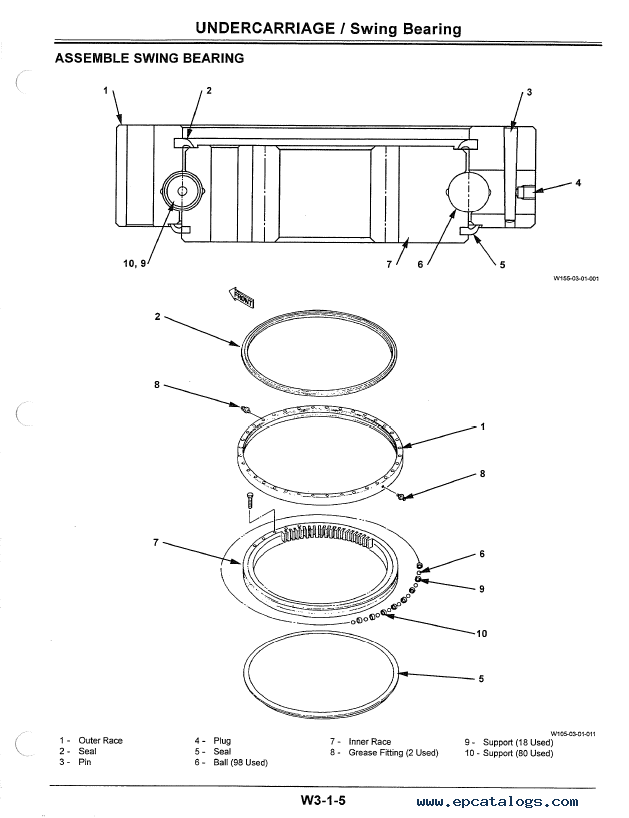

This workshop manual is a scanned PDF file, that includes 606 pages. We recommend to use Adobe PDF Reader, to be sure all images / graphics will display correctly.
Working with this manual, you can easily copy, save, and print the information you need. If necessary, you can print pages, pictures, charts, or the entire manual completely.

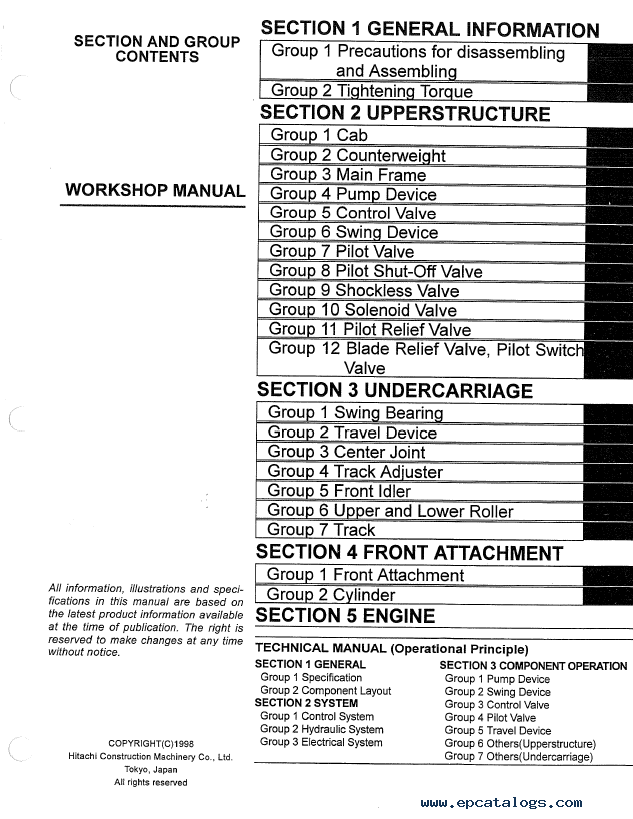

SECTION AND GROUP CONTENTS:
SECTION 1 - GENERAL INFORMATION
Group 1 - Precautions for Disassembling and Assembling
Group 2 - Tightening Torque

SECTION 2 - UPPERSTRUCTURE
Group 1 - Cab
Group 2 - Counterweight
Group 3 - Main Frame
Group 4 - Pump Device
Group 5 - Control Valve
Group 6 - Swing Device
Group 7 - Pilot Valve
Group 8 - Pilot Shut-Off Valve
Group 9 - Shockless Valve
Group 10 - Solenoid Valve
Group 11 - Pilot Relief Valve
Group 12 - Blade Relief Valve, Pilot Switch Valve

SECTION 3 - UNDERCARRIAGE
Group 1 - Swing Bearing
Group 2 - Travel Device
Group 3 - Center Joint
Group 4 - Track Adjuster
Group 5 - Front Idler
Group 6 - Upper and Lower Roller
Group 7 - Track

SECTION 4 - FRONT ATTACHMENT
Group 1 - Front Attachment
Group 2 - Cylinder

SECTION 5 - ENGINE AND ACCESSORY
General Introduction
Maintenance
Engine Assembly 1 (Disassembly)
Engine Assembly 2 (Inspection and Repair)
Engine Assembly 3 (Reassembly)
Lubricating System
Cooling System
Fuel System
Turbocharger
Air Compressor
Engine Electricals
Troubleshooting
Special Tool List
Conversion Table
