Grove Truck Crane GMK 5200 Supplement: Rigging The Outriggers PDF

For complete service information also see:
Grove Truck Crane GMK 5200 Maintenance Manual
Grove Truck Crane GMK 5200/6220/6220-L Operating Instructions Lattice Extension
Grove Truck Crane GMK 5200/6220-L Operating Instructions Lattice Extension
Grove Truck Crane GMK 5200 Operating Instructions Part 1 - Driving

This PDF supplement is only valid for Grove Truck Cranes GMK 5200 equipped with quick release fittings on the outrigger beams as additional equipment.

The operating instructions supplied describes the removal and installation of the outrigger beams when the outrigger beams are completely retracted. For GMK 5200 truck cranes, the upper boom of the outrigger beams are equipped with additional valve holes, so that removal (and installation) is possible when the outrigger beams are partially extended.
The required procedure is described in this supplement.

For your convenience, we present you with a link 'Grove pdf manual instant preview' on the top of this page. This link will help you to preview this PDF manual and understand that this manual contains needed for your service information or not.

If you have any questions or problems with downloading the file, you can write to us and we will help you.

Models covered:
GMK 5200

Vehicle Serial Numbers:
2 084 721 en

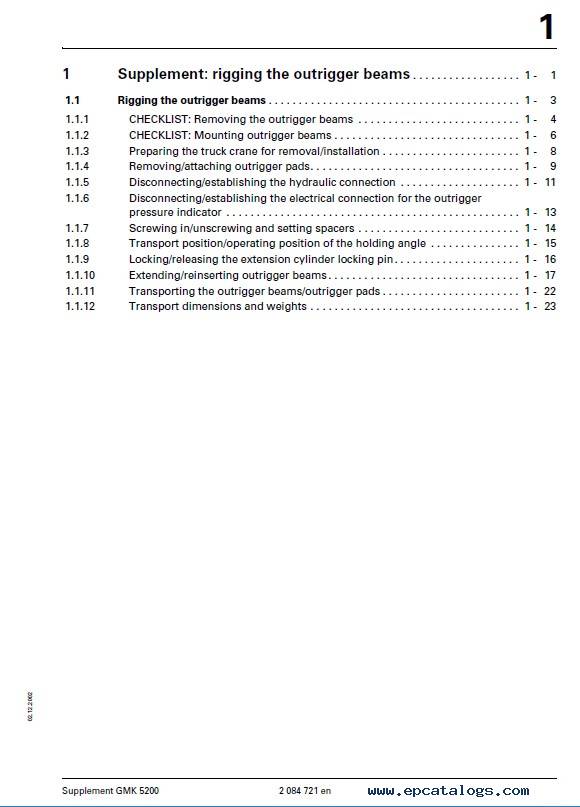

Contents of 'Rigging the outrigger beams':
1 CHECKLIST: Removing the outrigger beams
2 CHECKLIST: Mounting outrigger beams
3 Preparing the truck crane for removal/installation
4 Removing/attaching outrigger pads
5 Disconnecting/establishing the hydraulic connection
6 Disconnecting/establishing the electrical connection for the outrigger pressure indicator
7 Screwing in/unscrewing and setting spacers
8 Transport position/operating position of the holding angle
9 Locking/releasing the extension cylinder locking pin
10 Extending/reinserting outrigger beams
11 Transporting the outrigger beams/outrigger pads
12 Transport dimensions and weights
