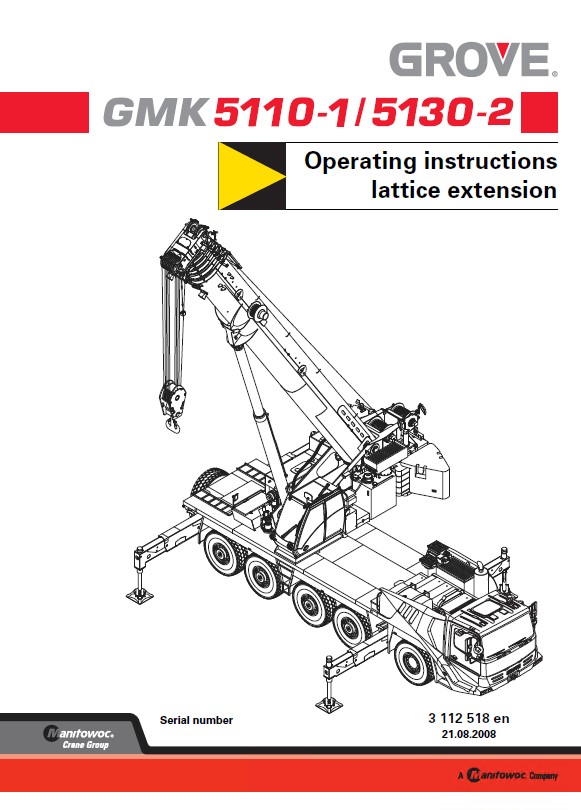

Grove Truck Crane GMK 5110-1/5130-2 Operating Instructions Lattice Extension PDF

For complete service information also see:
Grove Truck Crane GMK 5110-1 Maintenance Manual
Grove Truck Crane GMK 5110-1 List of Spare Parts - Part 1
Grove Truck Crane GMK 5110-1 Operating Instructions

These Operating Instructions describe the most important aspects of operation and maintenance of the Grove Truck Crane GMK 5110-1/5130-2 Models. Compliance with these instructions is essential to ensure reliability and to keep your crane operational at all times.

This lattice extension operating manual is applicable for GMK 5130-2 and GMK 5110-1. The crane types are different from each other because GMK 5130-2 has one telescopic section more than GMK 5110-1.

This product contains an overview of the lattice extensions, information about the safety requirements, specifications, information on turning loads over, using lattice extensions.

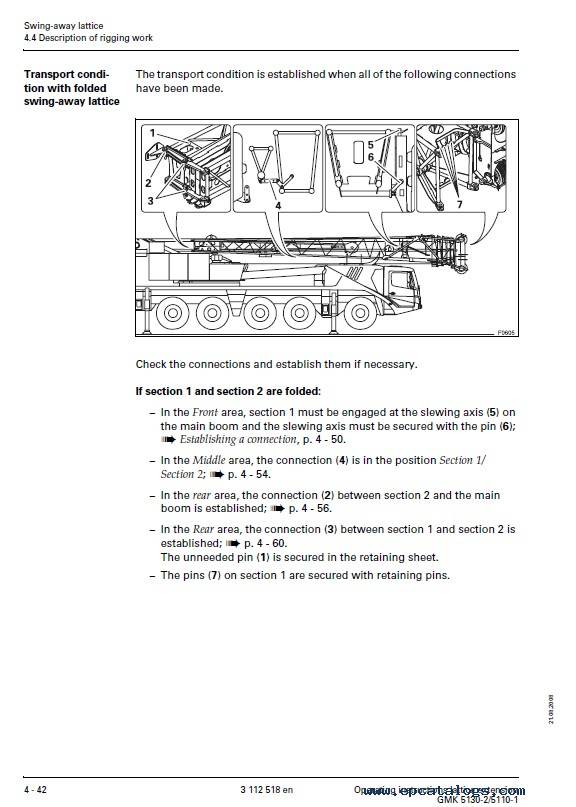

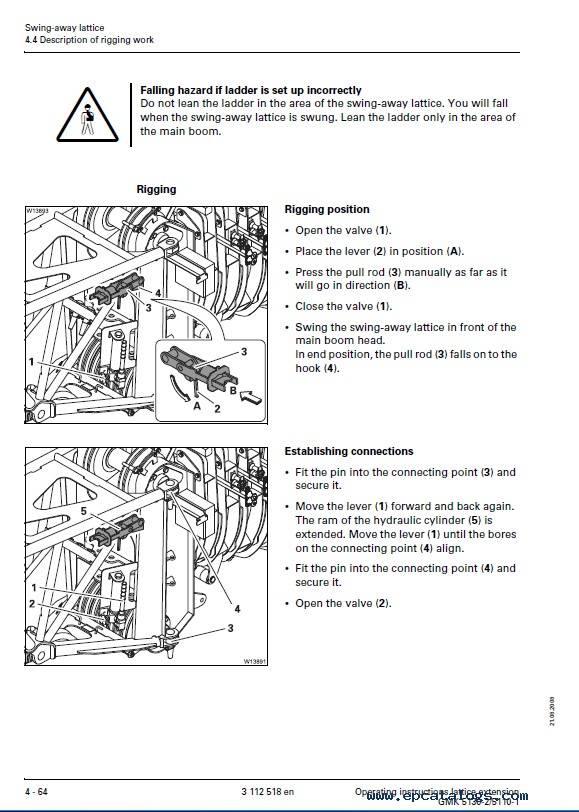

You can study this pdf manual using screenshots and a list of content, which is presented in the manual description. You can also follow the link 'Grove pdf manual instant preview', and preview the pages of this manual.

Models covered:
GMK 5110-1/5130-2

Vehicle Serial Numbers:
3 112 518 en

These operating instructions contain the following chapters:
1 Overview
2 Basic safety instructions
3 For operations planning
4 Swing-away lattice
5 Boom extension
6 Auxiliary single-sheave boom top
7 Turning loads
8 Driving with a rigged crane
9 Maintenance
10 Index
