FiatAllis Crawler Loader FL5, FL5B, FD5 Service Manual PDF

This PDF Service Manual is a very reliable source of technical service information that will make you know more and more about your FiatAllis Crawler Loader FL5, FL5B, FD5 models for proper use, maintenance, and how to prevent future problems from happening.

This pdf file includes many sections that complete each other such information as to care and safety rules, technical instruction, operation section, maintenance, and the step by step repair, technical data, electrical and hydraulic systems, information about FiatAllis Crawler Loader FL5, FL5B, FD5 Models.

Also, in this FiatAllis tutorial, you can find many illustrations, different diagrams, schemes, and tables that will help you to get a detailed description of FiatAllis Crawler Loaders and how they work. We advise you to read the operating and safety instructions. Strictly follow all safety instructions in order to avoid any technical breakdowns or serious injuries.

Our site gives you the opportunity to review and purchase the workshop manuals for FiatAllis Crawler Loader FL5, FL5B, FD5 Models. If you decide to purchase this guide on our website, then within 5-7 minutes you will receive an email with a link to download and further recommendations. If you have questions - write to us and we will answer them.

Models covered:
FL5,
FL5B,
FD5.

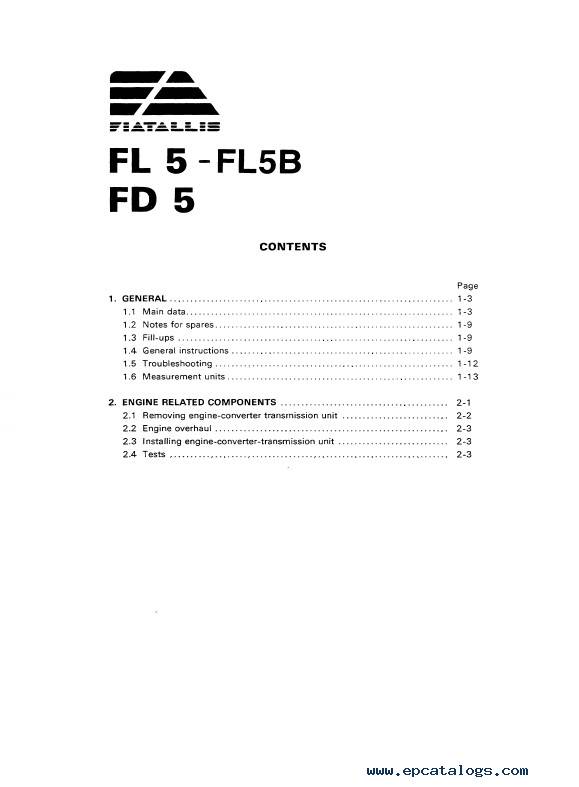

CONTENTS:

• 1. GENERAL
  • 1.1 Main data
  • 1.2 Notes for spares
  • 1.3 Fill-ups
  • 1.4 General inspections
  • 1.5 Troubleshooting
  • 1.6 Measurement units
• 2. ENGINE RELATED COMPONENTS
  • 2.1 Removing engine-converter transmission unit
  • 2.2 Engine overhaul
  • 2.3 Installing engine-converter-transmission unit
  • 2.4 Tests
• 3. TRANSMISSION
  • 3.1 Removal and installation
  • 3.2 Torque converter

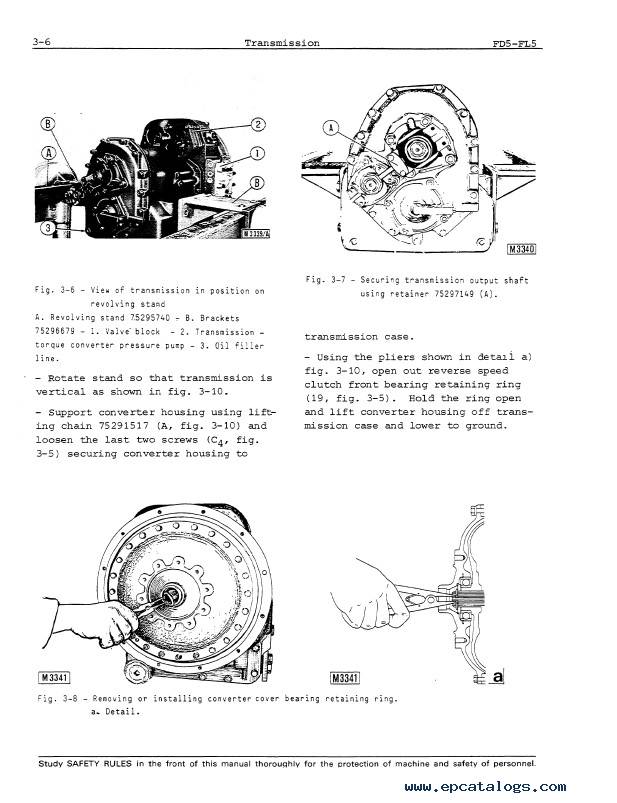

  • 3.3 Transmission
  • 3.4 Driveshaft
  • 3.5 Power take-off
  • 3.6 Specification and data
  • 3.7 Torque specification
  • 3.8 Service tools
• 4. TRANSMISSION HYDRAULIC SYSTEM
  • 4.1 Operation
  • 4.2 Transmission - torque converter pressure pump
  • 4.3 Oil cooler
  • 4.4 Control valve block
  • 4.5 Inspection and troubleshooting
  • 4.6 Operating data
  • 4.7 Torque specification
• 5. BEVEL GEAR
  • 5.1 Disassembly
  • 5.2 Assembly
  • 5.3 Adjustment
  • 5.4 Specification and Data
  • 5.5 Torque Data
  • 5.6 Service Tools
• 6. STEERING CLUTCHES
  • 6.1 Removal
  • 6.2 Disassembly

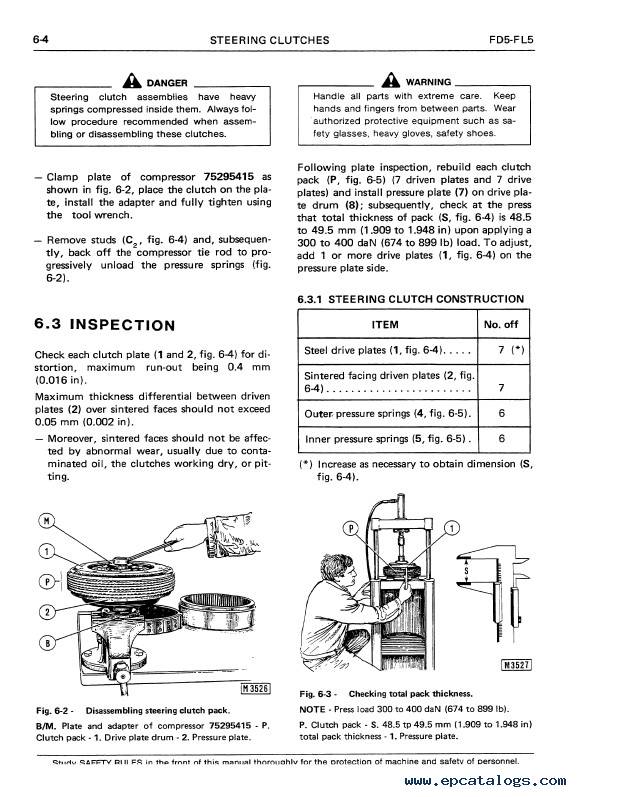

  • 6.3 Inspection
  • 6.4 Assembly
  • 6.5 Installation
  • 6.6 Adjustments
  • 6.7 Specification and Data
  • 6.8 Torque Data
  • 6.9 Service Tools
• 7. BRAKES
  • 7.1 Removal
  • 7.2 Inspection
  • 7.3 Assembly
  • 7.4 Adjustments
  • 7.5 Specification and Data
  • 7.6 Torque Data
  • 7.7 Service Tools
• 8. STEERING CLUTCH HYDRAULICS
  • 8.1 Operation
  • 8.2 Hydraulic pump
  • 8.3 Oil filter
  • 8.4 Control valve
  • 8.5 Troubleshooting
  • 8.6 Specification and data
  • 8.7 Torque data
• 9. FINAL DRIVES AND SPROCKETS
  • 9.1 Removal
  • 9.2 Disassembly
  • 9.3 Sprocket inspection
  • 9.4 Assembly
  • 9.5 Installation
  • 9.6 Specification and data
  • 9.7 Tightening torques
  • 9.8 Service tools
• 10. UNDERCARRIAGE
  • 10.1 Track chains
  • 10.2 Track release mechanism
  • 10.3 Track idlers
  • 10.4 Track rollers
  • 10.5 Carrier rollers
  • 10.6 Lubrication
  • 10.7 Track frame
  • 10.8 Specification and data
  • 10.9 Tightening torques
  • 10.10 Service tools
• 11. EQUIPMENT HYDRAULICS
  • 11.1 Description and operation
  • 11.2 Hydraulic oil tank and oil filters
  • 11.3 Hydraulic pump
  • 11.4 Control valve
  • 11.5 Hydraulic boom lift kick-out
  • 11.6 Hydraulic bucket positioner
  • 11.7 Bucket boom linkage

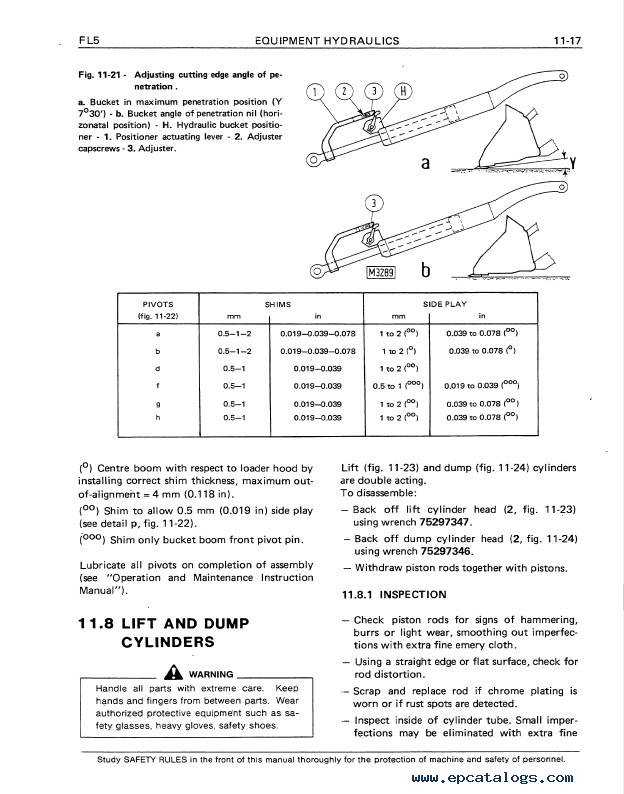

  • 11.8 Lift and dump cylinders
  • 11.9 Backhoe
  • 11.10 Ripper
  • 11.11 Troubleshooting
  • 11.12 Specifications and data
  • 11.13 Torque specification
  • 11.14 Service tools
