Fiat Kobelco E265, E305 Evolution Crawler Excavator Workshop Manual PDF

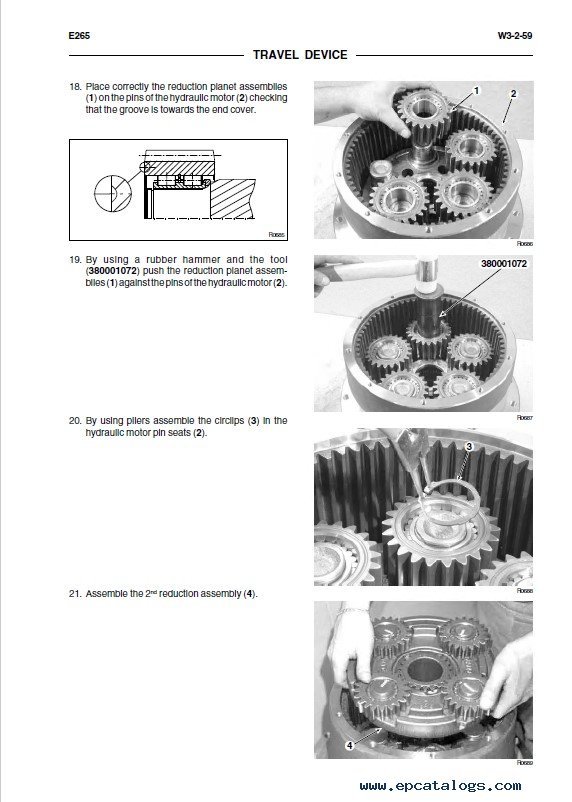

This workshop manual contains service information, descriptions of repair and troubleshoot procedures, installation instructions, specifications for Fiat Kobelco Crawler Excavators E265, E305 Evolution.

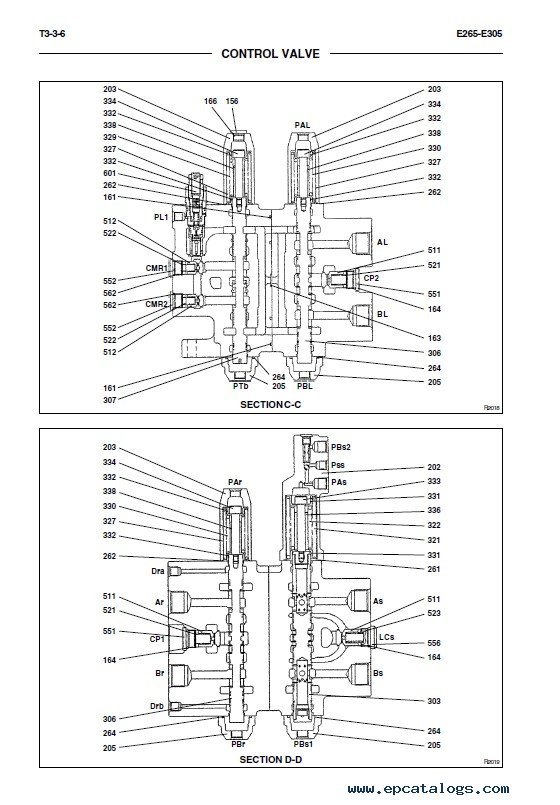

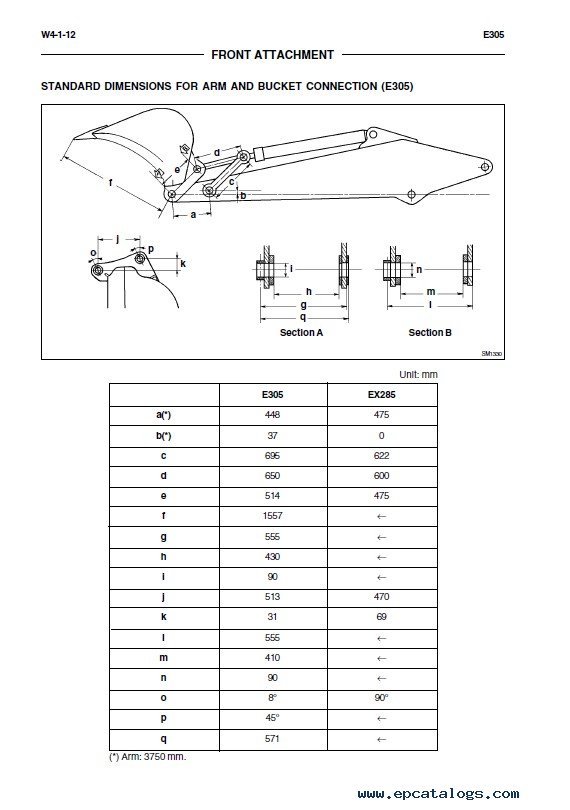

Workshop manual contains lots of diagrams and drawings that help you to get a detailed description of Fiat Kobelco Crawler Excavators, using which you can determine where to install spare parts, etc.
This workshop manual helps to quickly and easily troubleshoot and fix hardware problems that arise.

Models covered:
E265 Evolution,
E305 Evolution.

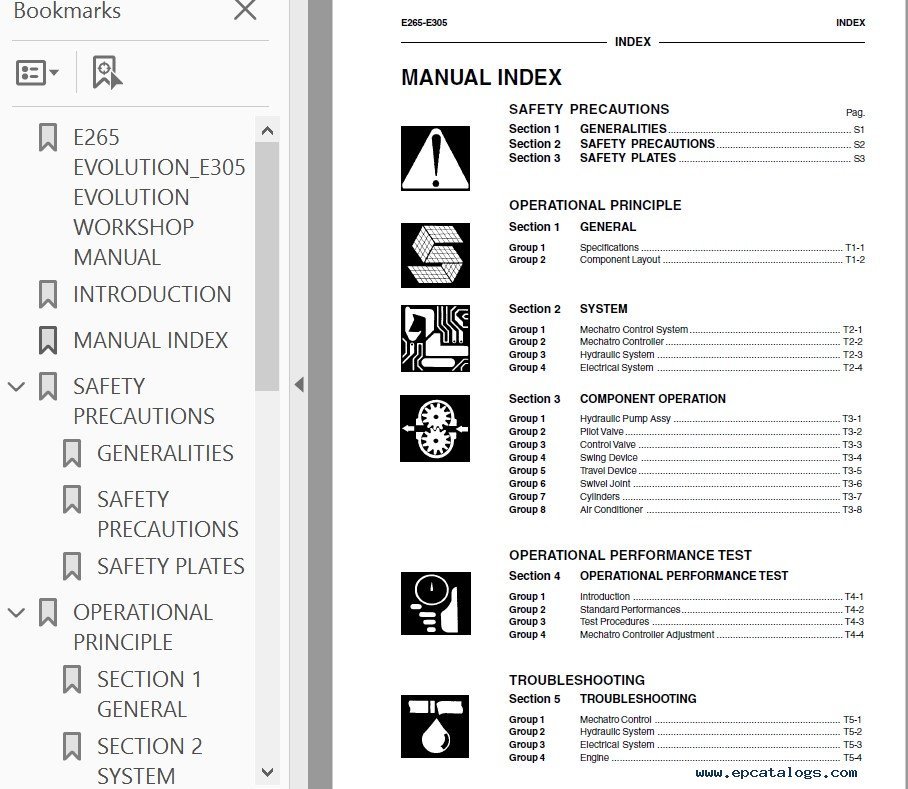

INDEX:

• SAFETY PRECAUTIONS
  • Section 1 GENERALITIES
  • Section 2 SAFETY PRECAUTIONS
  • Section 3 SAFETY PLATES
• OPERATIONAL PRINCIPLE
  • Section 1 GENERAL
  • Group 1 Specifications
  • Group 2 Component Layout
  • Section 2 SYSTEM
  •     Group 1 Mechatro Control System
  •     Group 2 Mechatro Controller
  •     Group 3 Hydraulic System
  •     Group 4 Electrical System
  • Section 3 COMPONENT OPERATION
  •     Group 1 Hydraulic Pump Assy
  •     Group 2 Pilot Valve
  •     Group 3 Control Valve
  •     Group 4 Swing Device
  •     Group 5 Travel Device
  •     Group 6 Swivel Joint
  •     Group 7 Cylinders
  •     Group 8 Air Conditioner
• OPERATIONAL PERFORMANCE TEST
  • Section 4 OPERATIONAL PERFORMANCE TEST
  •     Group 1 Introduction
  •     Group 2 Standard Performances
  •     Group 3 Test Procedures
  •     Group 4 Mechatro Controller Adjustment
• TROUBLESHOOTING
  • Section 5 TROUBLESHOOTING
  •     Group 1 Mechatro Control
  •     Group 2 Hydraulic System
  •     Group 3 Electrical System
  •     Group 4 Engine

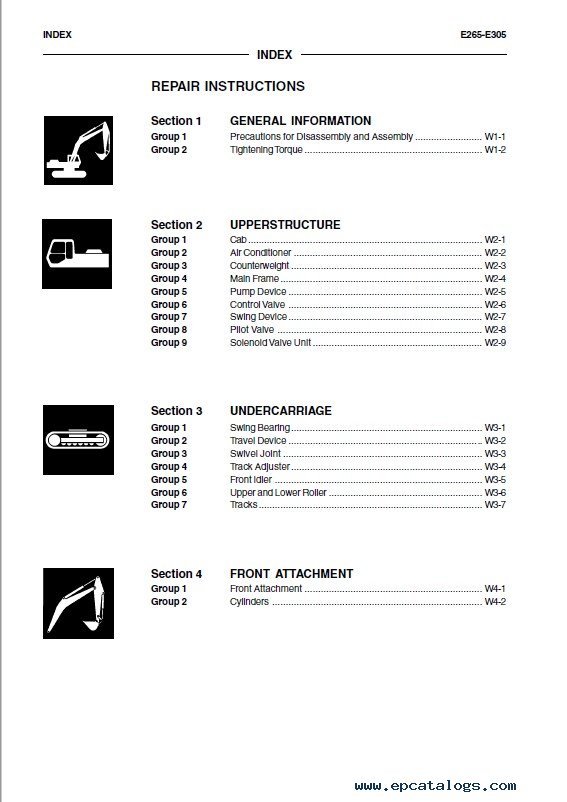

• REPAIR INSTRUCTIONS
  • Section 1 GENERAL INFORMATION
  •     Group 1 Precautions for Disassembly and Assembly
  •     Group 2 Tightening Torque
  • Section 2 UPPERSTRUCTURE
  •     Group 1 Cab
  •     Group 2 Air Conditioner
  •     Group 3 Counterweight
  •     Group 4 Main Frame
  •     Group 5 Pump Device
  •     Group 6 Control Valve
  •     Group 7 Swing Device
  •     Group 8 Pilot Valve
  •     Group 9 Solenoid Valve Unit
  • Section 3 UNDERCARRIAGE
  •     Group 1 Swing Bearing
  •     Group 2 Travel Device
  •     Group 3 Swivel Joint
  •     Group 4 Track Adjuster
  •     Group 5 Front Idler
  •     Group 6 Upper and Lower Roller
  •     Group 7 Tracks
  • Section 4 FRONT ATTACHMENT
  •     Group 1 Front Attachment
  •     Group 2 Cylinders
