Fiat Kobelco E20.2SR, E22.2SR, E27.2SR Hydraulic Excavators Workshop Manual PDF

This manual has been written for a skilled technician, to give him the information necessary to repair Fiat Kobelco Hydraulic Excavators E20.2SR, E22.2SR, and E27.2SR.

This workshop manual contains the technical information necessary for machine service and repair, the service equipment, the information on maintenance standards, the removal and installation procedures, and the disassembly and assembly procedures.

This workshop book is a PDF document, that contains 764 pages, any one of which we can be printed easily. We recommend using Adobe PDF Reader, to be sure all images/graphics will display correctly.

Models covered:
E20.2SR
E22.2SR
E27.2SR

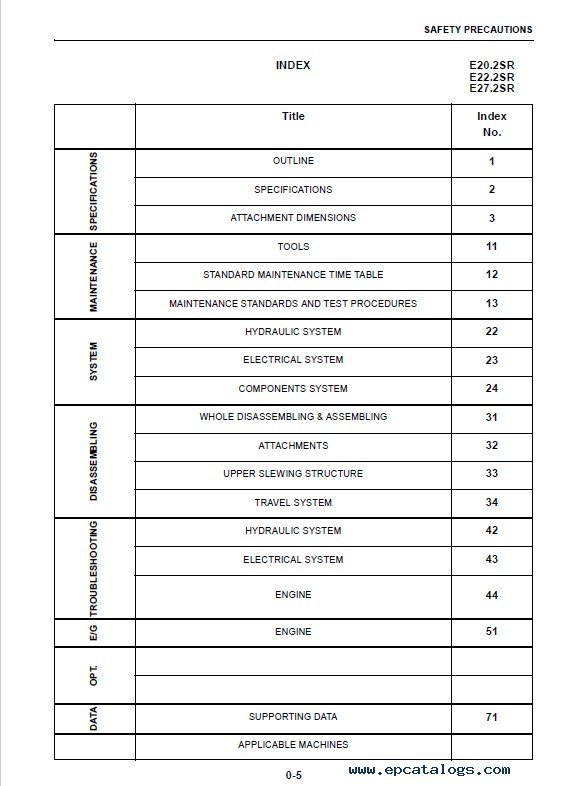

INDEX:

• SPECIFICATIONS
  • Outline
  • Specifications
  • Attachment Dimensions
• MAINTENANCE
  • Tools
  • Standard Maintenance Time Table
  • Maintenance Standards and Test Procedures
• SYSTEM
  • Hydraulic System
  • Electrical System

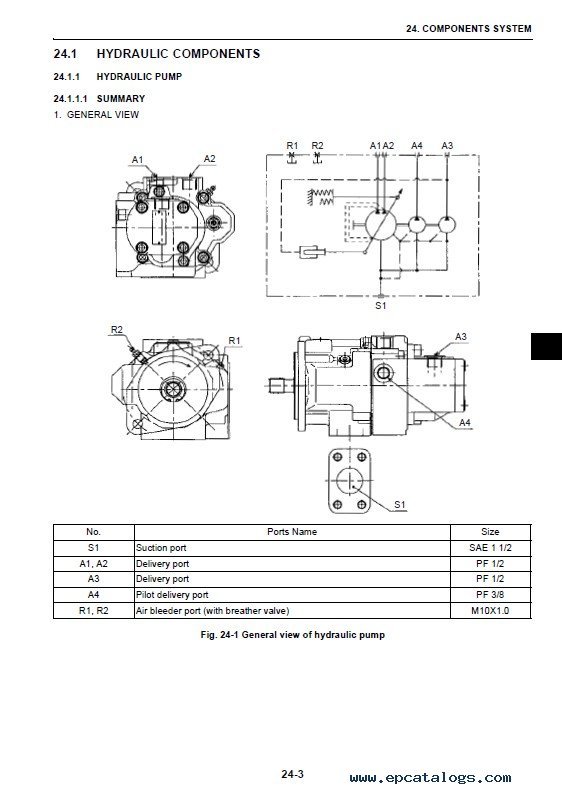

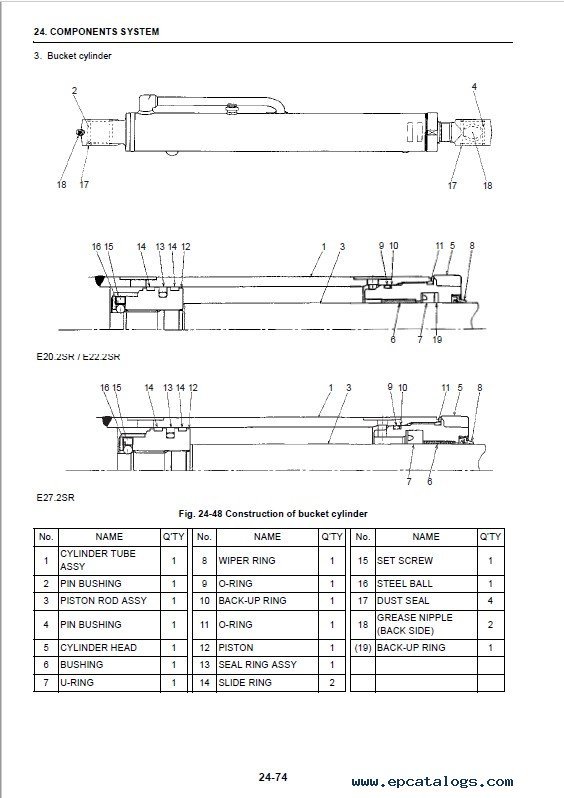

  • Components System
• DISASSEMBLING
  • Whole Disassembling & Assembling
  • Attachments
  • Upper Slewing Structure
  • Travel System
• TROUBLESHOOTING
  • Hydraulic System
  • Electrical System
  • Engine
• E/G
  • Engine
• OPT.
• DATA
  • Supporting Data
• APPLICABLE MACHINES
