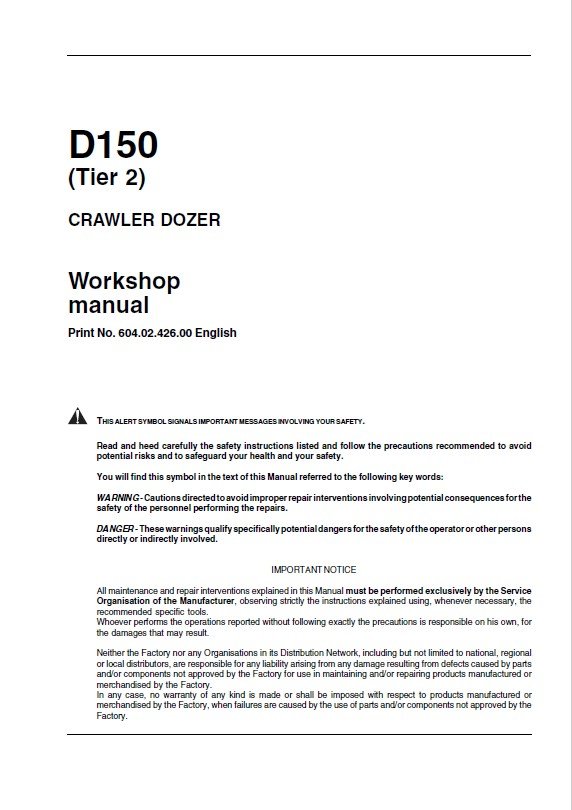

Fiat Kobelco D150 Tier2 Crawler Dozer Workshop Manual PDF

Workshop manual contains repair and technical service information, special repair instructions, diagrams, technical information for Fiat Kobelco Crawler Dozer D150 Tier2.
This workshop manual is a system of workshop information that helps to troubleshoot and solve any problems that arise.
This guide comes in PDF format. For work with the manual, you need to install the application Adobe PDF Reader. If necessary, you can print the entire document or selected partitions.

SECTIONS:

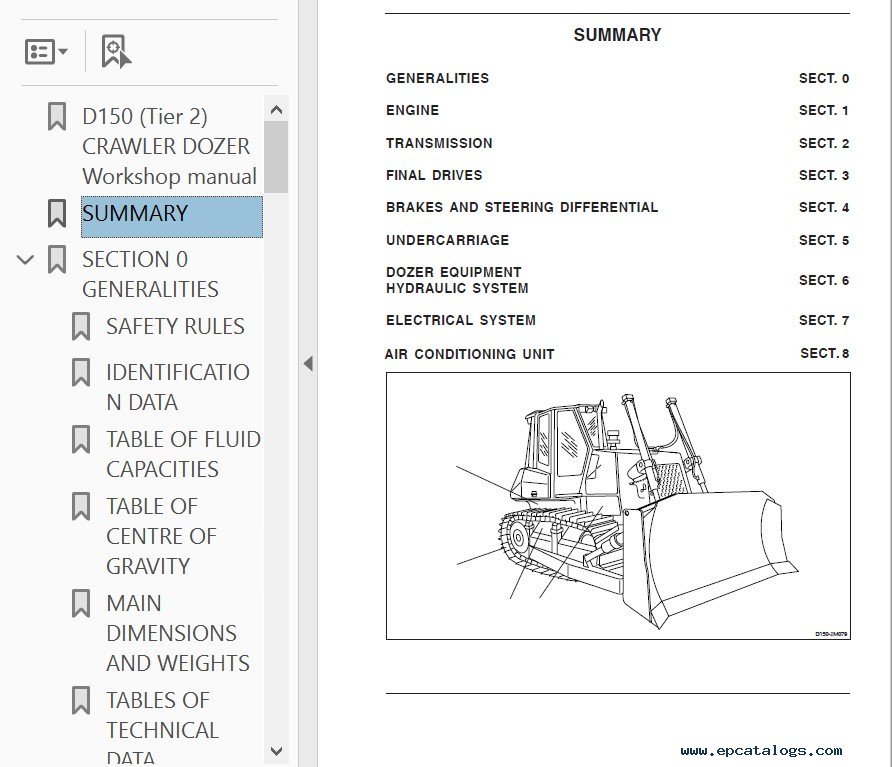

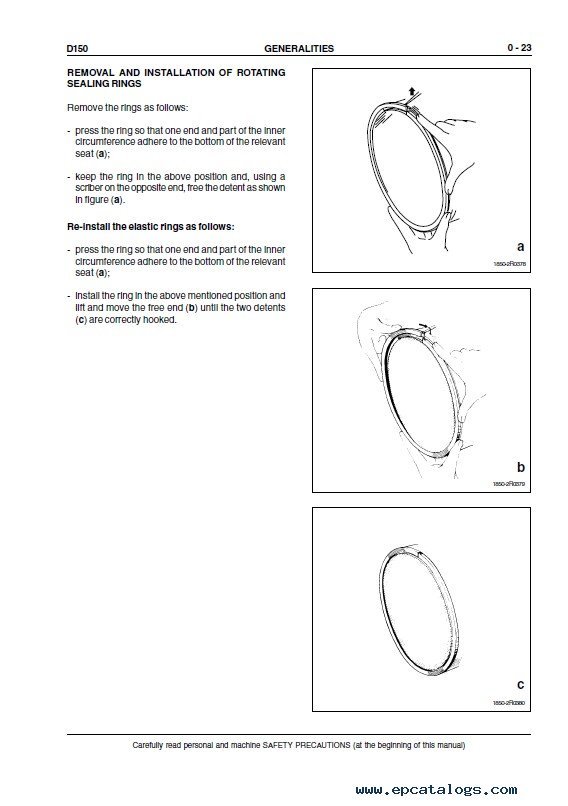

• SECTION 0 - GENERALITIES
  • SAFETY RULES
  • IDENTIFICATION DATA
  • TABLE OF FLUID CAPACITIES
  • TABLE OF CENTRE OF GRAVITY
  • MAIN DIMENSIONS AND WEIGHTS
  • TABLES OF TECHNICAL DATA
  • CHECK DATA ON THE MACHINE
  • EQUIPMENT MANOEUVRE TIMES
  • LEAKAGES
  • GENERAL INSTRUCTIONS
  • DIAGNOSTIC CHECKS
  • UNITS OF MEASURE
  • TABLE OF TIGHTENING TORQUES
• SECTION 1 - ENGINE
  • GENERAL SPECIFICATIONS OF SERIES B ENGINE
  • DESIGN FEATURES
  • SERVICEABILITY
  • SECURING THE ENGINE TO THE FRAME

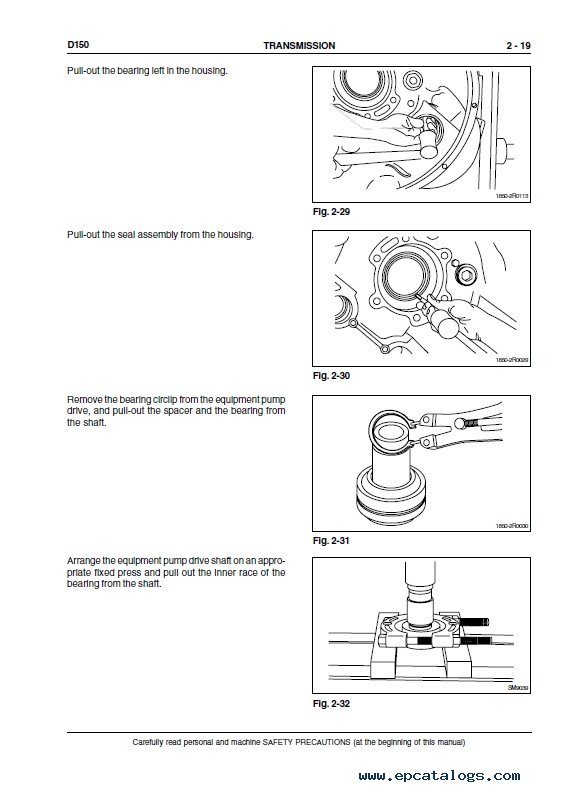

• SECTION 2 - TRANSMISSION
  • GENERAL DESCRIPTION
  • TROUBLESHOOTING
  • TESTS
  • PROCEDURES FOR THE REPAIR OF THE TORQUE CONVERTER
  • PROCEDURES FOR THE REPAIR OF THE TRANSMISSION
  • SPECIFICATIONS AND DATA
  • LIST OF OVERHAUL SPECIAL TOOLS
• SECTION 3 - FINAL DRIVES
  • GENERAL DESCRIPTION
  • REPAIR PROCEDURES
  • SPECIFICATIONS AND DATA
  • LIST OF OVERHAUL SPECIAL TOOLS

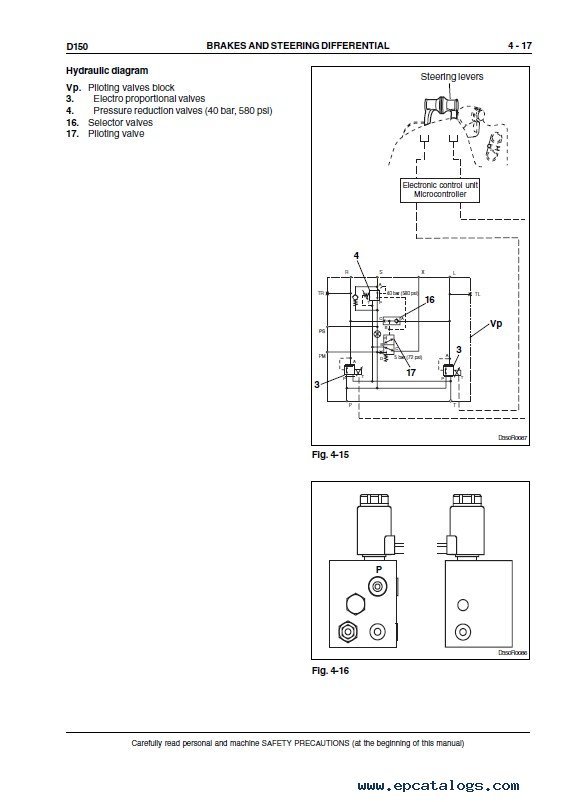

• SECTION 4 - BRAKES AND STEERING DIFFERENTIAL
  • GENERAL DESCRIPTION
  • TROUBLESHOOTING
  • TESTS
  • REPAIR PROCEDURES
  • SPECIFICATIONS AND DATA
  • LIST OF OVERHAUL SPECIAL TOOLS
• SECTION 5 - UNDERCARRIAGE
  • GENERAL DESCRIPTION
  • TROUBLESHOOTING
  • INSPECTIONS
  • REPAIR PROCEDURES
  • SPECIFICATIONS AND DATA
  • LIST OF OVERHAUL SPECIAL TOOLS

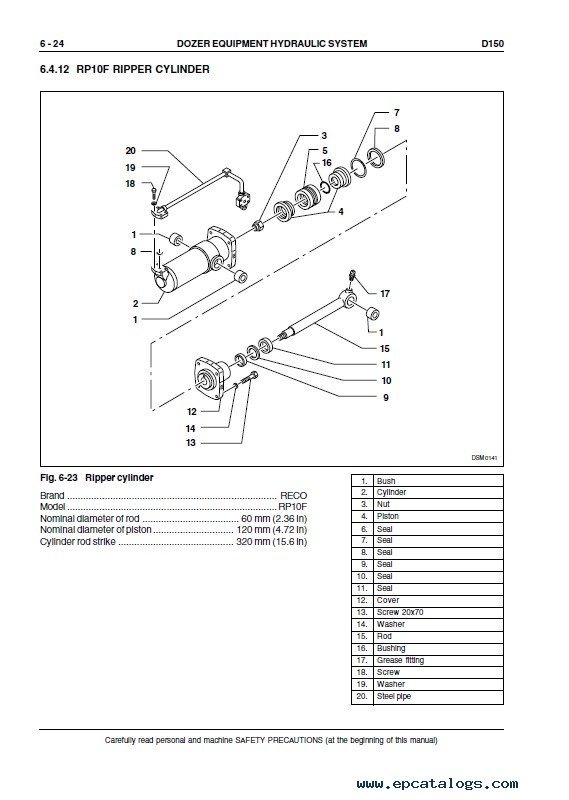

• SECTION 6 - DOZER EQUIPMENT HYDRAULIC SYSTEM
  • GENERAL DESCRIPTION
  • TESTS
  • REPAIR PROCEDURES
  • SPECIFICATIONS AND DATA
• SECTION 7 - ELECTRICAL SYSTEM
  • SAFETY RULES
  • PROTECTION TREE ELECTRIC DIAGRAM
  • ANGLE CONTROL
  • INSTRUMENT PANEL/MONITOR
  • MONITOR SENDERS
  • DISPLAY
  • BUZZER
  • RELAY GROUP - DIODE BOXES - DIVERTER BOX
  • 19 - 21 - 23 WAYS CONNECTORS
