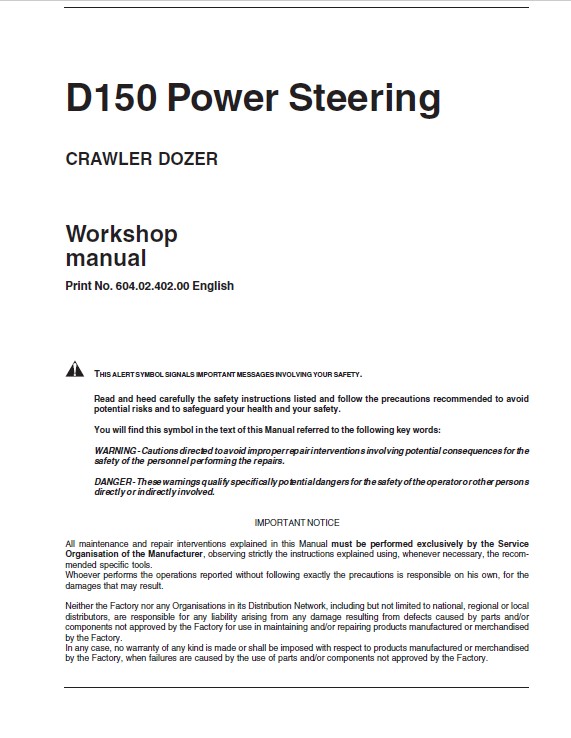

Fiat Kobelco D150 Power Steering Crawler Dozer Workshop Manual PDF

Workshop manual contains repair and maintenance information, special repair instructions, illustrations, and schematics, troubleshoot information for Fiat Kobelco Crawler Dozer D150 Power Steering.
This workshop instruction helps to serve and troubleshoot Fiat Kobelco Crawler Dozer, to resolve any problems that arise.
This workshop manual is a file PDF, which contains 320 pages, any one of which we can be printed easily. We recommend using Adobe PDF Reader, to be sure all images/graphics will display correctly.

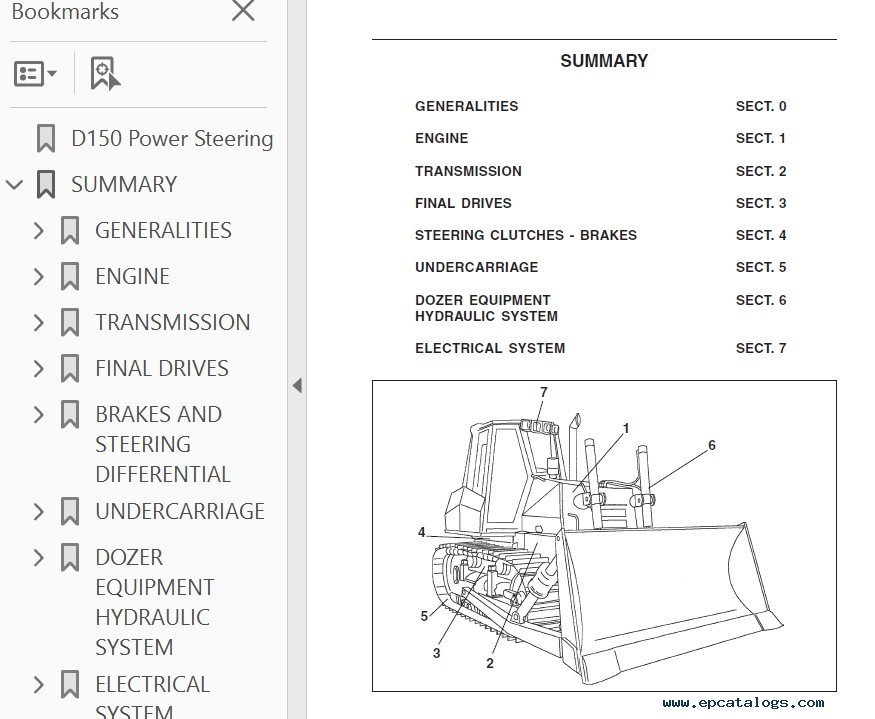

SECTIONS:

• SECTION 0 - GENERALITIES
  • SAFETY RULES
  • TABLE OF CAPACITIES
  • TABLE OF CENTRE OF GRAVITY
  • MAIN DIMENSIONS
  • TABLES OF TECHNICAL DATA
  • CHECK DATA ON THE MACHINE
  • EQUIPMENT MANOEUVRE TIMES
  • TABLE OF WEIGHTS
  • LEAKAGES

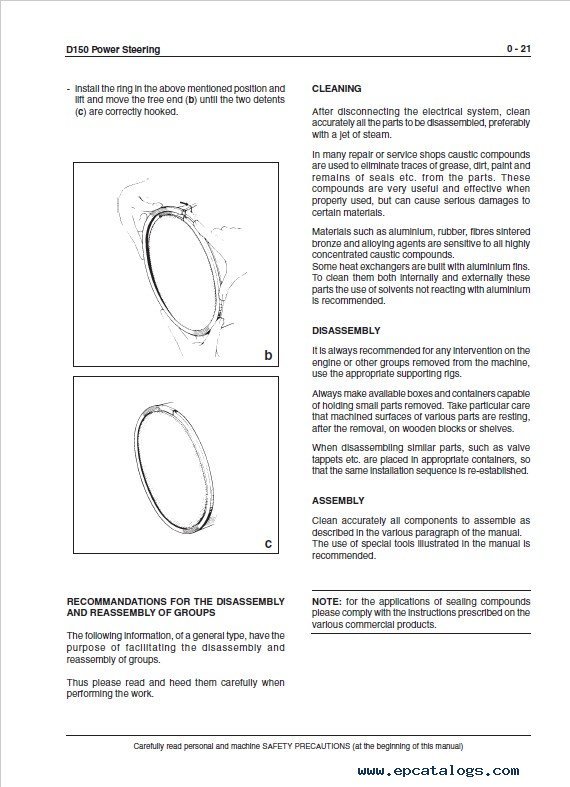

  • GENERAL INSTRUCTIONS
  • DIAGNOSTIC CHECKS
  • UNITS OF MEASURE
  • TABLE OF TIGHTENING TORQUES
• SECTION 1 - ENGINE
  • GENERAL SPECIFICATIONS OF SERIES B ENGINE
  • DESIGN FEATURES
  • SERVICEABILITY
  • SECURING THE ENGINE TO THE FRAME
• SECTION 2 - TRANSMISSION
  • GENERAL DESCRIPTION
  • TESTS
  • PROCEDURES FOR THE REPAIR OF THE TORQUE CONVERTER
  • PROCEDURES FOR THE REPAIR OF THE TRANSMISSION
  • SPECIFICATIONS AND DATA
• SECTION 3 - FINAL DRIVES
  • GENERAL DESCRIPTION
  • REPAIR PROCEDURES
  • SPECIFICATIONS AND DATA

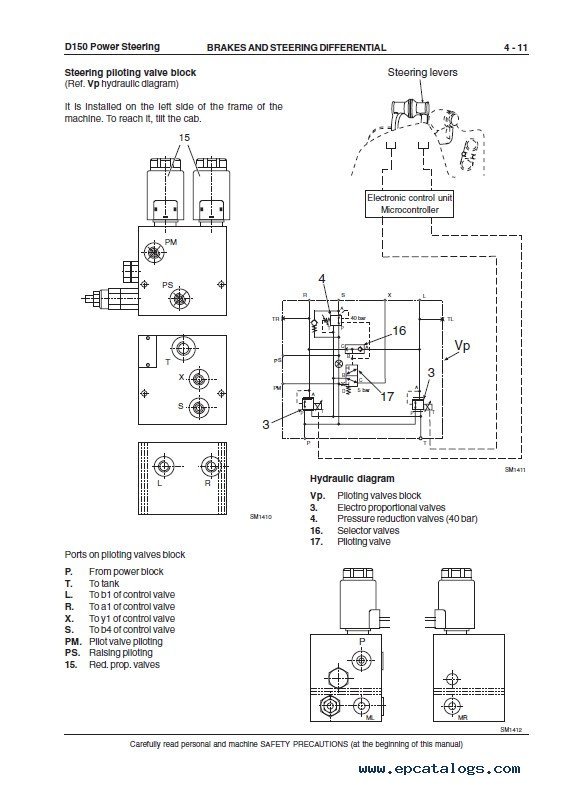

• SECTION 4 - BRAKES AND STEERING DIFFERENTIAL
  • GENERAL DESCRIPTION
  • TROUBLESHOOTING
  • TESTS
  • REPAIR PROCEDURES
  • SPECIFICATIONS AND DATA

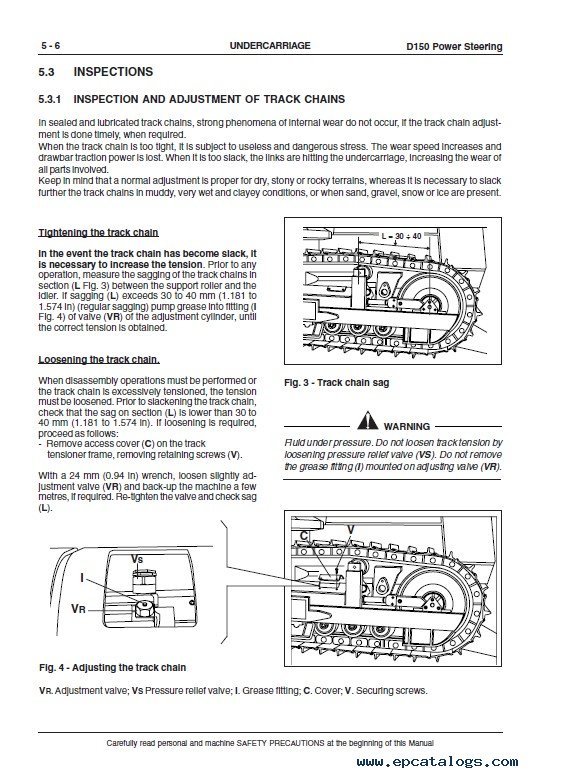

• SECTION 5 - UNDERCARRIAGE
  • GENERAL DESCRIPTION
  • TROUBLESHOOTING
  • INSPECTIONS
  • REPAIR PROCEDURES
  • SPECIFICATIONS AND DATA
• SECTION 6 - DOZER EQUIPMENT HYDRAULIC SYSTEM
  • GENERAL DESCRIPTION
  • TESTS
  • REPAIR PROCEDURES
  • SPECIFICATIONS AND DATA
• SECTION 7 - ELECTRICAL SYSTEM
  • Safety rules
  • Electrical system diagram-protection tree
  • Fuses
  • Fuse links and cold starting fuse
  • Main switch
  • Engine starting switch
  • Backup alarm
  • Starter motor

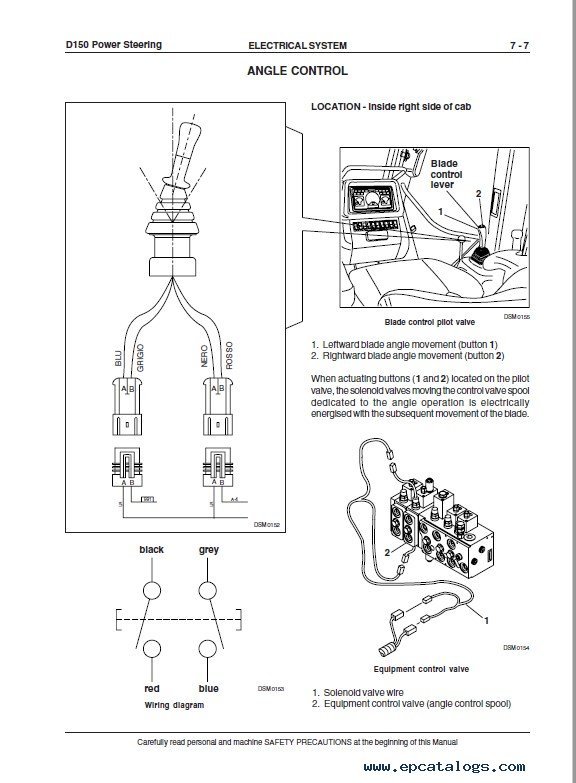

  • Angle control
  • Instrument panel/monitor
  • Electric diagram of monitor instrument panel
  • Monitor senders
  • Display
  • Buzzer
  • Relay group - diode boxes - diverter box
  • 19 - 21 - 23 ways connectors
  • Electrical system diagram
